ANYCUBIC 405nm UV-fotopolymerharpiks brugermanual (grå, 1 kg)

1. Introduktion

This manual provides essential information for the safe and effective use of ANYCUBIC 405nm UV Photopolymer Resin. This high-precision, fast-curing resin is specifically formulated for LCD 3D printing, offering excellent detail and stability for your projects.

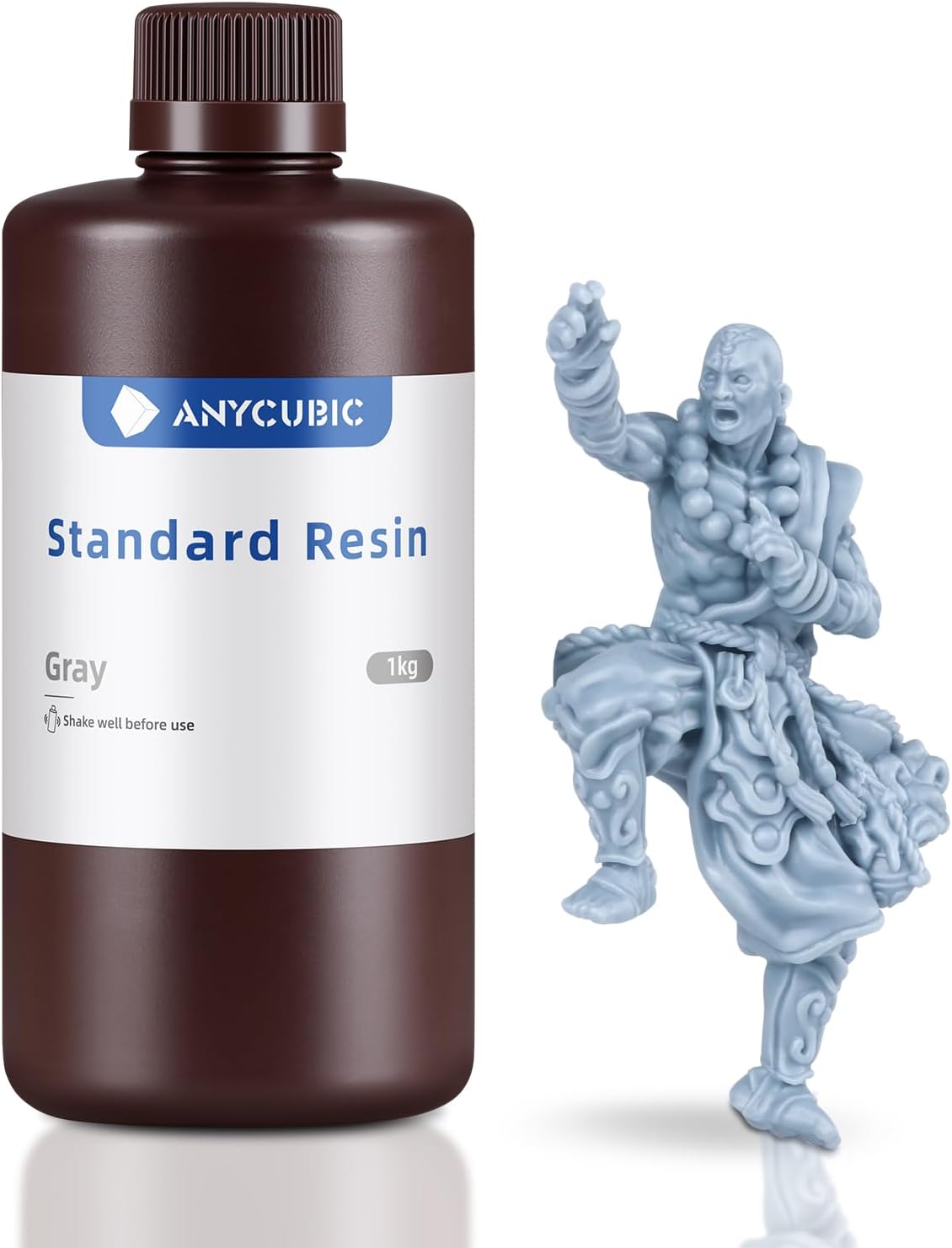

Image: A bottle of ANYCUBIC Standard Resin (Grey, 1kg) next to a detailed grey 3D printed miniature figure, showcasing the resin's capabilities.

2. Sikkerhedsoplysninger

WARNING: UV resin is a chemical product. Always follow safety precautions to prevent injury or exposure.

• Personligt beskyttelsesudstyr (PPE): Always wear chemical-resistant gloves (nitrile or butyl rubber) and safety glasses to protect skin and eyes from direct contact with liquid resin.
• Ventilation: Use the resin in a well-ventilated area to minimize inhalation of fumes. Consider using a respirator if ventilation is inadequate.
• Hudkontakt: In case of skin contact, wash immediately and thoroughly with soap and water. Do not use solvents.
• Øjenkontakt: Ved kontakt med øjnene, skyl straks med rigeligt vand i mindst 15 minutter og søg lægehjælp.
• Indtagelse: Do not ingest. If swallowed, do not induce vomiting. Rinse mouth and seek medical attention immediately.
• Opbevaring: Store resin in a cool, dry, dark place, away from direct sunlight and heat sources. Keep out of reach of children and pets. Ensure the bottle is tightly sealed to prevent moisture and air exposure.
• Bortskaffelse: Dispose of liquid resin and contaminated materials according to local regulations. Cured resin can typically be disposed of as regular plastic waste.

Image: Safety and usage recommendations for resin, emphasizing shaking before use, recommended temperature (25-30°C), wearing gloves, and proper storage away from children and light.

3. Produktet er slutview

ANYCUBIC 405nm UV Photopolymer Resin is engineered for high-performance LCD 3D printing. Key features include:

• Efficient and Stable: High fluidity and fast curing properties ensure efficient printing. Cured models exhibit good stability in humid and corrosive environments.
• Høj præcision: Features low shrinkage (3.72-4.24%) for accurate model reproduction and smooth surface finishes.
• Levende farve: Contains high-quality pigments for bright and consistent color effects in printed objects.
• Universal kompatibilitet: Designed for use with most LCD/DLP 3D printers operating at a 405nm UV wavelength.

Billede: Overview of ANYCUBIC resin properties, including light odor, fluidity, quality, and toughness, with examples of printed models.

4. Opsætning og klargøring

1. Shake the Resin Bottle: Before each use, shake the resin bottle thoroughly for at least 30 seconds to ensure pigments and components are evenly mixed.
2. Optimal temperatur: For best results, use the resin at an ambient temperature between 15°C and 35°C (59°F and 95°F). Lower temperatures can increase resin viscosity, potentially affecting print quality.
3. Printerkompatibilitet: Ensure your 3D printer is compatible with 405nm UV photopolymer resins.
4. Clean the Vat: Before pouring new resin, ensure the resin vat (FEP film) is clean and free of any cured resin particles or debris.
5. Level the Build Plate: Verify that your printer's build plate is properly leveled according to the manufacturer's instructions.

Image: Comparison of old and new ANYCUBIC resin packaging, indicating a product update.

5. Operating Instructions (3D Printing Process)

The following steps outline a general workflow for using ANYCUBIC resin with an LCD 3D printer. Always refer to your specific 3D printer's manual for detailed operating procedures and recommended settings.

1. Prepare Your Model: Use slicing software (e.g., Chitubox, Lychee Slicer) to prepare your 3D model. Add supports as necessary and orient the model for optimal printing.
2. Apply Printing Parameters: Input the recommended printing parameters for ANYCUBIC resin into your slicing software. These parameters can vary based on your specific printer model and desired layer thickness.
3. Pour Resin: Carefully pour the shaken resin into the printer's resin vat, ensuring it does not exceed the maximum fill line.
4. Start udskrivning: Overfør det snittede file to your 3D printer and initiate the printing process. Monitor the first few layers to ensure proper adhesion.
5. Efterbehandling: Once printing is complete, carefully remove the build plate.

Anbefalede udskrivningsparametre

The table below provides general recommended settings for various ANYCUBIC Photon series printers. These are starting points and may require fine-tuning for your specific environment and desired print quality.

Image: A detailed table listing recommended printing parameters for different ANYCUBIC Photon 3D printer models.

Billede: Eksamples of intricate 3D printed models, showcasing the resin's ability to produce high-precision objects with minimal shrinkage.

6. Vedligeholdelse og opbevaring

1. Cleaning Prints: After printing, carefully remove the model from the build plate. Wash the printed model with isopropyl alcohol (IPA) or a dedicated resin cleaner to remove uncured resin. Use a soft brush if necessary.
2. Curing Prints: Place the cleaned model in a UV curing station or expose it to direct sunlight until fully cured. Ensure all surfaces are exposed to UV light for complete hardening.
3. Resin Storage:
   • Store unused resin in its original, opaque bottle, tightly sealed.
   • Keep the resin in a cool, dry, and dark place, ideally between 15°C and 35°C (59°F and 95°F).
   • Avoid direct sunlight or any UV light exposure, as this will cure the resin in the bottle.
   • If resin has been in the vat for an extended period, filter it back into the bottle through a mesh filter to remove any cured particles before storing.

7. Fejlfinding af almindelige problemer

While ANYCUBIC resin is designed for reliability, issues can occasionally arise. Here are some general troubleshooting tips:

• Failed Prints/Poor Adhesion:
  • Ensure the build plate is properly leveled and clean.
  • Increase bottom exposure time to improve initial layer adhesion.
  • Verify the ambient temperature is within the recommended range.
  • Check the FEP film for damage or cloudiness.
• Layer Separation/Delamination:
  • Increase normal exposure time slightly.
  • Ensure the resin is thoroughly mixed.
  • Check for stable room temperature during printing.
• Soft or Brittle Prints:
  • Ensure models are fully cleaned of uncured resin before curing.
  • Increase post-curing time or intensity.

8. Produktspecifikationer

Image: Detailed product parameters for ANYCUBIC Standard Resin.

9. Garanti og support

For warranty information, technical support, or further assistance, please visit the official ANYCUBIC webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering til garantikrav.

Official ANYCUBIC Store: ANYCUBIC Officiel Butik på Amazon
