1. Introduktion og overview
Thank you for choosing the PAL Lighting EvenGlow Spa Light. This LED spa light is designed to provide vibrant, multi-color illumination for your spa, enhancing your experience with its energy-efficient and long-lasting design. Featuring a serviceable and detachable EvenGlow lens, this light operates on a safe 12VDC or 24VDC power supply and consumes 7 watts of power.
This manual provides essential information for the safe installation, operation, and maintenance of your EvenGlow Spa Light. Please read it thoroughly before installation and keep it for future reference.
2. Sikkerhedsoplysninger
WARNING: Risk of Electric Shock. Always disconnect power at the circuit breaker before installing or servicing this product.
- Installation must be performed by a qualified electrician or pool/spa professional in accordance with all local and national electrical codes.
- Sørg for, at strømforsyningen voltage matches the light's requirements (12VDC or 24VDC).
- Do not operate the light if the cord or lens is damaged.
- Hold børn væk fra installationsområdet.
- This product is designed for outdoor spa use only.
3. Pakkens indhold
Pak forsigtigt kassen ud, og sørg for, at alle dele er til stede og ubeskadigede:
- PAL Lighting EvenGlow Spa Light (with attached 80 ft cord)
- Installation Screw (typically one)

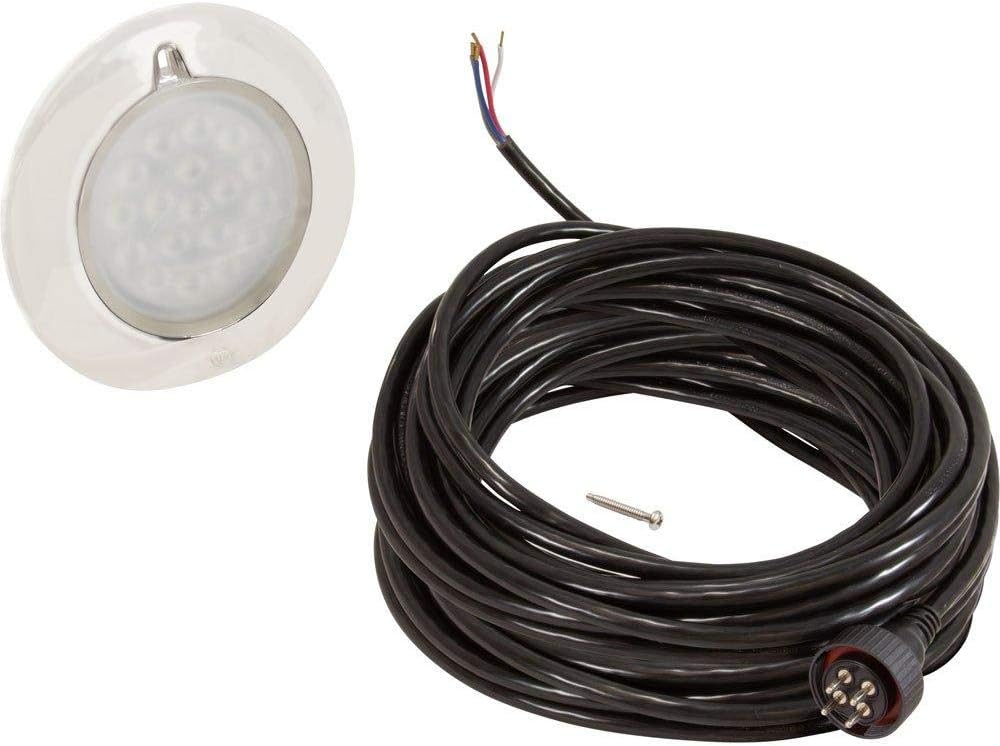

Image: The EvenGlow Spa Light unit shown alongside its coiled 80-foot power cord, ready for installation.
Image: The retail packaging for the EvenGlow Spa Light, displaying product branding and key features.
4. Opsætning og installation
The PAL Lighting EvenGlow Spa Light is designed for easy installation into compatible spa niches. Professional installation is highly recommended to ensure proper wiring and adherence to safety standards.
4.1 Kontrol før installation
- Verify that the spa niche is clean and free of debris.
- Ensure the power supply (transformer) is compatible with 12VDC or 24VDC output and has sufficient wattage for the light (7W).
- Confirm the 80 ft cord length is adequate for your installation without requiring extensions or splices underwater.
Billede: Bagside view of the EvenGlow Spa Light, showing the robust connection point for the power cord.
4.2 Installationstrin (generel vejledning)
- Afbryd strømmen: Turn off all power to the spa at the main circuit breaker.
- Kabelrute: Carefully feed the 80 ft power cord through the conduit to the transformer location. Ensure there are no kinks or sharp bends in the cable.
- Monter lys: Position the EvenGlow Spa Light into the spa niche. Secure it using the provided screw, ensuring a snug fit.
- Tilslut til transformer: At the transformer, connect the light's low-voltage wires to the appropriate 12VDC or 24VDC output terminals, following the transformer's instructions. Pay close attention to polarity if specified.
- Prøve: Once all connections are secure and verified, restore power to the spa and test the light's functionality.

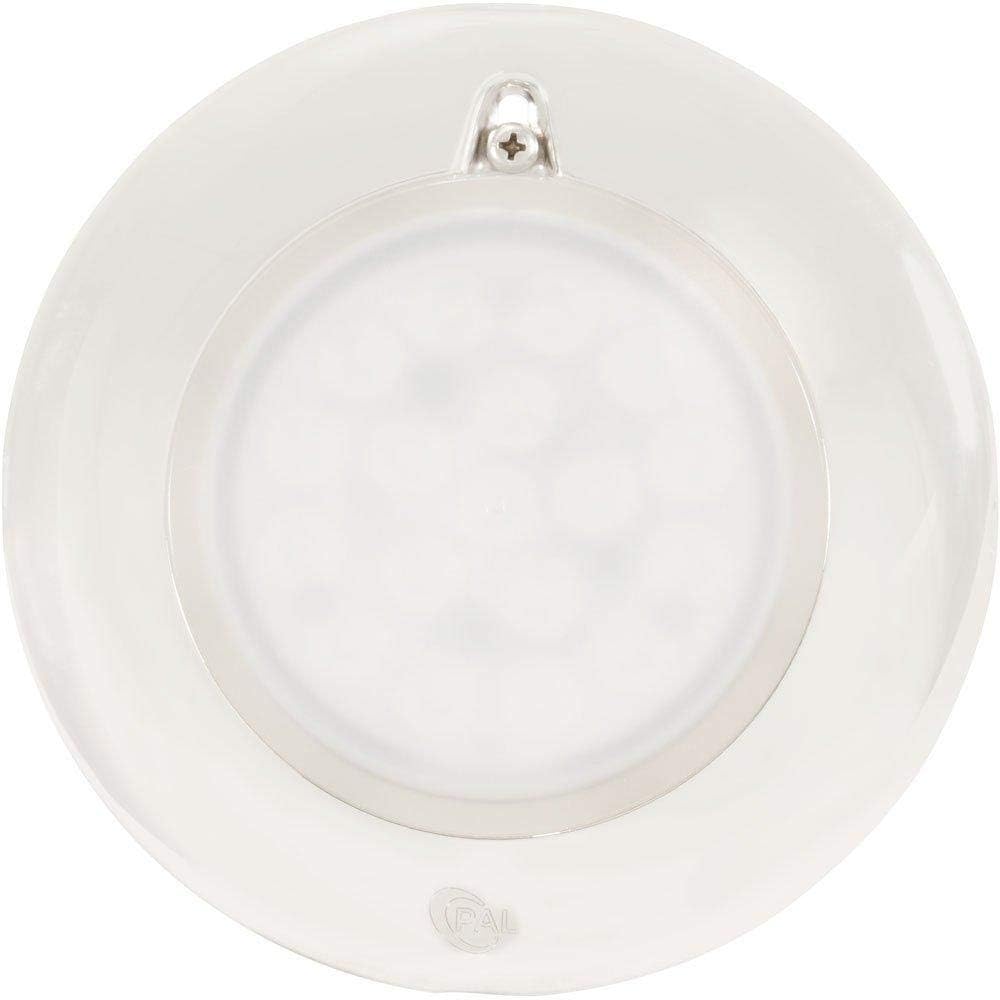

Billede: Forside view of the EvenGlow Spa Light, showcasing its smooth lens and compact design.
5. Betjeningsvejledning
The PAL Lighting EvenGlow Spa Light features multi-color illumination and can be controlled via a push button or an app, depending on your specific control system (sold separately).
5.1 Color Changing Functionality
The EvenGlow light cycles through various colors and color shows. The method to change colors typically involves a momentary power interruption or a dedicated control system:
- Tryk knap kontrol: If connected to a compatible push-button controller, rapidly toggle the light switch OFF and ON to advance to the next color or mode. Pause for a few seconds to set the current color.
- App kontrol: If integrated with a smart home or spa control system that supports app control, refer to the specific app's instructions for selecting colors, brightness, and light shows.
Refer to your spa's main control system manual for detailed instructions on how to operate the light functions.
6. Vedligeholdelse
Regular maintenance will ensure the longevity and optimal performance of your EvenGlow Spa Light.
- Rensning: Periodically clean the light lens with a soft cloth and mild, non-abrasive cleaner suitable for spa surfaces. Avoid harsh chemicals that could damage the lens or surrounding materials.
- Inspektion: Annually inspect the light's cord for any signs of wear, cracks, or damage. Check the light housing for any signs of water ingress or deterioration.
- Udskiftning af objektiv: The EvenGlow lens is designed to be serviceable and detachable. If replacement is necessary, consult a qualified professional or PAL Lighting support for guidance.
- Vinterisering: If your spa is winterized, ensure the light is properly drained and protected according to your spa manufacturer's guidelines.
7. Fejlfinding
If you experience issues with your EvenGlow Spa Light, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til lyset. Fejlbehæftet ledningsforbindelse. Damaged light or cord. | Check circuit breaker and power supply. Kontroller, at alle elektriske forbindelser er sikre (consult a professional). Inspect light and cord for visible damage. If damaged, replace the unit. |
| Light flickers or changes colors erratically. | Ustabil strømforsyning. Løs forbindelse. Interferens fra andre elektriske apparater. | Sørg for stabil voltage from transformer. Kontroller og fastgør alle ledningsforbindelser. Consult a professional to diagnose electrical interference. |
| Colors are incorrect or not cycling. | Incorrect control sequence. Fejl i kontrolsystemet. | Refer to your spa's control system manual for correct color change procedures. Contact your spa control system manufacturer for support. |
If troubleshooting steps do not resolve the issue, contact a qualified pool/spa technician or PAL Lighting customer support.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 64-EGM-80 |
| Mærke | PAL-belysning |
| Lys type | LED, Small Niche |
| Speciel funktion | Farveændring |
| Wattage | 7 watt |
| Voltage | 12VDC / 24VDC |
| Lys farve | Flerfarvet |
| Ledningslængde | 80 fod |
| Produktdimensioner | 10.1 x 10.1 x 5.6 tommer |
| Varens vægt | 6.5 pund |
| Materiale | Glas |
| Indendørs/Udendørs brug | Outdoor (Spa) |
| Kontrolmetode | Push Button, App (with compatible system) |
9. Garantioplysninger
Specific warranty terms for the PAL Lighting EvenGlow Spa Light are provided by the manufacturer. Please refer to the warranty card included with your product or visit the official PAL Lighting website for detailed warranty coverage, terms, and conditions. Keep your proof of purchase for warranty claims.
10. Kundesupport
For technical assistance, replacement parts, or further inquiries regarding your PAL Lighting EvenGlow Spa Light, please contact PAL Lighting customer support. Contact information can typically be found on the product packaging or the official PAL Lighting webwebsted.
Fabrikant: PAL PRODUCTS, INC.
Please have your product model number (64-EGM-80) and purchase date ready when contacting support.
