FrigeluX RFDP246RRA++ Retro Vintage Køleskabsbrugsanvisning

1. Vigtige sikkerhedsoplysninger

Read all instructions before using the appliance to ensure safe operation and prevent injury or damage. Keep this manual for future reference.

• Elektrisk sikkerhed: Ensure the appliance is connected to a properly grounded electrical outlet. Do not use extension cords or adapters. Disconnect power before cleaning or maintenance.
• Ventilation: Sørg for tilstrækkelig ventilation omkring apparatet for at forhindre overophedning. Bloker ikke ventilationsåbningerne.
• Brandfarlige materialer: Opbevar ikke eksplosive stoffer eller brandfarlige materialer inde i apparatet.
• Børns sikkerhed: Dette apparat er ikke beregnet til at blive brugt af personer (herunder børn) med nedsatte fysiske, sensoriske eller mentale evner eller manglende erfaring og viden, medmindre de har fået opsyn eller instruktion.
• Bortskaffelse: Dispose of the appliance according to local regulations for refrigerants and flammable blowing gas.

2. Opsætning og installation

2.1 Udpakning

Carefully remove all packaging materials, including foam, tape, and protective films. Inspect the appliance for any damage during transit. Report any damage to your retailer immediately.

2.2 Placering

Position the refrigerator on a firm, level surface away from direct sunlight, heat sources (e.g., oven, radiator), and extreme cold. Ensure sufficient space around the appliance for proper air circulation. The dimensions of the appliance are approximately 58 cm (dybde) x 55 cm (bredde) x 167 cm (højde).

Apparatet er udstyret med 3 justerbare fødder og 2 hjul for easy positioning and leveling. Adjust the feet to ensure the refrigerator is stable and level, which is crucial for efficient operation and door alignment.

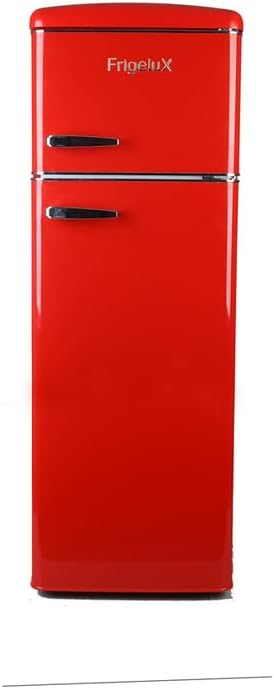

Billede 1: Forside view of the FrigeluX RFDP246RRA++ Retro Vintage Refrigerator in red.

2.3 Dørvendbarhed

The refrigerator doors are reversible, allowing them to open from either the left or right side to suit your kitchen layout. Consult a qualified technician or the full service manual for detailed instructions on reversing the doors.

2.4 Indledende rengøring

Before first use, clean the interior and all internal accessories with lukewarm water and a mild detergent. Wipe dry thoroughly.

2.5 Strømtilslutning

After positioning and leveling, wait at least 2-4 hours before plugging the appliance into a dedicated, grounded electrical outlet. This allows the refrigerant to settle. The appliance operates on 240 volt and has a power consumption of 75 watt.

2.6 Første brug

Once plugged in, set the temperature control to a medium setting and allow the refrigerator to cool for several hours (at least 4-6 hours) before loading it with food.

3. Betjeningsvejledning

3.1 Temperaturkontrol

The refrigerator features a mekanisk termostat for simple and precise temperature adjustment. Rotate the dial to select the desired cooling level. Higher numbers typically indicate colder temperatures.

3.2 Køleskab

The refrigerator compartment has a volume of 194 liter. It includes 5 justerbare glashylder, 3 door balconies for bottles and smaller items, and 1 vegetable crisper drawer to keep produce fresh.

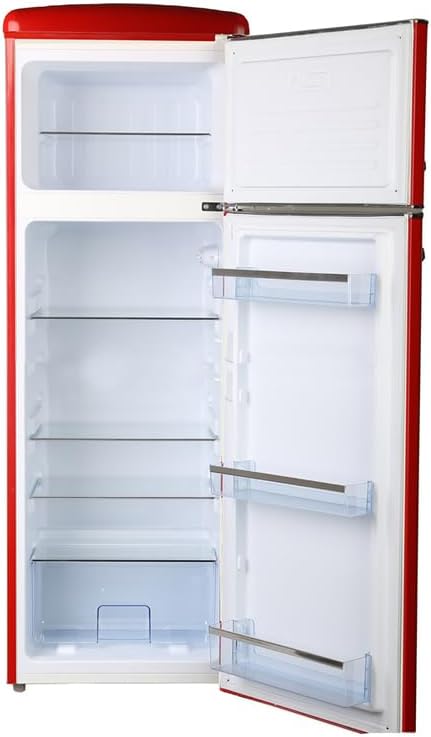

Billede 2: Interiør view showing glass shelves, door balconies, and vegetable crisper.

3.3 Fryseafdeling

The freezer compartment has a volume of 52 liter and is rated 4-stjernet, suitable for long-term storage of frozen foods. In case of a power outage, the freezer maintains autonomy for approximately 8 timer.

3.4 Indvendig LED-belysning

The refrigerator is equipped with energy-efficient LED belysning, providing clear visibility of the contents.

3.5 Vanddispenser

This model includes a water dispenser feature. Refer to the full product manual for specific instructions on filling, using, and cleaning the water dispenser.

4. Vedligeholdelse og rengøring

4.1 Rengøring af indersiden

Regularly clean the interior with a solution of lukewarm water and a small amount of baking soda or mild detergent. Avoid abrasive cleaners. Remove shelves and drawers for thorough cleaning. Ensure the appliance is unplugged before cleaning.

4.2 Rengøring af ydersiden

Wipe the exterior surfaces with a soft cloth and mild detergent. For the stainless steel components, use a specialized stainless steel cleaner. Keep the condenser coils at the back clean to maintain efficiency.

4.3 Optøning

Køleskabet har en automatic defrost system, minimizing the need for manual defrosting in the refrigerator compartment. The freezer compartment may require occasional manual defrosting if ice buildup becomes excessive. Refer to the full manual for detailed defrosting procedures.

4.4 Tips til strømbesparelse

• Placer ikke varm mad direkte i køleskabet.
• Undgå at åbne dørene for ofte eller i længere perioder.
• Ensure door seals are clean and intact.
• Keep the condenser coils clean.
• The appliance has an energy efficiency rating of Klasse E with an annual energy consumption of 189 kWh.

Image 3: Energy label indicating Class E efficiency and 189 kWh/annum consumption.

For yderligere oplysninger, besøg EPREL-databasen: https://eprel.ec.europa.eu/qr/375159

5. Fejlfinding

Før du kontakter service,view følgende almindelige problemer og løsninger:

• Apparatet fungerer ikke: Kontroller om netledningen er korrekt tilsluttet, og om der er strøm i stikkontakten.
• Temperaturen er ikke kold nok: Ensure the thermostat setting is appropriate. Check if the doors are fully closed and not opened too frequently. Verify that the appliance is not overloaded with food.
• Overdreven støj: Check if the appliance is level. Ensure no objects are vibrating against the back or sides.
• Vand på gulvet: Check if the drain hole is blocked or if the drip tray is overflowing.

If the problem persists after checking these points, contact customer support.

6. Specifikationer

Image 4: Product Information Sheet with detailed technical data.

7. Garanti og support

This FrigeluX appliance comes with a manufacturer's warranty of 12 måneder fra købsdatoen. Gem venligst din købsbevis i tilfælde af garantikrav.

For technical assistance, warranty service, or to order spare parts, please contact your retailer or the official FrigeluX customer support. The manufacturer is Frio Entreprise (Climadiff-Sommelière-FrigeluX).

For further information, you may refer to the official FrigeluX webwebstedet eller kontakt deres kundeserviceafdeling. Kontaktoplysninger findes typisk på producentens webwebstedet eller i din købsdokumentation.
