Cisco Meraki C9120AXI-B Catalyst 9120AXI Wi-Fi 6 adgangspunkt brugermanual

1. Introduktion

This manual provides instructions for the installation, configuration, operation, and maintenance of the Cisco Meraki C9120AXI-B Catalyst 9120AXI Wi-Fi 6 802.11ax Indoor Wireless Access Point. Please read this manual thoroughly before operating the device to ensure proper functionality and safety.

2. Produktet er slutview

The Cisco Meraki C9120AXI-B is an indoor wireless access point designed for high-performance Wi-Fi 6 (802.11ax) connectivity. It supports dual-band operation and features advanced technologies for efficient wireless communication.

2.1 Nøglefunktioner

• Wi-Fi 6 (802.11ax) certification for enhanced speed and efficiency.
• Dual-Band operation for flexible network deployment.
• OFDMA and MU-MIMO technologies for improved multi-user performance.
• Integrated Bluetooth 5.0 LE for IoT applications.
• Multigigabit Ethernet support for high-speed wired connectivity.
• Internal antennas for a streamlined design.

2.2 Pakkens indhold

Bekræft, at din pakke indeholder følgende varer:

• Cisco Meraki C9120AXI-B Wireless Access Point
• Monteringsbeslag
• Dokumentation (denne manual)

2.3 Enhedslayout

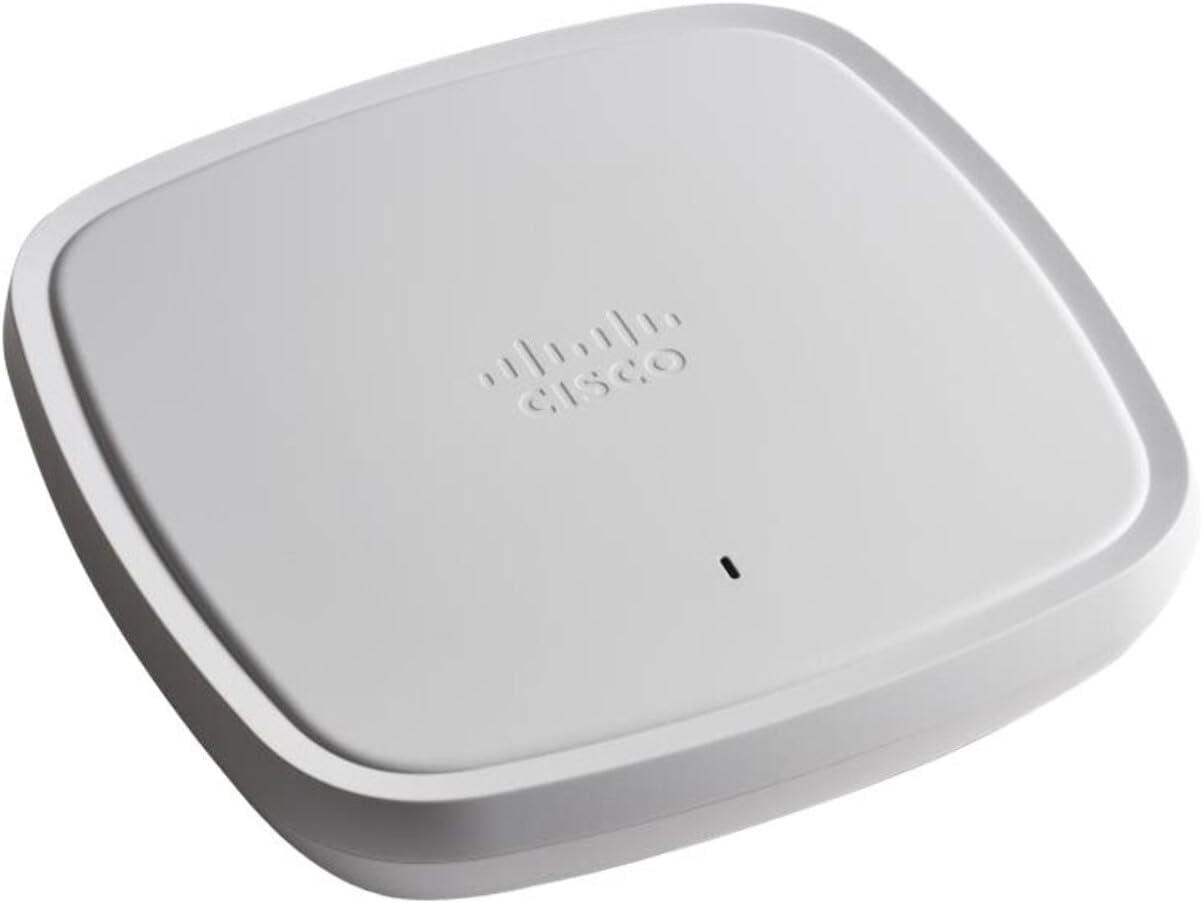

Figur 1: Front view of the Cisco Meraki C9120AXI-B Wireless Access Point. The device is a white, square-shaped unit with rounded corners, featuring the Cisco Meraki logo and a small LED indicator on its top surface.

3. Opsætning

Follow these steps to properly set up your Cisco Meraki C9120AXI-B access point.

3.1 Montering af adgangspunktet

1. Identify a suitable location for installation, ensuring optimal Wi-Fi coverage and proximity to a power source and network connection.
2. Attach the mounting bracket to a wall or ceiling using appropriate hardware (not included, except for the bracket itself).
3. Align the access point with the mounting bracket and secure it by twisting or sliding until it clicks into place.

3.2 Tilslutning til netværk og strøm

1. Connect an Ethernet cable from your network switch (preferably PoE-enabled) to the Ethernet port on the access point.
2. If Power over Ethernet (PoE) is not available, connect a compatible power adapter (sold separately) to the access point's power input and then to an electrical outlet.
3. Observe the LED indicator. It will cycle through various states during startup and indicate operational status.

3.3 Indledende konfiguration

The Cisco Meraki C9120AXI-B requires cloud-based management through the Meraki Dashboard. Refer to the Meraki documentation for detailed instructions on claiming the device and configuring your network settings.

• Access the Meraki Dashboard via a web browser.
• Add the access point to your network using its serial number.
• Configure SSIDs, security settings, and other network parameters as required.

4. Betjening af adgangspunktet

Once configured, the access point operates automatically to provide wireless connectivity. The LED indicator provides visual feedback on its status.

4.1 LED-indikatorstatus

4.2 Trådløs forbindelse

Client devices can connect to the Wi-Fi networks broadcast by the access point using the configured SSIDs and passwords. Ensure client devices support Wi-Fi 6 (802.11ax) for optimal performance, though backward compatibility with older standards is maintained.

5. Vedligeholdelse

Regular maintenance helps ensure the longevity and optimal performance of your access point.

• Rensning: Gently wipe the exterior of the device with a soft, dry cloth. Do not use liquid cleaners or aerosols.
• Firmwareopdateringer: Firmware updates are managed automatically through the Meraki cloud. Ensure your device has a stable internet connection to receive these updates.
• Miljøforhold: Ensure the access point is operated within its specified temperature and humidity ranges to prevent damage. Avoid placing it near heat sources or in direct sunlight.

6. Fejlfinding

This section addresses common issues you might encounter with your access point.

6.1 No Power / LED Off

• Verify that the Ethernet cable is securely connected and the PoE source is active.
• If using a power adapter, ensure it is correctly plugged into both the access point and a working electrical outlet.

6.2 Solid Amber LED

• This indicates the device is powered but cannot connect to the Meraki cloud.
• Check your network connectivity and firewall settings to ensure the access point can reach the Meraki cloud servers.
• Confirm that the Ethernet cable is connected to a port with internet access.

6.3 Dårlig Wi-Fi-ydeevne

• Ensure the access point is centrally located and free from obstructions.
• Kontrollér for interferenskilder (f.eks. mikrobølgeovne, trådløse telefoner).
• Bekræft, at dine klientenheder understøtter Wi-Fi 6 for optimal ydeevne.
• Review your Meraki Dashboard settings for channel optimization and power levels.

6.4 Fabriksindstilling

A factory reset will revert all settings to their default state and remove the device from your Meraki network. This should only be performed as a last resort or when instructed by support.

1. With the device powered on, locate the reset button (typically a small pinhole).
2. Use a paperclip or similar pointed object to press and hold the reset button for at least 10 seconds.
3. Release the button. The device will reboot and perform a factory reset.

7. Specifikationer

8. Garanti og support

For warranty information and technical support, please refer to the official Cisco Meraki website or contact your authorized reseller. This product is often sold as "Renewed," which may come with specific Amazon Renewed Guarantee terms. Please consult your purchase documentation for details regarding your specific warranty coverage.

Online ressourcer: For the latest documentation, firmware, and support resources, visit the official Cisco Meraki support portal.
