VEVOR ul001 3-Layer Lab Cart Instruction Manual

1. Introduktion

This manual provides essential instructions for the safe and efficient assembly, operation, and maintenance of your VEVOR ul001 3-Layer Lab Cart. Please read this manual thoroughly before use and retain it for future reference.

The VEVOR ul001 is a versatile 3-layer utility cart designed for various professional environments such as hospitals, laboratories, clinics, and spas. It features a robust stainless steel construction, providing ample storage and easy mobility.

Image 1.1: VEVOR ul001 3-Layer Lab Cart in a laboratory environment.

2. Sikkerhedsoplysninger

• Always ensure the cart is on a stable, level surface before loading items.
• Do not exceed the maximum weight capacity of 70.5 lbs (32 kg). Distribute weight evenly across the shelves.
• Engage the locking casters when the cart needs to remain stationary to prevent accidental movement.
• Keep hands and fingers clear of moving parts, especially during assembly and when adjusting components.
• Regularly inspect the cart for any signs of damage or loose components. Do not use if damaged.
• Clean the cart with appropriate, non-abrasive cleaning agents suitable for stainless steel.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før monteringen påbegyndes:

• 1 x Lab Cart (disassembled components)
• 1 x Install Accessories (screws, wrench, etc.)

4. Monteringsvejledning

The VEVOR ul001 Lab Cart is designed for quick assembly, typically within 10 minutes. Follow these steps:

1. Pak alle komponenter ud, og læg dem på en ren, plan overflade.
2. Attach the bottom shelf to the main support column using the provided screws and tools. Ensure a secure and stable connection.
3. Install the middle shelf onto the main support column, aligning it with the pre-drilled holes. Fasten securely.
4. Attach the top shelf to the main support column, ensuring all connections are tight and stable.
5. Mount the four swivel casters to the underside of the bottom shelf. Two of these casters are equipped with locking mechanisms.
6. Verify that all screws are tightened and the cart is stable before use.

Image 4.1: Assembly diagram illustrating connection points.

5. Betjeningsvejledning

Your VEVOR ul001 Lab Cart is designed for easy maneuverability and secure placement.

5.1 Flytning af vognen

• Ensure both locking casters are in the unlocked position before attempting to move the cart.
• Use the side handle to push or pull the cart. The universal swivel wheels allow for smooth, effortless movement in any direction.
• Avoid sudden stops or turns, especially when the cart is heavily loaded, to prevent items from falling.

5.2 Securing the Cart

• Once the cart is in the desired position, engage the locking mechanisms on the two designated casters. This will prevent the cart from rolling.
• Always engage the locks when loading or unloading items, or when the cart is left unattended.

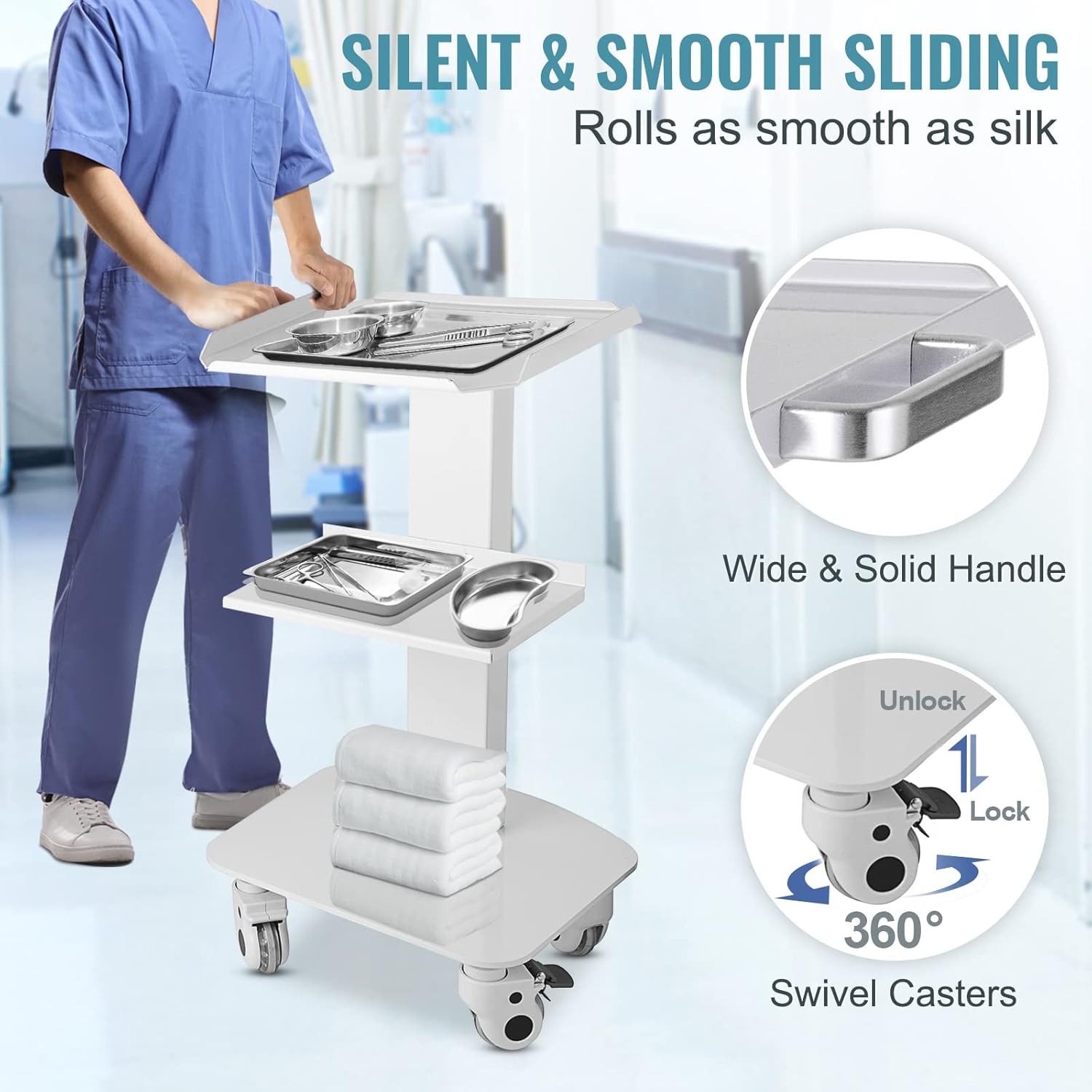

Image 5.1: Caster with lock/unlock mechanism.

6. Vedligeholdelse

Proper maintenance ensures the longevity and hygiene of your VEVOR ul001 Lab Cart.

• Rensning: The stainless steel surface is rust-proof and easy to clean. Wipe down all surfaces regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the finish.
• Inspektion: Kontrollér regelmæssigt alle skruer og fastgørelseselementer for at sikre, at de er spændte. Spænd dem igen om nødvendigt.
• Hjul: Keep the caster wheels free of debris (hair, lint, etc.) to ensure smooth rolling. Lubricate the swivel mechanisms if they become stiff.
• Opbevaring: Store the cart in a dry environment when not in use.

7. Fejlfinding

If you encounter issues with your VEVOR ul001 Lab Cart, refer to the following common solutions:

• Vognen ruller ikke jævnt: Check casters for debris or obstructions. Ensure locking mechanisms are fully disengaged. Lubricate swivel points if needed.
• Vognen føles ustabil eller vaklende: Verify that all assembly screws are securely tightened. Ensure weight is evenly distributed on the shelves and not exceeding capacity.
• Items sliding off shelves: Utilize the integrated guardrails on the shelves to help contain items. Ensure the cart is moved carefully, especially over uneven surfaces.

8. Specifikationer

Billede 8.1: Detaljerede produktdimensioner og vægtkapaciteter.

9. Garanti og support

For garantioplysninger eller teknisk support henvises til de kontaktoplysninger, der fulgte med dit køb, eller besøg den officielle VEVOR-side. webwebstedet. Behold din købskvittering som købsbevis.
