Brugermanual til Vornado Velocity 5 helrumsvarmer

1. Introduktion

The Vornado Velocity 5 Whole Room Space Heater is designed to provide efficient and consistent warmth throughout your space. Utilizing Velocity Tuned Heat technology, it delivers hotter air faster and farther, ensuring comprehensive heating. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your heater.

Figure 1: Vornado Velocity 5 Whole Room Space Heater, showcasing dens kompakte design og frontgrill.

2. Vigtige sikkerhedsforanstaltninger

Af hensyn til din sikkerhed og for at forhindre skader på produktet, bedes du overholde følgende:

• Cool-Touch eksteriør: The heater features a cool-touch exterior, ensuring the outer casing remains safe to touch during operation.
• Locking Controls: Controls can be locked to prevent unintended adjustments, ideal for households with children.
• Beskyttelse mod væltning: The unit is equipped with an automatic shut-off mechanism that activates if the heater is accidentally tipped over.
• Automatic Safety Shut-Off: In case of excessive heat or blocked airflow, the heater will automatically shut off to prevent overheating.
• Voltage Krav: Denne vare er bygget til at opfylde amerikansketage requirements (120 Volts) and may not function properly with external devices that alter or convert voltage or frequency. Improper use outside the U.S. will void all warranties.

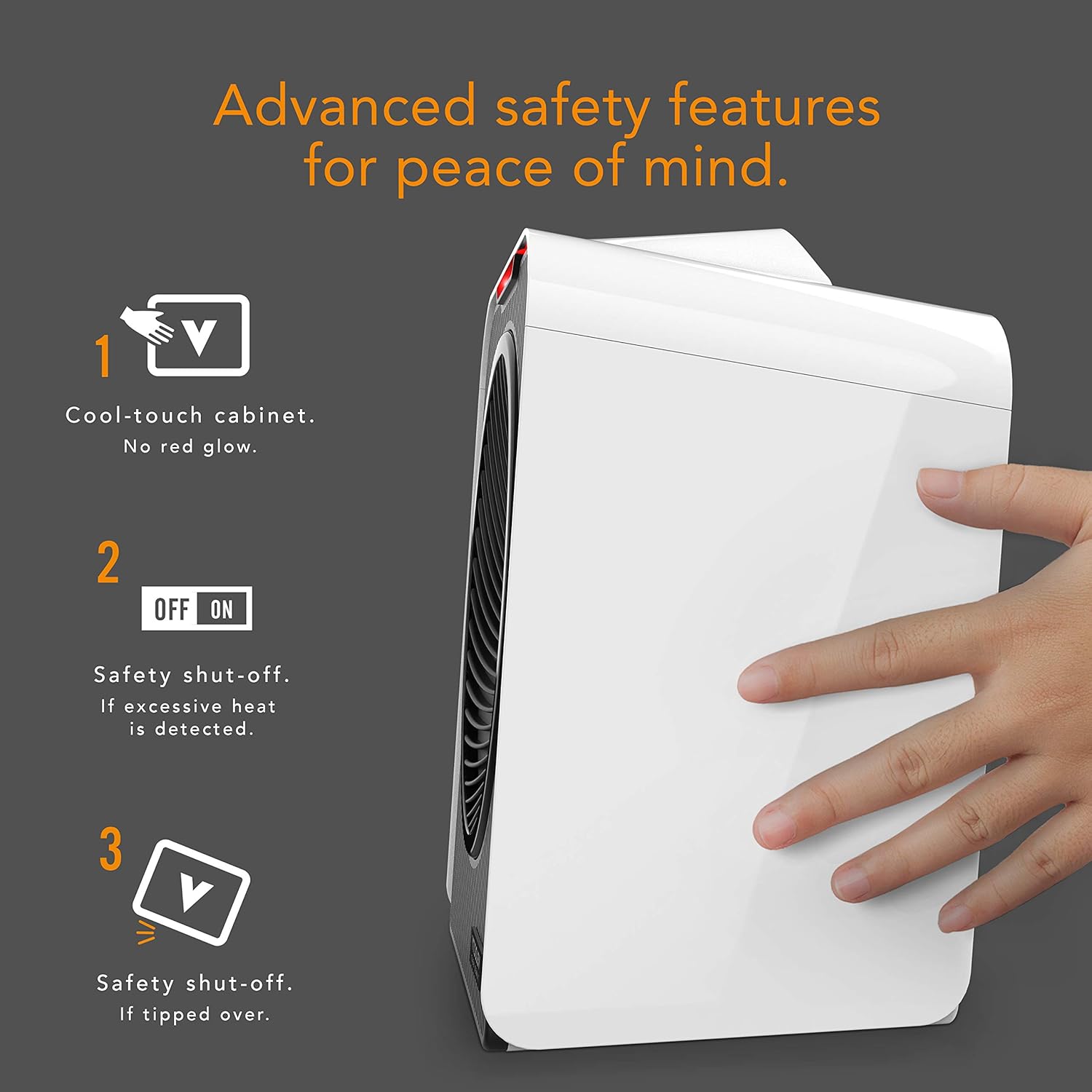

Figure 2: Illustration of the heater's safety features, including cool-touch cabinet, safety shut-off for excessive heat, and tip-over protection.

3. Opsætning

Follow these steps to set up your Vornado Velocity 5 heater:

1. Udpakning: Carefully remove the heater from its packaging. Retain packaging for storage.
2. Placering: Place the heater on a firm, level surface. Ensure there are no obstructions to the air intake or outlet.
3. Strømtilslutning: Plug the power cord directly into a standard 120V AC wall outlet. Do not use extension cords or power strips.

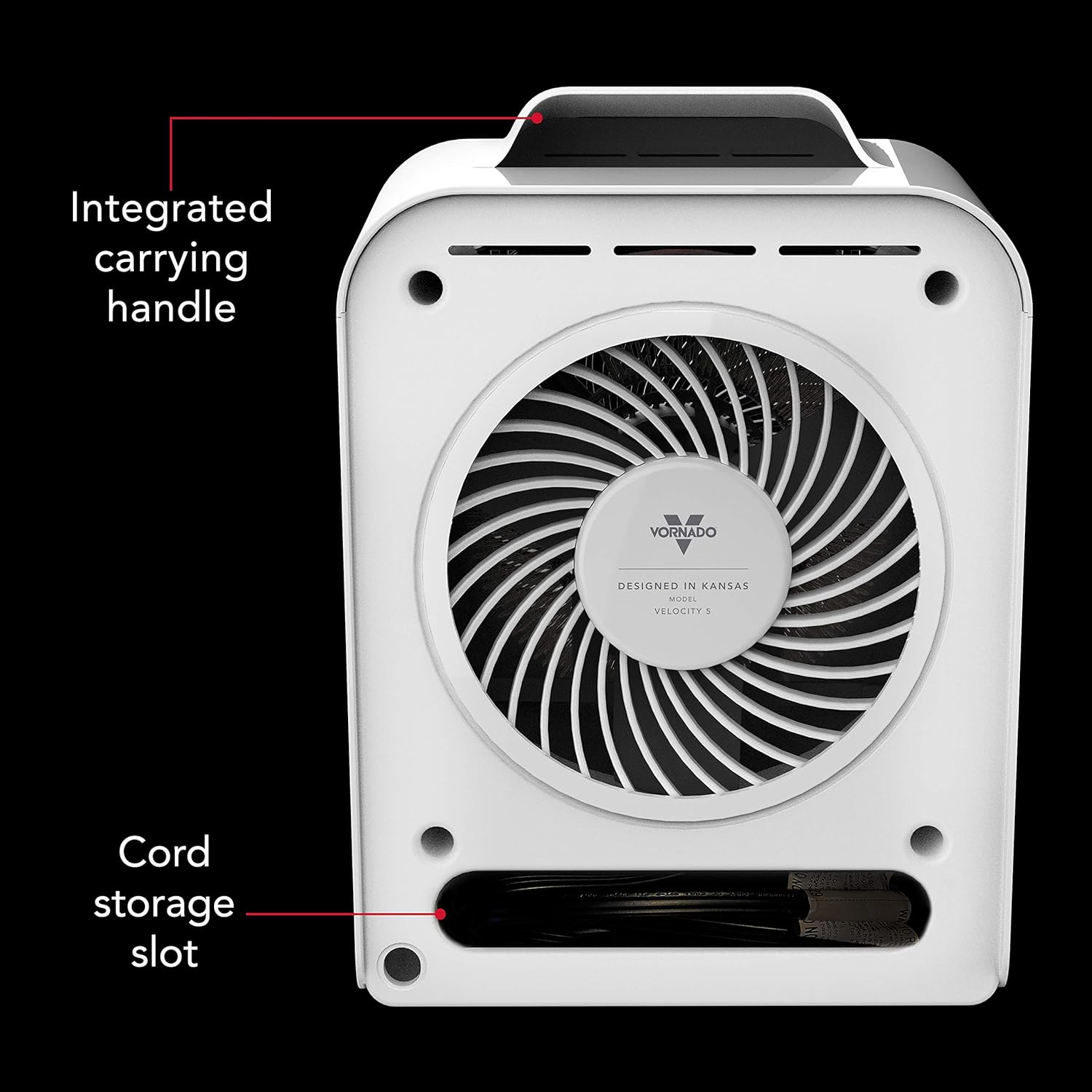

Figure 3: The heater features an integrated carrying handle for easy portability and a cord storage slot for neat organization when not in use.

4. Betjeningsvejledning

The Vornado Velocity 5 features intuitive LED touch controls for easy operation.

4.1 Kontrolpanel overview

Figur 4: Detaljeret view of the LED touch control panel, showing heat settings, nighttime mode, locking controls, and timer.

4.2 Tænd/sluk

• Tryk på tænd / sluk-knappen (⏻) to turn the unit On or Off.

4.3 varmeindstillinger

Choose between two heat settings or a fan-only option:

• Høj varme: Provides maximum warmth.
• Lav varme: For gentler heating and energy efficiency.
• Kun fan: Circulates air without heat, useful for year-round comfort.

4.4 Auto Climate Control

The heater intelligently senses the room's temperature and adjusts heat output and circulation automatically to maintain your desired set temperature.

4.5 Timer funktion

Set the heater to operate for a specific duration:

• The timer can be set for 1 to 12 hours.
• Enheden slukker automatisk, når den indstillede tid er udløbet.

4.6 Nighttime Mode

For undisturbed sleep, activate Nighttime Mode:

• This mode turns off all non-essential lights on the LED display.

4.7 Locking Controls

To prevent accidental changes to settings:

• Engage the control lock feature. Refer to the control panel diagram for the specific button.

4.8 Vortex Heat Circulation

The Vornado Velocity 5 uses Vortex Heat Circulation to distribute warmth evenly throughout the room. This technology ensures that heat reaches all corners, eliminating cold spots.

Figure 5: Diagram illustrating how the Vornado heater circulates warm air throughout a room, ensuring even heating and eliminating cold spots.

5. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your heater:

• Rensning: The exterior of the heater can be wiped clean with a damp cloth. Ensure the unit is unplugged and cool before cleaning.
• Filtervedligeholdelse: Regularly check and clean the air intake grille to prevent dust buildup, which can affect performance.

6. Fejlfinding

If your heater is not operating as expected, consider the following:

• Ingen strøm: Ensure the power cord is securely plugged into a functioning 120V outlet. Check your home's circuit breaker.
• Unit Not Heating: Verify that the desired temperature setting is higher than the current room temperature. Check for any obstructions to the air intake or outlet that might trigger the safety shut-off.
• Unit Tipped Over: If the unit has been tipped, it will automatically shut off. Place it upright on a stable surface and restart.

7. Specifikationer

Figure 6: Product dimensions of the Vornado Velocity 5 heater.

8. Garanti og support

Vornado stands behind its products with a commitment to quality and customer satisfaction.

• 5 års producentgaranti: The Vornado Velocity 5 is backed by a 5-year manufacturer warranty. If the product does not meet your expectations, Vornado will replace it.
• USA-baseret support: Products are designed and supported in Andover, KS, ensuring accessible customer service for US customers.
