SEEKONE 1800W Heat Gun User Manual

1. Introduktion

This manual provides essential information for the safe and effective operation of your SEEKONE 1800W Heat Gun, Model SDL-8861E. Please read these instructions thoroughly before first use and retain for future reference. This heat gun is designed for various applications including paint removal, PVC shrinking, craft projects, and more, offering precise temperature control and robust performance.

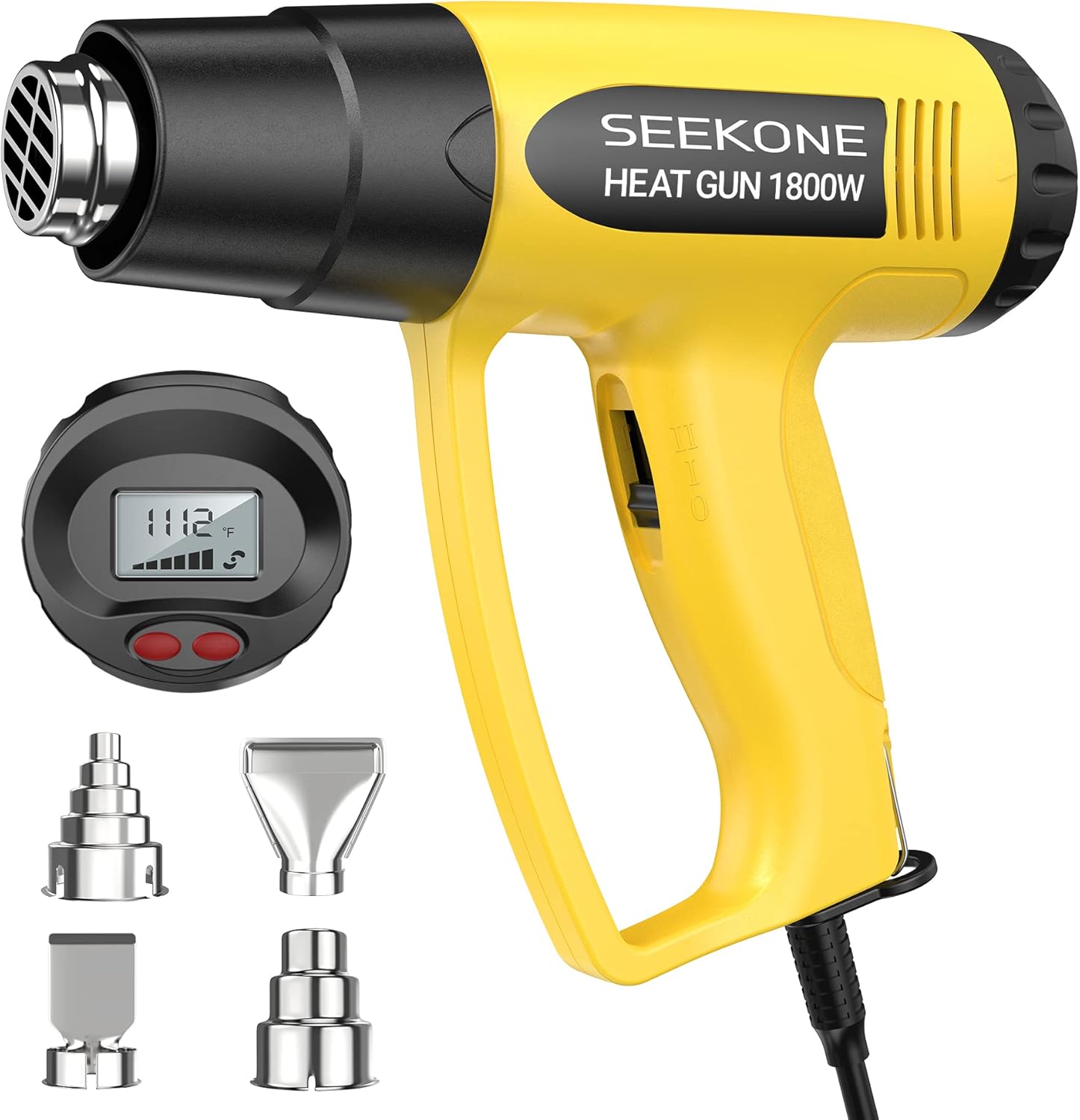

Image 1.1: The SEEKONE 1800W Heat Gun with its included nozzles and digital display unit.

2. Sikkerhedsinstruktioner

ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

• Sikkerhed på arbejdsområdet: Hold arbejdsområdet rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af ​​brandfarlige væsker, gasser eller støv.
• Elektrisk sikkerhed: Stik på elværktøj skal passe til stikkontakten. Modificer aldrig stikket på nogen måde. Undgå kropskontakt med jordforbundne overflader såsom rør, radiatorer, komfurer og køleskabe.
• Personlig sikkerhed: Brug altid øjenbeskyttelse. Brug personlige værnemidler såsom støvmasker, skridsikre sikkerhedssko, sikkerhedshjelme eller høreværn, når det er relevant. Vær opmærksom, hold øje med, hvad du laver, og brug sund fornuft, når du bruger et elværktøj.
• Specifik sikkerhed ved varmepistol:
  • Ret ikke den varme luftstråle mod mennesker eller dyr.
  • Brug ikke varmepistolen i nærheden af ​​brændbare materialer eller gasser.
  • Allow the heat gun to cool down completely before storing. Utilize the power-off delay function for proper cooling.
  • Do not block the air inlet or outlet. Ensure proper ventilation during operation.
  • Do not touch the nozzle or surrounding areas during or immediately after use, as they become extremely hot.
  • Always place the heat gun on a stable, heat-resistant surface when not holding it.
  • Vær opmærksom på, at varme kan ledes til brændbare materialer, der er ude af syne.

3. Produktet er slutview

The SEEKONE 1800W Heat Gun is engineered for durability and precise control, featuring a robust design and intuitive interface.

3.1 Komponenter

• Varmepistolhus: Constructed from durable ABS engineering plastics for wear resistance.
• Digital LCD-skærm: Provides real-time temperature readings and allows for precise adjustments.
• Temperaturkontrolknapper: Used to increase or decrease the temperature.
• Luftstrømskontakt: Selects between two airflow modes.
• Stainless Steel Air Outlet: Designed for high temperature and corrosion resistance, with an anti-scald protective cover.
• Dyser: Four interchangeable nozzles for various applications.
• D-Handle and Folding Stand: Ergonomic design for comfortable use and stable hands-free operation.

Image 3.1: The digital LCD display showing temperature and airflow settings.

Image 3.2: Illustration of the ceramic heating core, responsible for rapid heat generation.

Image 3.3: Diagram showing the pure copper motor, providing strong airflow.

3.2 Included Nozzles

The heat gun comes with four specialized nozzles to optimize performance for different tasks:

• Deflector Nozzle: Directs a long, narrow heat pattern to the work surface.
• Reflektordyse: Disperses heat flow evenly around the entire work surface.
• 3-Layer Focusing Nozzle: Koncentrerer varmen til præcise anvendelser.
• 5-Layer Focusing Nozzle: Provides a highly concentrated heat flow for specific tasks.

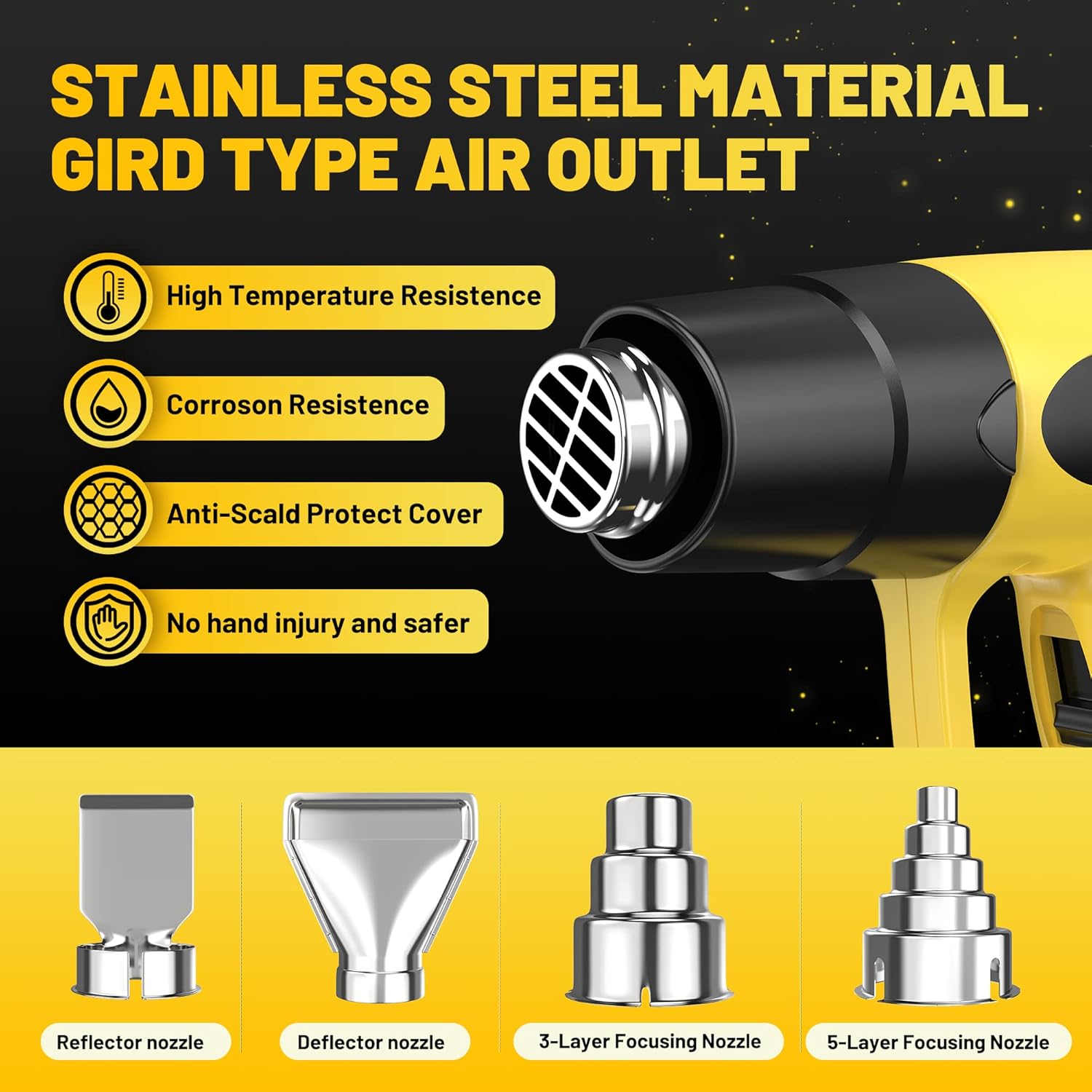

Image 3.4: The four interchangeable nozzles included with the heat gun.

4. Opsætning

1. Udpakning: Carefully remove the heat gun and all accessories from the packaging. Inspect for any damage.
2. Dysefastgørelse: Select the appropriate nozzle for your task. Align the nozzle with the heat gun's air outlet and push it firmly into place. Ensure it is securely seated before operation.
3. Strømtilslutning: Plug the heat gun into a standard 110V AC power outlet. Ensure the power cord is not damaged and is positioned to avoid tripping hazards.
4. Placering: For hands-free operation, deploy the integrated folding stand to position the heat gun securely on a stable, heat-resistant surface.

5. Betjeningsvejledning

5.1 Power On/Off and Airflow Settings

1. Tænd: Slide the power switch to the desired airflow setting. The heat gun features two airflow modes:
   • Low Setting (I): 300 L/min airflow, temperature range 100-300°C (212-572°F).
   • High Setting (II): 500 L/min airflow, temperature range 300-600°C (572-1112°F).
2. Sluk: Slide the power switch to the '0' (off) position. The heat gun will activate a power-off delay function, continuing to blow cool air for approximately 8 seconds to protect the heating element and prolong tool life. Do not unplug the tool during this cool-down phase.

Image 5.1: Illustration of the power-off delay function and airflow speed selector.

5.2 Temperaturjustering

The digital LCD display allows for precise temperature control:

1. Once powered on, the current temperature will be displayed on the LCD screen.
2. Use the '+' and '-' buttons below the display to adjust the temperature in increments.
3. The temperature range is from 100°C (212°F) to 600°C (1112°F).

5.3 Overbelastningsbeskyttelse

The heat gun features an integrated overload protection function. If the internal temperature becomes too high, the heat gun will automatically stop heating to prevent damage. Heating will resume once the temperature returns to a safe level. This is a safety feature and not a malfunction.

6. Ansøgninger

The SEEKONE 1800W Heat Gun is versatile for a wide range of tasks. Refer to the temperature recommendations below for common applications:

Image 6.1: Chart illustrating recommended temperature ranges for different applications.

Billede 6.2: Eks.ample of using the heat gun to remove stickers or labels.

Billede 6.3: Eks.ample of using the heat gun for shrinking applications, such as window film.

Billede 6.4: Eks.ample of using the heat gun for paint removal from a wooden surface.

7. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din varmepistols levetid og optimale ydeevne.

• Rensning: After each use, ensure the heat gun is completely cool. Wipe the exterior with a soft, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Luftventiler: Keep the air inlet and outlet vents clear of dust and debris to ensure proper airflow and prevent overheating. Use a soft brush or compressed air if necessary.
• Opbevaring: Store the heat gun in a dry, secure location out of reach of children. Ensure the power cord is neatly coiled and not kinked.
• Dyser: Clean any residue from the nozzles after use. Ensure they are dry before storage.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

SEEKONE provides worry-free customer after-sale service for this product. If you encounter any issues or have questions regarding your SEEKONE 1800W Heat Gun, please contact our customer service team. We are committed to providing support and assistance.

For support, please refer to the contact information provided with your product packaging or visit the official SEEKONE webwebsted.
