Indledning
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Danby 14,000 BTU 3-in-1 Portable Air Conditioner. This unit is designed to provide cooling, dehumidification, and fan-only operation for your indoor space. Please read this manual thoroughly before using your appliance and retain it for future reference.

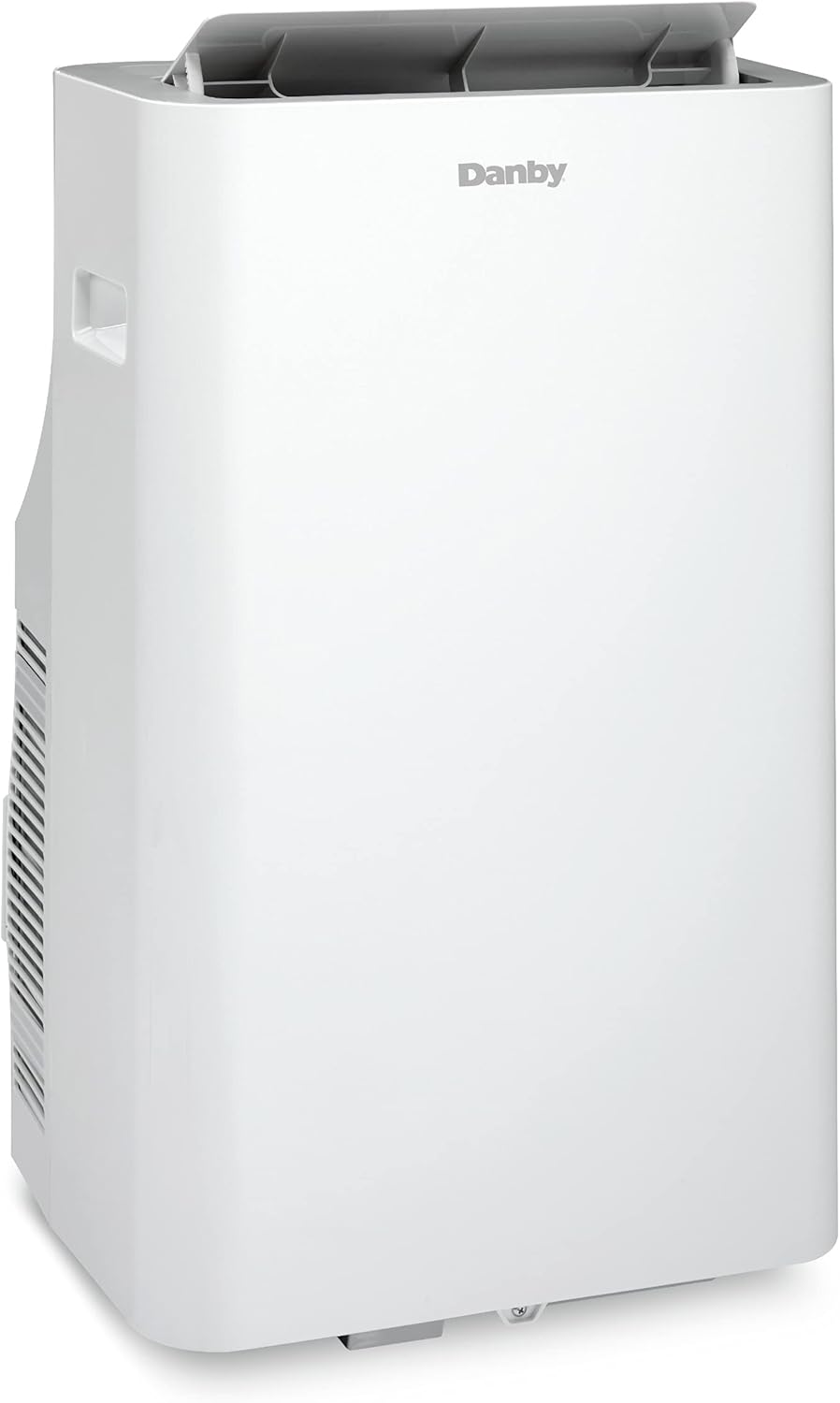

Front view of the Danby 14,000 BTU Portable Air Conditioner, showcasing dens elegante hvide design.
Vigtige sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger ved brug af elektriske apparater for at reducere risikoen for brand, elektrisk stød og personskade.
- Læs alle instruktioner før brug af apparatet.
- Tilslut kun til en korrekt jordet stikkontakt.
- Brug ikke en beskadiget ledning eller stik.
- Bloker ikke luftåbninger.
- Do not use in wet areas or near water.
- Tag stikket ud før rengøring eller service.
- Hold børn væk fra apparatet.
Pakkens indhold
Kontroller, at alle komponenter er til stede i emballagen:
- Bærbar klimaanlægsenhed
- Udstødningsslange
- Window Panel Kit (adjustable)
- Hose Adapters (for unit and window panel)
- Fjernbetjening
- Afløbsslange (til kontinuerlig dræning)
- Brugermanual
Produkt overview
Familiarize yourself with the main parts and controls of your portable air conditioner.
Diagram illustrating the airflow within the portable air conditioner, with cool air exiting the top vent.
Nøglekomponenter:
- Kontrolpanel: Located on the top of the unit, with touch buttons and an LED display.
- Luftudtag: Adjustable louvers at the top for directing airflow.
- Luftindtagsgitter: Located on the back or sides, where air is drawn in.
- Udstødningsluftudløb: Tilslutningspunkt for udstødningsslange.
- Dræningsport: Til fjernelse af kondensvand.
- Hjul: Wheels at the bottom for easy mobility.
Image showing the dimensions of the portable air conditioner: approximately 30 7/16 inches height, 14 7/8 inches depth, and 17 11/16 inches width.
Opsætning og installation
Proper installation is crucial for optimal performance. Ensure the unit is placed on a flat, stable surface and has adequate clearance around it for proper airflow.
1. Choosing a Location:
- Place the unit near a window or sliding door for exhaust hose installation.
- Sørg for, at der er mindst 20 cm (8 tommer) plads omkring enheden for korrekt luftcirkulation.
- Undgå direkte sollys og varmekilder.
2. Window Kit Installation:
- Assemble the window panel kit to fit your window opening. The kit is adjustable for various window sizes.
- Secure the window panel in the window frame.
- Attach the exhaust hose adapter to the opening in the window panel.
The portable air conditioner unit positioned next to a sliding glass door, with the exhaust hose connected to the window panel kit.
3. Exhaust Hose Connection:
- Extend the exhaust hose and attach one end to the unit's exhaust air outlet.
- Attach the other end of the hose to the adapter in the window panel.
- Ensure the hose is as short and straight as possible to maximize efficiency. Avoid kinks or sharp bends.
A Danby portable air conditioner with its exhaust hose properly installed and venting through a window, demonstrating a typical setup.
4. Drainage Setup:
The unit will collect condensation. For continuous drainage in dehumidifier mode or high humidity, connect the drain hose to the drainage port and direct it to a suitable container or floor drain.
Betjeningsvejledning
Your portable air conditioner offers multiple operating modes and features for your comfort.
Kontrolpanel og fjernbetjening:
Enheden kan betjenes via kontrolpanelet oven på enheden eller den medfølgende fjernbetjening.

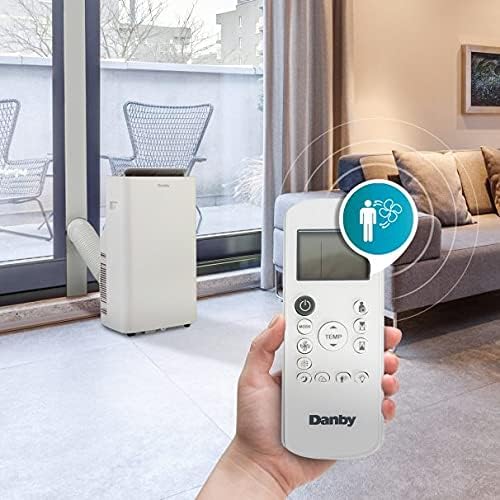

A hand holding the remote control for the Danby portable air conditioner, with the unit visible in the background.
Driftstilstande:
- Cool tilstand: Giver køling. Indstil den ønskede temperatur og ventilatorhastighed.
- Affugtningstilstand: Removes moisture from the air. The fan speed is typically fixed in this mode.
- Ventilatortilstand: Cirkulerer luften uden køling. Vælg den ønskede ventilatorhastighed.
Wireless Connect Feature:
This unit features Wireless Connect, allowing you to control it remotely via a smartphone application. Refer to the specific instructions in the app for pairing and usage.
A smartphone displaying the Danby app interface, used to control the portable air conditioner remotely via Wireless Connect.
Yderligere funktioner:
- Timer: Indstil enheden til at tænde eller slukke automatisk efter en bestemt periode.
- Sove mode: Adjusts temperature and fan speed for quiet, energy-efficient operation during sleep.
- Automatisk genstart: The unit will automatically restart with the previous settings after a power outage.
- Silencer Technology: Designed for quieter operation.
Image highlighting the "Silencer Technology" feature on the Danby portable air conditioner, indicating quiet operation.
Opretholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på dit klimaanlæg.
1. Air Filter Cleaning:
Luftfilteret bør rengøres hver anden uge eller oftere afhængigt af brug og luftkvalitet.
- Tag enheden ud af stikkontakten.
- Fjern luftfilteret fra bagsiden eller siden af enheden.
- Vask filteret med varmt sæbevand. Skyl grundigt.
- Lad filteret lufttørre helt, før det monteres igen.
2. Draining Water:
The unit has an internal water collection tank. When full, the unit will stop operating and display an indicator. Drain the water manually or use continuous drainage.
- Place a shallow pan or bucket under the drainage port.
- Fjern aftapningsproppen, så vandet kan løbe ud.
- Sæt aftapningsproppen i igen, når tanken er tom.
3. Opbevaring:
Before storing the unit for an extended period, ensure all water is drained, clean the air filter, and cover the unit to protect it from dust.
Fejlfinding
Før du kontakter kundeservice, bedes du læse følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ingen strøm; netledningen er taget ud; afbryderen er udløst. | Kontroller strømforbindelsen; nulstil afbryderen. |
| Enheden køler ikke effektivt. | Air filter dirty; exhaust hose kinked or blocked; room too large; windows/doors open. | Clean air filter; straighten hose; ensure proper room size; close windows/doors. |
| Vandlækage. | Drain plug loose; unit not level; continuous drain hose blocked. | Secure drain plug; place unit on level surface; clear drain hose. |
| Støjende drift. | Unit not on a level surface; internal components vibrating. | Ensure unit is on a flat, stable surface. |
Specifikationer
Technical specifications for the Danby 14,000 BTU Portable Air Conditioner:
- Modelnummer: DPA140B3WDB-3
- Kølekapacitet: 14,000 BTU
- Kapacitet: 1.1 tons
- Voltage: 240 volt
- Produktmål (D x B x H): 37.8 x 44.9 x 77.3 Centimetres
- Farve: Hvid
- Filtertype: Ionisator
- Særlige funktioner: Auto Restart, Dehumidifier, Silencer Technology, Wireless Connect
- Energieffektivitet: Energy Star certified, SEER 11.2
Garanti og support
For warranty information or technical support, please refer to the warranty card included with your product or visit the official Danby webForsøg ikke at reparere enheden selv.
For further assistance, please contact Danby Customer Service.
