1. Introduktion
The Audison VCR-S1 is a dedicated remote control designed to provide precise adjustment of the subwoofer level for compatible Audison SR series power amplifiers, specifically models 5.600 and 1.500. This device allows users to fine-tune the subwoofer output from -20 dB to +6 dB, enabling personalized audio experiences to match various music genres and listening preferences.
2. Produktet er slutview
The VCR-S1 features a robust rotary knob for intuitive bass level adjustment. Its compact design allows for flexible mounting in various vehicle interiors.
Figur 2.1: Forside view of the Audison VCR-S1 Sub Volume Remote Control, showing the rotary knob with 'MIN' and '0' markings.
Figure 2.2: Detailed close-up of the Audison VCR-S1's rotary knob, highlighting the textured grip and level indicators.
3. Opsætning og installation
The VCR-S1 connects directly to the dedicated remote control port on compatible Audison SR series ampløftere. Sørg for ampapparatet er slukket, før der foretages nogen tilslutninger.
3.1 Connection to Audison SR Amplivførere
- Audison SR.1 Amplivsstil: Disse amplifiers typically feature a 1/8" (3.5mm) plug-in port for the VCR-S1 remote control. Connect the VCR-S1 cable to this port.
- Audison SR.2 Amplivsstil: Newer SR.2 amplifiers may utilize a dual Molex plug-in port for the VCR-S2 (or compatible VCR-S1 with appropriate adapter, if available). Refer to your amplifier's manual for specific connection details. The VCR-S1 is primarily designed for SR.1 type connections.

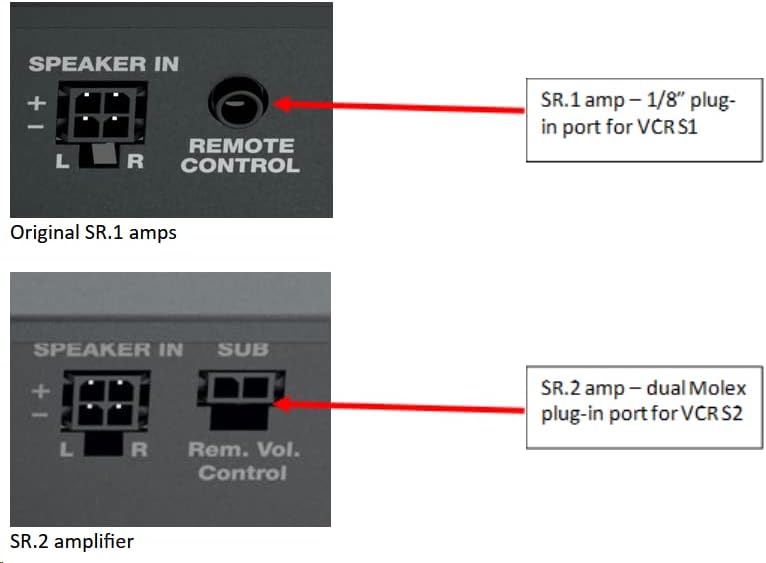

Figure 3.1: Comparison of remote control ports on Audison SR.1 (top, 1/8" plug) and SR.2 (bottom, dual Molex plug) amplifiers. The VCR-S1 is designed for the SR.1 type connection.
Once connected, secure the VCR-S1 in a convenient location within your vehicle using appropriate mounting hardware (not included, typically). Ensure the cable is routed safely and does not interfere with vehicle operation.
4. Betjeningsvejledning
After successful installation and with the amplifier powered on, the VCR-S1 is ready for use.
4.1 Adjusting Subwoofer Level
- Locate the VCR-S1 knob in your vehicle.
- Rotate the knob clockwise to increase the subwoofer output level. The maximum boost is +6 dB.
- Rotate the knob counter-clockwise to decrease the subwoofer output level. The minimum attenuation is -20 dB.
- Adjust the level to achieve your desired bass response, complementing the overall audio system balance.
The VCR-S1 provides real-time control, allowing for dynamic adjustments based on the audio content or personal preference.
5. Vedligeholdelse
The Audison VCR-S1 is designed for durability and requires minimal maintenance.
- Keep the unit clean by wiping it with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
- Ensure the connection cable remains free from kinks or damage.
- Undgå at udsætte enheden for ekstreme temperaturer, direkte sollys i længere perioder eller for høj fugtighed.
6. Fejlfinding
If you experience issues with your VCR-S1, consider the following common troubleshooting steps:
- No Bass Adjustment:
- Verify that the VCR-S1 cable is securely connected to the correct remote control port on your Audison amplivligere.
- Ensure your Audison ampkøleren er tændt og fungerer korrekt.
- Tjek amplifier's settings to confirm that the remote level control feature is enabled, if applicable.
- Confirm that the VCR-S1 is compatible with your specific Audison amplifier model (SR 5.600 or 1.500 are confirmed).
- Intermitterende kontrol:
- Inspect the connection cable for any signs of damage, fraying, or loose connections.
- Ensure the remote control port on the amplifier is clean and free of debris.
If problems persist after attempting these steps, contact Audison customer support or a qualified audio technician.
7. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Audison |
| Modelnummer | VCR-S1 |
| Controller type | Fjernbetjening |
| Kontrolmetode | Fjern |
| Aktuator type | Rotary |
| Driftstilstand | Manuel |
| Subwoofer Level Adjustment Range | -20 dB til +6 dB |
| Kompatibel Amplivførere | Audison SR 5.600, Audison SR 1.500 |
| Connector Type | Blade (for SR.1 type 1/8" plug) |
| Monteringstype | Tabletop (typical) |
| Varens vægt | 6.3 ounce (ca. 178.6 gram) |
| Pakkedimensioner | 4.72 x 4.53 x 1.97 tommer (ca. 12 x 11.5 x 5 cm) |
| Materiale | Copper, Brass (for contacts) |
8. Garanti og support
Specific warranty details for the Audison VCR-S1 are typically provided with the product packaging or can be found on the official Audison website. For technical support, service, or detailed warranty information, please refer to the manufacturer's official resources or contact your authorized Audison dealer.
Audison Official Webwebsted: www.audison.eu
