Brugermanual til Icera iWash S-11 aflangt bidetsæde

Produkt overview

Experience enhanced comfort with the Icera iWash S-11 bidet seat. This electronic toilet seat is designed for easy installation on most standard elongated toilets, offering a range of features for personal hygiene and convenience.

Key features include a cleansing bidet spray, warm air dryer, and heated seat, all controlled by a wall-mounted remote. Additional practical features like a built-in deodorizer and LED nightlight make the iWash S-11 a valuable addition to any bathroom.

Funktioner

• Instant Ceramic Water Heating System: Provides unlimited warm water for bidet spray.
• Self-Cleaning, Stainless Steel Nozzle: Ensures hygiene with automatic cleaning before and after each use.
• Rear and Front Wash Spray: Offers comprehensive cleansing options.
• Oscillerende spray: Bevæger dysen frem og tilbage for et bredere rengøringsområde.
• Power Wash Spray: Provides a stronger water stream for effective cleaning.
• Justerbart vandtryk og temperatur: Customize your wash experience.
• Adjustable Nozzle Position: Fine-tune the spray location for optimal comfort.
• Heated Seat with Adjustable Temperature: Provides warmth for comfort, especially in colder environments.
• Warm Air Dryer with Adjustable Temperature: Reducerer behovet for toiletpapir.
• Built-in Deodorizer: Neutralizes bathroom odors.
• In-bowl LED Nightlight: Offers subtle illumination for nighttime use.
• ECO Power-Saving Mode: Conserves energy.
• Memory for Customized Settings (2 users): Stores preferred settings for convenience.
• Silent Close Seat and Lid Cover: Forhindrer smække og reducerer støj.
• Wall-Mount Remote Control with LED Backlit Buttons: Easy and intuitive control of all functions.

Figur 1: Overview of Icera iWash S-11 Bidet Seat Features.

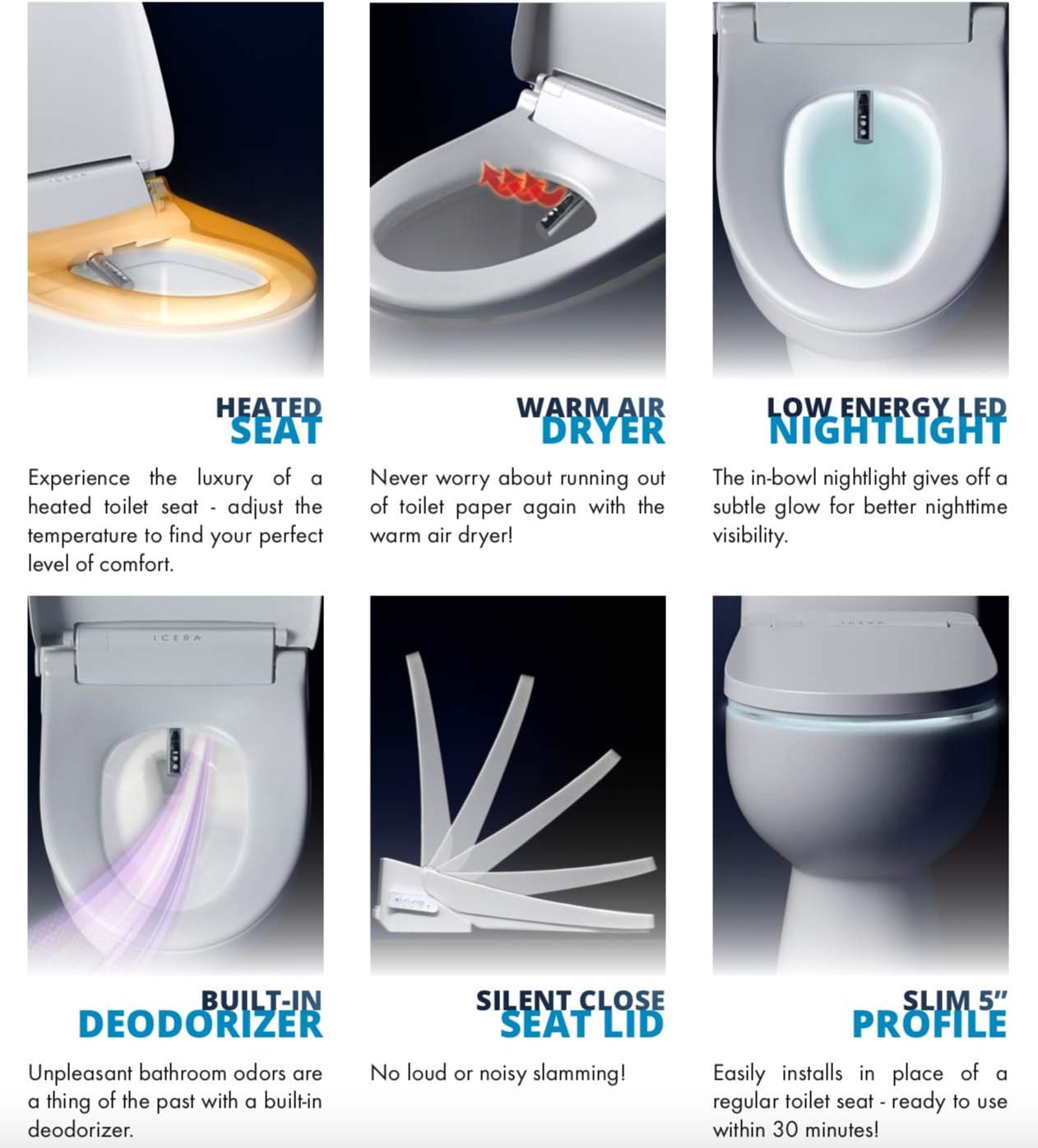

Figur 2: Detaljeret view of key comfort and hygiene features.

Figure 3: Customizable Bidet Spray options.

Figure 4: Wall-mounted remote control with LED backlit buttons.

Installationsvejledning

The Icera iWash S-11 bidet seat is designed for quick and easy installation. Please follow these steps carefully.

Figure 5: iWash S-11 Installation Quick Guide.

1. Remove your existing toilet seat and turn off the water supply to the toilet.
2. Connect the T-valve to the fill valve located under your toilet tank.
3. Reconnect the main water supply line to the T-valve.
4. Monter monteringspladen og beslagene på toiletskålen.
5. Connect the bidet hose to the bidet unit, then slide the bidet onto the mounting plate until it clicks into place.
6. Turn on the water supply and plug the power cord into a dedicated 120V GFCI outlet.

Vigtige monteringsbemærkninger:

• Use with potable water only. Do not use with recycled water.
• This product may not fit certain bowl designs.
• For use on a nominal 120V circuit and GFCI receptacle. Do not use with an ungrounded outlet.
• Power cord is located on the right side of the seat and is 5ft in length.

Kompatibilitet

The iWash S-11 Elongated Bidet Seat is compatible with various Icera toilet models and can be installed on most standard elongated toilets, provided they meet the specified dimensions.

Figure 6: iWash S-11 Compatibility Chart and Installation Requirements.

Installation Requirements for Non-Icera Toilets (Elongated Toilets Only):

• The distance from the center of the seat bolt holes to the toilet tank must be at least 1.5 inches.
• The distance between the seat bolt holes must be between 5-1/4 inches and 8 inches.
• The distance between the seat bolt holes and the front of the toilet bowl should be approximately 18 inches.

Betjeningsvejledning

The iWash S-11 bidet seat is operated via its wall-mounted remote control. Familiarize yourself with the remote's functions for optimal use.

Fjernbetjeningsfunktioner:

• Stop: Stops all current bidet operations.
• Forvask: Activates the front bidet spray.
• Bagvask: Activates the rear bidet spray.
• Power Wash: Provides a stronger wash.
• Oscillerende: Moves the nozzle for wider coverage during wash.
• Dryer ON/OFF: Activates or deactivates the warm air dryer.
• Dryer Temp: Justerer temperaturen på varmlufttørreren.
• Sædetemperatur: Justerer temperaturen på det opvarmede sæde.
• Vandtemperatur: Adjusts the water temperature for the bidet spray.
• Tryk: Adjusts the water pressure of the bidet spray.
• Position: Justerer dysens position fremad eller bagud.
• User 1/User 2: Recalls saved customized settings for two different users.
• ØKO -tilstand: Activates power-saving mode.
• Natlys: The in-bowl LED nightlight automatically illuminates in low light conditions.

To use a function, press the corresponding button on the remote. Adjustments for temperature, pressure, and nozzle position can typically be made using arrow buttons or dedicated controls on the remote.

Opretholdelse

Regular maintenance ensures the longevity and optimal performance of your iWash S-11 bidet seat.

Rengøring af dyse:

The stainless steel nozzle is self-cleaning, automatically rinsing before and after each use. For additional cleaning, refer to the remote control for a manual nozzle cleaning function if available, or gently wipe the nozzle with a soft cloth and mild, non-abrasive cleaner when the bidet is not in use and power is disconnected.

Generel rengøring:

• Afbryd strømmen før rengøring.
• Wipe the exterior of the bidet seat and remote control with a soft, damp klud og en mild, ikke-slibende rengøringsopløsning.
• Avoid using harsh chemicals, abrasive cleaners, or scrub brushes, as these can damage the surface.
• Ensure all surfaces are dry before reconnecting power.

Fejlfinding

If you encounter any issues with your iWash S-11 bidet seat, please refer to the following common troubleshooting tips. For more complex problems, contact customer support.

• Ingen strøm: Ensure the power cord is securely plugged into a working GFCI outlet. Check if the circuit breaker has tripped.
• Ingen vandspray: Kontroller, at vandtilførselsventilen er helt åben. Kontroller, om der er knæk på vandtilførselsslangen.
• Utilstrækkeligt vandtryk: Ensure the water supply valve is fully open. Check the mesh filter on the water inlet hose for sediment buildup and clean if necessary.
• Fjernbetjeningen reagerer ikke: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the bidet seat's sensor.
• Heated Seat Not Working: Check the seat temperature setting on the remote. Ensure the ECO power-saving mode is not active if you desire constant heat.

If these steps do not resolve the issue, please contact Icera customer support for further assistance.

Specifikationer

Detailed technical specifications for the Icera iWash S-11 Elongated Bidet Seat.

Garanti og support

The Icera iWash S-11 Elongated Bidet Seat comes with a three-year limited product warranty.

For warranty claims, technical support, or any inquiries, please contact Icera customer service. Keep your purchase receipt as proof of purchase.

Manufacturer: Icera

Produkt video
