Indledning
Thank you for choosing the Misby Bladeless Desk Fan. This innovative fan is designed to provide a comfortable and quiet airflow, featuring a bladeless design for enhanced safety and easy cleaning. Its portable nature, touch controls, and integrated LED lighting make it a versatile addition to any bedroom, home office, or living space.
Sikkerhedsinstruktioner
- Sørg for, at ventilatoren er placeret på en stabil, flad overflade for at forhindre den i at vælte.
- Do not insert fingers or any objects into the air outlet or inlet. The bladeless design minimizes risk, but caution is always advised.
- Use only the provided USB cable and a standard 2A output power adapter for charging. Using an incompatible adapter may damage the device.
- Keep the fan away from water or other liquids.
- Do not disassemble or attempt to repair the fan yourself. Contact customer support for assistance.
- Keep out of reach of small children and pets, despite the bladeless design.
Pakkens indhold
- Misby Bladeless Desk Fan ×1
- Rechargeable Battery ×1 (pre-installed)
- USB -kabel × 1
- Brugervejledning ×1
Produkt overview

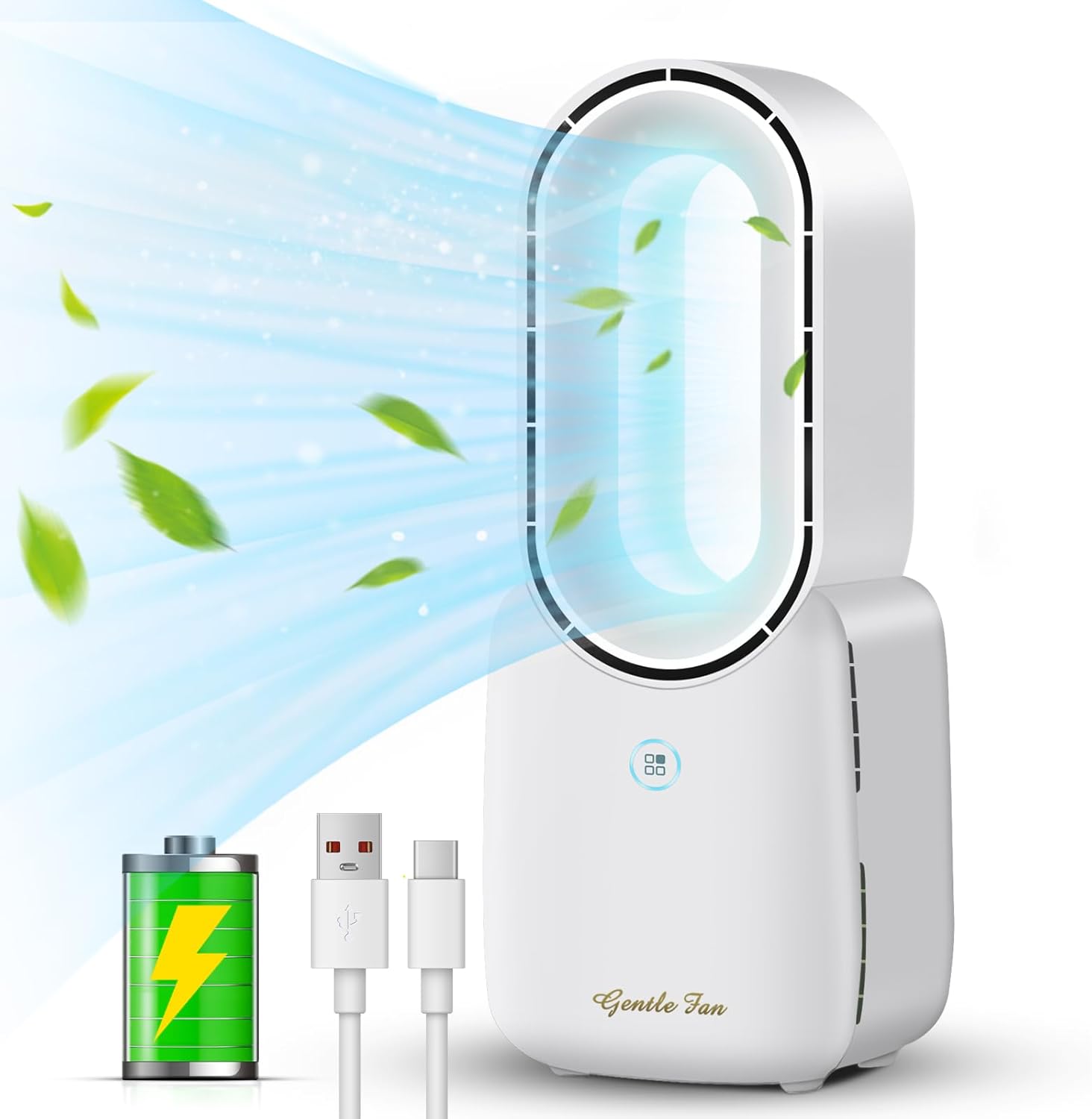

Figure 1: Misby Bladeless Desk Fan with its core components.
The Misby Bladeless Desk Fan features a sleek, modern design. The main unit houses the internal fan mechanism, while the oval-shaped top provides smooth, consistent airflow. The base includes touch-sensitive controls for power, fan speed, and LED lighting.
Figur 2: Detaljeret view of the touch control switch for fan speed settings.
Opsætning
Indledende opladning
Before first use, fully charge the fan. Connect the provided USB cable to the USB-C port on the back of the fan and plug the other end into a standard 2A output power adapter (not included) or a compatible USB port on a computer or power bank. The LED indicator will show charging status.
Figure 3: Multiple recharging options for the fan.
Betjeningsvejledning
Power On/Off and Fan Speed Control
- To turn on the fan, lightly touch the power/speed control button on the front of the base. The fan will start at Low speed.
- Tap the button again to cycle through the speeds: Medium, High.
- To activate Natural Wind mode, tap the button a fourth time. This mode simulates natural breezes by varying the fan speed.
- To turn off the fan, tap the button a fifth time after Natural Wind mode, or press and hold the button for 3 seconds from any speed setting.
LED-lysstyring
The fan features a 5-color LED light function to create a warm atmosphere. The light control button is located next to the power/speed button.
- To turn on the LED light, lightly touch the light control button. It will cycle through the available colors.
- Continue tapping the button to change between the 5 different colors.
- To turn off the LED light, tap the button until the light turns off, or press and hold the button for 3 seconds.
Figure 4: The fan's 5-color LED light function in use.
Produktdemonstrationsvideo
Video 1: A demonstration of the Misby Bladeless Fan's features, including its bladeless design and decorative LED light. This video is provided by the seller, Misby Direct.
Vedligeholdelse og rengøring
The bladeless design of this fan makes cleaning simple and efficient. Regularly wipe the exterior surfaces with a soft, dry cloth. For dust accumulation within the air outlet, use a soft brush or compressed air to gently clear it. Do not use abrasive cleaners or immerse the fan in water.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilatoren tænder ikke. | Lavt batteri eller ikke opladet. | Connect the fan to a power source using the USB cable and charge fully. |
| Svag luftstrøm. | Fan speed set too low; air inlet/outlet blocked. | Increase fan speed using the touch control. Check and clear any obstructions from the air inlets/outlets. |
| LED lys virker ikke. | Light function is off; low battery. | Tap the light control button to turn it on. Ensure the fan is charged. |
| Ventilatoren laver usædvanlig lyd. | Foreign object inside; fan not on a stable surface. | Turn off and unplug the fan. Carefully check for any foreign objects. Ensure it's on a stable surface. If noise persists, contact support. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | F1 |
| Mærke | Misby |
| Mål (D x B x H) | 3.3" D x 4.9" B x 11.8" H |
| Vægt | 1.6 pund |
| Strømkilde | Battery Powered/Corded Electric (USB Type C) |
| Nominel strømforsyning | 5V-1A |
| Nominel effekt | 10W (maks.) |
| Batterikapacitet | 2200 mAh Lithium Ion |
| Batterilevetid | 4-8 hours (depending on speed) |
| Støjniveau | 30 dB |
| Blæserhastigheder | 4 (Low, Medium, High, Natural Wind) |
| LED lys | 5-farve gradient |
| Kontrolmetode | Røre |
Garanti og support
Misby strives to provide high-quality products. If you encounter any issues or have questions regarding your Misby Bladeless Desk Fan, please contact our customer support team. We offer a 12-month replacement policy for product defects. For further assistance, please refer to the contact information provided on our official webwebstedet eller din købskvittering.
