Vigtige sikkerhedsinstruktioner
Please read all instructions carefully before using this fan. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Always unplug the fan before cleaning, servicing, or relocating it.
- Brug ikke blæseren i vådt eller damp steder, såsom badeværelser eller vaskerum.
- Keep the fan away from open flames, cooking appliances, or heating devices.
- Ensure the power cord is not damaged or placed under carpets or furniture.
- This fan is equipped with the Lasko Blue Plug, a safety feature that incorporates a fuse. Do not remove or tamper with this plug.
- Do not insert fingers or foreign objects into the grille openings.
- Supervise children when the fan is in operation.
Produkt overview
The Lasko S16225 is a 16-inch pedestal fan designed to provide efficient air circulation and cooling. It features three quiet speeds, widespread oscillation, and a tilt-back fan head for directional airflow. The fan's height is adjustable, making it suitable for various room settings.

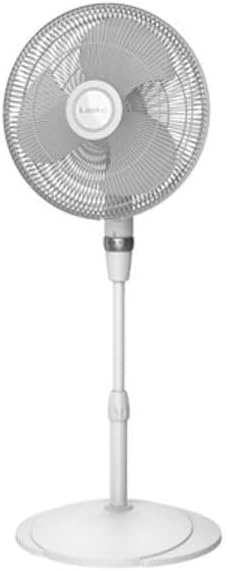

Billede: Forside view of the Lasko S16225 16-inch Pedestal Fan in white, showing the fan head, adjustable stand, and round base.
Monteringsvejledning
Simple assembly is required for this pedestal fan. Follow these steps to set up your fan:
- Fastgør basen: Securely connect the fan pole to the round base. Ensure all locking mechanisms or screws are tightened as per the included hardware.
- Saml ventilatorhovedet: Attach the rear grille, fan blade, and front grille to the motor housing. Ensure the blade nut and grille clips are fastened correctly.
- Connect Fan Head to Pole: Mount the assembled fan head onto the top of the adjustable pole, securing it with the provided screw or locking collar.
Billede: Nærbillede view of the fan's base and the lower part of the adjustable pole, illustrating how the components connect.
Refer to the detailed diagrams in the packaging for specific component identification and assembly steps.
Betjeningsvejledning
Kontrolelementer
The Lasko S16225 fan features simple manual controls located on the fan's pole.
Image: Close-up of the control dial on the fan's pole, showing settings for 0 (off), 1 (low), 2 (medium), and 3 (high).
- Power/Speed Dial: Rotate the dial to select your desired fan speed: 0 (Slukket), 1 (Lav), 2 (Medium), or 3 (Høj).
- Oscillation Knob: A separate knob or button (if present) on the motor housing controls the widespread oscillation feature. Pull up to stop oscillation, push down to start.
Adjusting Height and Tilt
- Højdejustering: Loosen the height adjustment collar on the fan pole, extend or retract the pole to the desired height (between 41 and 53 inches), and then securely tighten the collar.
- Tilt-Back Head: The fan head can be manually tilted up or down to direct airflow. Gently push or pull the fan head to the desired angle.
Opretholdelse
Rensning
Regelmæssig rengøring hjælper med at opretholde ventilatorens ydeevne og forlænger dens levetid.
- Tag ventilatoren ud af stikkontakten: Always ensure the fan is unplugged from the power outlet before cleaning.
- Udvendig rengøring: Brug en blød, damp klud til at tørre ventilatorens udvendige overflader af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Rengøring af gitter: The grilles can be carefully wiped to remove dust. For thorough cleaning, the grilles may be removable (refer to assembly instructions for disassembly).
- Rengøring af knive: If the blades are accessible, wipe them with a soft, damp cloth. Ensure the blades are completely dry before reassembling or operating the fan.
Opbevaring
When not in use, store the fan in a cool, dry place. It is recommended to store it in its original packaging to protect it from dust and damage.
Fejlfinding
Hvis din ventilator ikke fungerer som forventet, kan du se følgende almindelige problemer og løsninger:
- Ventilator tænder ikke:
- Sørg for, at ventilatoren er tilsluttet en fungerende stikkontakt.
- Kontroller strømkablet for skader.
- Verify that the speed dial is set to a speed setting (1, 2, or 3) and not '0' (Off).
- The Lasko Blue Plug contains a safety fuse. If the fan does not operate, the fuse may have blown. Refer to the instructions on the plug for fuse replacement (if applicable and safe to do so).
- Svag luftstrøm:
- Øg ventilatorhastigheden ved hjælp af kontrolknappen.
- Ensure the fan grilles and blades are clean and free from dust buildup.
- Adjust the fan's tilt to direct airflow more effectively.
- Fan Makes Unusual Noise:
- Sørg for, at ventilatoren er placeret på en stabil, plan overflade.
- Check for any loose parts or obstructions within the fan grilles.
If the problem persists after attempting these solutions, contact Lasko customer support for further assistance.
Specifikationer
- Mærke: Lasko
- Model: S16225 (463689)
- Ventilator diameter: 16 tommer
- Hastigheder: 3 (Lav, Medium, Høj)
- Strømkilde: Elektrisk med ledning
- Kontrolmetode: Manual Control Dial
- Højdejustering: 41 til 53 tommer
- Funktioner: Widespread Oscillation, Tilt-Back Fan Head
- Varens vægt: Cirka 8.32 pund
- Sikkerhedsfunktioner: Lasko Blue Plug (fused safety plug), HVI, cUL certified
- Inkluderede komponenter: Lasko - S16225 16" Pedestal Fan With Dial On Stand - White
Garanti og support
This Lasko S16225 Pedestal Fan comes with a basic manufacturer's warranty. Specific details regarding the warranty period and coverage are typically included with the product packaging or available on the manufacturer's official webwebsted.
For warranty claims, technical support, or any questions not covered in this manual, please contact Lasko customer support directly. You can usually find contact information on the Lasko webwebstedet eller på produktemballagen.
For more information, visit the official Lasko webwebsted: www.lasko.com
