OttLite LED-skrivebord Lamp med justerbar forstørrelsesglas Brugermanual

1. Produktet er slutview

The OttLite LED Desk Lamp with Adjustable Magnifier is designed to provide optimal lighting for various tasks, including reading, studying, crafting, and sewing. It features OttLite's exclusive ClearSun LED technology, which aims to reduce eyestrain by matching the spectral output of natural sunlight. The lamp includes an optical-grade magnifier and offers multiple brightness settings for customized illumination.

Figure 1: OttLite LED Desk Lamp with Adjustable Magnifier, showcasing its sleek design and integrated magnifying lens.

Official Product Video: OttLite Wellness Series

2. Nøglefunktioner

2.1 ClearSun LED Technology

OttLite's exclusive ClearSun LED technology is engineered to closely replicate the spectral output of natural sunlight. This advanced lighting solution significantly reduces eyestrain by up to 51%, providing a balanced and smooth light that is gentle on the eyes. It boasts a Color Rendering Index (CRI) of 95+, ensuring colors are seen with exceptional accuracy and vibrancy, unlike typical LEDs that can cause visual fatigue due to unbalanced lightwaves.

Figure 2: Illustration demonstrating the lamp's ability to reduce eyestrain by up to 51% with ClearSun LED technology.

Figure 3: Visual comparison highlighting the unmatched color accuracy provided by ClearSun LEDs with a CRI of 95+.

2.2 Optical-Grade Magnifier

Integreret i lamp head is a high-quality 1.7x optical-grade magnifier, which also includes a 3.4x spot viewer for even finer detail work. A protective, easy-close lid covers the magnifier when not in use, keeping it clean and safe. This feature is particularly beneficial for intricate tasks such as crafting, sewing, reading small print, or examining medicine labels.

Figur 4: En detaljeret view af lamp's optical-grade magnifier, showing its clarity and the protective lid.

2.3 Adjustable Settings and Design

Lamp features a flexible, sturdy neck that allows for easy height adjustment, ranging from 10 to 21 inches, to direct light precisely where needed. Control is intuitive with a touch-sensitive switch on the base, offering four distinct brightness levels to suit various lighting preferences and tasks.

Figure 5: Diagram illustrating the lamp's key adjustable features, including the flexible neck, touch-sensitive switch, and four brightness settings.

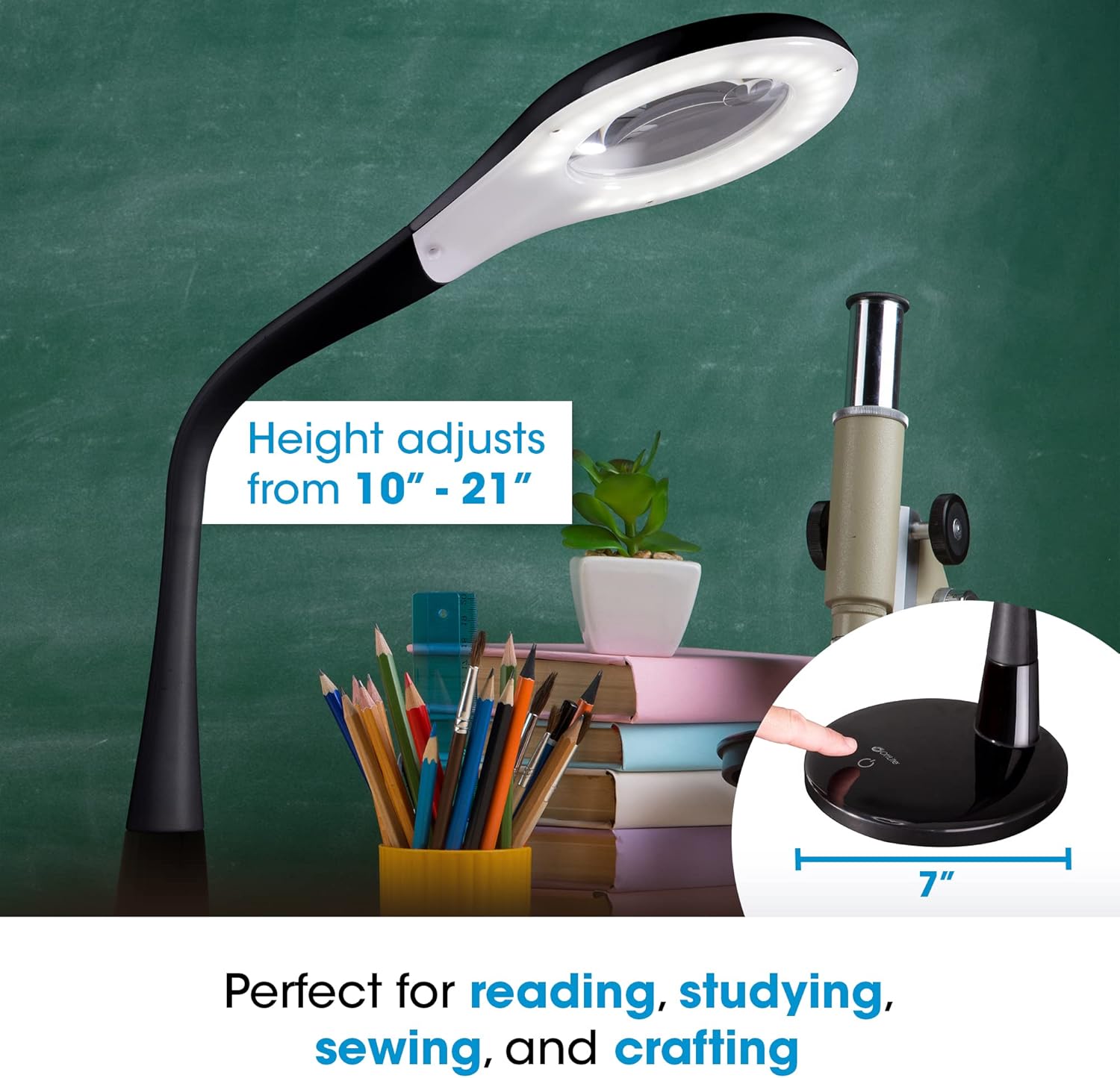

Figur 6: Den lamp positioned on a desk with books and art supplies, demonstrating its adjustable height and suitability for various activities.

3. Opsætning

Your OttLite LED Desk Lamp requires minimal assembly. Follow these steps for initial setup:

1. Pakker ud: Fjern forsigtigt alle komponenter fra emballagen. Sørg for, at alle dele er til stede:amp base, flexible neck with lamp head, and power adapter.
2. Placering: Placer lamp base on a stable, flat surface. The base diameter is 7 inches, providing a sturdy foundation.
3. Strømtilslutning: Insert the power adapter into the power input port located on the back or side of the lamp base. Plug the other end of the adapter into a standard electrical outlet (120 Volts).
4. Juster hals: Gently adjust the flexible neck to your desired height and angle. The neck is designed for easy manipulation to direct light effectively.

Lamp er nu klar til drift.

4. Betjeningsvejledning

The OttLite LED Desk Lamp is designed for user-friendly operation with its touch-sensitive controls.

• Tænd/sluk: For at dreje lamp on or off, lightly touch the power icon on the lamp grundlag.
• Juster lysstyrke: Lamp offers 4 brightness settings. With the lamp on, repeatedly touch the power icon to cycle through the different brightness levels. The lamp will dim with each subsequent touch until it reaches the lowest setting, then cycle back to the brightest.
• Brug af forstørrelsesglas: To use the optical-grade magnifier, gently lift the protective lid located on the lamp head. Position the object you wish to magnify directly under the lens. When finished, close the lid to protect the lens from dust and scratches.
• Justering af Lamp Position: The flexible neck allows for precise positioning of the light and magnifier. Bend and twist the neck to achieve the optimal angle and height for your task.

5. Vedligeholdelse

Proper care and maintenance will ensure the longevity and optimal performance of your OttLite LED Desk Lamp.

• Rensning: Sørg for at lamp er taget ud af stikkontakten før rengøring. Brug en blød, tør klud til at tørre afamp's surfaces. For the magnifier lens, use a lens cleaning cloth and a suitable lens cleaning solution to avoid scratches. Do not use abrasive cleaners or solvents.
• lysdioder: Lamp uses integrated LEDs that are designed for long life and are not user-replaceable. Do not attempt to replace the LEDs.
• Opbevaring: Hvis du opbevarer lamp for an extended period, unplug it and gently fold the flexible neck to a compact position. Store in a cool, dry place.

6. Fejlfinding

If you encounter any issues with your OttLite LED Desk Lamp, please refer to the following common troubleshooting steps:

If the problem persists after trying these solutions, please contact OttLite customer support for further assistance.

7. Specifikationer

8. Garanti og support

OttLite products are designed for quality and durability. For specific warranty information regarding your LED Desk Lamp with Adjustable Magnifier, please refer to the documentation included with your purchase or visit the official OttLite website. For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact OttLite customer service.

You can often find support resources and contact information on the manufacturer's webwebsted: www.ottlite.com
