Elektrobock trådløs rumtermostat FRT7B2 brugermanual

1. Introduktion og overview

The Elektrobock FRT7B2 is a wireless room thermostat system designed to control heating sources based on the desired room temperature. It consists of two main components: a wireless transmitter unit (thermostat) that monitors the temperature in a specific room, and a switching element receiver that controls the connected heating source. This system offers clear display with backlighting, extended wireless range, and various programmable features for efficient temperature management.

2. Produktkomponenter

The FRT7B2 system includes the following main components:

• Wireless Thermostat (Transmitter): This unit features a clear backlit display and controls for setting temperature and operating modes. It is powered by batteries.
• Modtagerenhed: This unit connects to your heating system and receives signals from the wireless thermostat to switch the heating on or off. It is mains powered.

Figure 2.1: The Elektrobock FRT7B2 wireless thermostat (left) and its receiver unit (right).

Figure 2.2: Detailed dimensions of the FRT7B2 wireless thermostat and receiver unit.

3. Opsætning og installation

3.1. Thermostat (Transmitter) Battery Installation

1. Gently open the battery compartment cover on the back of the thermostat unit.
2. Insert two 1.5V AAA alkaline batteries, ensuring correct polarity (+/-).
3. Luk batterirummets dæksel forsvarligt.

Figur 3.1: Bagside view of the thermostat, indicating the battery compartment and mounting points.

3.2. Receiver Unit Wiring and Placement

The receiver unit must be wired to your heating system. This installation should be performed by a qualified electrician to ensure safety and proper functionality.

1. Ensure the main power supply to the heating system is turned off before commencing any wiring.
2. Connect the receiver unit according to the wiring diagram provided in the full product manual (not included here). The receiver operates at 230 Volts.
3. Mount the receiver unit in a suitable location, typically near the heating appliance, ensuring it is within the wireless range of the thermostat (up to 35m indoors, 200m outdoors).
4. Restore power to the heating system after installation is complete.

3.3. Parring af termostat og modtager

The thermostat and receiver are typically pre-paired from the factory. If re-pairing is necessary, refer to the detailed instructions in the complete product manual. The system uses digital signal coding for reliable communication.

4. Betjeningsvejledning

4.1. Display overview

The thermostat features a clear backlit display showing current temperature, set temperature, time, and operating mode indicators. The display provides essential information at a glance.

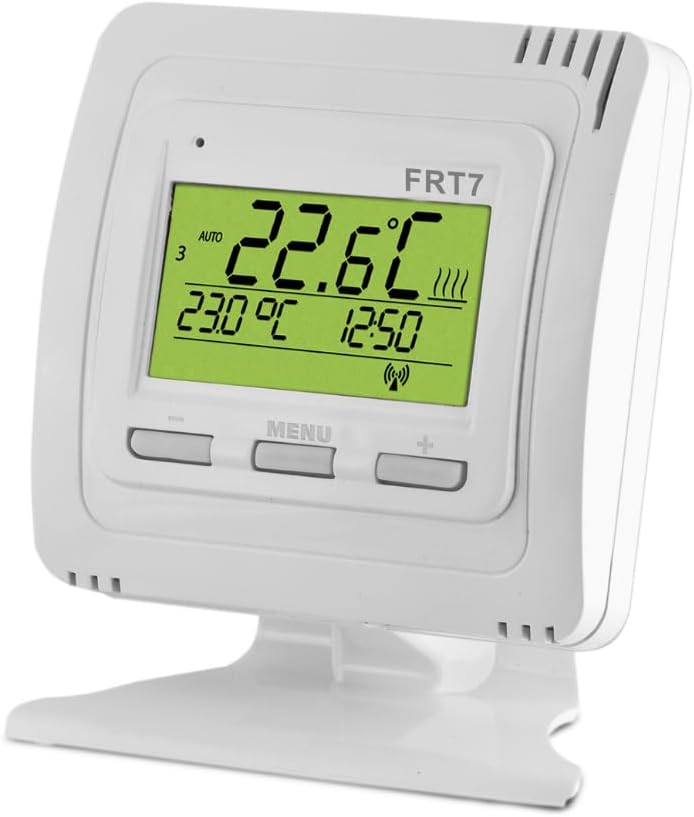

Figur 4.1: Forside view of the thermostat, highlighting the backlit display and control buttons.

4.2. Basic Temperature Adjustment

For at justere den ønskede temperatur:

1. Tryk på + or - buttons located below the display to increase or decrease the set temperature.
2. The temperature can be adjusted in 0.5°C increments.
3. The new setting will be active immediately in manual mode or as a temporary override in automatic mode.

4.3. Driftstilstande

The thermostat supports several operating modes:

• AUTO (automatisk): Følger den planlagte ugentlige tidsplan.
• MANU (Manual): Maintains a constant temperature set by the user, overriding the program.
• OFF: Turns off the heating. Frost protection (3°C) remains active.
• FERIE: Sets a specific temperature for a defined holiday period.

Brug MENU button to cycle through and select the desired operating mode.

5. Programming Features

The FRT7B2 offers advanced programming capabilities for energy efficiency and comfort.

5.1. Ugentlig program

The thermostat comes with a predefined weekly program. You can customize this program based on individual days (Mon-Sun), weekdays (Mon-Fri), weekends (Sat-Sun), or the entire week (Mon-Sun). Up to 6 temperature changes can be set per day.

5.2. Short-Term Temperature Modification

While in AUTO mode, you can temporarily adjust the temperature. This change will be active for a short period (e.g., 10 minutes) or until the next programmed temperature change, after which the thermostat will revert to its schedule.

5.3. 'OPEN WINDOW' Function

This intelligent feature automatically switches off the heating if a sudden drop in temperature is detected, indicating an open window or door. This helps prevent energy waste.

5.4. Hysteresis Setting

The hysteresis (temperature differential) can be adjusted from 0.1°C to 6°C. This setting determines the temperature range around the set point within which the heating will not switch on or off, preventing rapid cycling of the heating system.

6. Vedligeholdelse

6.1. Udskiftning af batteri

When the battery indicator appears on the display, replace the AAA batteries in the thermostat unit as described in Section 3.1. Use only high-quality alkaline batteries.

6.2. Rensning

Clean the thermostat and receiver units with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the surfaces and electronic components.

7. Fejlfinding

If you encounter issues with your Elektrobock FRT7B2 thermostat, consider the following common solutions:

• No Display/Thermostat Not Responding: Check and replace the batteries in the thermostat unit. Ensure they are inserted with correct polarity.
• Heating Not Responding to Thermostat: Verify that the receiver unit has power and its indicator lights are active. Check the wireless connection; try re-pairing if necessary (refer to the full manual). Ensure the thermostat is within range of the receiver.
• Forkert temperaturaflæsning: Sørg for, at termostaten ikke placeres i nærheden af ​​varmekilder (f.eks. direkte sollys,amps) or cold drafts, which can affect its accuracy. The measurement precision is ± 0.5°C.
• Difficulty with Programming: Refer to the detailed programming section in the complete product manual for step-by-step instructions. Initial setup can sometimes require careful attention to detail.

For persistent issues, contact Elektrobock customer support or consult a qualified technician.

8. Specifikationer

9. Garanti og support

Warranty information for the Elektrobock FRT7B2 thermostat is typically provided with the product packaging or can be found on the manufacturer's official webwebsted. Gem venligst din købsbevis til garantikrav.

For technical support, further assistance, or to inquire about spare parts, please contact Elektrobock customer service directly. Contact details can usually be found in the product documentation or on the Elektrobock webwebsted.
