Bonacell 21.6V 5000mAh Li-ion DC16 Replacement Battery User Manual

1. Produktet er slutview

The Bonacell 21.6V 5000mAh Li-ion DC16 Replacement Battery is designed to provide extended power and reliable performance for your compatible DC16 series handheld vacuum cleaner. This high-capacity battery offers a significant upgrade, ensuring longer runtime and consistent suction power for various cleaning tasks.

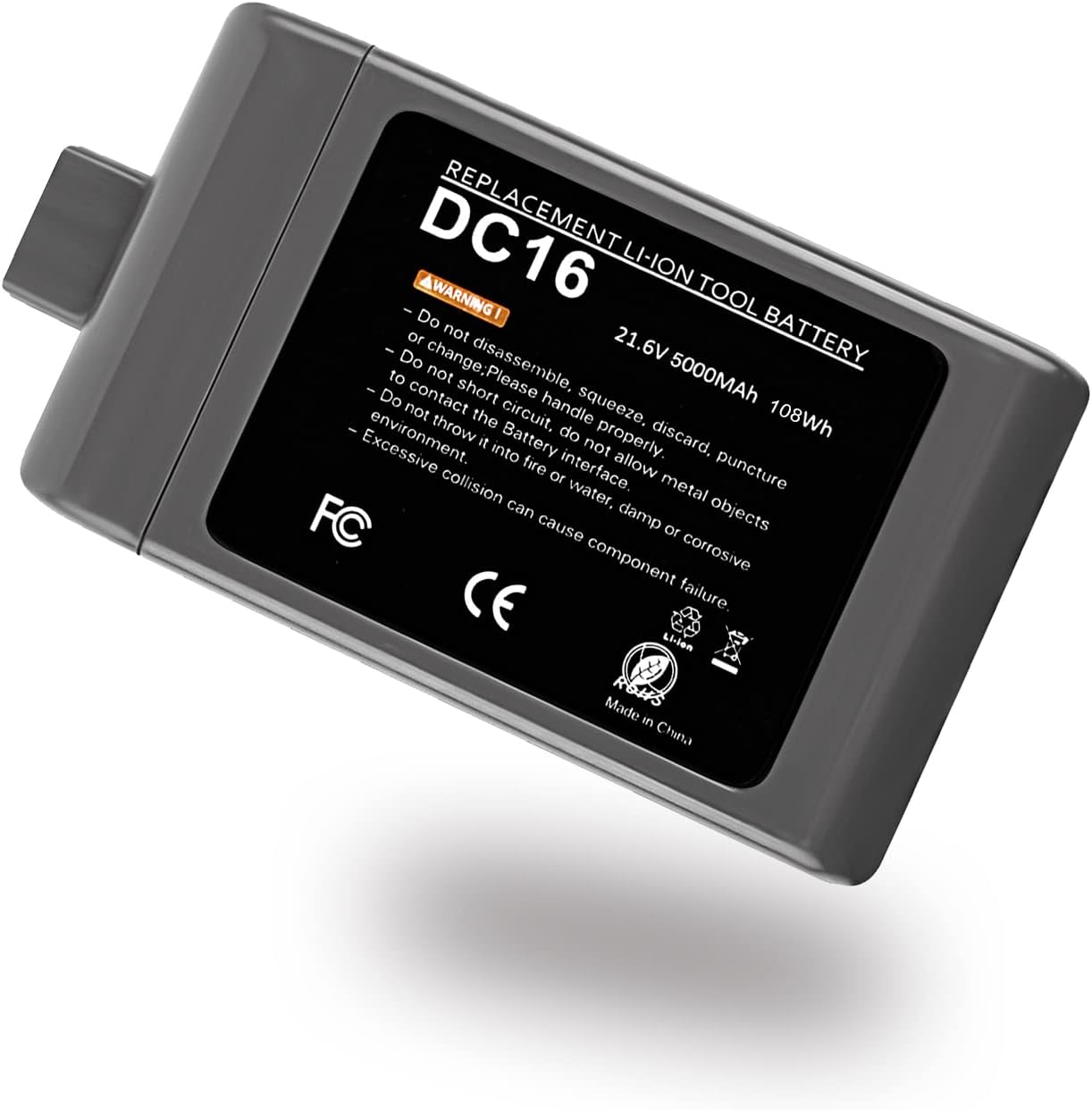

Image 1.1: The Bonacell 21.6V 5000mAh Li-ion DC16 Replacement Battery, showcasing its design and label.

Key features include a 5000mAh capacity for extended use and a 21.6V output, making it a direct and powerful replacement for original DC16 batteries.

2. Sikkerhedsoplysninger

Please read and understand all safety warnings before using this product to prevent injury or damage.

• Do not disassemble, squeeze, discard, or puncture the battery. Improper handling can lead to severe damage or injury.
• Handle properly. Undgå at tabe batteriet eller udsætte det for kraftige stød.
• Do not allow metal objects to contact the battery interface. This can cause a short circuit, leading to heat generation, fire, or explosion.
• Smid ikke batteriet i ild eller vand. Exposure to extreme temperatures or moisture can cause the battery to explode or leak.
• Avoid excessive collision. Physical impact can cause internal damage and component failure.

This battery is equipped with multiple protection features to ensure safe operation:

• Overopladningsbeskyttelse
• Overudladningsbeskyttelse
• Temperaturbeskyttelse
• Kortslutningsbeskyttelse
• Output Overvoltage Beskyttelse
• Output overstrømsbeskyttelse

Image 2.1: Visual representation of the safety and reliability features integrated into the Bonacell DC16 battery.

3. Kompatibilitet

The Bonacell 21.6V 5000mAh Li-ion DC16 Replacement Battery is designed for wide compatibility with various DC16 series handheld vacuum cleaner models. It is a direct replacement for the original battery and fits seamlessly.

Kompatible modeller inkluderer, men er ikke begrænset til:

• DC16 Root 6
• DC16 Animal
• DC16 Pink
• DC16 ISSEY MIYAKE exclusive
• D12
• DC12
• DC16 Car & Boat

Image 3.1: Illustration showing the Bonacell DC16 battery compatible with various DC16 vacuum cleaner models.

4. Specifikationer

Below are the technical specifications for the Bonacell 21.6V 5000mAh Li-ion DC16 Replacement Battery:

Billede 4.1: Detaljeret view of the battery specifications including cell type, capacity, and voltage.

5. Opsætning (Installation)

Installing the Bonacell DC16 Replacement Battery is a straightforward process. Ensure your vacuum cleaner is turned off and unplugged from any power source before proceeding.

1. Locate the Existing Battery: On your DC16 handheld vacuum cleaner, identify the battery pack. It is typically located at the base or handle of the unit.
2. Fjern det gamle batteri: Depending on your specific DC16 model, there may be release clips or screws securing the battery. Carefully disengage any clips or unscrew any fasteners. Gently pull the old battery out of its compartment.
3. Isæt det nye batteri: Align the Bonacell replacement battery with the battery compartment. Ensure the connectors on the battery align with the corresponding terminals in the vacuum cleaner. Slide the new battery firmly into place until it clicks or is securely seated.
4. Fastgør batteriet: If your model required screws or clips, re-secure them to hold the new battery firmly.
5. Indledende opkrævning: It is recommended to fully charge the new battery before its first use. Refer to the 'Operating' section for charging instructions.

Billede 5.1: Nærbillede view of the battery's connection points and casing, aiding in proper installation.

6. Betjening

Once the Bonacell DC16 Replacement Battery is installed, you can begin using your vacuum cleaner. Proper charging and discharge practices will help maximize battery life and performance.

6.1 Opladning af batteriet

• Always use the original or a compatible charger designed for your DC16 vacuum cleaner.
• Connect the vacuum cleaner to its charging dock or power adapter. The charging indicator on your vacuum will typically illuminate to show it is charging.
• Allow the battery to charge fully before its first use and after each subsequent use for optimal performance. A full charge typically takes several hours.

6.2 Initial Conditioning

For new batteries, it is often beneficial to perform a few charge and discharge cycles to help the battery reach its full capacity. This involves fully charging the battery, using the vacuum until the battery is depleted, and then fully recharging it. Repeat this process 2-3 times.

6.3 Brugstips

• Avoid completely draining the battery during regular use if possible, though the battery's protection features will prevent over-discharge.
• For best results, store the vacuum with a partial charge if it will not be used for an extended period.

Image 6.1: The DC16 vacuum cleaner in various usage scenarios, demonstrating the renewed functionality with the replacement battery.

7. Vedligeholdelse

Proper maintenance of your Bonacell DC16 Replacement Battery will ensure its longevity and consistent performance.

• Opbevaring: Store the battery in a cool, dry place away from direct sunlight, heat sources, and moisture. Avoid storing in extreme temperatures.
• Langtidsopbevaring: If the battery will not be used for an extended period (e.g., several months), it is advisable to charge it to approximately 50-60% capacity before storage. Recharge it every 3-6 months to prevent deep discharge, which can damage the battery.
• Rensning: Hold batterikontakterne rene og fri for støv og snavs. Brug en tør klud til at tørre dem af, hvis det er nødvendigt.
• Undgå fysisk skade: Protect the battery from drops, impacts, and crushing, as this can compromise its internal structure and safety features.

8. Fejlfinding

If you encounter issues with your Bonacell DC16 Replacement Battery, refer to the following common troubleshooting steps:

8.1 Batteriet oplades ikke

• Check Charger Connection: Ensure the vacuum cleaner is properly connected to its charging dock or power adapter.
• Bekræft strømudtag: Confirm that the power outlet is functional by plugging in another device.
• Inspect Charger: Check the charger for any visible damage to the cable or adapter.
• Sæt batteriet i igen: Remove and re-insert the battery to ensure it is properly seated and making good contact with the vacuum's terminals.

8.2 Reduceret køretid

• Fuld opladning: Sørg for, at batteriet er fuldt opladet før hver brug.
• Initial Conditioning: If it's a new battery, perform a few full charge/discharge cycles as described in the 'Operating' section.
• Vacuum Maintenance: A clogged filter or brush bar can increase the load on the motor, leading to faster battery drain. Clean or replace filters and clear any obstructions from the brush bar.
• Batteriets alder: All rechargeable batteries have a finite lifespan. If the battery has been in use for a long time, its capacity may naturally degrade.

8.3 Battery Not Fitting Properly

• Bekræft kompatibilitet: Double-check that your vacuum cleaner model is listed as compatible with this battery.
• Undersøg for forhindringer: Ensure there are no foreign objects or debris in the battery compartment that might prevent proper seating.
• Korrekt orientering: Make sure you are inserting the battery in the correct orientation. Do not force the battery into the compartment.

9. Garanti og support

Bonacell is committed to providing high-quality products and excellent customer service. As a professional manufacturer of power tool batteries, Bonacell focuses on the stability, safety, and compatibility of its replacement batteries.

For any questions, concerns, or support needs regarding your Bonacell 21.6V 5000mAh Li-ion DC16 Replacement Battery, please contact Bonacell customer service. They are available to provide high-quality pre-sale and after-sale services to ensure your satisfaction.

Please refer to your purchase documentation or the Bonacell official webwebstedet for specifikke garantivilkår og kontaktoplysninger.
