1. Introduktion
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Kaisai ECO Split Air Conditioner, model KEX-24HRD. Please read this manual thoroughly before using the appliance and retain it for future reference. This air conditioner is designed to provide optimal climate control for spaces up to 100 m², offering both cooling and heating functionalities with high energy efficiency.
2. Sikkerhedsoplysninger
Vigtige sikkerhedsinstruktioner: Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury.
- Professionel installation: Installation, maintenance, and repair of this unit must be performed by qualified and certified personnel only. Improper installation can lead to electric shock, fire, or water leakage.
- Elektrisk sikkerhed: Ensure the power supply matches the unit's requirements. Do not use damaged power cords or plugs. Do not operate with wet hands. Always disconnect power before cleaning or servicing.
- Kølemiddel: This unit uses R32 refrigerant. Do not attempt to handle or release refrigerant. In case of leakage, ventilate the area immediately. R32 is mildly flammable.
- Børn og udsatte personer: Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed. Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
- Ventilation: Ensure proper ventilation around the outdoor unit to prevent overheating. Do not block air inlets or outlets.
- Rensning: Use a soft, dry cloth for cleaning. Do not use volatile liquids or abrasive cleaners.
- Beliggenhed: Install the unit on a stable, level surface that can support its weight. Avoid direct sunlight or heat sources.
3. Produktet er slutview
The Kaisai ECO Split Air Conditioner system consists of an indoor unit, an outdoor unit, and a remote control, designed for efficient climate control. The indoor unit is typically mounted on a wall, while the outdoor unit is placed outside the building.
Figur 3.1: Complete Kaisai ECO Split Air Conditioner system, showing the indoor unit, outdoor unit, remote control, and various installation components including copper piping, drainage hose, electrical cable, and wall brackets.
Figur 3.2: The indoor unit of the Kaisai ECO Split Air Conditioner, featuring a clean white design with the 'KAISAI eco' logo and a digital display for temperature and mode indicators.
Figur 3.3: The outdoor unit of the Kaisai ECO Split Air Conditioner, characterized by its robust casing and a large fan with blue blades, designed for efficient heat exchange.
4. Nøglefunktioner
The Kaisai ECO Split Air Conditioner is equipped with advanced features for enhanced comfort and energy efficiency:
- Extra Quiet Operation: Utilizes the latest technologies to ensure very quiet operation, minimizing noise disturbance.
- Efficient Climate Control: Features DC inverter technology for high energy efficiency, achieving A++ for cooling and A+ for heating.
- Turbo tilstand: Allows the unit to reach the set temperature more rapidly for quick comfort.
- 24-timers timer: Enables users to program specific on and off times for automated operation.
- Følg mig-funktionen: The remote control's integrated temperature sensor helps regulate the room temperature more accurately based on the remote's location.
- Sove mode: Provides a quiet and efficient operation during sleep, preventing overcooling or overheating.
- R32 Kølemiddel: Uses environmentally friendly R32 refrigerant, which has a 68% reduced environmental impact compared to R-410A and is easily recyclable.
- Avanceret filtrering: Includes Bio HEPA filter and Cold Catalytic filter for improved air quality.
- Self-Cleaning Evaporator: Helps maintain the cleanliness and efficiency of the indoor unit's evaporator coil.
- WiFi klar: Allows for smart control via a mobile application (additional module may be required).
Figur 4.1: Visual representation of the Kaisai ECO's advanced features, highlighting its smart capabilities, environmental friendliness, and air purification functions.
5. Pakkens indhold
Ved udpakning skal du kontrollere, at alle følgende komponenter er inkluderet i din pakke:
- Kaisai ECO Indoor Unit (Wall Machine)
- Kaisai ECO Outdoor Unit
- Fjernbetjening
- 5 meters of insulated, pre-fabricated refrigerant conductor (copper piping)
- 5 meters of condensation line (drainage hose)
- 5 meters of NYM power cable (5 x 1.5)
- Wall brackets for the outdoor unit (fire-dip galvanized steel, powder coated, extension 465 mm, up to 140 kg load-bearing capacity)
- Brugervejledning (dette dokument)
Figur 5.1: The included mounting set and connection lines, essential for the installation of the split air conditioning system.
6. Opsætning og installation
ADVARSEL: Installation of this air conditioning unit requires specialized knowledge and tools. It must be performed by a qualified and certified HVAC technician to ensure safety, proper operation, and compliance with local regulations regarding refrigerant handling.
6.1. Valg af sted
- Indendørs enhed: Choose a location that allows for even air distribution throughout the room, away from direct sunlight or heat sources. Ensure sufficient space around the unit for maintenance and airflow.
- Udendørs enhed: Select a location with good ventilation, away from obstacles that might block airflow. Ensure it is on a stable surface and can withstand weather conditions. Minimize the distance between indoor and outdoor units for optimal performance.
6.2. Installationstrin (Overview for tekniker)
- Mount the indoor unit securely on the wall using the provided mounting plate.
- Drill a hole through the wall for the refrigerant pipes, drainage hose, and electrical cable.
- Install the outdoor unit on the wall brackets or a stable ground pad.
- Connect the refrigerant pipes between the indoor and outdoor units, ensuring proper insulation and leak-free connections.
- Connect the drainage hose from the indoor unit to an appropriate drainage point.
- Perform electrical wiring connections according to the wiring diagram provided in the detailed installation manual (not included in this user manual).
- Tøm kølemiddelledningerne for at fjerne luft og fugt.
- Udfør en lækagetest.
- Open the service valves and release the refrigerant.
- Test run the unit to ensure proper operation in all modes.
Figur 6.1: En eksample of the indoor unit properly installed on a wall, demonstrating typical placement in a living space.
7. Betjeningsvejledning
Your Kaisai ECO Split Air Conditioner is controlled primarily via the wireless remote control. Familiarize yourself with the remote's functions for optimal use.

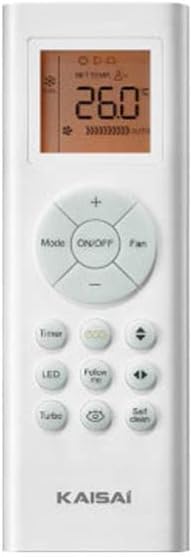

Figur 7.1: The remote control for the Kaisai ECO air conditioner, featuring a clear LCD display and intuitive buttons for mode selection, temperature adjustment, fan speed, and special functions.
7.1. Fjernbetjeningsfunktioner
- ON/OFF knap: Tænder eller slukker for enheden.
- MODE knap: Skifter mellem driftstilstande: Auto, Køling, Tørring, Varme, Ventilator.
- Temperaturknapper (▲/▼): Justerer den ønskede temperaturindstilling.
- FAN knap: Vælger ventilatorhastighed: Auto, Lav, Mellem, Høj.
- TIMER knap: Indstiller 24-timers timeren til automatisk tænd/sluk-funktion.
- ECO knap: Aktiverer energisparetilstand.
- LED knap: Tænder eller slukker indendørsenhedens display-LED.
- Følg mig knap: Activates the Follow Me function, using the remote's sensor for temperature reading.
- TURBO knap: Activates Turbo mode for rapid cooling or heating.
- SLEEP knap: Activates Sleep mode for quiet and energy-efficient operation during sleep.
- SET/CLEAN Button: May be used for setting specific functions or initiating a self-clean cycle (refer to detailed remote manual for specific model functions).
7.2. Grundlæggende betjening
- Tænd: Press the ON/OFF button. The unit will start in the last selected mode or Auto mode.
- Vælg tilstand: Press the MODE button repeatedly until the desired mode (Cool, Heat, Fan, Dry, Auto) is displayed.
- Indstil temperatur: Use the ▲/▼ buttons to set your desired temperature.
- Juster blæserhastighed: Press the FAN button to cycle through fan speed options.
- Sluk: Tryk på ON/OFF-knappen igen.
8. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your air conditioner. Always disconnect power before performing any maintenance.
8.1. Rengøring af luftfilter
Luftfiltrene bør rengøres hver anden uge eller oftere afhængigt af brug og luftkvalitet.
- Åbn frontpanelet på indendørsenheden.
- Fjern luftfiltrene.
- Clean the filters using a vacuum cleaner or wash them with lukewarm water (below 40°C).
- Allow the filters to dry completely in a shaded area before re-installing. Do not expose to direct sunlight.
- Re-install the filters and close the front panel.
8.2. Rengøring af udendørsenhed
Periodically clean the outdoor unit's coil and fan blades to remove dust, leaves, and debris. Use a soft brush or vacuum cleaner. Ensure the area around the outdoor unit is clear of obstructions.
8.3. Professionel service
Det anbefales at få dit klimaanlæg professionelt serviceret mindst én gang om året af en kvalificeret tekniker. Dette inkluderer kontrol af kølemiddelniveauer, elektriske forbindelser og systemets samlede ydeevne.
9. Fejlfinding
Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger på disse:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden starter ikke | No power supply; Remote control batteries low; Timer function active. | Check power connection and circuit breaker; Replace remote control batteries; Deactivate timer function. |
| Utilstrækkelig køling/opvarmning | Dirty air filters; Blocked air intake/outlet; Room too large; Doors/windows open; Temperature setting incorrect. | Clean air filters; Remove obstructions; Close doors/windows; Adjust temperature setting. |
| Vandlækage fra indendørsenhed | Drainage hose blocked or kinked; Improper installation. | Check and clear drainage hose; Contact a qualified technician for inspection. |
| Usædvanlig støj | Loose parts; Fan obstruction; Refrigerant flow noise (normal). | Check for loose parts; Remove any obstructions; If noise persists or is abnormal, contact technician. |
| Fjernbetjening virker ikke | Batterier døde eller forkert isat; Blokering mellem fjernbetjening og enhed. | Replace batteries; Ensure clear line of sight to indoor unit's receiver. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte en kvalificeret servicetekniker.
10. Tekniske specifikationer
| Specifikation | Værdi |
|---|---|
| Mærke | KAISAI |
| Modelnavn | Kaisai Eco |
| Varemodelnummer | KEX-24HRD |
| Kølekapacitet | 7.0 kW (24000 BTU) |
| Varmekapacitet | A+ |
| Energieffektivitet (køling) | A++ |
| Kølevæsketype | R32 |
| Strømkilde | Elektrisk med ledning |
| Voltage | 230 volt |
| Wattage | 7 KW |
| Kontrolmetode | Fjern |
| Inverter type | Has Inverter |
| Formfaktor | Mini-Split |
| Produktdimensioner | 84.5 x 36.3 x 70.2 cm |
| Dato først tilgængelig | 20. maj 2020 |
11. Garanti og support
For warranty information, please refer to the warranty card included with your product or contact your local Kaisai dealer or distributor. Keep your purchase receipt as proof of purchase for warranty claims.
For technical support, service, or spare parts, please contact the authorized Kaisai service center in your region. Contact details can typically be found on the manufacturer's webwebstedet eller gennem dit købssted.
