Indledning

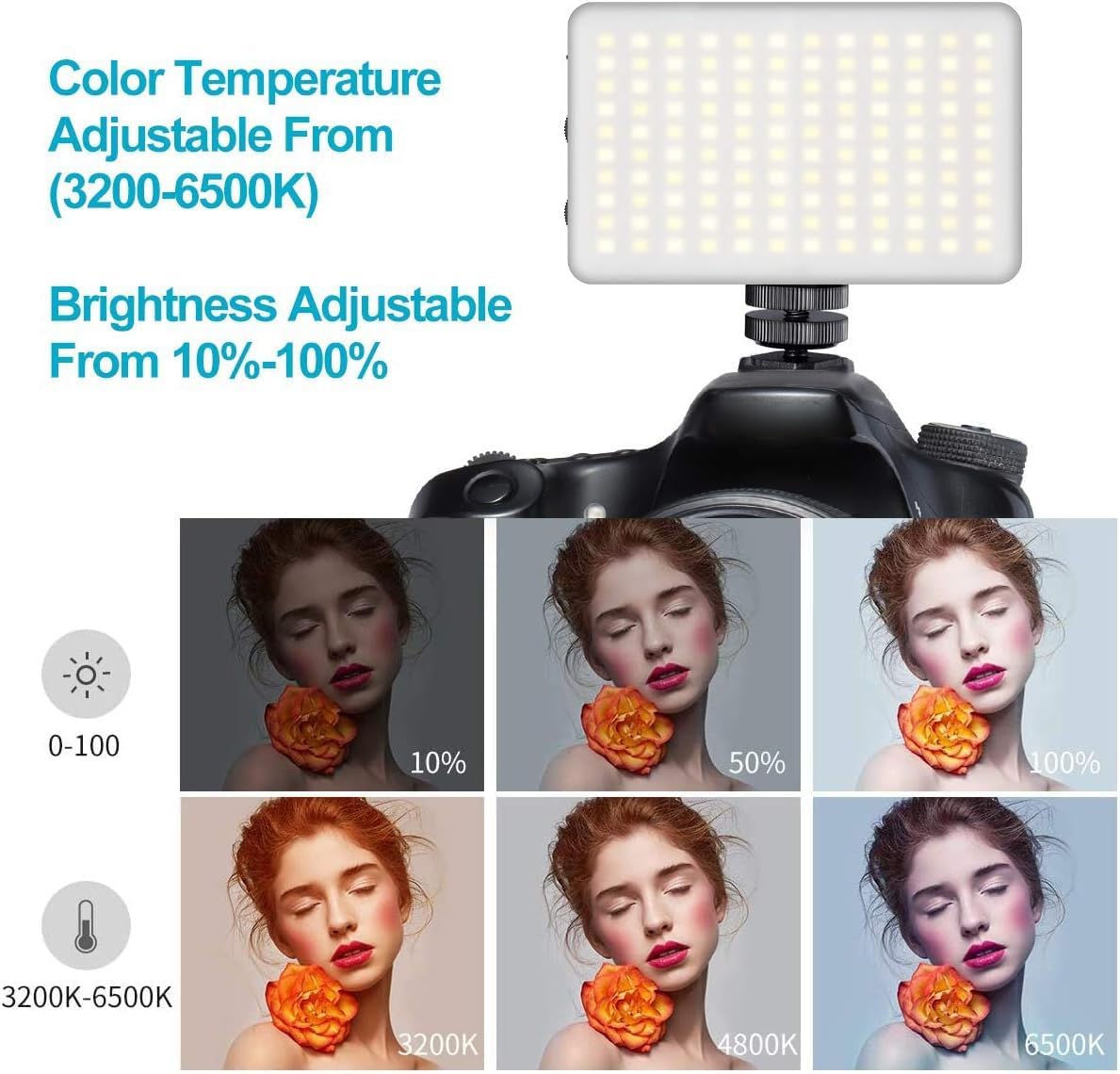

The VIJIM VL120 LED Video Light is a compact and versatile lighting solution designed for photographers and videographers. It features 120 high-quality LED beads, adjustable bi-color temperature (3200K-6500K), and dimmable brightness, making it suitable for various shooting environments. This manual provides detailed instructions for the proper setup, operation, and maintenance of your VL120 LED Video Light.
Hvad er der i æsken
- LED video lys
- Silikone Cover
- Color Paper (6 pieces)
- Monteringsbase
- Type-C opladerkabel
Produktegenskaber
- Høj CRI LED-perler: Equipped with 120 high-quality LED beads, offering a Color Rendering Index (CRI) of 95+ for accurate color reproduction and up to 1250 Lux maximum brightness.
- Tofarvet temperatur: Steplessly adjustable color temperature from 3200K (warm) to 6500K (cool) to match various lighting conditions.
- Dæmpbar lysstyrke: Brightness is adjustable from 10% to 100% using a single switch, providing precise control over light output.
- Blød lysdiffusion: Includes a silicone cover to soften the light output, protecting eyes and creating a more natural illumination.
- Farvefiltre: Six color filters (pink, red, yellow, purple, green, blue) are provided to create diverse lighting effects and moods.
- Indbygget genopladeligt batteri: Features a 3100mAh lithium battery, offering 120-150 minutes of continuous use at maximum power.
- Type-C opladning: Convenient Type-C charging port allows for charging while in use.
- Kompakt og bærbar: Lightweight and durable construction for easy portability.
Opsætning
- Oplad enheden: Before first use, fully charge the VL120 using the provided Type-C charging cable. The battery indicator lights will show the charging status.
- Fastgør monteringsbase: Screw the cold shoe mounting base into the 1/4-inch screw hole at the bottom of the light.
- Mount to Camera/Tripod: Slide the cold shoe mount into your camera's hot shoe or attach it to a compatible tripod.
- Apply Silicone Cover (Optional): For softer light, slide the silicone diffuser cover over the LED panel.
- Insert Color Gels (Optional): If using color filters, place the desired color paper inside the silicone cover before attaching it to the light.
Betjeningsvejledning
- Tænd/sluk: Slide the "OFF/ON" switch to turn the light on or off.
- Juster lysstyrke: Use the "DIM +/-" knob to increase or decrease the brightness from 10% to 100%.
- Juster farvetemperatur: Use the "CT +/-" knob to change the color temperature from 3200K (warm) to 6500K (cool).
- Monitor batteri: The LED indicator lights on the side of the unit display the remaining battery charge.
Video: Demonstrates the features of the VIJIM VL120 LED Video Light, including its soft light cover and color gels. This video is provided by the seller.
Opretholdelse
- Hold enheden tør og ren.
- Undgå at udsætte lyset for ekstreme temperaturer eller direkte sollys i længere perioder.
- Clean the LED panel and body with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
- Opbevar lyset på et køligt, tørt sted, når det ikke er i brug.
Fejlfinding
Lyset tænder ikke:
- Sørg for, at tænd/sluk-knappen er i "ON"-positionen.
- Check the battery level. If low, charge the device using the Type-C cable.
Brightness/Color Temperature cannot be adjusted:
- Verify that the respective adjustment knobs are being turned correctly.
- Sørg for, at enheden er tændt.
Kort batterilevetid:
- Battery life is shorter at maximum brightness. Reduce brightness for extended use.
- Sørg for, at batteriet er fuldt opladet før brug.
Specifikationer
| Modelnummer | VL120 |
| Produktdimensioner | 4.2 x 2.6 x 0.6 tommer (10.67 x 6.6 x 1.52 cm) |
| Varens vægt | 11.3 ounce (320 gram) |
| LED perler | 120 stk |
| Max Brightness Illuminance | Up to 1250 Lux |
| Color Rendering Index (CRI) | 95+ |
| Farvetemperatur | 3200K-6500K (Bi-Color, Steplessly Dimmable) |
| Justering af lysstyrke | 10%-100% |
| Batterikapacitet | 3100mAh Lithium Ion |
| Battery Life (Max Power) | 120-150 minutes (approx. 2-2.5 hours) |
| Opladningsport | USB Type-C |
| Hardware-interface | USB Type C |
Garanti og support
For warranty information or technical support, please refer to the product packaging or contact VIJIM customer service directly. Specific warranty terms may vary by region and retailer.
