FREESEA 5W Internal Aquarium Power Filter Pump User Manual

Indledning

This manual provides instructions for the FREESEA 5 Watt Internal Aquarium Power Filter Pump. This submersible unit combines a power head and UV pump, designed for efficient filtration and water circulation in both marine and freshwater aquariums. It features a 5W UV light, a built-in 5W water pump, and is capable of filtering tanks up to 150 gallons while operating quietly.

Produkt overview og funktioner

• Green Killer Aquarium Pump: Utilizes UV light and a water pump to manage free-floating impurities and prevent algae growth, promoting a clear aquatic environment.
• 4-in-1 UV Water Pump: This device integrates four functions: water pumping, filtration, oxygenation, and UV sterilization. It features a built-in 5W water pump and a 5W UV light for effective and reliable operation.
• Kraftig og støjsvag: This durable internal filter, measuring approximately 11 x 2 x 2.3 inches, provides strong water flow without disturbing aquatic life.
• Large Aquarium Submersible Pump: Suitable for both marine and freshwater tanks up to 150 gallons. Ensure the unit is fully submerged during operation.

Figure 1: Components of the FREESEA Aquarium Power Filter. This diagram illustrates the main parts including the adjustable water outlet, UV light, suction cups, and air hose.

Opsætningsinstruktioner

1. Udpak komponenter: Fjern forsigtigt alle dele fra emballagen.
2. Installer filtermedie: Ensure the filter sponge is correctly placed inside the filter housing.
3. Attach Spray Bar: Connect the spray bar to the pump outlet. This allows for even water distribution.
4. Connect Aeration Outlet (Optional): If using the oxygenation feature, attach the aeration outlet and air hose to the designated port on the pump.
5. Secure in Tank: Use the powerful suction cups to firmly attach the filter to the inside wall of your aquarium. Ensure the entire unit is fully submerged in water.

Betjeningsvejledning

1. Tænd: Once installed and fully submerged, plug the power cord into a suitable electrical outlet.
2. Juster vandflow: The water outlet direction is 180° adjustable. Rotate the spray bar to direct the water flow as desired for optimal circulation.
3. Adjust Air Volume: If using the oxygenation feature, adjust the air valve on the air hose to control the amount of air bubbles released into the tank.
4. Oprethold nedsænkning: Always ensure the filter remains fully submerged in water during operation to prevent damage and ensure proper function.

Opretholdelse

Regular maintenance is crucial for the optimal performance and longevity of your FREESEA Aquarium Power Filter. Always unplug the unit from the power source before performing any maintenance.

• Filter Sponge Cleaning: Regularly clean the filter sponge to prevent clogging and maintain efficient mechanical and biological filtration. Rinse the sponge in old aquarium water during water changes to preserve beneficial bacteria.
• Rengøring af impeller: Periodically remove the impeller cover and clean the impeller and its housing to ensure smooth operation and prevent noise or reduced flow.
• UV Light Check: Periodically check the UV light for proper function. If the UV light is no longer emitting light, it may need replacement. Refer to the product specifications for compatible UV bulb types.
• Rengøring af bolig: Clean the exterior of the filter housing and the spray bar to remove any accumulated debris or algae.

Fejlfinding

• Ingen vandgennemstrømning eller svag vandgennemstrømning:
  • Sørg for, at netledningen er sat ordentligt i.
  • Check for blockages in the intake strainer, filter sponge, spray bar, or impeller chamber. Clean as necessary.
  • Verify the filter is fully submerged in water.
• Overdreven støj:
  • Check the impeller for any debris or damage. Clean or replace if needed.
  • Ensure all components are assembled correctly and securely.
  • Verify the filter is securely mounted to the tank wall and fully submerged.
• Water Remains Cloudy:
  • Clean or replace the filter media (sponge).
  • Confirm the UV light is functioning (if applicable).
  • Ensure the filter's capacity is appropriate for your tank size (up to 150 gallons for this model).

Specifikationer

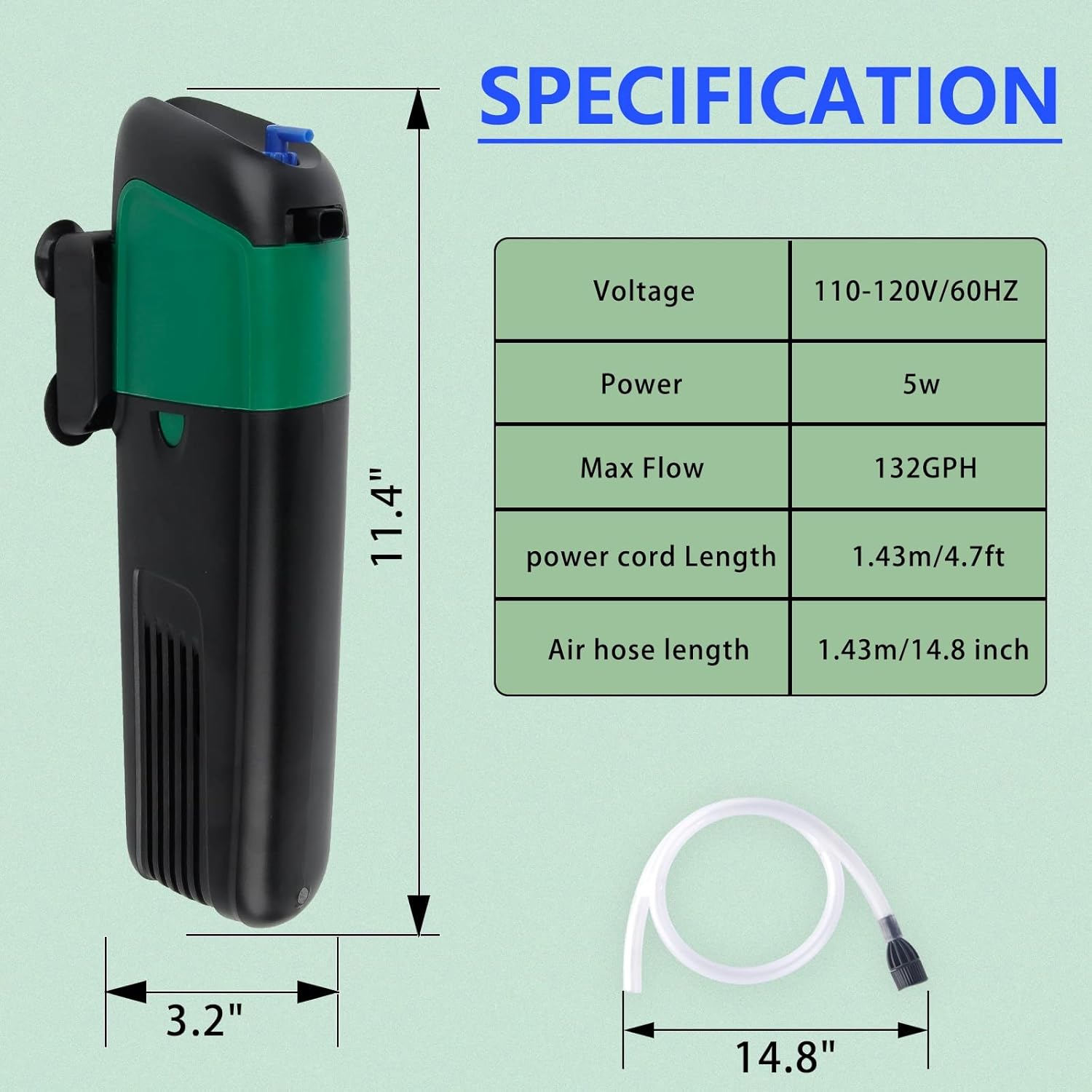

Figure 2: Detailed specifications for the FREESEA Aquarium Power Filter.

Garanti og support

FREESEA products are guaranteed for 1 year from the date of purchase. If you encounter any questions or problems with your product, please contact our customer service team. We are committed to resolving issues within 24 hours. Your inquiries are welcome.
