Beelink MINI S12 Mini PC Brugermanual

1. Introduktion

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Beelink MINI S12 Mini PC. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience.

A compact, dark blue Beelink MINI S12 Mini PC with a textured top surface and front ports visible.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• Beelink MINI S12 Mini PC
• Brugermanual
• Vægmonteret beslag
• HDMI-kabler (2)
• Strømadapter (12V/3A)
• Pakke med skruer

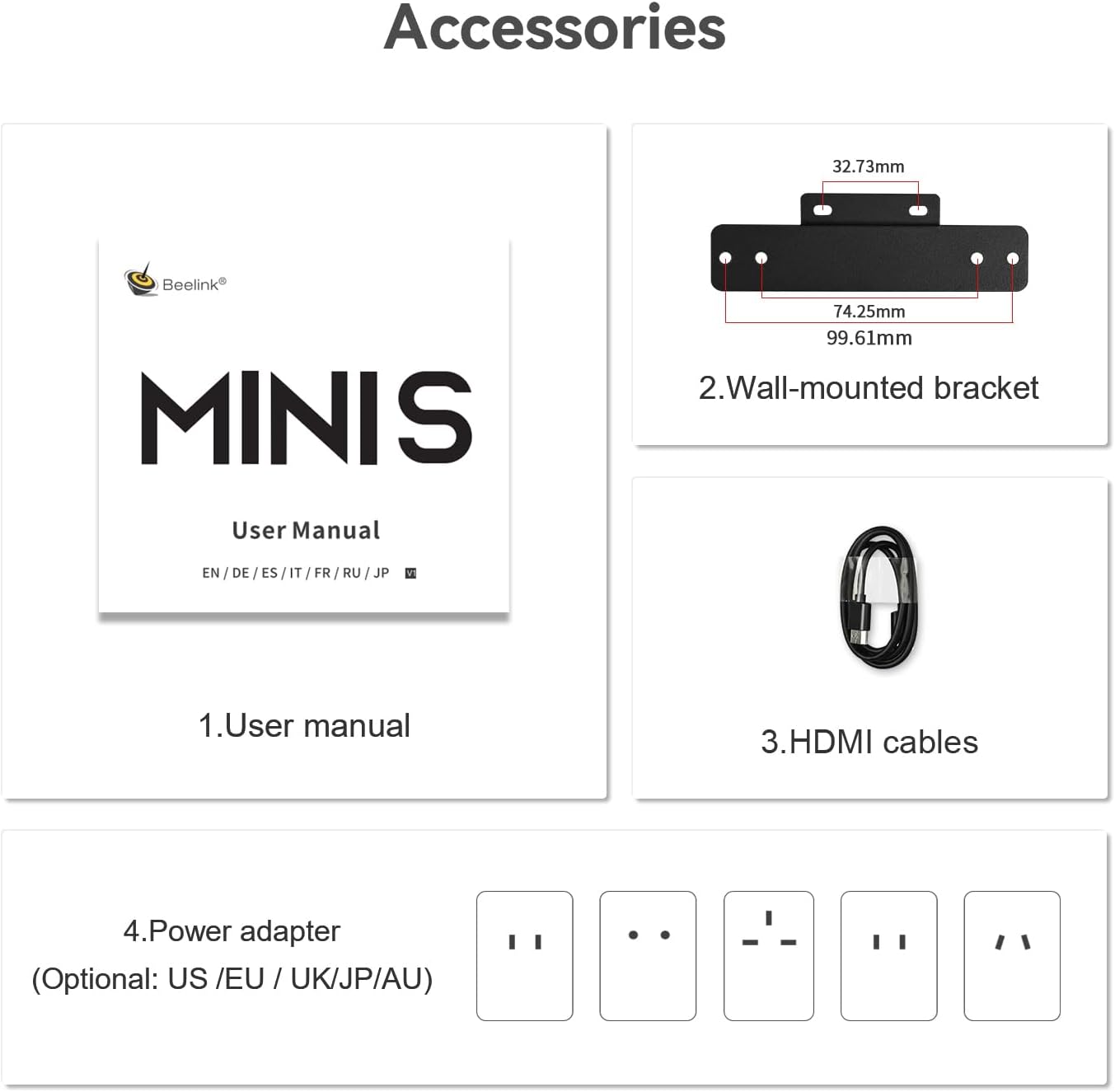

A visual representation of the accessories provided with the mini PC, including the user manual, wall-mounted bracket, HDMI cables, and power adapter.

3. Produktet er slutview

The Beelink MINI S12 is a compact and efficient mini PC designed for various applications, from office work to home entertainment. It features an N95 processor, 12GB LPDDR5 RAM, and 256GB SSD storage, offering reliable performance in a small form factor.

An infographic highlighting key features such as N95 processor, UHD Graphics, LPDDR5 memory, WiFi 5, Bluetooth 4.2, 2.5G LAN, SSD storage, and cooling system.

Porte og grænseflader

The MINI S12 offers a variety of ports for connectivity:

• Frontpanel:
• CLR CMOS Button: For resetting BIOS settings.
• USB 3.2 Gen2 (10Gbps) Ports (2): For high-speed data transfer.
• Earphone Jack (3.5mm): For audio output.
• Power Button: To power on/off the device.
• Bagside:
• USB 3.2 Gen2 (10Gbps) Ports (2): Additional high-speed USB ports.
• LAN (2.5G) Port: For wired network connection.
• HDMI Ports (2): Supports 4K 60Hz dual display output.
• DC Power Input: For connecting the power adapter.
• Locking Slot: For security cables.

Images showing the front panel with RTC Key, USB 3.2 Gen2 ports, earphone jack, and power button, and the rear panel with USB 3.2 Gen2 ports, LAN (2.5G), HDMI ports, and DC power input.

4. Opsætning

4.1 Indledende opsætning

1. Connect your monitor(s) to the HDMI ports on the rear panel of the Mini PC using the provided HDMI cables.
2. Tilslut dit tastatur og din mus til de tilgængelige USB-porte.
3. Plug the power adapter into the DC power input port on the rear panel, then connect it to a power outlet.
4. Tryk på tænd/sluk-knappen på frontpanelet for at tænde mini-pc'en.

4.2 Netværksforbindelse

• Kablet forbindelse: Connect an Ethernet cable from your router or modem to the 2.5G LAN port on the rear panel.
• Trådløs forbindelse: The Mini PC supports WiFi 5 (802.11ac). Once the system boots, navigate to Windows settings to connect to your preferred Wi-Fi network.

4.3 Installation af VESA-beslag

The included VESA mount allows you to attach the Mini PC to the back of a compatible monitor or to a wall, saving desk space.

1. Secure the VESA bracket to the back of your monitor or desired surface using the provided screws.
2. Slide the Mini PC onto the mounted bracket until it clicks securely into place.

An infographic illustrating features like energy efficiency, Wake On LAN, dual display support, 2.5G LAN, and VESA wall mount capability.

5. Betjeningsvejledning

5.1 Tænd/sluk

• Tænd: Tryk på tænd/sluk-knappen på frontpanelet.
• Luk ned: I Windows 11 skal du klikke på Start-knappen og derefter på Tænd/sluk > Luk ned.

5.2 Windows 11 Home

Your Beelink MINI S12 comes pre-installed with Windows 11 Home. Follow the on-screen instructions for initial setup, including language, region, and user account creation.

5.3 Dual Display Setup

The Mini PC supports dual display output via its two HDMI ports. Connect two monitors to the HDMI ports. Windows 11 will automatically detect the displays. You can configure display settings (extend, duplicate, or second screen only) by right-clicking on the desktop and selecting 'Display settings'.

5.4 Wake On LAN (WOL) and Auto Power On

The MINI S12 supports Wake On LAN (WOL) and Auto Power On features. These can be configured in the BIOS settings to automatically power on the device at a scheduled time or remotely via a network signal. For detailed instructions on configuring these features, please refer to the official Beelink website or support resources.

6. Lagerudvidelse

The Beelink MINI S12 includes a 256GB M.2 SATA3 SSD. For additional storage, you can install a 2.5-inch SATA HDD or SSD (up to 2TB) into the dedicated bay.

6.1 Installing a 2.5-inch SATA Drive

1. Ensure the Mini PC is powered off and disconnected from the power adapter.
2. Carefully remove the four screws from the bottom cover of the Mini PC.
3. Gently lift the bottom cover to reveal the internal components and the 2.5-inch drive bay.
4. Connect the pre-attached SATA data and power cable to your 2.5-inch SATA HDD/SSD.
5. Place the drive into the bay and secure it with the provided screws.
6. Replace the bottom cover and secure it with the four screws.

An internal diagram showing the two M.2 SSD slots (PCIe 3.0 x1 and PCIe 3.0 x4) for storage expansion, compatible with SATA3 SSDs.

6.2 Video Guide for Storage Expansion

Video demonstrating the installation of a 2.5-inch SATA hard drive or SSD into the Beelink MINI S12 Mini PC.

7. Vedligeholdelse

7.1 Rengøring

To maintain optimal performance, regularly clean the exterior of the Mini PC with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions. Do not use liquid cleaners directly on the device.

7.2 Softwareopdateringer

Keep your Windows 11 operating system and device drivers updated. Regular updates improve system stability, security, and performance. Access Windows Update through the Settings menu. For driver updates, visit the Beelink official website or use Intel's Driver & Support Assistant.

8. Fejlfinding

• Ingen visning: Ensure all HDMI cables are securely connected to both the Mini PC and the monitor. Verify the monitor input source is correctly selected. Try a different HDMI cable or monitor if possible.
• Ingen strøm: Check if the power adapter is correctly connected to the Mini PC and a working power outlet. Ensure the power button is pressed firmly.
• Problemer med netværksforbindelse: For wired connections, check the Ethernet cable and router status. For Wi-Fi, ensure the Wi-Fi adapter is enabled in Windows settings and you are connected to the correct network with the correct password.
• Langsom ydeevne: Close unnecessary applications. Check for background processes consuming high resources (Task Manager). Ensure sufficient free storage space. Consider running a disk cleanup or antivirus scan.
• BIOS-nulstilling: If experiencing system instability or issues after configuration changes, use the CLR CMOS button on the front panel to reset BIOS settings to default.

If issues persist, refer to the Beelink support webwebsted eller kontakt kundeservice.

9. Specifikationer

Key technical specifications for the Beelink MINI S12 Mini PC:

A comprehensive table listing the product type, dimensions, CPU, graphics, system disk, internal slot, interface, network, CLR CMOS button, power button, adapter, working temperature, storage temperature, additional functions, and accessories.

10. Garanti og support

Beelink provides comprehensive support for your MINI S12 Mini PC:

• Garanti: A 1-year worry-free warranty is included from the date of purchase.
• Teknisk support: Lifetime technical support is available for all Beelink Mini PCs.
• Kundeservice: 7/24 customer service is provided to assist with any questions or issues.

All Beelink Mini PCs have obtained FCC, CE, and RoHS certifications, ensuring product quality and safety.

For technical assistance or warranty claims, please visit the official Beelink support webwebstedet eller kontakt deres kundeserviceteam direkte.
