1. Introduktion
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Vaddio RoboSHOT IW Smart Glass PTZ Camera. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.
The RoboSHOT IW Smart Glass PTZ Camera is designed for professional video conferencing and surveillance applications, offering advanced PTZ capabilities with the unique feature of a smart glass panel for privacy and aesthetics.
2. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- RoboSHOT IW Smart Glass PTZ Camera Unit
- Monteringsudstyr (skruer, ankre)
- Hurtig startvejledning
- Denne brugervejledning

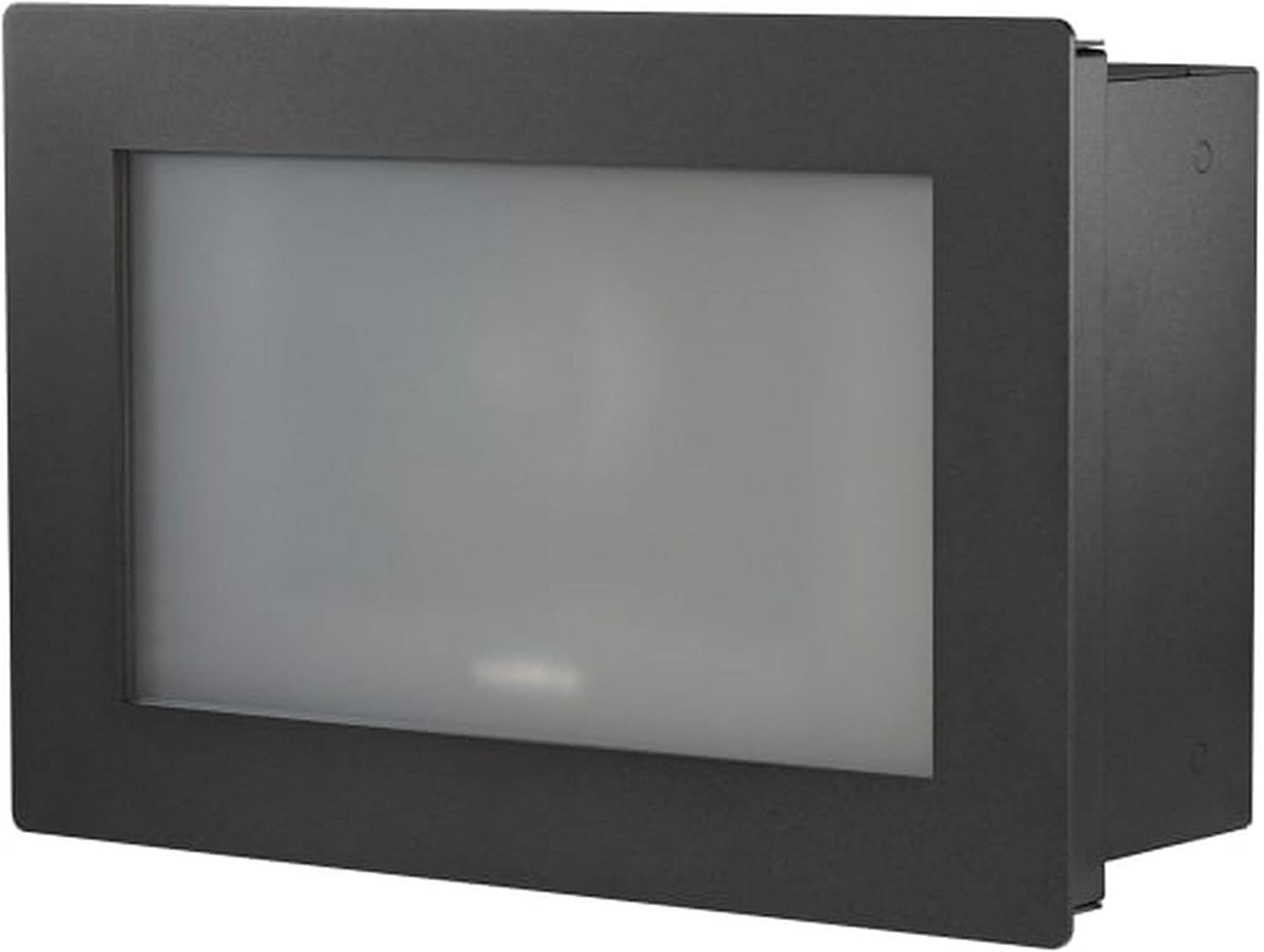

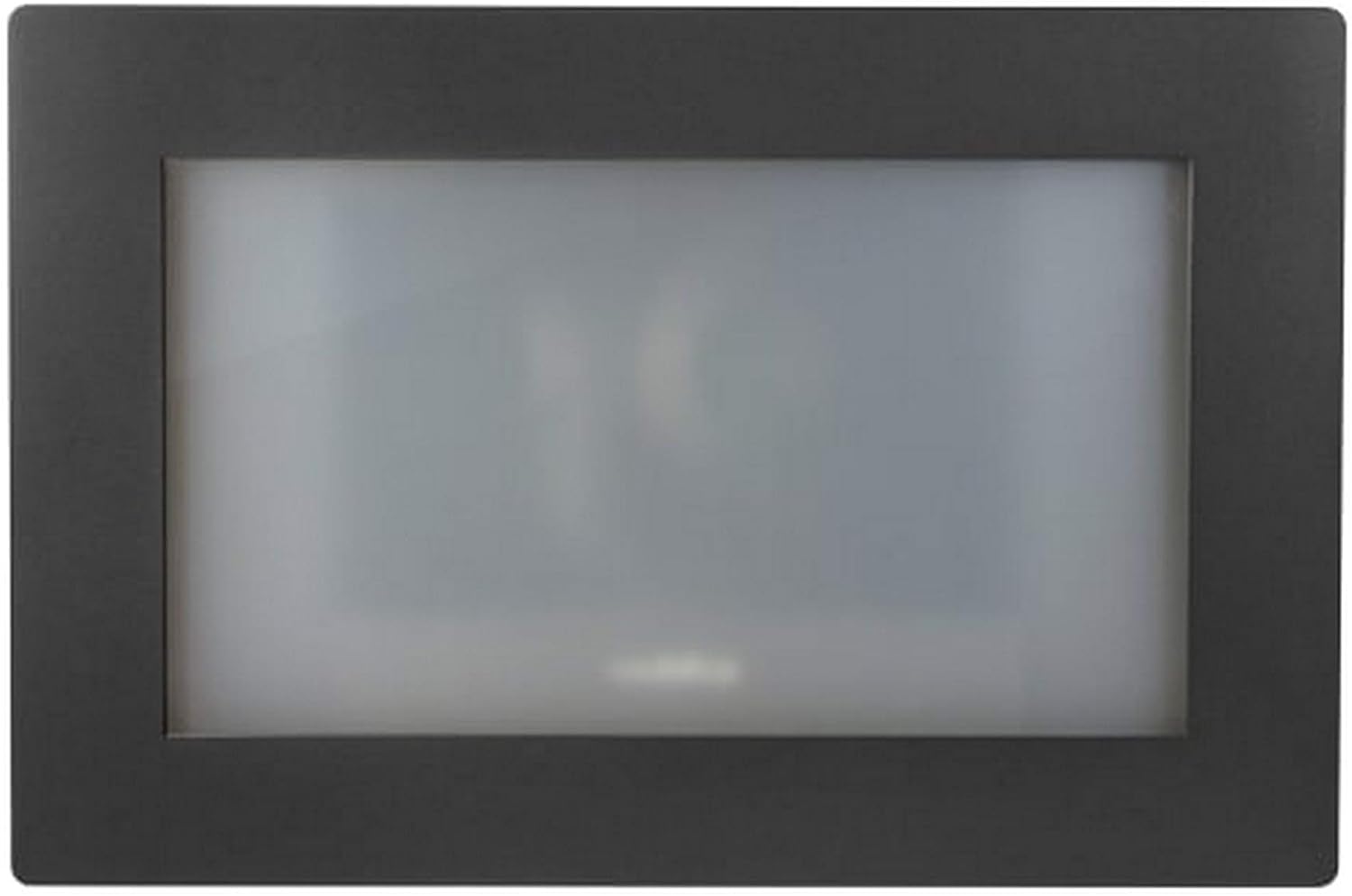

Figur 1: Forside view of the RoboSHOT IW Smart Glass PTZ Camera, showcasing its sleek black frame and the opaque smart glass panel.
3. Sikkerhedsoplysninger
Always adhere to the following safety guidelines to ensure safe operation and prevent damage to the device or injury to personnel:
- Udsæt ikke enheden for fugt, regn eller ekstreme temperaturer.
- Sørg for tilstrækkelig ventilation omkring kameraet for at forhindre overophedning.
- Only use power sources and cables specified by Vaddio.
- Do not attempt to disassemble, modify, or repair the device. Refer all servicing to qualified service personnel.
- Hold kameraet væk fra stærke magnetfelter.
4. Opsætning
4.1 Montering af kameraet
The RoboSHOT IW Smart Glass PTZ Camera is designed for indoor wall mounting. Select a location that provides the desired field of view and is structurally sound to support the camera's weight.
- Carefully unpack the camera and inspect for any shipping damage.
- Using the provided mounting template (if applicable), mark the drilling points on the wall.
- Bor pilothuller på de markerede steder.
- Secure the camera's mounting plate or the camera directly to the wall using the supplied screws and anchors. Ensure it is level and firmly attached.
Figur 2: Bagside view of the RoboSHOT IW Smart Glass PTZ Camera, illustrating the HDBaseT port and other potential connections.
4.2 Tilslutning af kameraet
The camera utilizes HDBaseT for connectivity, allowing for flexible power and video transmission options.
- PoE+ Connection: For IP streaming and power, connect a standard Ethernet cable from a PoE+ enabled network switch or a Midspan Power Injector to the camera's HDBaseT port. This single cable provides both power and network data.
- HDBaseT Video Switch / OneLINK System: If using an HDBaseT video switch or a Vaddio OneLINK extension system for alternative video outputs (e.g., HD-SDI, HDMI, USB 3.0), connect the camera's HDBaseT port to the corresponding input on the switch or OneLINK receiver. Refer to the specific switch or OneLINK system's manual for detailed connection instructions.
- Ensure all cables are securely connected and routed to prevent strain or damage.
5. Betjeningsvejledning
5.1 Initial Power-On and Smart Glass Activation
Once the camera receives power, it will initiate its startup sequence. The smart glass panel, which is opaque when off, will become transparent, revealing the PTZ camera lens.

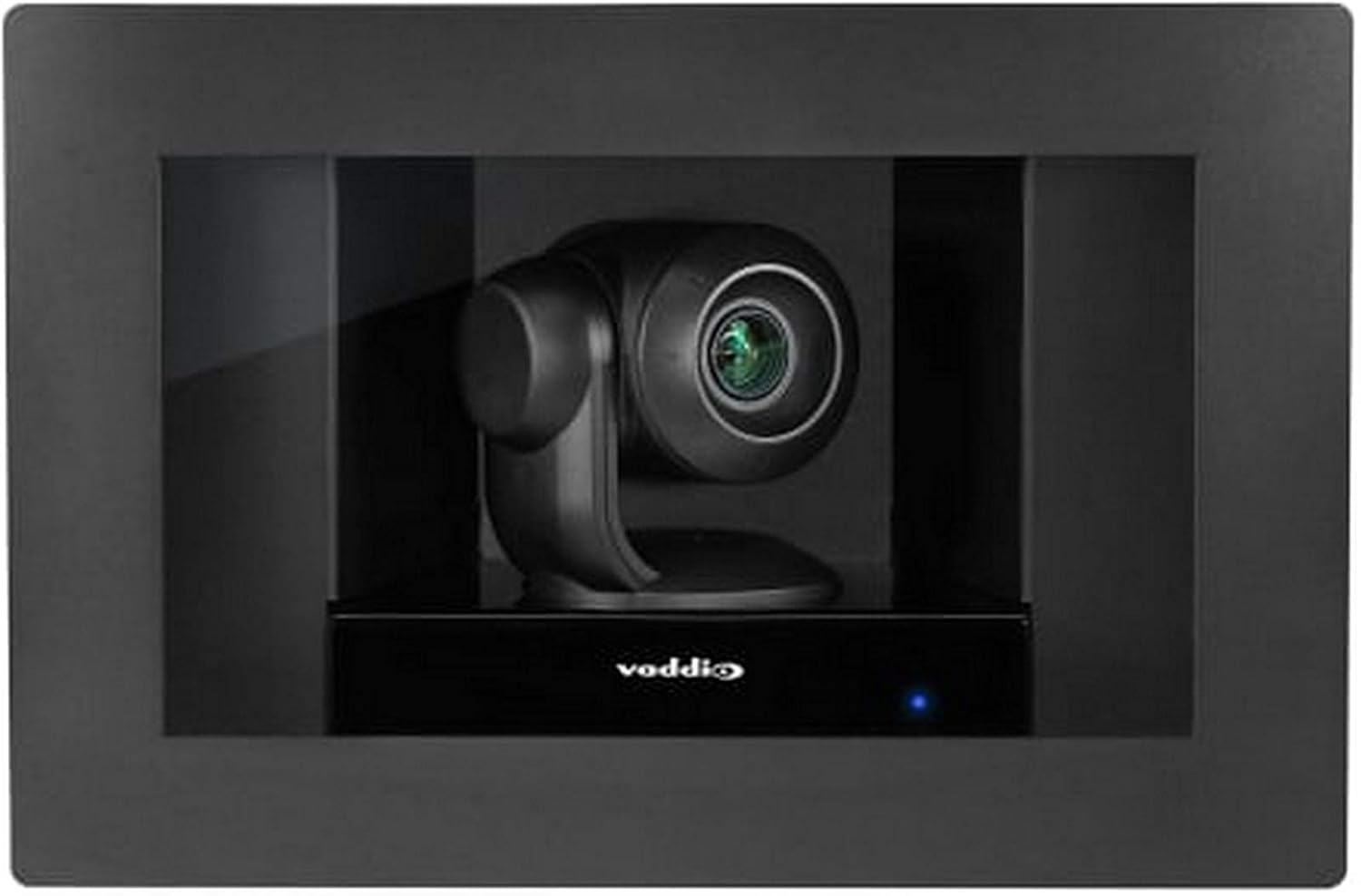

Figure 3: The RoboSHOT IW Smart Glass PTZ Camera with its smart glass panel activated, showcasing the integrated PTZ camera ready for operation.
5.2 Kamerakontrol
The camera supports control via Wi-Fi using a compatible controller (such as an Iris controller) or a remote control. It features full PTZ (Pan-Tilt-Zoom) functionality and optical zoom.
- Panorering/vip: Use the directional controls on your chosen controller or software interface to adjust the camera's horizontal (pan) and vertical (tilt) orientation to frame your desired view.
- Zoom: Utilize the zoom controls to optically zoom in or out. The camera supports high-definition video capture at 1080p and 720p resolutions.
- Smart Glass Control: The smart glass panel can be toggled between opaque and transparent states, providing privacy when the camera is not actively in use. Refer to your control system's documentation for specific smart glass control commands.
5.3 Video Streaming and Recording
For IP streaming, the camera can be configured via its web interface or compatible control software. It supports MPEG-4 video capture format.
- Access the camera's IP address through your network to reach its web interface.
- Log in to configure streaming parameters, including resolution, frame rates, and network settings.
- Integrate the camera with your preferred video management systems (VMS) or recording software for live monitoring and archival.
6. Vedligeholdelse
Regular maintenance helps ensure the longevity and optimal performance of your RoboSHOT IW Smart Glass PTZ Camera.
- Rensning: Use a soft, dry, lint-free cloth to gently clean the exterior of the camera and the smart glass panel. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or the smart glass.
- Firmwareopdateringer: Periodically check the official Vaddio webwebsted (www.vaddio.com) for available firmware updates. Keeping the firmware up-to-date can provide performance enhancements, new features, and bug fixes. Follow the instructions provided with the firmware update carefully.
- Miljøforhold: Ensure the camera continues to operate within its specified temperature and humidity ranges to prevent internal damage.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm / Kameraet tænder ikke | Loose power connection; PoE+ not active; faulty cable. | Check all cable connections. Verify PoE+ switch/injector is providing power. Try a different Ethernet cable. |
| Ingen videoudgang | Incorrect HDBaseT connection; network configuration issue (for IP streaming); display problem. | Ensure HDBaseT cable is correctly connected. Verify network settings and IP address. Test with a different display or input. |
| Kameraet reagerer ikke på betjeningselementer | Controller not paired; Wi-Fi interference; camera frozen. | Ensure controller is properly paired and within range. Reduce Wi-Fi interference. Power cycle the camera. |
| Smart Glass Not Clearing / Remaining Opaque | Power issue; control signal issue; internal fault. | Verify stable power supply. Check control commands. If problem persists, contact Vaddio support. |
| Dårlig videokvalitet | Insufficient lighting; incorrect resolution settings; dirty lens. | Ensure adequate lighting. Adjust resolution settings. Clean the camera lens and smart glass. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Model | RoboSHOT IW Smart Glass PTZ Camera |
| Forbindelsesprotokol | Wi-Fi, Wired (HDBaseT) |
| Controller type | Iris, Remote |
| Monteringstype | Vægmontering |
| Videooptagelsesopløsning | 1080p, 720p |
| Farve | Sort |
| Trådløs kommunikationsteknologi | Wi-Fi |
| Formfaktor | Kuppel |
| Materiale | Glas |
| Varens vægt | 0.96 ounce (ca. 0.06 lbs) |
| Low Light teknologi | Nat farve |
| Zoom type | Optisk zoom |
| Alert Type | Kun bevægelse |
| Videooptagelsesformat | MPEG-4 |
| Fotosensorteknologi | CMOS |
| International Protection Rating | IP54, IP67 |
| Strømkilde | AC/DC, PoE+ |
| Indendørs/Udendørs brug | Indendørs |
| Speciel funktion | PTZ Technology, Smart Glass |
| UPC | 840077504601 |
9. Garanti og support
Vaddio products are designed for reliability and performance. For specific warranty terms and conditions applicable to your RoboSHOT IW Smart Glass PTZ Camera, please refer to the official Vaddio webwebstedet eller garantikortet, der følger med dit produkt.
For technical assistance, troubleshooting, or service inquiries, please contact Vaddio Customer Support. When contacting support, please have your product model number (RoboSHOT IW Smart Glass PTZ Camera) and serial number readily available.
- Vaddio Officiel Webwebsted: www.vaddio.com
- Supportkontakt: Visit the Vaddio website's support section for regional phone numbers, email contacts, and online resources.
