Ripack 3000 Varmepistol Brugermanual

1. Introduktion

The Ripack 3000 Heat Gun is designed for heavy-duty shrink-wrapping applications, capable of handling up to 100 pallets per day. It is suitable for various sectors including manufacturing, construction, agri-food, and transport/logistics. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Ripack 3000 Heat Gun.

The Ripack 3000 features a unique Securipack system, ensuring a high level of safety by automatically detecting gas bottle pressure to prevent overheating. Its stainless steel heat diffuser remains cool during prolonged use, minimizing burn risks. The Securipack system also controls gas hose pressure, automatically cutting off gas flow if the hose is broken. The design prevents air inlet blockages, ensuring optimal safety conditions.

2. Sikkerhedsoplysninger

Always read and understand all safety warnings and instructions before operating the Ripack 3000 Heat Gun. Failure to follow these instructions may result in fire, explosion, electric shock, or serious injury.

• Ensure adequate ventilation when operating the heat gun.
• Do not point the heat gun at people, animals, or flammable materials.
• Bær passende personlige værnemidler (PPE), herunder varmebestandige handsker og øjenbeskyttelse.
• Regularly inspect the gas hose and connections for leaks or damage. Replace damaged components immediately.
• Do not modify the heat gun or its components. Use only genuine Ripack replacement parts.
• Store the heat gun and propane cylinder in a cool, dry, well-ventilated area, away from direct sunlight and ignition sources.
• Familiarize yourself with the Securipack system's safety features, including automatic pressure detection and gas cut-off.

3. Hvad er der i æsken

Your Ripack 3000 Heat Gun kit includes the following components:

• Ripack 3000 Heat Gun with back-up ignitor
• 26-foot propane hose
• Securipack - combined fail-safe regulator
• High impact plastic case
• Wrench for tightening fittings

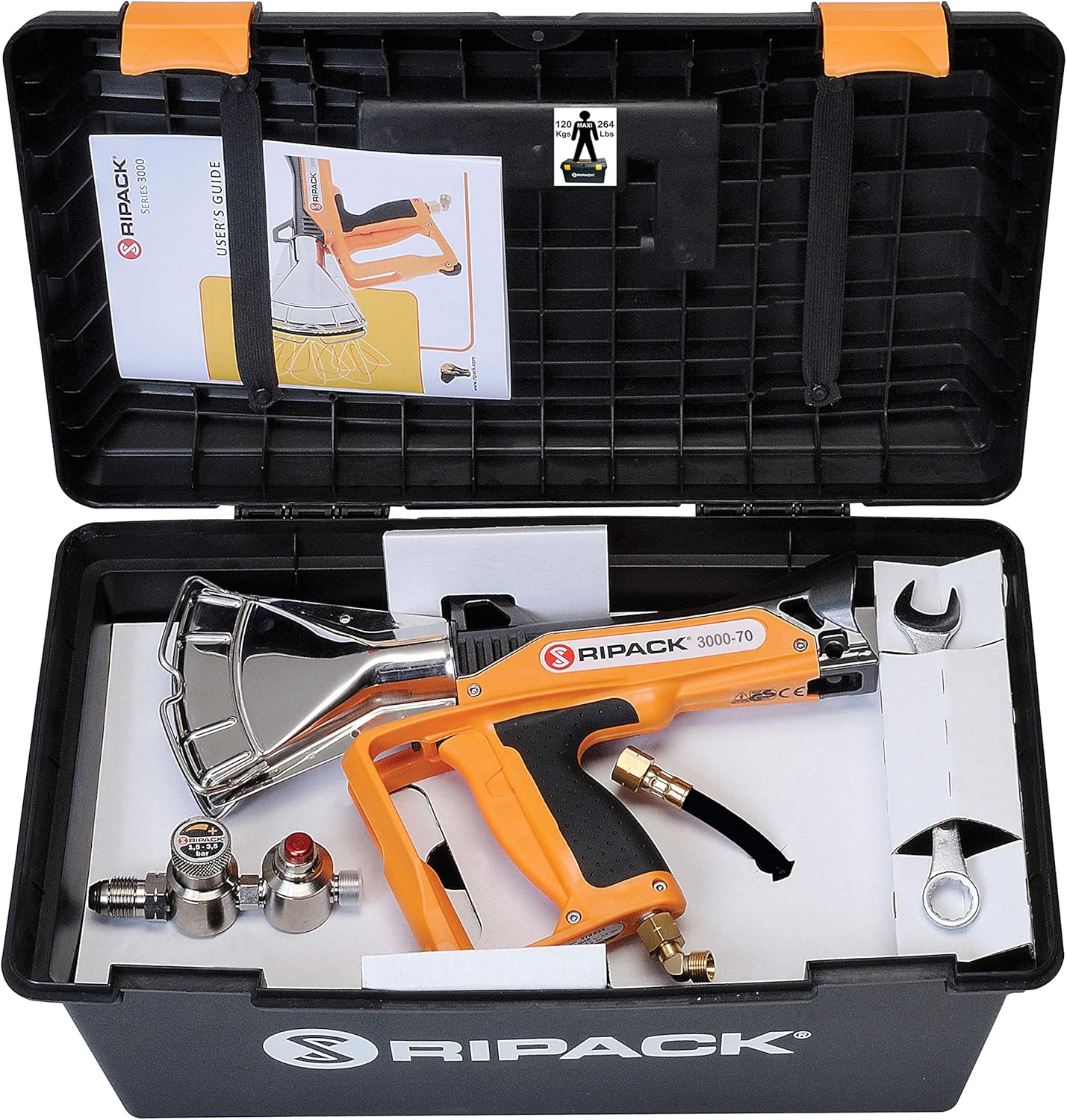

Image: The Ripack 3000 Heat Gun kit, neatly organized within its durable black plastic carrying case. The image displays the heat gun, propane hose, regulator, and wrench, along with the user guide.

4. Opsætning

1. Udpak komponenter: Carefully remove all items from the high impact plastic case.
2. Connect Regulator to Propane Cylinder: Attach the Securipack regulator to your propane gas cylinder. Ensure the connection is tight and secure using the provided wrench.
3. Connect Hose to Regulator and Heat Gun: Connect one end of the 26-foot propane hose to the regulator and the other end to the inlet on the Ripack 3000 Heat Gun. Tighten all connections firmly with the wrench to prevent gas leaks.
4. Tjek for lækager: Before opening the gas cylinder valve, ensure all connections are secure. Once connected, slowly open the propane cylinder valve. Apply a leak detection solution (soapy water) to all connections. Bubbles indicate a leak. If a leak is detected, close the gas valve immediately, tighten the connection, and re-test. Do not operate the heat gun if a leak is present.

5. Betjeningsvejledning

Image: The Ripack 3000 Heat Gun, showcasing its ergonomic design and the prominent stainless steel heat diffuser. The tool is primarily orange and black, with the Ripack logo visible on the side.

1. Tænding: With the propane cylinder valve open, press the ignition button on the heat gun. The ignitor will spark, and the flame will ignite. If the gun does not ignite, release the button, wait a few seconds, and try again.
2. Justering af flamme: The Ripack 3000 is designed for optimal performance. The flame intensity is regulated by the Securipack system. Do not attempt to manually adjust the flame beyond its intended operation.
3. Shrink-Wrapping Technique:
   • Hold the heat gun approximately 12-18 inches (30-45 cm) from the shrink film.
   • Move the heat gun in a steady, sweeping motion across the surface of the film.
   • Work from the bottom of the pallet upwards, ensuring even heat distribution.
   • The 360° rotating nozzle allows for flexible positioning and access to all sides of the pallet.
   • Observe the film as it shrinks, ensuring a tight, wrinkle-free finish. Avoid overheating any single area.
4. Lukker ned: When finished, close the valve on the propane gas cylinder first. Allow the heat gun to burn off any remaining gas in the hose until the flame extinguishes. Then, release the ignition button.
5. Køl ned: Allow the heat gun to cool completely before storing. The stainless steel heat diffuser is designed to stay cool, but the nozzle area will still be hot immediately after use.

6. Vedligeholdelse

Regular maintenance ensures the longevity and safe operation of your Ripack 3000 Heat Gun.

• Rensning: Keep the heat gun clean and free from dust and debris. Use a dry cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
• Hose and Regulator Inspection: Before each use, inspect the propane hose and regulator for any signs of wear, cracks, cuts, or damage. Replace immediately if any damage is found.
• Inspektion af dyse: Periodically check the nozzle for any blockages or carbon buildup. Ensure the air inlets are clear to maintain proper combustion and safety.
• Opbevaring: Store the heat gun in its original high impact plastic case in a cool, dry, well-ventilated area, away from direct sunlight, extreme temperatures, and ignition sources. Disconnect the propane cylinder when storing for extended periods.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

Ripack products are manufactured to high-quality standards and are designed for durability and performance. For specific warranty details, please refer to the warranty card included with your product or visit the official Ripack webwebsted.

For technical support, replacement parts, or any inquiries regarding your Ripack 3000 Heat Gun, please contact Ripack customer service. Contact information can typically be found on the product packaging, the official Ripack website, or through your authorized dealer.

Når du kontakter support, bedes du have dit produktmodelnummer (3000) og købsoplysninger klar.
