1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your new HOROW HWMT-8733S compact one-piece toilet. Please read all instructions carefully before beginning installation or use to ensure proper function and safety. Keep this manual for future reference.
2. Produktet er slutview
The HOROW HWMT-8733S is a modern, compact one-piece toilet designed for smaller bathrooms, powder rooms, or water closets. Its sleek design and efficient features aim to optimize space and provide reliable performance.
Nøglefunktioner:

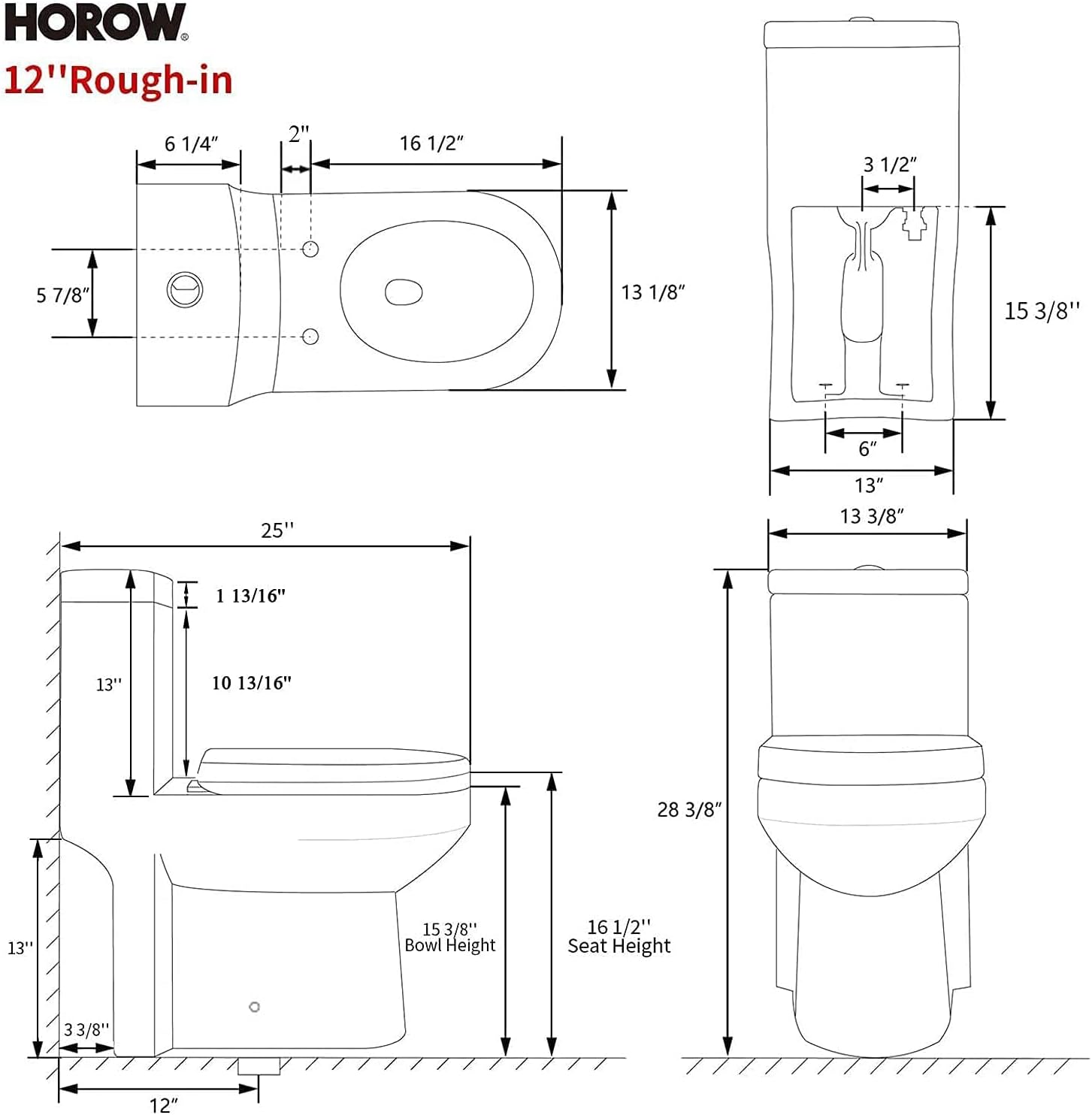

- Kompakt design: Ideal for small spaces, with dimensions of 25" L x 13.4" W x 28.4" H.
- Dobbelt skylningssystem: Offers 1.1 GPF (gallons per flush) for liquid waste and 1.6 GPF for solid waste, promoting water conservation.
- Soft-Close sæde: Forhindrer smække og reducerer støj.
- Fuldt afskærmet faldkanal: Provides a smooth surface for easy cleaning and a modern aesthetic.
- 12-tommer indfræsning: Standard rough-in measurement for installation.
3. Komponenter inkluderet
The following components are included with your HOROW HWMT-8733S toilet:
- Toilet Bowl and Tank (One-Piece)
- Toiletsæde
- Flushing Mechanism (pre-installed)
- Voks ring
- Gulvbolte
- Installationsvejledning
Note: The water supply line must be purchased separately.
4. Opsætning og installation
Professional installation is recommended. Ensure all local plumbing codes are followed.
4.1. Floor Flange and Wax Ring Installation
- Ensure the floor flange is securely installed and level with the finished floor.
- Insert the two floor bolts into the floor flange, ensuring they are properly aligned.
- Place the wax ring evenly around the outlet opening on the bottom of the toilet.
4.2. Setting the Toilet
- Carefully lower the toilet onto the floor bolts, aligning the bolt holes on the toilet base with the bolts.
- Press down firmly and evenly to compress the wax ring and create a watertight seal.
- Secure the toilet to the floor bolts using washers and nuts. Do not overtighten, as this may crack the ceramic.
4.3. Vandforsyningstilslutning
- Connect the water supply line to the toilet's inlet valve. If your supply line is 1/2", connect directly. If it's a U.S. standard 7/8", remove the adapter on the toilet's inlet valve before connecting.
- Tighten the connection securely, but do not overtighten.
- Turn on the water supply valve and check for leaks.
4.4. Toilet Seat Installation
- Unwrap the toilet seat and identify the hinge components.
- Insert the rubber firmware into the holes on the toilet bowl.
- Place the hinge bases over the rubber firmware and rotate them to the correct direction.
- Insert the seat cover onto the hinge posts.
- Adjust the hinge position to align the seat cover with the toilet bowl.
- Tighten the seat screws to secure the hinges.
- Place the decorative caps over the hinge bases.
4.5. Installation Videos:
Video 4.1: Official installation instructions for the HOROW HWMT-8733S toilet, demonstrating the complete setup process.
Video 4.2: Detailed guide on installing the quick-release toilet seat, highlighting the steps for secure attachment.
5. Betjeningsvejledning
5.1. Dobbelt skylning
The HOROW HWMT-8733S features a dual-flush mechanism located on top of the tank. This allows for efficient water usage based on your needs:
- Lille knap (1.1 GPF): Press the smaller button for liquid waste, using less water.
- Stor knap (1.6 GPF): Press the larger button for solid waste, providing a more powerful flush.
5.2. Soft-Close Seat
The toilet seat is designed with a soft-close feature to prevent loud slamming. Simply push the seat or lid down gently, and it will lower slowly and quietly on its own.
6. Vedligeholdelse
6.1. Rensning
The fully skirted trapway design of the HWMT-8733S makes it easy to clean. Use a soft cloth and mild, non-abrasive cleaners. Avoid harsh chemicals or abrasive pads that could damage the ceramic finish. The quick-release seat can be easily removed for thorough cleaning.
6.2. Seat Removal for Cleaning
To remove the quick-release seat for cleaning, press the release buttons located near the hinges and lift the seat straight up. Reattach by aligning the hinges and pressing down until they click into place.
7. Fejlfinding
If you encounter issues with your HOROW HWMT-8733S toilet, please refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Toilettet skyller ikke ud eller skyller svagt ud | Lavt vandniveau i tanken, tilstoppet vandlås, defekt skylleventil. | Check water supply valve is fully open. Adjust water level in tank. Clear any obstructions in the trapway. Inspect or replace flush valve. |
| Toilettet kører konstant | Flapper not sealing properly, fill valve malfunction, float ball out of adjustment. | Check flapper for debris or wear and replace if necessary. Adjust float ball to ensure proper water level. Inspect or replace fill valve. |
| Leaks at the base of the toilet | Loose floor bolts, damaged wax ring, cracked toilet base. | Tighten floor bolts (do not overtighten). Replace the wax ring. If the base is cracked, the toilet may need replacement. |
| Toiletsædet er løst | Hinge screws are loose. | Tighten the hinge screws. Refer to the seat installation section for proper adjustment. |
If these solutions do not resolve the issue, please contact HOROW customer service for further assistance.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | HWMT-8733S |
| Produktdimensioner | 25" D x 13.1" B x 28.3" H |
| Materiale | Keramisk |
| Varens vægt | 86 pund |
| Installationstype | Gulvmonteret |
| Form | Rund |
| Sæde Materiale Type | Plast |
| Vandforbrug | 1.28 Gallons per Flush (Dual Flush) |
| Skylningstype | Dobbelt |
| Rough-In | 12 tommer |
| Certificering | CEC, Energy Star, WaterSense |
| Særlige funktioner | Perfect for half bath, powder room |
9. Garanti og support
HOROW values each customer's shopping experience and stands behind the quality of its products. The HWMT-8733S toilet comes with a 1 års begrænset garanti og livstids eftersalgsservice.
Our customer service center is available to respond to messages within 12 hours. For any questions, concerns, or warranty claims, please contact HOROW customer support through the retailer where the product was purchased or visit the official HOROW webwebsted.
