Franke Integrated Push-Button Valve with 500mm Cable

1. Produktet er slutview

This document provides instructions for the Franke Integrated Push-Button Valve, Model 112.0301.415. This valve kit is specifically designed for Franke HYDROS HDX 654 sinks (article number 101.0280.693). It features an integrated piston valve and a 500mm cable for remote operation of the sink drain, without an overflow connection.

The valve allows for convenient opening and closing of the sink drain using a remote push-button mechanism, enhancing functionality and ease of use in your kitchen.

2. Produktkomponenter

The Franke Integrated Push-Button Valve kit includes the following main components:

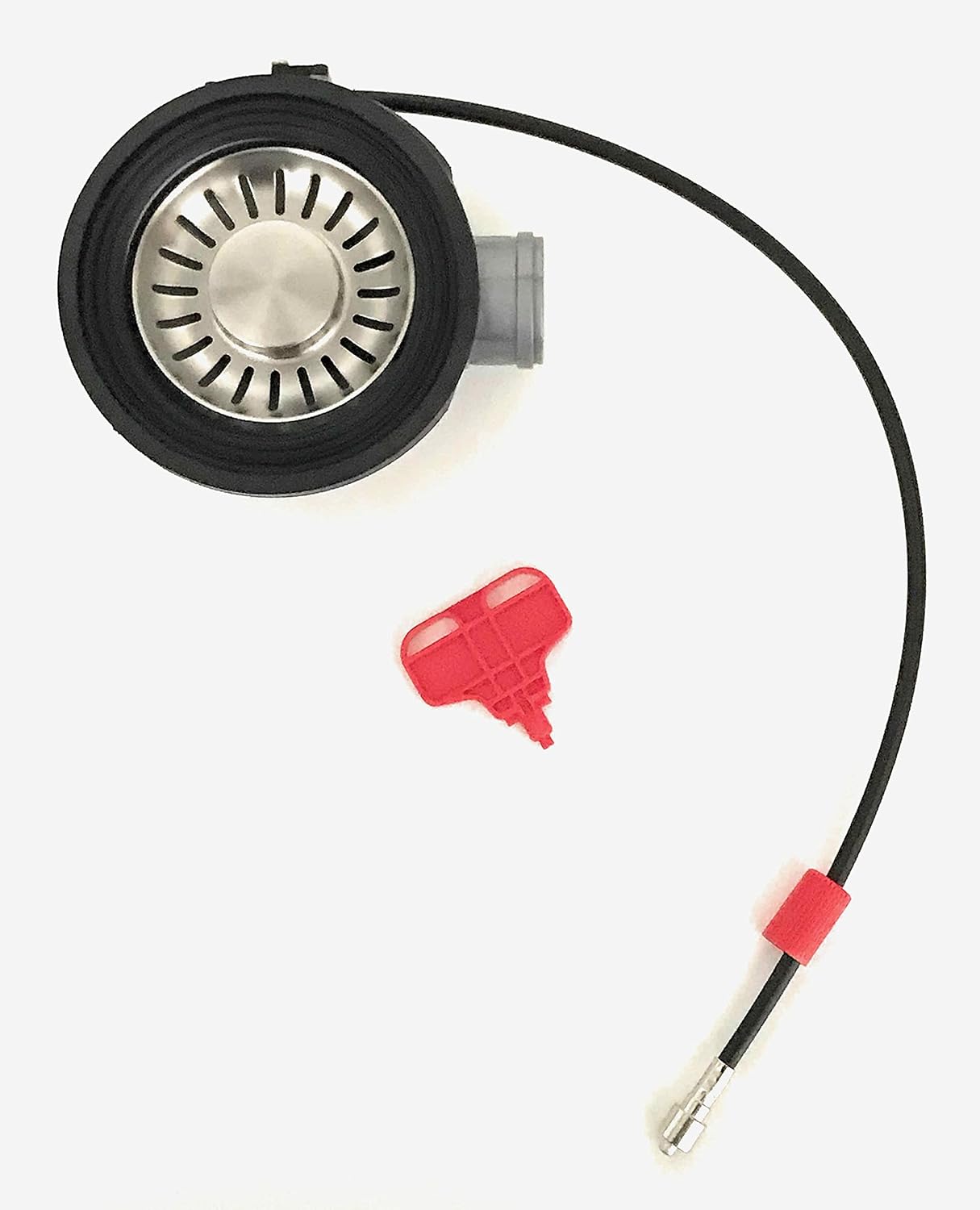

• Ventilhus: The main housing that connects to the sink drain opening.
• Sikurv: A removable component that prevents large debris from entering the drain.
• Integrated Piston Valve: The internal mechanism that controls water flow.
• Styrekabel: A 500mm (approximately 20.5 inches) cable connecting the valve to the remote push-button.
• Push-Button Mechanism: The remote control for operating the valve.
• Tætninger og pakninger: Essential for watertight installation.

3. Opsætning og installation

Installation of the Franke Integrated Push-Button Valve should be performed by a qualified professional or an individual with appropriate plumbing experience. Ensure all local plumbing codes and regulations are followed.

Generelle installationstrin:

1. Forberedelse: Ensure the sink opening is clean and free of debris. Gather all necessary tools and sealing materials.
2. Assemble Valve Body: Attach the valve body to the sink drain opening according to the sink manufacturer's instructions, ensuring a watertight seal using appropriate gaskets and sealant.
3. Connect Control Cable: Securely connect the 500mm control cable to the valve mechanism. Ensure the cable runs freely and is not kinked or obstructed.
4. Install Push-Button: Mount the remote push-button mechanism in the desired location on the sink or countertop, ensuring the cable reaches without excessive tension.
5. Connect to Waste System: Connect the valve body's outlet to your household waste plumbing system.
6. Test for lækager: Fill the sink with water and operate the valve several times to check for any leaks at all connection points.

Refer to the specific installation guide provided with your Franke sink model HYDROS HDX 654 for detailed, step-by-step instructions and diagrams.

4. Betjeningsvejledning

The Franke Integrated Push-Button Valve provides a simple and hygienic way to control your sink drain.

Sådan åbner du afløbet:

• Locate the remote push-button, typically mounted on the sink rim or countertop.
• Press the push-button. This action will retract the piston valve, allowing water to drain from the sink.

Sådan lukker du afløbet:

• Press the push-button again. This action will extend the piston valve, sealing the drain opening and retaining water in the sink.

Ensure the strainer basket is properly seated in the drain opening for optimal performance and to prevent debris from entering the plumbing system.

5. Vedligeholdelse

Regular maintenance ensures the longevity and efficient operation of your Franke Integrated Push-Button Valve.

Rensning:

• Sikurv: Regularly remove and clean the strainer basket to prevent food particles and debris from accumulating. Wash with warm soapy water.
• Afløbsåbning: Periodically clean around the drain opening and the visible parts of the valve with a mild, non-abrasive cleaner and a soft cloth. Avoid harsh chemicals that could damage the finish or seals.

Inspektion:

• Tætninger og pakninger: Periodically inspect the seals and gaskets for any signs of wear, cracking, or damage. Worn seals can lead to leaks.
• Styrekabel: Check the control cable for any signs of fraying, kinks, or damage. Ensure it moves freely without obstruction.

If any components appear damaged or worn, contact Franke customer support or a qualified plumber for replacement parts or service.

6. Fejlfinding

This section addresses common issues you might encounter with your Franke Integrated Push-Button Valve.

Issue: Drain does not open or close properly.

• Mulig årsag: Obstruction in the drain or valve mechanism.
• Løsning: Remove the strainer basket and check for any debris. Clean the drain area thoroughly.
• Mulig årsag: Control cable is kinked, damaged, or improperly adjusted.
• Løsning: Inspect the cable for any visible damage or kinks. Ensure it moves freely. If damaged, replacement may be necessary.

Issue: Water is leaking from the drain assembly.

• Mulig årsag: Loose connections or damaged seals/gaskets.
• Løsning: Check all plumbing connections under the sink and tighten them if loose. Inspect the gaskets and seals for wear or damage and replace if necessary. Ensure proper sealant was used during installation.

Issue: Slow draining.

• Mulig årsag: Clogged strainer or plumbing.
• Løsning: Clean the strainer basket. If the issue persists, the clog may be further down the plumbing system, requiring professional attention.

If troubleshooting steps do not resolve the issue, contact Franke customer support or a certified plumber.

7. Specifikationer

8. Garanti og support

Specific warranty information for the Franke Integrated Push-Button Valve, Model 112.0301.415, is not provided in this document. For detailed warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Franke webwebsted.

For technical support, replacement parts, or further assistance, please contact Franke customer service. You can typically find contact information on the Franke official webhjemmeside eller gennem din produktforhandler.

Når du kontakter support, bedes du have dit produktmodelnummer (112.0301.415) og købsbevis klar.
