PERLESMITH PSPISF1 Full-Motion TV Wall Mount Instruction Manual

1. Introduktion og sikkerhedsoplysninger

This manual provides detailed instructions for the safe installation, operation, and maintenance of your PERLESMITH PSPISF1 Full-Motion TV Wall Mount. Please read all instructions carefully before installation to ensure proper setup and to prevent injury or damage.

Sikkerhedsforanstaltninger:

• The PERLESMITH wall mount is designed to securely fix your television to the wall, preventing accidental tipping.
• This product has undergone UL safety testing and is certified to withstand 4 times its maximum rated load capacity.
• Constructed from cold-rolled steel, the mount offers robust durability and earthquake resistance.
• Always ensure the wall structure can support the combined weight of the mount and your television.
• Overskrid ikke den maksimale lasteevne for 20 kg (44 lbs).

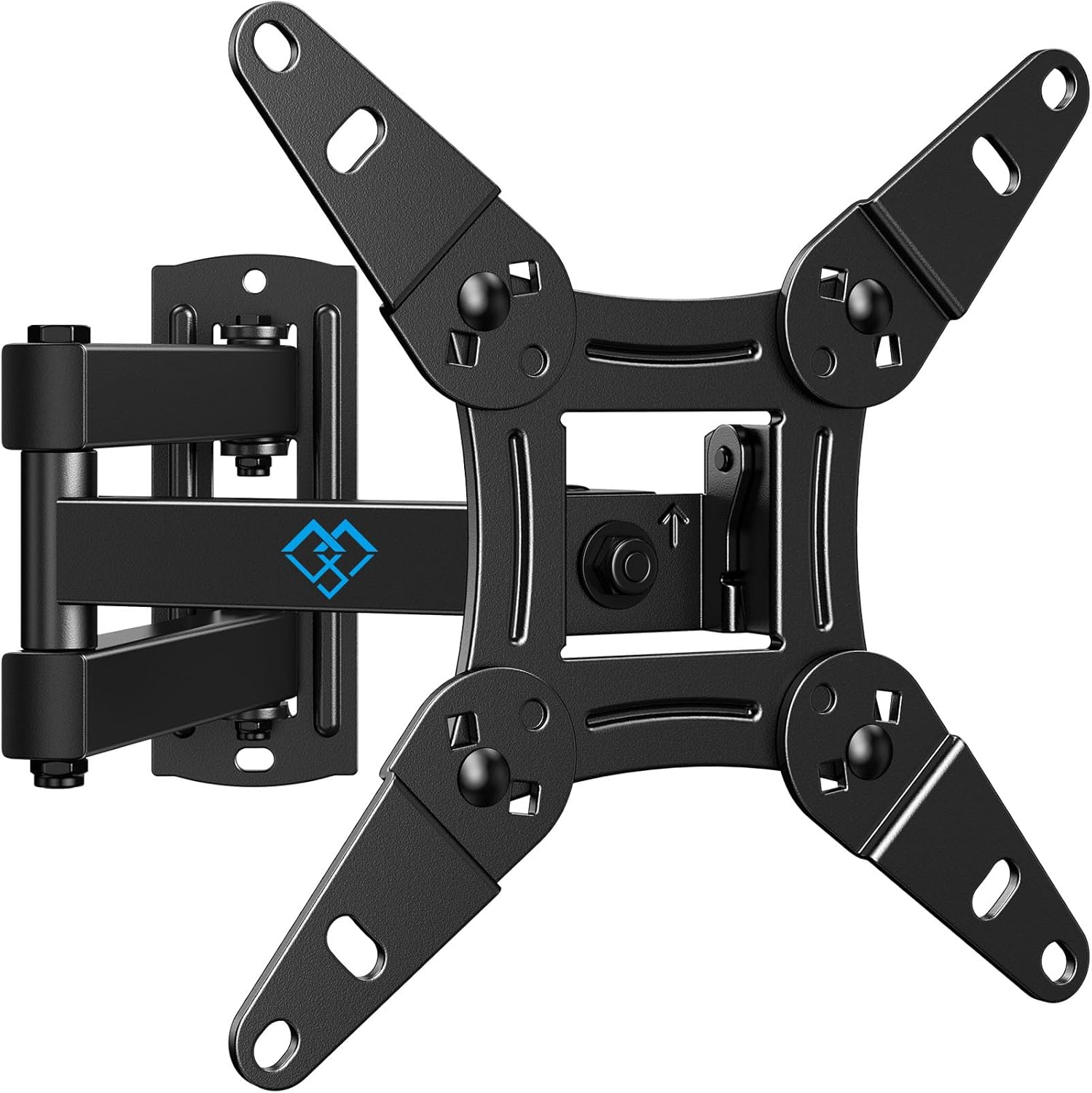

Figur 1: Overview of the PERLESMITH PSPISF1 Full-Motion TV Wall Mount.

2. Kompatibilitetskontrol

Before proceeding with installation, verify that your television and wall are compatible with this mount.

2.1 TV-størrelse og -vægt

• Kompatible tv-størrelser: 13 til 42 tommer.
• Maksimal vægtkapacitet: 20 kg (44 lbs). Ensure your TV and any accessories do not exceed this limit.

2.2 VESA Mounting Patterns

This mount supports the following VESA patterns (horizontal x vertical screw hole spacing on the back of your TV):

• 75 x 75 mm
• 100 x 100 mm
• 100 x 200 mm
• 200 x 100 mm
• 200 x 200 mm

Figure 2: Illustrates compatible TV and monitor sizes (13-42 inches) and VESA mounting patterns.

Figure 3: Detailed diagrams of supported VESA mounting patterns (75x75mm, 100x100mm, 100x200mm, 200x100mm, 200x200mm).

2.3 Wall Types

The mount is suitable for installation on:

• Wooden stud walls
• Betonvægge
• Murstensvægge

Forsigtighed: Do not install this mount on plasterboard walls without securing it to underlying wooden studs or concrete. Ensure the wall can safely support the combined weight of the mount and your TV.

Figur 4: Eksamples of compatible wall types: brick, concrete, and wooden stud walls.

2.4 TV Back Panel Check

If your TV has a recessed back or uneven surface around the mounting holes, use the included spacers to create a flat mounting surface and allow for cable routing.

3. Reservedelsliste

Please ensure all necessary parts are present before beginning installation. Refer to the packaging for a complete list of included hardware, which typically includes the wall mount assembly, various screws, washers, anchors, and spacers for TV attachment and wall mounting.

4. Installationsvejledning

Følg disse trin omhyggeligt for en sikker installation:

1. Step 1: Verify All Parts. Unpack the product and confirm that all components are present and undamaged.
2. Trin 2: Fastgør VESA-pladen til tv'et. Secure the VESA plate (the part that attaches to the TV) to the back of your television using the appropriate screws and spacers. Ensure a snug fit without overtightening.
3. Step 3: Attach Wall Plate to Wall. Mark the desired mounting location on your wall. Drill pilot holes and securely fasten the wall plate (the part that attaches to the wall) using the provided screws and anchors suitable for your wall type. Use a level to ensure it is straight.
4. Trin 4: Hæng tv'et på vægpladen. Carefully lift the television with the attached VESA plate and hook it onto the wall plate. Ensure it is securely seated.
5. Step 5: Adjust TV Angle. Once the TV is securely mounted, adjust the viewvinkel efter ønske.

Figure 5: A simplified visual guide to the three main installation steps: attaching the bracket to the TV, attaching the wall plate, and hanging the TV.

5. Betjening og justeringer

The PERLESMITH PSPISF1 mount offers flexible adjustments for optimal viewing:

• Drejelig: The wall-side attachment point allows for left and right swivel adjustment up to 180 degrees.
• Udvidelse: The arm can extend the TV from the wall, with a range of 69mm (2.7 inches) to 368mm (14.5 inches).
• Rotation: The TV mounting plate can rotate 360 degrees, allowing for horizontal or vertical screen orientation.
• Vip: Adjust the vertical tilt from +5 degrees (upward) to -15 degrees (downward) to reduce glare and optimize viewing vinkler.

Note: The actual range of motion may vary depending on your TV's size.

Figure 6: Demonstrates the 360-degree rotation capability of the TV mounting plate.

Figure 7: Shows the left/right swivel (up to 90 degrees each way) and up/down tilt (+5/-15 degrees) adjustments.

Figure 8: Illustrates the arm's extension capability, showing the TV's distance from the wall ranging from 69mm to 368mm.

5.1 Kabelstyring

The mount includes cable holders to help organize and conceal cables, contributing to a tidy appearance and preventing clutter.

6. Vedligeholdelse

For at sikre lang levetid og sikker drift af dit TV-vægbeslag:

• Kontrollér regelmæssigt alle skruer og fastgørelseselementer for at sikre, at de forbliver stramme.
• Rengør holderen med en blød, tør klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Do not hang objects from the mount or apply excessive force to the TV while it is mounted.

7. Fejlfinding

If you encounter any issues during assembly or operation, please refer to the following:

• Missing Parts or Initial Defects: If any parts are missing, or if the product has initial defects or damage from shipping, please contact customer support immediately for assistance with returns or exchanges.
• Samlingsvanskeligheder: If you have any questions or difficulties during assembly, do not hesitate to contact our support team.

8. Specifikationer

9. Garanti og support

PERLESMITH provides a three-year quality guarantee from the date of purchase for all its products.

For any inquiries regarding initial defects, missing parts, damage during delivery, or assembly issues, please contact PERLESMITH customer support. We are committed to providing prompt assistance for returns, exchanges, or troubleshooting.

Thank you for choosing PERLESMITH.
