Wireless Endoscope User Manual

1. Introduktion

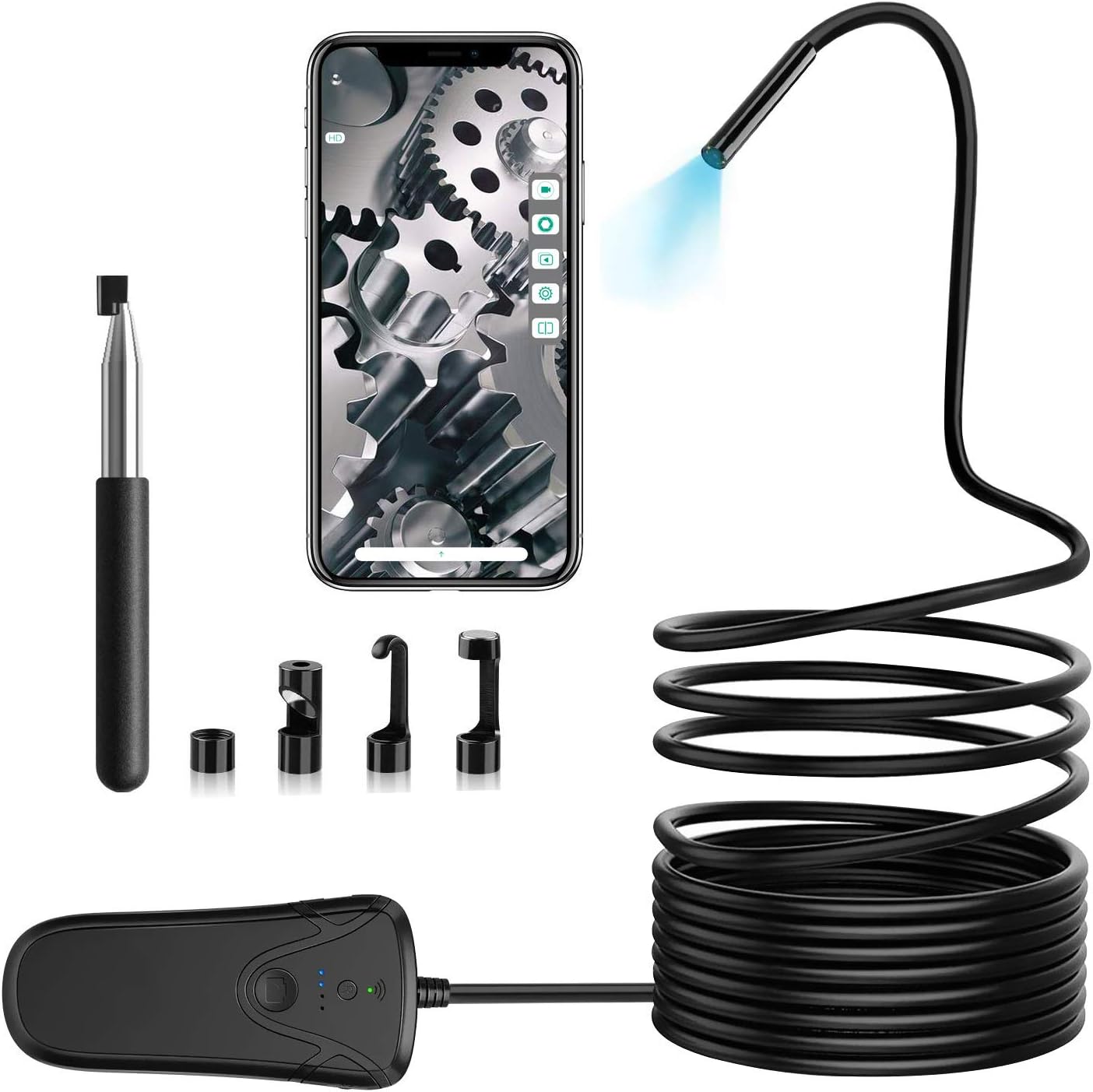

The Solar-Power Wireless Endoscope is a versatile inspection tool designed for detailed visual examination in hard-to-reach areas. It connects wirelessly to your smartphone or tablet, providing a live view and allowing you to capture high-resolution images and videos. Its IP68 waterproof rating and adjustable LED lights make it suitable for various environments, including wet or dark conditions. This manual provides instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your device.

2. Pakkens indhold

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:

• 1 x Industrial Endoscope
• 1 x mikro-USB kabel
• 1 x opbevaringsetui
• 1 x brugermanual
• 4 x Accessories (Mirror, Hook, Magnet, Protective Cap)

3. Opsætningsvejledning

3.1 Charging the Endoscope

Before initial use, ensure the endoscope is fully charged. Use a DC5V-1A adapter to charge the endoscope camera via the Micro-USB cable. The charging indicator light will provide feedback on the charging status.

3.2 Trin til Wi-Fi-forbindelse

Follow these steps to connect your endoscope to your smartphone or tablet:

1. Download the free application "inskam" from Google Play Store (for Android) or the App Store (for iOS).
2. Ensure the endoscope is fully charged. Turn on the endoscope camera by pressing the power button on the Wi-Fi box. Wait for the Wi-Fi indicator to stay green, signifying that the endoscope has successfully generated its signal.
3. On your smartphone or tablet, go to "Settings" → "Wi-Fi".
4. Select the Wi-Fi network named "inskam130A-xxx" (the "xxx" will be unique to your device).
5. Enter the password: "12345678" to connect to the inspection camera.
6. Open the "inskam" application. You should now be able to view the real-time feed from the endoscope camera.

4. Betjeningsvejledning

4.1 Grundlæggende betjening

Når du er tilsluttet, kan du view the live feed through the "inskam" app. To capture images or record videos, press the dedicated shutter button located on the endoscope Wi-Fi box. The app also provides functions such as zoom in/out, rotate, and split screens for enhanced viewing og analyse.

4.2 Image Quality and Focal Distance

The endoscope is equipped with a 2.0-megapixel CMOS sensor, offering adjustable resolutions of 1920x1080, 1280x720, and 640x480. For optimal clarity, the recommended focal distance is between 5cm and 500cm (approximately 1.97 inches to 16.4 feet).

4.3 Applikationsscenarier

This endoscope is an ideal tool for various inspection tasks, including but not limited to:

• Vehicle inspection (e.g., engine cylinders, exhaust systems)
• Aero engine inspection
• Pipeline and drain inspection
• Mechanical parts maintenance
• Home appliance repair and inspection
• Non-destructive testing in various industrial applications

5. Vedligeholdelse og pleje

• Beskyttelseshætte: Always install the protective cap on the camera lens when not in use or during inspection to prevent damage to the lens.
• Kabelpleje: The endoscope cable is semi-rigid. Please refrain from folding the cable more than 90 degrees to prevent internal damage. Store the cable coiled loosely.
• Opladning: Use only a DC5V-1A adapter for charging to ensure proper battery health and longevity.
• LED lysstyrke: Be aware that higher LED brightness settings will consume more power and may reduce the endoscope's operating time.
• Rensning: Gently wipe the camera lens and cable with a soft, dry cloth after each use. For stubborn dirt, a slightly damp cloth can be used, but ensure the device is completely dry before storage.

6. Fejlfinding

6.1 Forbindelsesproblemer

If you experience difficulty connecting the endoscope to your smartphone or tablet, try the following:

• Reset the Endoscope: Press the reset button on the Wi-Fi box. This can help re-establish the Wi-Fi signal.
• Check Wi-Fi Indicator: Ensure the Wi-Fi indicator light on the endoscope box is solid green, indicating a stable signal.
• Indtast adgangskode igen: Double-check that you are entering the correct Wi-Fi password ("12345678").
• Genstart enheder: Try restarting both your endoscope and your smartphone/tablet.
• Geninstallation af app: If issues persist, consider uninstalling and reinstalling the "inskam" app.
• Afstand: Ensure your smartphone is within the effective Wi-Fi transmission distance of approximately 10 meters from the endoscope.

7. Specifikationer

8. Garanti og support

For warranty information or technical support, please refer to the contact details provided on the product packaging or the official Solar-Power webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
