Cosmic Byte CB-GK-14 Sirius Bluetooth & Kablet Mekanisk Tastatur Brugermanual

1. Introduktion

The Cosmic Byte CB-GK-14 Sirius is a versatile mechanical keyboard designed for both wired and wireless use. Featuring Outemu Blue switches, per-key RGB backlighting, and multi-device Bluetooth connectivity, it offers a responsive and customizable typing and gaming experience. This manual provides detailed instructions for setup, operation, customization, and maintenance to ensure optimal performance.

2. Nøglefunktioner

• Dobbelt tilslutning: Supports both wired (USB) and Bluetooth modes for flexible usage across various devices.
• Anti-ghosting: Full N-key rollover in wired mode and 6-key anti-ghosting in Bluetooth mode ensure accurate input during intense sessions.
• Outemu Blue Switches: Provides a tactile and audible click feedback, ideal for typing and gaming.
• Per Key RGB Backlighting: Offers 18 pre-set backlight effects and 15 levels of brightness adjustment. Customize and store individual key backlighting.
• Long Key Life: Each key is rated for over 60 million operations, ensuring durability.
• Multi-Device Bluetooth: Connects to up to three different Bluetooth devices simultaneously, allowing for easy switching.
• Bred kompatibilitet: Compatible with Windows, Android, Linux, and iOS operating systems.
• Integreret batteri: 1000mAh rechargeable lithium-ion battery for wireless operation with a range of up to 10 meters.

3. Opsætningsvejledning

3.1 Kabelforbindelse

1. Locate the USB cable provided with your keyboard.
2. Connect one end of the USB cable to the keyboard's USB port.
3. Tilslut den anden ende af USB-kablet til en ledig USB-port på din computer.
4. The keyboard will be automatically detected and ready for use.

3.2 Bluetooth-forbindelse

The keyboard supports up to three Bluetooth devices. Ensure the keyboard is charged before attempting Bluetooth pairing.

1. Turn on the keyboard using the power switch, usually located on the back or side.
2. Tryk og hold på FN + Q, FN + W., eller FN + E keys for 3-5 seconds to enter Bluetooth pairing mode for the respective channel (Q, W, or E). The indicator light for the selected channel will flash rapidly.
3. On your device (PC, mobile, tablet), enable Bluetooth and search for available devices.
4. Select "CB-GK-14 Sirius" from the list of found devices.
5. Follow any on-screen prompts to complete the pairing process. The indicator light will stop flashing once successfully paired.
6. Repeat these steps for other devices using FN + W. og FN + E for the other two Bluetooth channels.

Billede: Top view of the Cosmic Byte CB-GK-14 Sirius Mechanical Keyboard with RGB lighting active.

4. Betjeningsvejledning

4.1 Skift mellem tilstande

• Kablet tilstand: Connect the USB cable. The keyboard will automatically switch to wired mode.
• Bluetooth-tilstand: Disconnect the USB cable. The keyboard will operate wirelessly. To switch between paired Bluetooth devices, press FN + Q, FN + W., eller FN + E briefly to select the desired channel.

4.2 Multimedie- og funktionstaster

The keyboard features dedicated multimedia keys and function key shortcuts. Refer to the keycaps for specific icons. Typically, these are accessed by pressing the FN key in combination with the F1-F12 keys or other designated keys.

• Lydstyrkekontrol: Use the dedicated rotary dial on the right side of the keyboard to adjust volume. Press the dial to mute/unmute.
• Baggrundslysintensitet: Use the dedicated rotary dial on the left side of the keyboard to adjust backlight brightness. Press the dial to cycle through backlight patterns.

Billede: Vinklet view of the keyboard highlighting the RGB lighting and the control dials.

5. RGB-tilpasning

The CB-GK-14 Sirius offers extensive RGB backlighting options:

• Pre-set Effects: Cycle through 18 different backlight effects using the dedicated backlight intensity dial (press to change patterns) or specific FN key combinations (refer to keyboard markings).
• Justering af lysstyrke: Adjust the brightness of the backlighting using the dedicated backlight intensity dial (rotate). There are 15 levels of brightness.
• Custom Backlight Mode: The keyboard features an inbuilt flash memory to store your custom LED configurations. To customize individual key backlighting, refer to the specific instructions provided in the full product manual or Cosmic Byte's support resources.

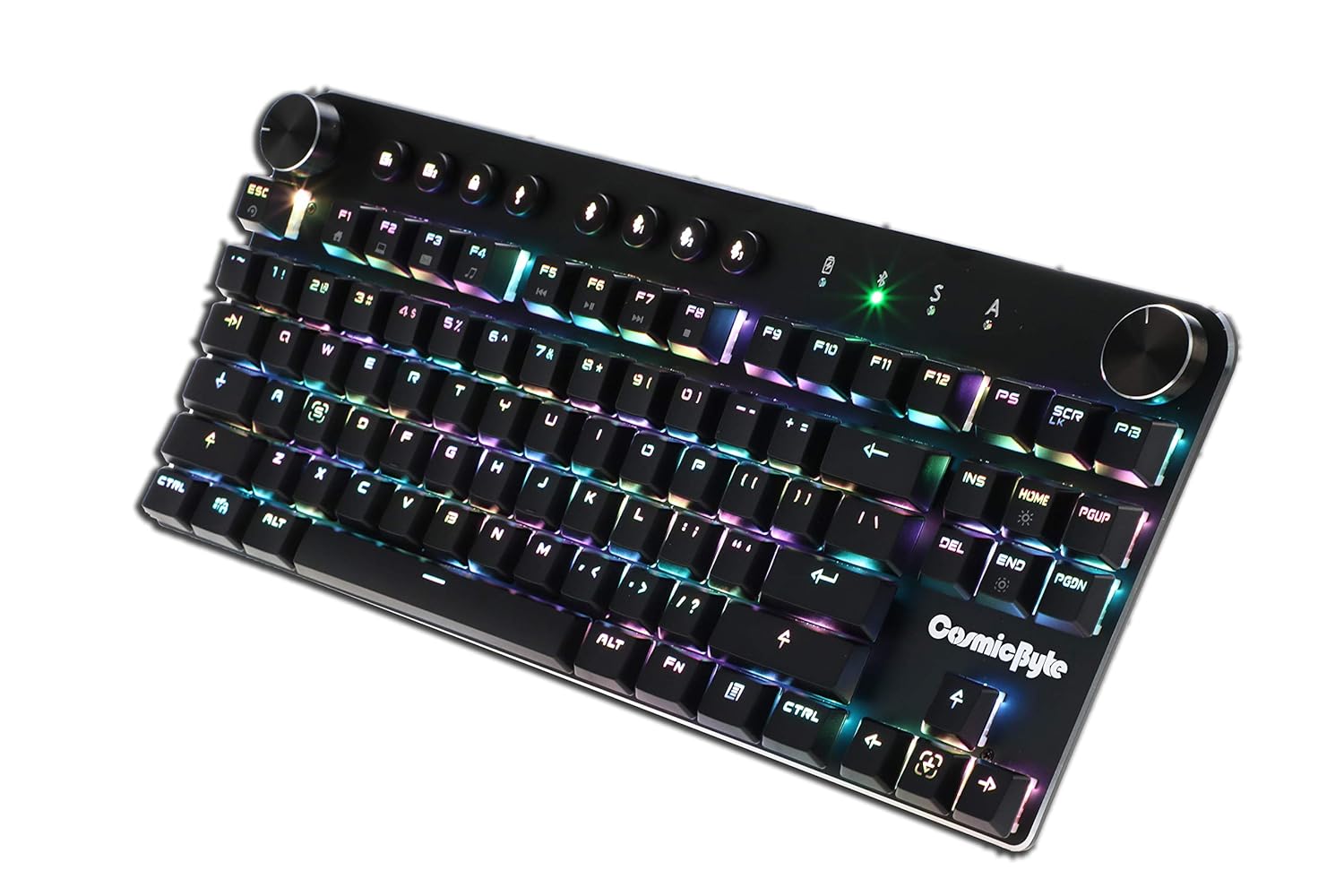

Image: Close-up angled view af tastaturvisningenasing the vibrant RGB lighting on the keys.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your keyboard:

• Rensning: Brug en blød, tør klud til at tørre tastaturet af. Brug trykluft til at fjerne støv og snavs mellem tasterne for at opnå en grundigere rengøring. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Batteripleje: For wireless use, charge the keyboard regularly. Avoid completely draining the battery frequently to prolong its lifespan.
• Opbevaring: Opbevar tastaturet et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.

7. Fejlfinding

• Tastatur reagerer ikke (kablet):
  • Sørg for, at USB-kablet er korrekt tilsluttet til både tastaturet og computeren.
  • Prøv at tilslutte til en anden USB-port på din computer.
  • Test tastaturet på en anden computer for at udelukke systemspecifikke problemer.
• Problemer med Bluetooth-forbindelse:
  • Ensure the keyboard is in Bluetooth pairing mode (indicator light flashing).
  • Verify Bluetooth is enabled on your device and it's discoverable.
  • Remove any previous pairings of the keyboard from your device's Bluetooth settings and attempt to re-pair.
  • Sørg for, at tastaturets batteri er tilstrækkeligt opladet.
  • Keep the keyboard within the 10-meter Bluetooth range of your device.
• Backlight Not Working/Customization Issues:
  • Check the brightness level using the dedicated dial.
  • Ensure the keyboard is not in a mode where backlighting is disabled.
  • For custom backlight issues, ensure the settings were saved correctly.
• Nøgler registreres ikke:
  • Clean the affected keys to remove any debris.
  • If using Bluetooth, ensure anti-ghosting limits (6-key) are not being exceeded for simultaneous presses.

8. Specifikationer

9. Garanti og support

9.1 Garantioplysninger

The Cosmic Byte CB-GK-14 Sirius Mechanical Keyboard comes with a 1 års garanti against manufacturing defects. Please note that physical damage, water damage, and tampered products are not covered under this warranty.

9.2 Kundesupport

For any warranty claims or technical assistance, please contact Cosmic Byte customer support. You can raise a ticket through their customer support portal or directly email them.

When contacting support, be prepared to provide your purchase invoice, product images from all angles, and a short video demonstrating the issue, if applicable. This will help expedite the support process.
