Indledning
This instruction manual provides essential information for the safe installation, operation, and maintenance of your Ultralux 22 Inch 3 Lamp LED Glass Candle Bathroom Vanity Light. Please read this manual thoroughly before installation and retain it for future reference.
Billede: Forside view of the Ultralux 22 Inch 3 Lamp LED Glass Candle Bathroom Vanity Light, showcasing its brushed nickel finish and three clear glass shades with internal frosted diffusers.
Sikkerhedsoplysninger
ADVARSEL: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing. Improper installation can result in electric shock or fire.
- Always consult a qualified electrician if you are unsure about the installation process.
- Sørg for, at alle elektriske tilslutninger overholder lokale forskrifter og bestemmelser.
- Do not modify the fixture. Any modifications may void the warranty and create a safety hazard.
- This fixture is designed for indoor use in damp locations only. Do not expose to direct water spray or submersion.
- Håndter glaskomponenter forsigtigt for at forhindre brud.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Ultralux 22 tommer 3 lamp LED Glass Candle Bathroom Vanity Light Fixture
- Monteringshardware (skruer, trådmøtrikker, monteringsbeslag)
- Instruktionsmanual
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Ultralux |
| Modelnummer | U100048 |
| Farve | Nickel (Brushed Finish) |
| Materiale | Glas, Metal |
| Lysarmatur Form | Vanity Light |
| Værelsestype | Badeværelse |
| Indendørs/Udendørs brug | Indendørs (Damp Godkendt placering) |
| Strømkilde | AC |
| Speciel funktion | Dimmable (TRIAC compatible) |
| Lyskildetype | Integreret LED |
| Antal lyskilder | 3 |
| Voltage | 120 volt (AC) |
| Wattage | 23 watt |
| Lysstyrke | 1150 lumen |
| Farvetemperatur | 3000 Kelvin (varm hvid) |
| Color Rendering Index (CRI) | 80.00 |
| Gennemsnitligt liv | 50,000 timer |
| Monteringstype | Vægmontering |
| Produktdimensioner | 22 x 7.75 x 6.75 tommer (længde x bredde x højde) |
| Varens vægt | 7.83 pund |
| UPC | 689749000276 |
Image: Icon indicating the fixture is approved for damp locations, suitable for bathrooms.
Image: Icon representing integrated LED technology, meaning no replaceable bulbs are needed.
Image: Icon indicating the fixture is compatible with TRIAC dimmers for adjustable light output.
Opsætning og installation
This fixture is designed for wall-mount installation over a standard electrical junction box. All necessary mounting hardware is included.
Nødvendige værktøjer (ikke inkluderet):
- Phillips skruetrækker
- Flad skruetrækker
- Afisoleringstænger
- Elektrisk tape
- Sikkerhedsbriller
Installationstrin:
- Sluk for strømmen: Locate the circuit breaker controlling the power to the installation location and turn it OFF. Verify power is off using a voltage tester.
- Forbered montering: Remove the old fixture (if applicable). Attach the mounting bracket (included) to the junction box using the provided screws. Ensure the bracket is securely fastened.
- Elektriske forbindelser: Carefully connect the fixture's wires to the corresponding wires from the junction box using the provided wire nuts:
- Tilslut grøn eller bar kobberjordledning fra armaturet til jordledning from the junction box.
- Tilslut hvid (neutral) ledning fra armaturet til hvid (neutral) ledning from the junction box.
- Tilslut sort (varm) ledning fra armaturet til sort (varm) ledning from the junction box.
- Monter armaturet: Carefully tuck all wires into the junction box. Align the fixture's base with the mounting bracket and secure it with the provided screws.
- Installer glasskærme: Place the clear glass shades over the frosted diffusers and secure them according to the fixture's design. Ensure they are stable and not loose.
- Gendan strøm: Tænd for strømmen igen ved afbryderen. Test lysarmaturet.
Billede: Bagside view of the Ultralux vanity light, illustrating the mounting plate and electrical wiring connections for installation.
Betjeningsvejledning
The Ultralux vanity light features integrated LED technology and is designed for simple operation.
- Tænd/sluk: Brug din almindelige vægkontakt til at tænde eller slukke lysarmaturet.
- Dæmpningsfunktion: This fixture is TRIAC dimmable. If connected to a compatible TRIAC dimmer switch (sold separately), you can adjust the brightness of the light. Follow the dimmer switch manufacturer's instructions for proper operation.
- Lysoutput: The integrated LEDs provide 1150 lumens of warm white light at a color temperature of 3000K.

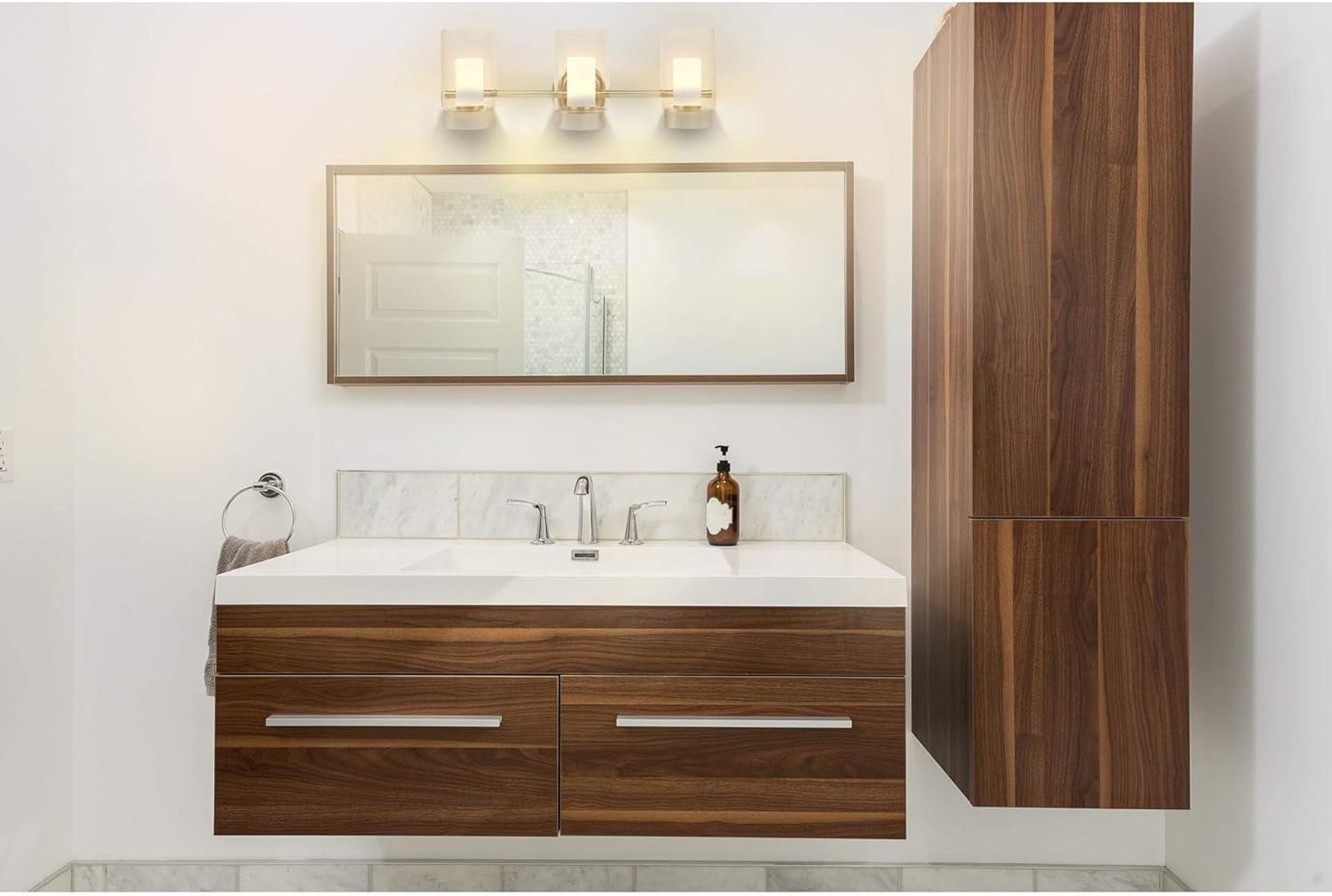

Image: The Ultralux vanity light installed above a mirror in a modern bathroom setting, demonstrating its functional and aesthetic integration.
Opretholdelse
The Ultralux vanity light requires minimal maintenance due to its integrated LED design.
- Rensning: To clean the fixture, ensure power is turned off at the circuit breaker. Use a soft, dry, or slightly damp cloth to wipe down the metal finish and glass shades. Do not use abrasive cleaners, solvents, or polishes, as these can damage the finish or glass.
- LED-levetid: The integrated LEDs have an average life of 50,000 hours and are not user-replaceable. If the LEDs fail, the entire fixture may need replacement.
Fejlfinding
If you encounter issues with your Ultralux vanity light, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til armaturet. | Check the circuit breaker and wall switch. Ensure power is restored. |
| Løse ledningsforbindelser. | Turn off power at the circuit breaker. Recheck all wire connections inside the junction box. | |
| Lyset flimrer eller dæmpes ujævnt. | Inkompatibel lysdæmper. | Ensure you are using a TRIAC compatible dimmer switch. Replace if necessary. |
| Løse ledningsforbindelser. | Turn off power at the circuit breaker. Recheck all wire connections. | |
| Lysudbyttet er lavere end forventet. | Dæmperindstillingen er for lav. | Adjust the dimmer switch to its maximum setting. |
| Dust or debris on glass shades. | Clean the glass shades as per maintenance instructions. |
Garanti og support
For warranty information, technical assistance, or to report any issues with your Ultralux product, please contact Ultralux customer service. Refer to your purchase documentation or the Ultralux webwebsted for kontaktoplysninger.
Please have your model number (U100048) and proof of purchase available when contacting support.
