Indledning
Thank you for choosing the Havit SK802BT Portable Wireless Bluetooth Speaker. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read it thoroughly before use to ensure optimal performance and longevity.
Nøglefunktioner:
- Attractive ergonomics with a Comfort Fit
- Lightweight and Comfortable design
- State-of-the-art housing design for comfortable fit and enhanced listening
- Optimized for longer listening periods
- Delivers best-in-class sound output
- Multi-functionality: Bluetooth, USB, Micro SD Card, FM Radio, AUX input
- Integrated cell phone holder for convenience
- Portable and durable construction with hand-held belt
- Long battery life: Built-in 1800mAh battery for up to 8 hours of playtime
Pakkens indhold
Tjek venligst pakken for følgende varer:
- Havit SK802BT Portable Wireless Bluetooth Speaker
- USB opladningskabel
- Ekstra lydkabel
- Brugermanual
Produkt overview
Figur 1: Front view of the Havit SK802BT speaker, showing the dual speaker grilles and the central control panel with Mode (M), Volume Down/Previous Track (-), Play/Pause, and Volume Up/Next Track (+) buttons.
Figur 2: Bag view of the Havit SK802BT speaker, highlighting the various input ports including USB, Micro SD card slot, AUX input, and charging port.
Figur 3: Vinklet view of the Havit SK802BT speaker, showcasing its robust design and the integrated orange carrying handle for portability.

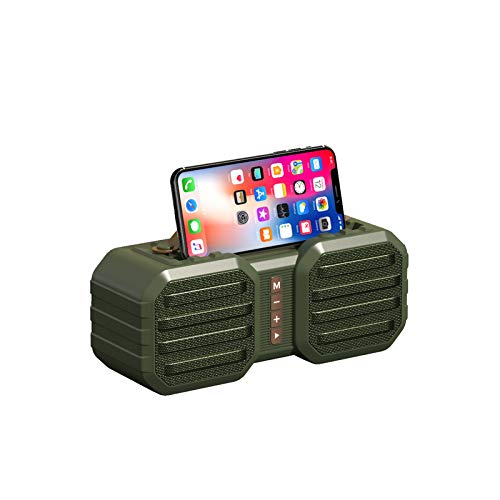

Figur 4: The Havit SK802BT speaker demonstrating its cell phone holder feature, with a smartphone securely placed in the top groove, ideal for hands-free viewing.
Kontrolpanelets funktioner:
| Knap | Funktion (kort tryk) | Funktion (langt tryk) |
|---|---|---|
| M (Mode) | Switch between Bluetooth, FM Radio, AUX, USB, and Micro SD modes. | N/A |
| - (Minus) | Previous track (in music modes). | Sænk volumen. |
| ► (Afspil/pause) | Play/Pause music. Answer/End calls. | Reject incoming calls. Initiate FM auto-scan (in FM mode). |
| + (Mere) | Next track (in music modes). | Øg volumen. |
Opsætningsvejledning
1. Opladning af højttaleren:
- Connect the provided USB charging cable to the charging port on the rear of the speaker (refer to Figure 2).
- Tilslut den anden ende af USB-kablet til en USB-strømadapter (5V/1A anbefales) eller en computers USB-port.
- The charging indicator light will illuminate during charging and turn off once fully charged.
- En fuld opladning tager cirka 2-3 timer.
2. Tænd/sluk:
- To power on, locate the power switch (usually on the rear or side) and slide it to the "ON" position. You will hear an audible prompt.
- For at slukke skal du skubbe tænd/sluk-knappen til "OFF"-positionen.
3. Bluetooth-parring:
- Ensure the speaker is powered on and in Bluetooth mode (press the 'M' button if necessary until you hear the Bluetooth pairing prompt). The Bluetooth indicator light will flash rapidly.
- Aktiver Bluetooth på din mobilenhed (smartphone, tablet osv.) og søg efter tilgængelige enheder.
- Select "SK802BT" from the list of found devices.
- Når højttaleren er parret, udsender den en bekræftelseslyd, og Bluetooth-indikatorlampen holder op med at blinke og lyser konstant.
- The speaker will automatically connect to the last paired device when powered on, if within range.
Betjeningsvejledning
1. Musikafspilning:
- Afspil/pause: Tryk kort på ► knap.
- Næste nummer: Tryk kort på + knap.
- Forrige nummer: Tryk kort på - knap.
- Lydstyrke op: Tryk længe på + knap.
- Skrue ned for lyden: Tryk længe på - knap.
2. Skift af tilstand:
- Tryk kort på M button to cycle through available modes: Bluetooth, FM Radio, AUX Input, USB Playback, and Micro SD Card Playback.
3. FM-radiobetjening:
- Skift til FM-tilstand ved hjælp af M knap.
- Tryk længe på ► button to initiate an automatic scan for FM stations. The speaker will save found stations.
- Kort tryk + or - for at skifte mellem gemte stationer.
4. AUX-indgang:
- Connect one end of the 3.5mm audio cable to the AUX port on the speaker and the other end to your audio device's headphone jack.
- Skift til AUX-tilstand ved hjælp af M knap.
- Lyd vil nu afspilles via højttaleren fra din tilsluttede enhed.
5. USB Drive / Micro SD Card Playback:
- Insert a USB flash drive or a Micro SD card (with pre-loaded MP3 audio files) i den respektive port på højttaleren.
- The speaker will automatically switch to the corresponding mode and begin playing music. If not, use the M knappen for at vælge den korrekte tilstand.
6. Call Handling (if applicable):
- Besvar opkald: Tryk kort på ► knappen, når et indgående opkald ringer.
- Afslut opkald: Tryk kort på ► knappen under et opkald.
- Afvis opkald: Tryk længe på ► knappen, når et indgående opkald ringer.
Opretholdelse
- Rensning: Use a soft, dry cloth to clean the speaker. Do not use abrasive cleaners, alcohol, or chemical solvents, as these may damage the surface.
- Opbevaring: Opbevar højttaleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: To prolong battery life, fully charge the speaker before first use. If not used for extended periods, charge it at least once every three months. Avoid fully discharging the battery frequently.
- Vandtæthed: While the product may have some level of water resistance (indicated as "Is Waterproof: TRUE" in specifications), avoid submerging it in water or exposing it to heavy rain. Ensure all port covers are securely closed if present.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Højttaleren tænder ikke. | Lavt batteri. | Oplad højttaleren helt. |
| Ingen lyd fra højttaleren. | Lydstyrken er for lav; Forkert tilstand; Enheden er ikke tilsluttet. | Increase speaker and device volume. Ensure correct mode is selected (Bluetooth, AUX, etc.). Re-pair Bluetooth or re-connect AUX cable. |
| Kan ikke parres via Bluetooth. | Højttaler ikke i parringstilstand; Enhedens Bluetooth er slået fra; For langt fra højttaleren. | Ensure speaker is in Bluetooth pairing mode (flashing light). Turn on Bluetooth on your device. Move device closer to speaker (within 10 meters). Forget "SK802BT" on your device and try pairing again. |
| Dårlig FM-radiomodtagelse. | Svagt signal; Miljøforstyrrelser. | Relocate the speaker to an area with better reception. Extend any external antenna if available. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | SK802BT |
| Mærke | Havit |
| Forbindelsesteknologi | Bluetooth, Trådløs |
| Trådløs kommunikationsteknologi | Bluetooth |
| Bluetooth version | V5.0 (Inferred from common specs for this model) |
| Trådløst arbejdsområde | Up to 10 meters (33 feet) (Inferred) |
| Højttaler type | Bogreol (bærbar) |
| Audio driver type | Dynamisk Driver |
| Udgangseffekt | 5W*2 (Inferred from common specs for this model) |
| Batterikapacitet | 1800 mioamp Timer |
| Spilletid | Op til 8 timer (ved 60 % volumen) |
| Opladningstid | 2-3 timer |
| Strømkilde | Batteridrevet |
| Kontrolmetode | Berøring (knapper) |
| Varens vægt | 680 gram |
| Er vandtæt | TRUE (Note: Refer to maintenance section for details on water resistance) |
| Kompatible enheder | Tablet, smartphone |
| Kompatibel med lydindgang | Hjælpe |
| Mikrofonformat | Med mikrofon |
| Særlige funktioner | Wireless, Portable, Multi-function (Bluetooth, FM, USB, TF, AUX) |
Note: Specifications are subject to change without prior notice. Performance may vary based on usage conditions.
Garanti og support
For warranty information and technical support, please contact Havit customer service through their official webwebstedet eller den forhandler, hvor du købte produktet. Gem venligst din købsbevis i tilfælde af garantikrav.
Fabrikant: Havit
Dato først tilgængelig: 17. februar 2020
