Indledning
Thank you for choosing the Scotts 14-Inch 20-Volt Cordless Lawn Mower. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new lawn mower. Please read this manual thoroughly before first use and keep it for future reference.
This cordless lawn mower is designed for residential use, offering a powerful brushless motor similar to gas models but without the noise and harmful fumes. It features 2-in-1 functionality for mulching and bagging, an adjustable cutting height, and an easy-to-store design.
Figure 1: Scotts 14-Inch 20-Volt Cordless Lawn Mower, showing its compact design and integrated grass bag.
Vigtige sikkerhedsoplysninger
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Read all instructions before using this product.
Generelle sikkerhedsregler
- Læs manualen: Gør dig bekendt med alle betjeningselementer og korrekt brug.
- Hold området ryddet: Do not operate the mower in the presence of bystanders, especially children or pets.
- Klæd dig rigtigt: Wear appropriate clothing, including eye protection, long pants, and sturdy, non-slip footwear.
- Efterse før brug: Check the mower for damaged parts, loose fasteners, or any other condition that may affect its operation.
- Undgå våde forhold: Brug ikke plæneklipperen i vådt græs eller regn.
- Vedligehold af knive: Ensure blades are sharp and properly balanced.
- Batterisikkerhed: Use only the specified battery pack and charger. Do not expose battery to water or extreme temperatures.
- Afbryd strømmen: Always remove the battery pack before cleaning, servicing, or when the mower is unattended.
- Hældning: Klip på tværs af skråninger, aldrig op og ned. Udvis ekstrem forsigtighed, når du skifter retning på skråninger.
- Fremmedobjekter: Clear the area of objects like rocks, toys, or wires that could be thrown by the blade.
Opsætning og montering
Your Scotts 14-Inch 20-Volt Cordless Lawn Mower requires minimal assembly. Follow these steps to get your mower ready for use.
1. Udpakning
- Fjern forsigtigt alle komponenter fra emballagen.
- Kontroller, at alle dele, der er anført på pakkelisten, er til stede.
- Bortskaf emballagematerialer på en ansvarlig måde.
2. Håndtagssamling
The handle comes partially assembled. Unfold the handle and secure it using the quick-release knobs provided.
Figure 2: Adjustable handle knobs for securing the handle in place.
3. Batteriopladning
Before first use, fully charge the 20-Volt 4Ah lithium-ion battery. The fast charger is included.
- Tilslut opladeren til en almindelig stikkontakt.
- Sæt batteripakken i opladeren.
- The indicator light on the charger will show the charging status. Refer to the charger's specific instructions for light indications.
Figure 3: The Scotts 14-Inch 20-Volt Cordless Lawn Mower shown with its included 20V 4.0Ah battery and fast charger.
4. Installation af batteriet
Once charged, slide the battery pack into the battery compartment on the mower until it clicks into place.
Figure 4: A hand inserting the 20V battery into the designated compartment on the lawn mower.
Betjeningsvejledning
1. Justering af klippehøjde
The mower features an adjustable cutting height from 1 inch to 2.5 inches. Locate the height adjustment lever on the mower deck and move it to your desired setting.

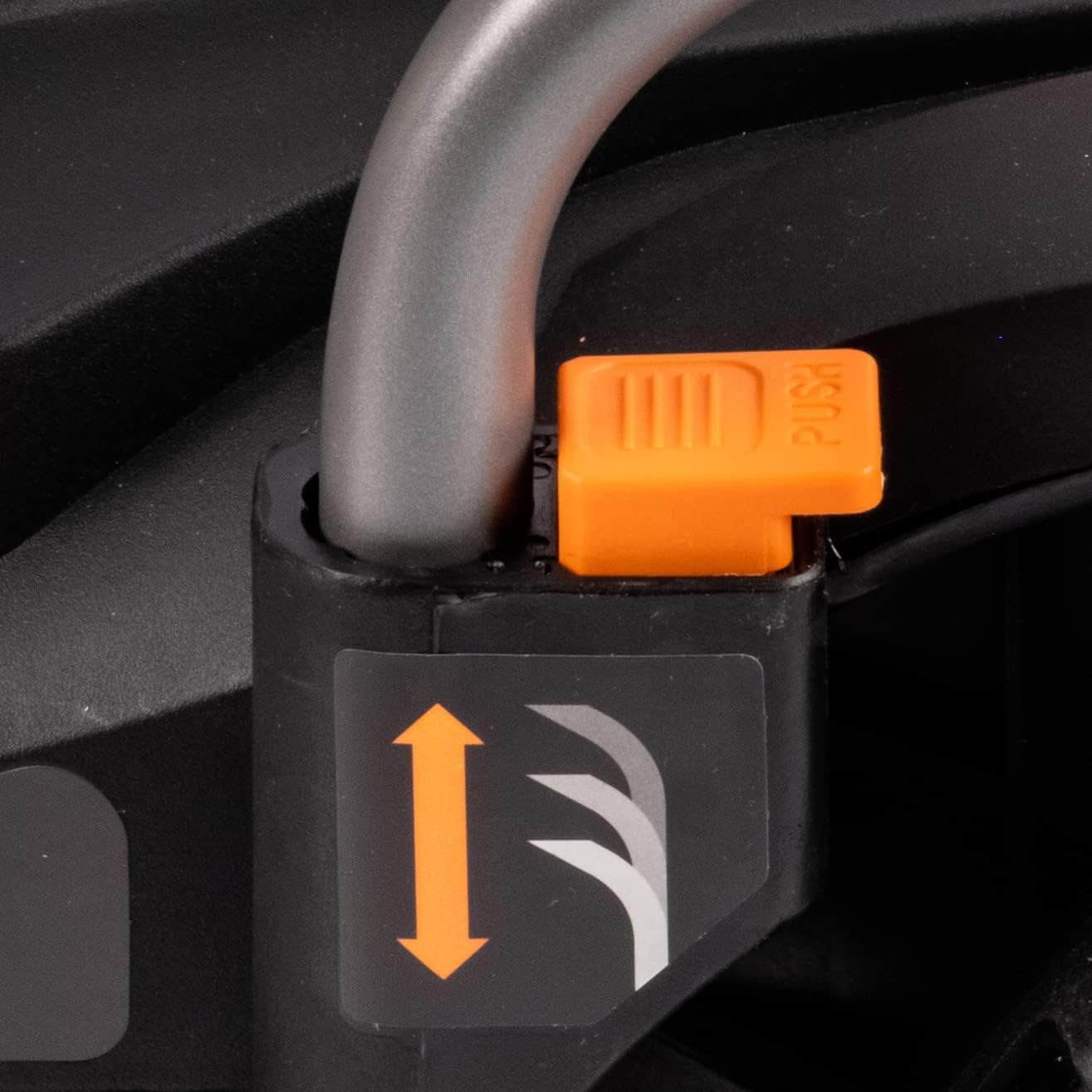

Figure 5: Close-up of the cutting height adjustment lever, allowing selection of desired grass length.
2. Start af plæneklipperen
To start the mower, press and hold the safety button, then pull the bail switch lever towards the handle. Release the safety button once the motor starts.
Figure 6: The handle controls, showing the start/stop button and the bail switch lever.
3. Klippeteknikker
- For at opnå de bedste resultater, slå tørt græs.
- Overlap skæreskårene let for at sikre jævn dækning.
- Avoid overloading the motor by cutting excessively long or thick grass in one pass. Raise the cutting height if necessary.
- The mower offers 2-in-1 functionality: mulching and rear-bagging.
Mulching mulighed
When mulching, the mower finely cuts grass clippings and returns them to the lawn as natural fertilizer. Ensure the grass bag is removed and the mulching plug is properly installed (if applicable, refer to specific diagrams in the full PDF manual).
Rear-Bagging Option
For collecting clippings, attach the 9-gallon capacity grass bag to the rear discharge chute. Ensure it is securely fastened.
Figure 7: A user demonstrating the removal of the grass collection bag from the rear of the mower.
4. Standsning af plæneklipperen
To stop the mower, release the bail switch lever. The motor will stop immediately. Always remove the battery pack when not in use or before performing any adjustments or maintenance.
Opretholdelse
Regular maintenance ensures optimal performance and extends the life of your lawn mower. Always disconnect the battery before performing any maintenance.
1. Rensning
- After each use, clean the underside of the mower deck to prevent grass buildup, which can affect cutting performance.
- Use a dry cloth or soft brush to clean the exterior. Do not use water or solvents.
- Clean the grass bag regularly to ensure proper airflow.
2. Knivpleje
- Inspect the blade regularly for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn.
- If the blade is dull or damaged, have it sharpened or replaced by a qualified service center.
- Ensure the blade is balanced after sharpening to prevent vibration.
3. Battery and Charger Storage
- Opbevar batteripakken et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- Do not store the battery pack fully discharged for extended periods. Charge it periodically.
- Opbevar opladeren et tørt sted indendørs.
4. Opbevaring
The adjustable handle allows for compact storage. Fold the handle down and store the mower in a dry, secure location, out of reach of children.
Fejlfinding
This section provides solutions to common problems you might encounter with your Scotts 14-Inch 20-Volt Cordless Lawn Mower.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Plæneklipperen starter ikke. | Batteriet er ikke isat korrekt. | Sørg for, at batteriet er helt isat og klikker på plads. |
| Batteriet er afladet. | Oplad batteriet helt. | |
| Safety button or bail switch not engaged. | Press safety button, then pull bail switch lever. | |
| Mower stops during operation. | Batteriet er lavt eller afladet. | Genoplad eller udskift batteriet. |
| Overload protection activated (e.g., cutting very thick grass). | Raise cutting height, clear any obstructions, and restart. | |
| Ujævn skæring. | Sløv eller beskadiget blad. | Inspect and sharpen or replace blade. |
| Grass buildup under deck. | Rengør undersiden af klippeaggregatet. | |
| Poor bagging performance. | Grass bag full or clogged. | Empty and clean the grass bag. |
| Udløbsskakt tilstoppet. | Clear the discharge chute (with battery removed). |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 62014S |
| Mærke | Scotts |
| Strømkilde | Batteridrevet (20 volt) |
| Batteritype | 4.0 Ah Lithium-Ion |
| Skærebredde | 14 tommer |
| Justering af klippehøjde | 1" - 2.5" (3 positions) |
| Dækmateriale | Holdbar plastik |
| Taskkapacitet | 9 gallons |
| Funktioner | 2-in-1 (Mulching, Rear-Bagging) |
| Varens vægt | 27.6 pund |
| Produktdimensioner (DxBxH) | 51.18 cm x 14.61 cm x 38.5 cm |
| UPC | 026479620143 |
Figure 8: Performance metrics indicating an average run time of 25 minutes and coverage of 3200 square feet per charge.
Garanti og support
For warranty information, technical support, or to order replacement parts, please refer to the official Scotts Outdoor Power Tools webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
You can also find additional resources, including a downloadable PDF user manual, on the product's Amazon page under the "Product guides and documents" section.
For yderligere hjælp, besøg venligst Scotts-butikken på Amazon.
