MI MDZ-27-DI Wireless Bluetooth Soundbar User Manual

1. Introduktion

Thank you for choosing the MI MDZ-27-DI Wireless Bluetooth Soundbar. This soundbar is designed to enhance your audio experience for movies, gaming, and music playback. Featuring 8 sound drivers, it delivers rich and balanced audio. Its minimalist design integrates seamlessly with various home décors. This manual provides essential information for setup, operation, and maintenance of your new soundbar.

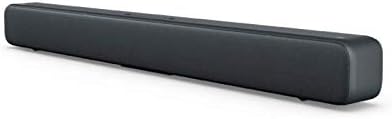

Figure 1.1: The MI MDZ-27-DI Wireless Bluetooth Soundbar, showcasing its sleek, dark grey design and compact form factor.

2. Sikkerhedsoplysninger

• Do not expose the soundbar to water or moisture.
• Bloker ikke ventilationsåbninger. Installer i overensstemmelse med producentens anvisninger.
• Må ikke installeres i nærheden af ​​varmekilder såsom radiatorer, varmeapparater, komfurer eller andre apparater (inklusive ampløftere), der producerer varme.
• Beskyt netledningen mod at blive trådt på eller klemt, især ved stik, stikkontakter og det sted, hvor de kommer ud af apparatet.
• Brug kun tilbehør/tilbehør specificeret af producenten.
• Træk stikket ud af dette apparat under tordenvejr, eller når det ikke skal bruges i længere perioder.
• Overlad al service til kvalificeret servicepersonale. Service er påkrævet, når apparatet er blevet beskadiget på nogen måde, såsom strømforsyningsledning eller stik er beskadiget, væske er blevet spildt, eller genstande er faldet ind i apparatet, apparatet har været udsat for regn eller fugt, ikke fungerer normalt , eller er blevet droppet.

3. Pakkens indhold

Tjek venligst pakken for følgende varer:

• MI MDZ-27-DI Wireless Bluetooth Soundbar
• Strømadapter/kabel
• S/PDIF Cable (Note: Optical/Aux cables may need to be purchased separately depending on your TV model)
• Brugervejledning (dette dokument)

4. Produktfunktioner

The MI MDZ-27-DI Soundbar offers a range of features designed for an immersive audio experience:

• 8 Sound Drivers: Equipped with multiple drivers for a rich and balanced audio profile.
• Flere tilslutningsmuligheder: Supports S/PDIF, Optical, Aux-in, Line-in, and Bluetooth 4.2 LE for versatile connection to various devices.
• Minimalistisk design: A sleek bar shape with a fabric mesh exterior that complements any décor.
• Forbedret bas: Delivers deep and clear bass for an improved listening experience.
• Nem opsætning: Designed for a quick and hassle-free installation, whether on a table or wall-mounted.

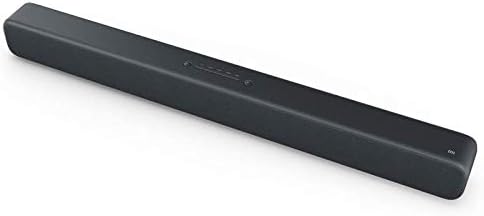

Figure 4.1: The soundbar's top panel, featuring integrated control buttons for power and input selection.

5. Opsætning og installation

5.1 Placeringsmuligheder

The MI Soundbar can be placed on a tabletop or mounted on a wall.

Bordpladeplacering:

Place the soundbar on a stable, flat surface in front of your TV or desired listening area. Ensure there is adequate space around the soundbar for proper ventilation.

Vægmontering:

The soundbar is designed for easy wall mounting. To mount, determine the desired mounting height. Mark the position for the first wall hole (A1). Then, horizontally to the right of A1, mark the position for the second wall hole (A2) at a distance of 416 mm. Ensure the wall can support the weight of the soundbar (approximately 1.92 kg).

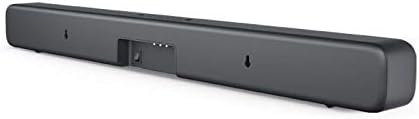

Figure 5.1: The rear of the soundbar, highlighting the input ports and the integrated wall mounting points.

5.2 Indledende opsætning

1. Tilslut strøm: Plug the power cable into the soundbar's power input and then into a wall outlet.
2. Tilslut lydkilde: Choose your preferred audio connection method (S/PDIF, Optical, Aux-in, or Bluetooth) and connect the soundbar to your TV, mobile device, or other audio source. Refer to Section 6 for detailed connectivity instructions.
3. Tænd: Tryk på tænd/sluk-knappen på soundbaren for at tænde den.

6. Betjeningsvejledning

6.1 Styringer

The MI Soundbar features integrated controls on its top panel:

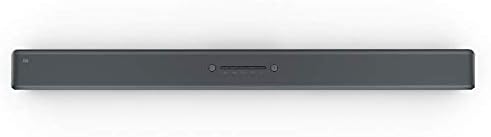

Figure 6.1: Close-up of the soundbar's top-mounted control buttons, including power, volume, and input selection.

• Power knap: Press to turn the soundbar On or Off.
• Lydstyrke op/ned: Adjust the sound output level.
• Input/Source-knap: Cycle through available input sources (Bluetooth, S/PDIF, Optical, Aux-in, Line-in).

Note: The MI MDZ-27-DI Soundbar does not include a remote control. Volume and source selection must be adjusted directly on the unit or via the connected device (e.g., TV remote for TV volume).

6.2 Tilslutningsmuligheder

The soundbar offers several ways to connect to your audio sources:

• Bluetooth:
  1. Sørg for, at soundbaren er tændt.
  2. Press the Input/Source button until the Bluetooth indicator light is active.
  3. On your mobile device or computer, enable Bluetooth and search for "MI Soundbar" (or similar).
  4. Select the soundbar from the list to pair. Once paired, the indicator light will become solid.
• S/PDIF (Coaxial Digital Audio):

  Connect the provided S/PDIF cable from your TV's S/PDIF output to the soundbar's S/PDIF input. Select S/PDIF as the input source on the soundbar.

• Optisk (digital lyd):

  Connect an optical audio cable (not included) from your TV's Optical output to the soundbar's Optical input. Select Optical as the input source on the soundbar.
• Aux-in (3.5mm Analog Audio):

  Connect a 3.5mm audio cable (not included) from your device's headphone jack or Aux output to the soundbar's Aux-in port. Select Aux-in as the input source on the soundbar.

• Line-in (RCA Analog Audio):

  Connect an RCA audio cable (not included) from your device's Line-out to the soundbar's Line-in ports. Select Line-in as the input source on the soundbar.

7. Vedligeholdelse

To ensure the longevity and optimal performance of your MI Soundbar, follow these maintenance guidelines:

• Rensning: Use a soft, dry cloth to wipe the exterior of the soundbar. Do not use liquid cleaners, aerosols, or abrasive cleaning agents.
• Ventilation: Ensure that the ventilation openings are not blocked by dust or debris. Periodically clean around these areas.
• Opbevaring: If storing the soundbar for an extended period, unplug it from the power outlet and store it in a cool, dry place away from direct sunlight and extreme temperatures.

8. Fejlfinding

If you encounter issues with your MI Soundbar, refer to the following common troubleshooting steps:

9. Specifikationer

10. Garanti og support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official MI webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

For further assistance, you may contact MI customer service through their official channels.
