Brugermanual

1. Introduktion og sikkerhedsoplysninger

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Einhell GE-CM 36/36 Li Cordless Lawnmower. Please read all instructions carefully before using the product.

Generelle sikkerhedsadvarsler

• Always wear appropriate personal protective equipment (PPE) including safety glasses, sturdy footwear, and hearing protection.
• Hold børn og omkringstående væk fra betjeningsområdet.
• Inspect the area to be mowed for objects that could be thrown by the blade. Remove any stones, sticks, wires, or other debris.
• Brug aldrig plæneklipperen i vådt græs eller regn.
• Ensure the safety key is removed when the mower is unattended, before cleaning, or performing maintenance.
• Use only original Einhell batteries and chargers specified for this model.

2. Produktet er slutview

The Einhell GE-CM 36/36 Li is a powerful cordless lawnmower designed for efficient lawn care. It is part of the Power X-Change family, utilizing two 18V 4.0 Ah batteries for extended runtime.

Figure 1: Einhell GE-CM 36/36 Li Cordless Lawnmower with included batteries and chargers.

Nøglefunktioner:

• Powered by 2 x 18V Power X-Change 4.0Ah batteries (included).
• Brushless motor for increased power and longer runtime.
• 6-level central cutting height adjustment.
• Foldable long handle with 3-step height adjustment.
• Integrated carry handle for easy transportation.
• Highwheeler design with large wheels for lawn protection.
• Grass catcher box with level indicator.
• Durable, high-quality impact-resistant plastic housing.

3. Opsætning

3.1 Montering

The lawnmower requires minimal assembly. Follow these steps:

1. Attach the lower handle to the mower body using the provided fasteners. Ensure it is securely tightened.
2. Connect the upper handle to the lower handle. Adjust the handle height to a comfortable position using the 3-step adjustment mechanism and secure it.
3. Assemble the grass catcher box according to the diagrams in the separate assembly guide (if applicable).
4. Mount the assembled grass catcher box onto the rear of the lawnmower.

3.2 Opladning og isætning af batteri

The kit includes two 18V 4.0 Ah Power X-Change batteries and two chargers.

• Insert the batteries into the chargers. The LED indicators on the chargers will show the charging status. Charge both batteries fully before first use.
• Once charged, slide both batteries into the battery compartments on the lawnmower until they click into place. Ensure they are fully seated.
• Insert the safety key into its designated slot. The mower will not operate without the safety key.

3.3 Justering af klippehøjde

The lawnmower features a 6-level central cutting height adjustment mechanism.

• To adjust the cutting height, locate the central lever on the side of the mower.
• Pull the lever outwards and move it up or down to select the desired cutting height. The available heights range from 3 cm to 7.5 cm.
• Release the lever to lock it into position. Ensure the mechanism is securely engaged before operation.

4. Betjening af plæneklipperen

4.1 Kontroller før drift

• Ensure all fasteners are tight and the mower is in good working condition.
• Check that the grass catcher box is correctly attached.
• Verify that the batteries are fully charged and properly inserted.
• Confirm the safety key is in place.

4.2 Start og stop

1. To start: Press and hold the safety button, then pull the switch bar towards the handle. The motor will start.
2. To stop: Release the switch bar. The motor will stop immediately.
3. Always remove the safety key when leaving the mower unattended.

4.3 Slåningsteknikker

For de bedste resultater:

• Slå græsset i overlappende rækker for at sikre jævn dækning.
• Avoid overloading the mower by cutting excessively long grass in one pass. If grass is very long, raise the cutting height for the first pass, then lower it for a second pass.
• Maintain a steady pace.
• Empty the grass catcher box when the level indicator shows it is full to maintain optimal cutting performance and prevent clogging.

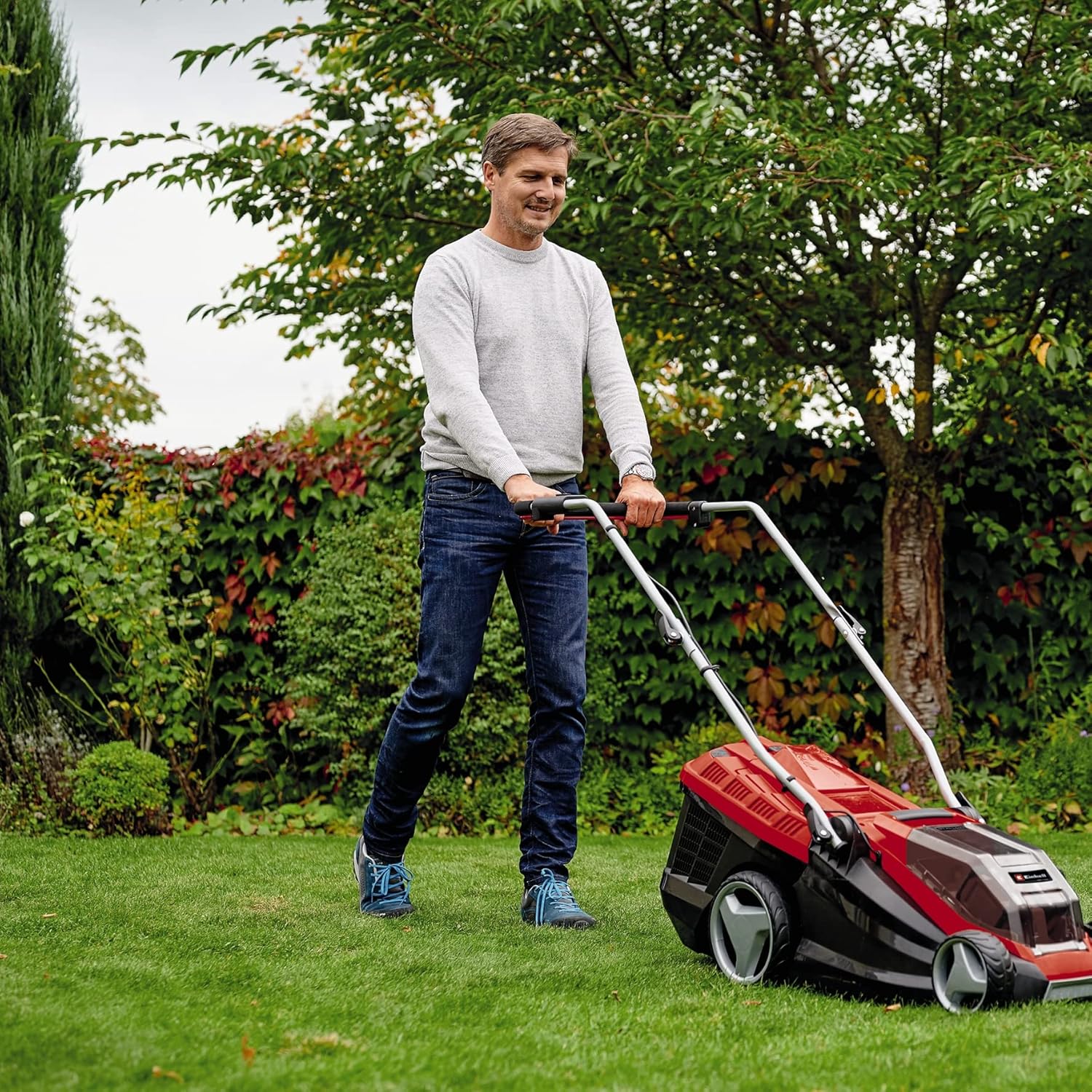

Figure 2: Proper operation of the Einhell GE-CM 36/36 Li Cordless Lawnmower.

5. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your lawnmower. Always remove the safety key and batteries before performing any maintenance.

5.1 Rengøring

• After each use, clean the underside of the mower deck to remove grass clippings and debris. Use a brush or scraper.
• Tør plæneklipperens yderside af med enamp klud. Brug ikke højtryksvand eller skrappe kemikalier.
• Clean the grass catcher box thoroughly.

5.2 Pleje af blade

• Regularly inspect the cutting blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn.
• If the blade is dull, it should be sharpened or replaced by a qualified service technician.
• Ensure the blade is balanced after sharpening to prevent vibration.

5.3 Batteripleje og -opbevaring

• Opbevar batterier et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Ved langtidsopbevaring skal batterierne oplades til cirka 50% kapacitet.
• Do not store batteries fully discharged.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

Einhell products are designed for reliability and performance. This product comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.

For spare parts, the EU Spare Part Availability Duration is 2 Years from the date of purchase.

For technical support, service, or to order spare parts, please contact Einhell customer service. Contact information can typically be found on the Einhell official webwebstedet eller på dit produkts emballage.

When contacting support, please have your product model number (GE-CM 36/36 Li) and serial number (if applicable) ready.
