1. Introduktion
Tak for købetasing the Akai ABTS-S2 BK Bluetooth Radio Alarm Clock. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.
2. Sikkerhedsoplysninger
- Udsæt ikke enheden for regn, fugt eller ekstreme temperaturer.
- Undgå at placere enheden i nærheden af varmekilder eller i direkte sollys.
- Enheden må ikke skilles ad eller ændres. Overlad al service til kvalificeret personale.
- Sørg for korrekt ventilation omkring enheden.
- Use only the specified power adapter and battery type.
3. Pakkens indhold
Kontroller venligst, at følgende varer er inkluderet i din pakke:
- Akai ABTS-S2 BK Bluetooth Radio Alarm Clock
- USB opladningskabel
- Brugermanual
- Lithium-ion Battery (pre-installed or separate)
4. Produktet er slutview
Familiarize yourself with the components and features of your Akai ABTS-S2 BK.
Figur 4.1: Forside view of the Akai ABTS-S2 BK Bluetooth Radio Alarm Clock, displaying time (06:37), temperature (20°C), and humidity (65%).
Figur 4.2: Side view with dimensions: 14cm length, 5cm depth, 8cm height.
Figure 4.3: Rear panel showing connectivity options: USB port, Micro SD card slot, AUX input, and an extendable FM antenna.

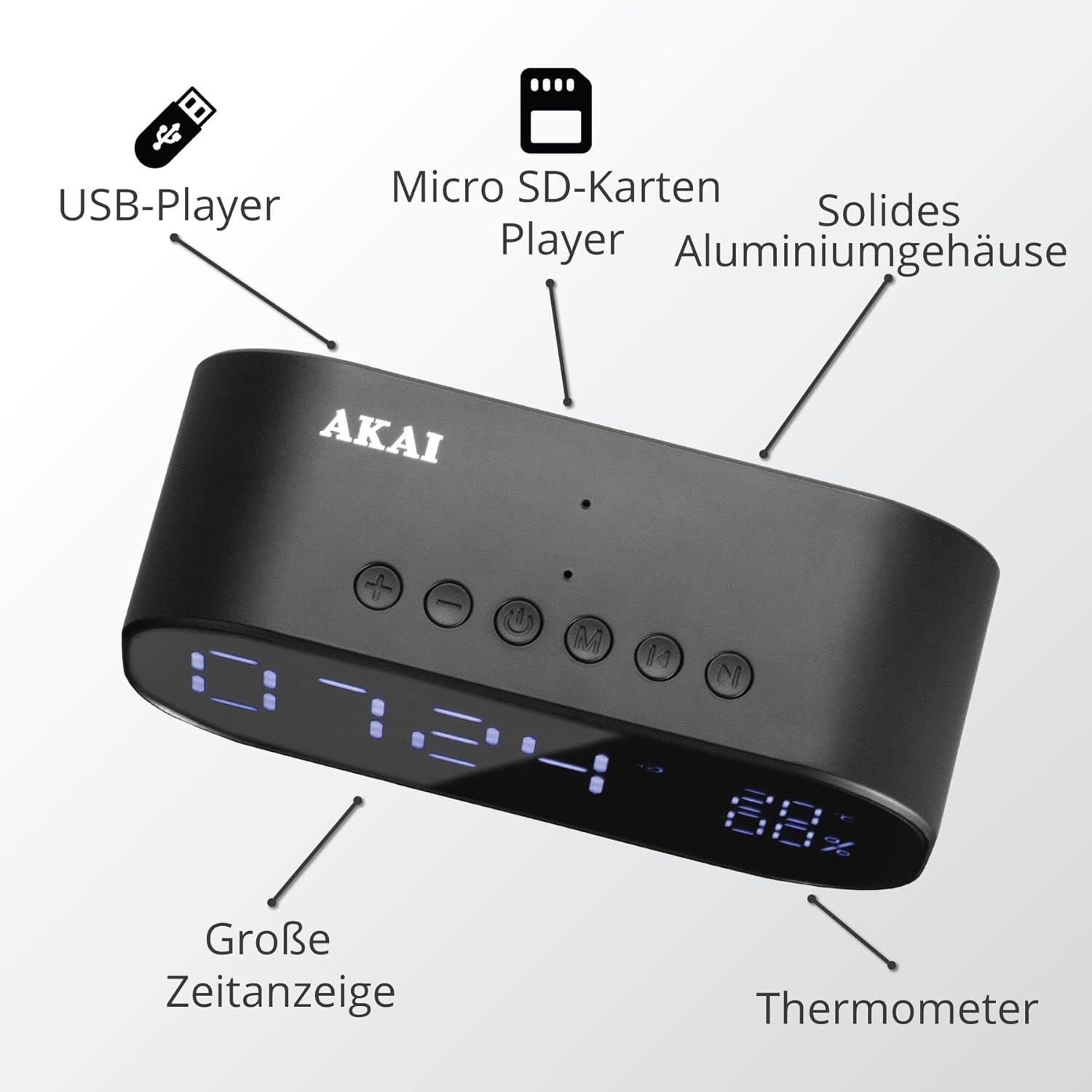

Figur 4.4: Øverst view highlighting control buttons: Volume Down (-), Volume Up (+), Power/Mode (circle with line), Menu (M), and Next/Tune (N). Features include USB Player, Micro SD Card Player, Large Time Display, and Thermometer.
Kontrol og porte:
- Tænd/sluk-knap: Press and hold to power on/off. Press briefly to switch between modes (Bluetooth, FM Radio, USB, Micro SD, AUX).
- Volume Up (+) / Volume Down (-) Buttons: Juster lydstyrken.
- Menu-knap (M): Access menu options or settings.
- Next/Tune (N) Button: Skip tracks, tune radio stations, or navigate menu options.
- USB-port: Til afspilning fra USB-flashdrev.
- Micro SD -kortplads: Til afspilning af Micro SD-kort.
- AUX-indgang: Til tilslutning af eksterne lydenheder via et 3.5 mm lydkabel.
- FM-antenne: Forlæng for bedre FM-radiomodtagelse.
5. Opsætning
5.1 Tænd
- Ensure the internal Lithium-ion battery is charged. Connect the device to a USB power source using the provided USB charging cable if needed.
- Press and hold the Power/Mode button (circle with line) on the top panel for a few seconds until the display illuminates.
5.2 Indstilling af tid og dato
Specific steps for setting time and date may vary. Generally:
- Press the Menu (M) button to enter the settings menu.
- Use the Next/Tune (N) or Volume buttons to navigate to 'Time Set' or 'Clock'.
- Press the Menu (M) button to confirm your selection.
- Adjust hours, minutes, and date using the Next/Tune (N) or Volume buttons. Press Menu (M) to confirm each setting.
- Exit the menu once all settings are complete.
6. Betjeningsvejledning
6.1 Valg af tilstand
Press the Power/Mode button briefly to cycle through available modes: Bluetooth, FM Radio, USB, Micro SD, AUX.
6.2 Bluetooth-tilstand
- Switch the device to Bluetooth mode. The display will show 'BT' or a Bluetooth icon, indicating it's ready for pairing.
- On your smartphone or other Bluetooth-enabled device, enable Bluetooth and search for available devices.
- Select 'AKAI ABTS-S2 BK' from the list.
- Once paired, the device will emit a confirmation sound, and you can play audio from your connected device.
6.3 FM-radiotilstand
- Switch the device to FM Radio mode. Extend the FM antenna for optimal reception.
- Press and hold the Next/Tune (N) button to automatically scan and save available FM stations.
- Press the Next/Tune (N) button briefly to switch between saved stations.
6.4 USB/Micro SD Playback
- Indsæt et USB-flashdrev i USB-porten eller et Micro SD-kort i Micro SD-kortstikket.
- Switch the device to USB or Micro SD mode. Playback should begin automatically.
- Use the Next/Tune (N) buttons to skip tracks.
6.5 AUX-tilstand
- Connect an external audio device (e.g., MP3 player) to the AUX input using a 3.5mm audio cable (not included).
- Switch the device to AUX mode.
- Control playback from your external audio device.
6.6 Alarmindstilling
Sådan indstilles en alarm:
- Press the Menu (M) button to enter the settings menu.
- Navigate to 'Alarm Set' or 'Alarm'.
- Adjust the alarm time and select the alarm source (e.g., buzzer, FM radio).
- Bekræft dine indstillinger.
6.7 Displayets lysstyrke
The device features an LED display. Brightness adjustment may be available through the Menu (M) button or a dedicated button. Refer to the on-screen prompts.
7. Vedligeholdelse
7.1 Rengøring
- Tør enheden af med en blød, tør klud.
- Brug ikke slibende rengøringsmidler, voks eller opløsningsmidler.
7.2 Opbevaring
Når enheden ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No power/Device does not turn on | Battery is depleted; Power adapter not connected | Charge the battery; Ensure power adapter is securely connected. |
| Ingen lyd | Volume is too low; Incorrect mode selected; Device not paired (Bluetooth) | Increase volume; Select correct mode; Re-pair Bluetooth device. |
| Dårlig FM-radiomodtagelse | Antennen er ikke trukket ud; Svagt signal | Fully extend the FM antenna; Try repositioning the device. |
| Bluetooth-parring mislykkes | Device too far; Bluetooth not enabled on source device; Incorrect device selected | Ensure devices are within range; Enable Bluetooth on source device; Select 'AKAI ABTS-S2 BK'. |
9. Specifikationer
- Mærke: AKAI
- Modelnummer: ABTS-S2 BK
- Dimensioner (L x B x H): 14 x 3.81 x 7.5 cm (5.51 x 1.5 x 2.95 tommer)
- Vægt: 800 gram (1.76 lbs)
- Materiale: Acrylonitril Butadien Styren (ABS)
- Funktioner: FM Radio, Bluetooth, USB Player, Micro SD Card Player, AUX Input, Digital Display, Thermometer
- Strømkilde: Batteridrevet (1 litium-ion-batteri inkluderet)
- Skærmtype: Digital
10. Garanti og support
For garantioplysninger og kundesupport henvises til den dokumentation, der blev leveret ved køb, eller kontakt din forhandler. Gem din købsbevis i tilfælde af garantikrav.
