Crystorama Lucille 6 lys antik sølvlysekrone - brugsanvisning

Indledning

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Crystorama Lucille 6 Light Antique Silver Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The Lucille collection features a versatile transitional design, embracing natural materials' imperfections and raw beauty. This chandelier is adorned with oversized faceted cut crystal drops and finished in an Antique Silver metal, a mid-tone gray with lavender and blue undertones, ideal for various interior settings.

Sikkerhedsoplysninger

ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringsboksen eller afbryderen før installation eller service.

• Alle elektriske forbindelser skal være i overensstemmelse med lokale forskrifter, forordninger eller National Electric Code (NEC).
• Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
• Use only UL listed wire connectors.
• Overskrid ikke det maksimale wattage specificeret for pærerne.
• This fixture is authorized for use in dry interior locations only.
• Forslag 65 Advarsel: Dette produkt kan udsætte dig for kemikalier, herunder bly, som er kendt af staten Californien for at forårsage kræft og fødselsdefekter eller anden reproduktionsskade. For mere information gå til www.P65Warnings.ca.gov.

Hvad er der i æsken

Kontroller venligst, at alle komponenter er til stede og ubeskadigede, før installationen påbegyndes.

• Chandelier Frame Assembly
• Crystal Drops (various sizes)
• Mounting Hardware (Canopy, Mounting Plate, Screws, Wire Nuts)
• Chain and Loop
• Instruktionsmanual
• Bemærk: Pærer er ikke inkluderet.

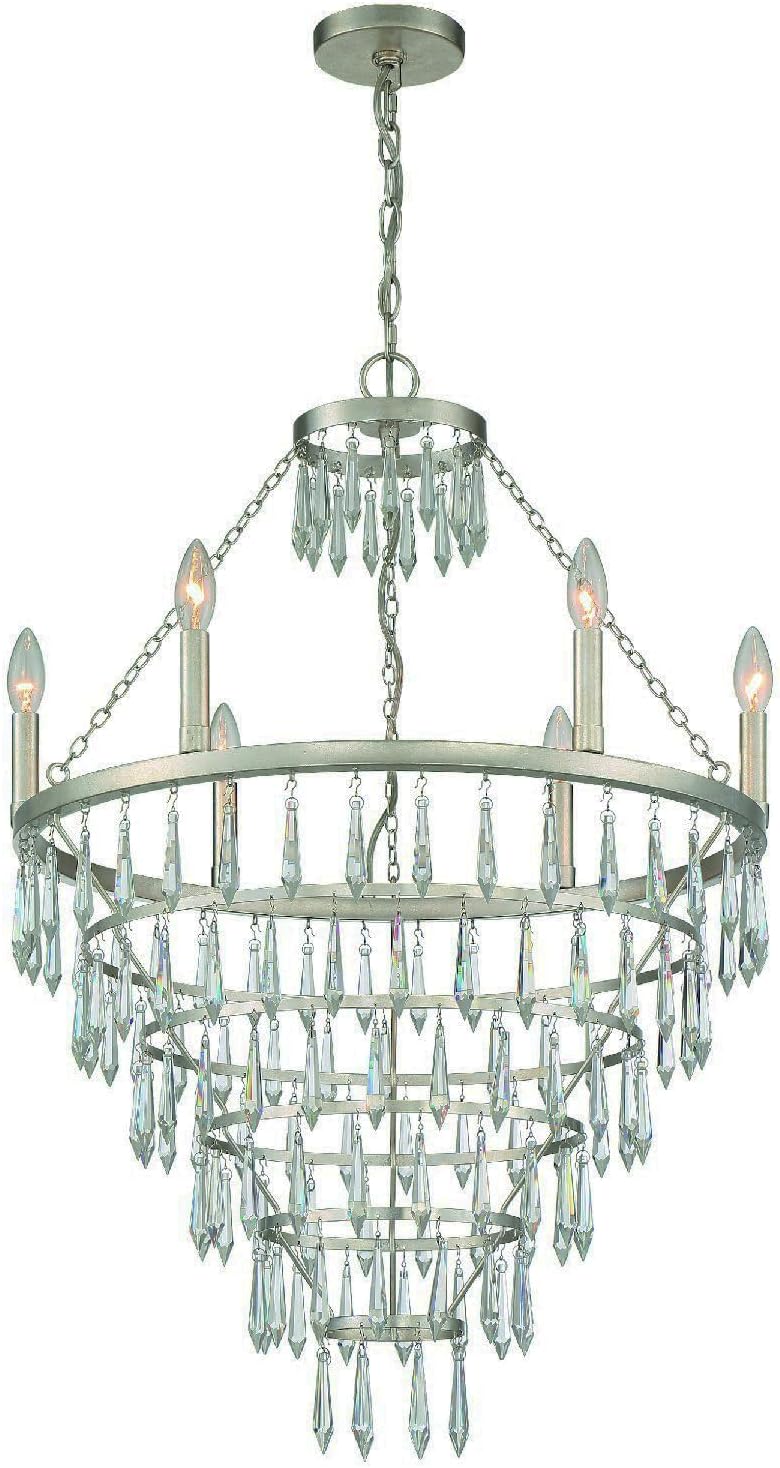

Image: The Crystorama Lucille 6 Light Antique Silver Chandelier, showcasing its elegant design with crystal drops and antique silver finish.

Opsætning og installation

Professional installation is recommended. Ensure you have the necessary tools: screwdriver, wire strippers, electrical tape, and safety glasses.

1. Sluk for strømmen: Locate the circuit breaker or fuse box that controls the power to the light fixture. Turn off the power completely before starting any work.
2. Forbered montering: Attach the mounting plate to the junction box in the ceiling. Ensure it is securely fastened.
3. Juster kædelængde: Determine the desired hanging height for your chandelier. Adjust the chain length by removing links as needed. Thread the electrical wires through the chain and canopy.
4. Ledningsforbindelser:
   • Connect the fixture's ground wire (bare copper or green) to the house's ground wire.
   • Connect the fixture's neutral wire (white) to the house's neutral wire (white).
   • Connect the fixture's hot wire (black or smooth) to the house's hot wire (black or ribbed).
   • Secure all connections with UL listed wire nuts and wrap with electrical tape.
5. Sikker baldakin: Carefully push the canopy up to the ceiling, covering the junction box, and secure it with the provided screws or collar ring.
6. Attach Crystal Drops: Individually attach the crystal drops to the designated hooks on the chandelier frame. Refer to the product image for the correct placement and arrangement of the crystal drops.
7. Installer pærer: Insert six E12 Candelabra base bulbs (not included) into the sockets. Do not exceed 60 watts per bulb.
8. Gendan strøm: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved afbryderen eller sikringsskabet.

Image: The chandelier with key dimensions: 24 inches width, 35 inches height (fixture only), and a total hanging height of up to 107.75 inches including the chain and canopy.

Billede: Et nærbillede view of the faceted crystal drops, highlighting their intricate design and how they attach to the chandelier frame.

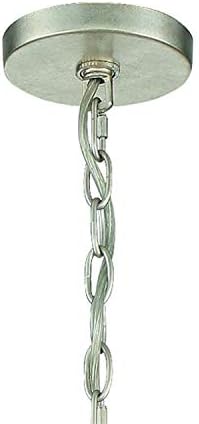

Billede: En detaljeret view of the ceiling canopy and chain, showing the components that connect the chandelier to the ceiling junction box.

Betjeningsvejledning

The Crystorama Lucille Chandelier operates via a standard wall switch connected to its electrical circuit.

• Tænd/sluk: Brug vægkontakten til at tænde eller slukke lysekronen.
• Dæmpbar funktion: This fixture is dimmable. If connected to a compatible dimmer switch (sold separately) and using dimmable bulbs, you can adjust the light intensity.
• Krav til pære: Requires six E12 Candelabra base bulbs, maximum 60 watts per bulb. LED or CFL equivalent bulbs can be used.

Opretholdelse

Regelmæssig vedligeholdelse vil bidrage til at bevare din lysekrones udseende og funktionalitet.

• Rensning:
  • Always turn off power and allow the fixture to cool before cleaning.
  • Dust the fixture with a soft, dry cloth.
  • For crystal components, use a soft, damp cloth with a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals that may damage the finish or crystals.
  • Do not spray cleaner directly onto the fixture; apply it to the cloth first.
• Udskiftning af pære:
  • Ensure power is off and bulbs are cool before replacing.
  • Carefully unscrew the old bulb and screw in the new E12 Candelabra base bulb, ensuring it is no more than 60 watts.

Fejlfinding

Hvis du støder på problemer med din lysekrone, kan du se følgende almindelige problemer og løsninger:

If problems persist, contact a qualified electrician or Crystorama customer support.

Specifikationer

Garanti og support

Garanti: This Crystorama product comes with a 1-Year Warranty from the date of purchase, covering defects in materials and workmanship under normal use.

Kundesupport: For technical assistance, replacement parts, or warranty claims, please contact Crystorama customer service. Refer to the official Crystorama webwebsted for kontaktoplysninger.
