Produkt overview
The Progress Lighting Eclipse LED Wall Sconce, model P710090-009-30, is a contemporary lighting fixture designed for both residential and commercial applications. It features a satin white glass shade in a half-moon silhouette, complemented by a beveled brushed nickel metal frame.
Billede: Forside view of the Progress Lighting Eclipse LED Wall Sconce, showcasing its brushed nickel finish and satin white glass shade.
Billede: Side profile of the wall sconce, highlighting its half-moon design and depth.
Opsætning og installation
Vigtige sikkerhedsoplysninger: Read all instructions carefully before beginning installation. Turn off electrical power at the main circuit breaker panel before installing or servicing this fixture. Consult a qualified electrician to ensure correct branch circuit connections and compliance with all local electrical codes.
Denne armatur er egnet til damp steder.
Komponenter Tjekliste:
- Fixture Assembly (A)
- Mounting Plate (B)
- Outlet Box Screws (C)
- Monteringsskruer (D)
- Wire Nuts (E)
- Ground Screw (F)
- Glass Shade (G)
- Shade Screws (H)
Installationstrin:
- Forbered til installation: Ensure power is off at the circuit breaker. Carefully unpack all components and inspect for any damage.
- Fastgør monteringsplade: Secure the mounting plate (B) to the electrical outlet box using the provided outlet box screws (C).
- Ledningsforbindelser:
- Connect the white wire from the fixture to the white (marked or ribbed) supply wire using a wire nut (E).
- Connect the black wire from the fixture to the black (or smooth) supply wire using a wire nut (E).
- Connect the bare copper or green ground wire from the fixture to the green ground screw (F) on the mounting plate, then to the bare copper or green supply ground wire.
- Monteringsbeslag: Carefully align the fixture assembly (A) with the mounting plate and secure it using the mounting screws (D).
- Installer glasskærm: Place the glass shade (G) onto the fixture and secure it with the shade screws (H).

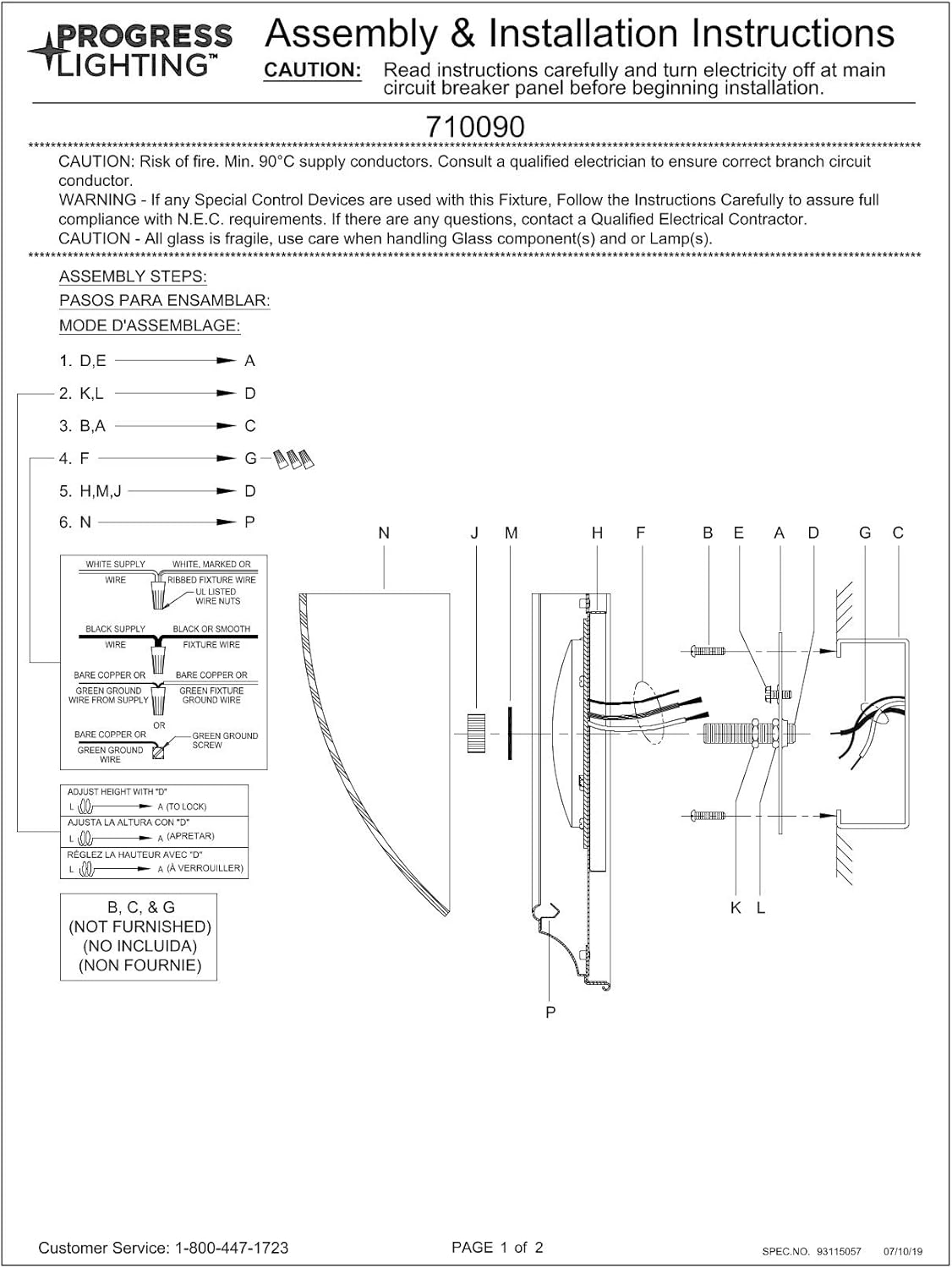

Image: Detailed diagram illustrating the assembly steps and wiring connections for the wall sconce. Refer to this diagram for visual guidance during installation.
Billede: Bagside view of the sconce, showing the integrated LED module and mounting points before installation.
Image: Close-up of the integrated LED light source, which is designed for long-term performance and energy efficiency.
Betjeningsvejledning
This LED wall sconce is designed for simple operation. Once properly installed and wired to a standard wall switch, the fixture can be turned on and off using that switch. The integrated LED light source provides consistent illumination without the need for bulb replacement.
Opretholdelse
To maintain the appearance and performance of your Progress Lighting Eclipse LED Wall Sconce, follow these guidelines:
- Rensning: Turn off power to the fixture before cleaning. Wipe the metal frame with a soft, dry cloth. For the glass shade, use a soft cloth dampened with a mild, non-abrasive glass cleaner. Avoid harsh chemicals or abrasive materials that could damage the finish or glass.
- LED -modul: The LED module is integrated and does not require user maintenance or replacement. Do not attempt to disassemble the LED component.
- Inspektion: Kontrollér regelmæssigt alle forbindelser og monteringsudstyr for at sikre, at de forbliver fastgjorte.
Fejlfinding
If your wall sconce is not functioning as expected, consider the following common issues and solutions:
- Lyset tænder ikke:
- Sørg for, at vægkontakten er i 'ON'-positionen.
- Check the circuit breaker to confirm power is supplied to the fixture.
- Verify all wiring connections are secure and correctly made according to the installation instructions. If unsure, consult a qualified electrician.
- Lyset flimrer eller dæmpes:
- Ensure the fixture is not connected to an incompatible dimmer switch. This fixture is designed for 120V operation and may not be compatible with all dimmer types.
- Tjek for løse ledningsforbindelser.
If these steps do not resolve the issue, contact customer service for further assistance.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Fremskridtsbelysning |
| Modelnummer | P710090-009-30 |
| Farve | Brushed Nickel (Frame), Satin White (Shade) |
| Materiale | Legeret stål (ramme), glas (skærm) |
| Lysarmatur Form | Sconce |
| Værelsestype | Living Room, Residential, Commercial |
| Indendørs/Udendørs brug | Outdoor (Suitable for damp placeringer) |
| Strømkilde | AC |
| Lyskildetype | Integreret LED |
| Finish Type | Færdig |
| Antal lyskilder | 1 |
| Voltage | 120 volt |
| Wattage | 17 watt |
| Farvetemperatur | 3000 Kelvin |
| Lumen output | 1211 lumen |
| Liv (timer) | 50,000 (L70/TM-21) |
| Switch Type | Touch (Refers to general control, not integrated into fixture) |
| Monteringstype | Fremspringende |
| Montering påkrævet | Ja |
| Varens vægt | 2.79 pund |
| Dimensioner (B x H x D) | 15.5 tommer x 7.5 tommer x 4 tommer |
| Certificeringer | ADA, Energy Star, cCSAus Damp location listed, Meets California Title 24 JA8-2016 |
Image: Technical line drawing displaying the width (15.5 inches), height (7.5 inches), and depth (4 inches) of the wall sconce.
Image: Official product specification sheet providing detailed technical data and dimensions for the P710090-009-30 model.
Garantioplysninger
Dette Progress Lighting-produkt er dækket af en 5 års begrænset garanti. This warranty guarantees your satisfaction with the purchase and includes professional after-sales customer service support. For specific terms and conditions, please refer to the warranty documentation included with your product or contact customer service.
Kundesupport
For any questions, technical assistance, or warranty claims, please contact Progress Lighting customer service:
- Telefon: 1-800-447-1723
- Webwebsted: Visit the official Progress Lighting website for additional resources and contact options.
