Indledning
The ZWO ASI533MC-Pro is a versatile and highly sensitive color astronomy camera designed for advanced deep-sky and solar system imaging through a telescope. It features an 11.3mm x 11.3mm 9 megapixel CMOS sensor with high quantum efficiency and minimal amp glow, ensuring maximum detail capture with low noise. Integrated TEC-cooling reduces sensor temperature for superior performance with faint astronomical objects. This manual provides essential information for setting up, operating, and maintaining your ASI533MC-P camera.
Produkt overview
The ASI533MC-P camera is a compact and robust device designed for astrophotography. Understanding its components is crucial for proper use.
Camera Body and Connections

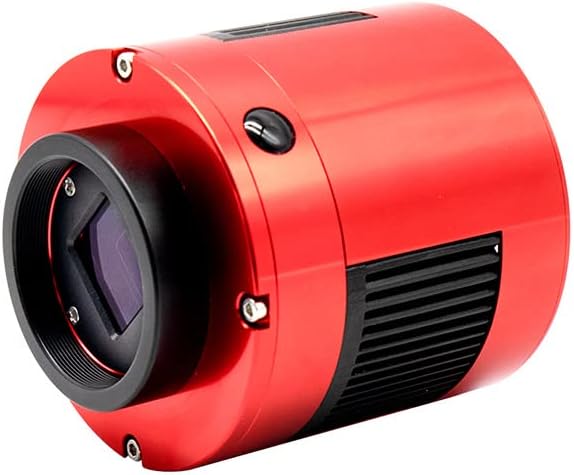

Figur 1: Front view of the ZWO ASI533MC-P camera, showing the main optical input and the red anodized aluminum body.
Figur 2: Bag view of the ZWO ASI533MC-P camera, detailing the USB2.0 OUT ports, USB3.0 IN port, DC 12V=3A power input, and cooling fan.
Inkluderet tilbehør
Figur 3: Contents of the ZWO ASI533MC-P package, including the camera bag, camera body, 1.25" T-Mount, two USB 2.0 cables (0.5m), one USB 3.0 cable (2m), T2-M48 16.5mm extender, T2 21mm extender, M42-M48 adapter, T2-1.25" adapter, and three spacers.
Key Features and Specifications Overview
Figur 4: Graphical representation of key camera specifications, including CMOS sensor (IMX533), 1" sensor size (11.31x11.31mm), 3008x3008 resolution, 14-bit ADC, 1.0e read noise, 40°C cooling temperature, 256MB DDR3 buffer, USB 3.0 interface, 20 FPS, 50000e full well capacity, and 3.76µm pixel size.
Opsætning
Proper setup is essential for optimal performance of your ZWO ASI533MC-P camera.
Tilslutning til et teleskop
- Attach the Nosepiece/Adapter: Depending on your telescope's focuser, attach the included 1.25" T-threaded nosepiece or 2" adapter to the camera's front opening. Ensure it is securely threaded.
- Insert into Focuser: Carefully insert the camera (with attached nosepiece/adapter) into your telescope's focuser. Secure it using the focuser's thumbscrews.
- Consider Back Focus: For optimal imaging, especially with field flatteners or reducers, ensure correct back focus distance. Refer to your telescope or accessory manual for specific requirements.
Power and Data Connections
- USB3.0-forbindelse: Connect the provided USB3.0 cable from the camera's USB3.0 IN port to a USB3.0 port on your computer. This connection provides data transfer and powers the camera electronics.
- TEC Cooler Power: The TEC cooler requires a separate 12V@3A DC power supply (not included). Connect this power supply to the DC 12V=3A input port on the camera. The TEC cooler is crucial for reducing sensor temperature and minimizing noise during long exposures.
- USB2.0 Hub: The camera includes a separate USB2.0 hub (USB2.0 OUT ports) for powering accessories such as an autoguiding camera or electronic focuser (accessories not included). Connect these devices to the USB2.0 OUT ports as needed.
Betjening af kameraet
Once connected, the camera is controlled via dedicated astrophotography software.
Software og drivere
Before operating the camera, ensure all necessary software and drivers are installed. These are available for download from the official ZWO website. The camera is compatible with Mac OS X and Windows (32-bit and 64-bit) XP and later versions.
- Drivere: Install the latest camera drivers from the ZWO webwebsted.
- Imaging Software: Popular software choices include SharpCap, N.I.N.A. (Nighttime Imaging N' Astronomy), Astro Photography Tool (APT), or MaximDL. These programs allow you to control camera settings, capture images, and manage cooling.
- ASCOM Platform (Windows): For Windows users, the ASCOM Platform is highly recommended as it provides a standardized interface for various astronomy equipment, including ZWO cameras.
Basic Imaging Workflow
- Tilslut og tænd: Ensure the camera is connected to your computer via USB3.0 and the 12V power supply for the TEC cooler is connected and turned on.
- Launch Imaging Software: Open your preferred astrophotography software and select the ZWO ASI533MC-P camera.
- Set Cooling Temperature: In your software, set the desired cooling temperature. A common setting is -10°C to -20°C below ambient, or as low as the camera can maintain stably. Allow a few minutes for the sensor to reach the target temperature.
- Adjust Gain and Exposure: For deep-sky imaging, a common starting point for gain is "Unity Gain" (typically around Gain 100 for this sensor) to balance read noise and dynamic range. Exposure times will vary depending on the target, light pollution, and filters used.
- Fokus: Achieve critical focus using a focusing aid in your software or a Bahtinov mask.
- Capture Images: Begin capturing a series of light frames. For best results, also capture dark frames, flat frames, and dark flat frames for calibration.
Opretholdelse
Proper maintenance ensures the longevity and performance of your camera.
- Sensorrensning: The camera features a sealed sensor chamber, minimizing dust ingress. If dust appears on images, it is likely on the protective window. Use a specialized optical blower or lens cleaning solution and wipes designed for camera sensors. Never touch the sensor directly.
- Kropsrensning: Wipe the camera body with a soft, dry cloth. Avoid abrasive cleaners or solvents.
- Opbevaring: When not in use, store the camera in its protective bag or a dry, dust-free environment.
- Desiccant Tablet: The camera may contain a desiccant tablet to absorb moisture. If condensation occurs on the sensor window, the desiccant may need to be recharged or replaced. Refer to the ZWO webwebsted for instruktioner.
Fejlfinding
Almindelige problemer og deres mulige løsninger.
| Problem | Mulig årsag/løsning |
|---|---|
| Camera not detected by computer. | Ensure USB3.0 cable is securely connected to both camera and computer. Try a different USB port or cable. Install/reinstall the latest drivers from ZWO's webwebsted. |
| Cooling not working. | Verify the 12V@3A power supply is connected and functioning. Check cooling settings in your imaging software. Ensure the power supply meets the required specifications. |
| Images show excessive noise or amp glød. | Ensure TEC cooling is active and set to a sufficiently low temperature. Capture and apply dark frames during post-processing. Check gain settings; unity gain (around 100) is often recommended. |
| Dust spots on images. | Dust is likely on the camera's protective window. Clean the window using appropriate optical cleaning methods (blower, lens wipes). |
Specifikationer
Detailed technical specifications for the ZWO ASI533MC-P camera.
- Sensor: 1" CMOS IMX533
- Opløsning: 3008 x 3008 (9 megapixel)
- Pixelstørrelse: 3.76 µm
- Sensor Størrelse: 11.31mm x 11.31mm (Square)
- ADC: 14-bit
- Læs Støj: 1.0e (at Unity Gain)
- Fuld brøndkapacitet: 50000e
- DDR3 buffer: 256 MB
- Interface: USB3.0
- Max FPS (Full Resolution): 20 fps
- Køling: TEC (Thermoelectric Cooling), up to 35°C below ambient
- Dimensioner: 6 x 6 x 5 tommer (ca.)
- Vægt: 2 pund (omtrentligt)
- Power Requirement (Cooler): 12V @ 3A DC (external power supply, not included)
- Operativsystemkompatibilitet: Mac OS X, Windows XP and later (32-bit and 64-bit)

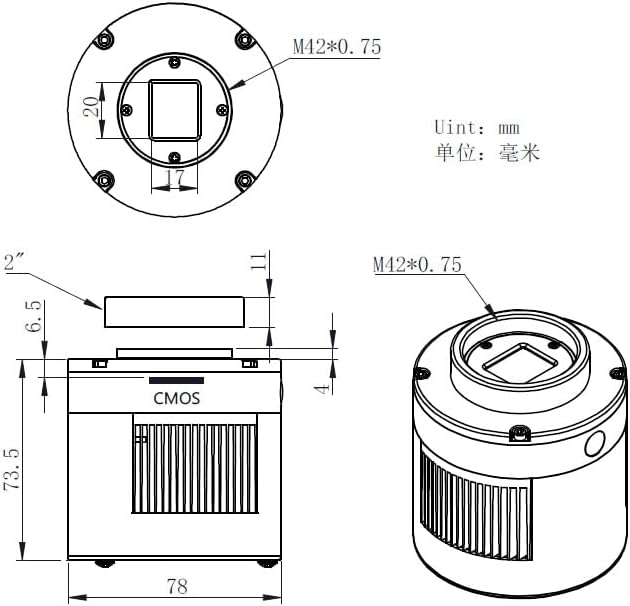

Figur 5: Technical drawing illustrating the dimensions and sensor placement of the ZWO ASI533MC-P camera. All units are in millimeters.
Garanti og support
For warranty information and technical support, please refer to the official ZWO website. Software and driver updates are also available there.
- Officiel Webwebsted: www.zwoptical.com
- Drivere og software: Always download the latest versions directly from the manufacturer's website to ensure compatibility and optimal performance.
