Aquacomputer OCTO Fan Controller User Manual

Indledning

The Aquacomputer OCTO is an advanced eight-channel PWM fan controller engineered to provide precise and versatile control over your computer's cooling system. It is suitable for both water-cooled and air-cooled setups, offering robust functionality for fan speed management and integrated RGBpx lighting control. The device interfaces with the powerful aquasuite software, allowing for detailed monitoring, configuration, and automation of all connected components.

Nøglefunktioner

• Eight channel PWM fan controller with individual control.
• Each fan output supplies up to 25 Watt of power (max. 100 W combined).
• All fan outputs are 4-Pin PWM controlled and can be switched off completely.
• Integrated RGBpx effect controller for up to 180 addressable LEDs.
• Four dedicated temperature sensor inputs.
• Flow sensor input for liquid cooling systems.
• USB 2.0 interface for PC connection.
• Comprehensive aquasuite software for setup, monitoring, and visualization.
• aquabus interface for connection to an aquaero device.

Pakkens indhold

• Aquacomputer OCTO controller
• One temperature sensor (approx. 70 cm length)
• One internal USB cable (approx. 100 cm length)
• Mounting material (screws, nuts, washers)

Image: The Aquacomputer OCTO controller shown with its included accessories, including the temperature sensor, USB cable, and mounting hardware.

Systemkrav

• Operating System: Windows 10 or newer
• Available internal USB 2.0 port

Opsætning og installation

Fysisk installation

1. Montering: Secure the OCTO controller within your PC case using the provided mounting material. Ensure it is placed in a location that allows for easy cable routing.
2. Ventilatortilslutninger: Connect your PWM fans to the eight 4-pin fan headers on the OCTO. Each header is labeled 1 through 8.
3. Temperatursensorer: Connect the included temperature sensor, and any additional compatible sensors, to the 2-pin temperature sensor inputs labeled 1-4.
4. Flow Sensor (Optional): If using a liquid cooling system with a flow sensor, connect it to the dedicated flow input.
5. RGBpx Devices (Optional): Connect RGBpx LED strips or fans with addressable LEDs to the RGBpx outputs labeled 1 and 2.
6. USB-forbindelse: Connect the internal USB cable from the OCTO's USB port to an available internal USB 2.0 header on your motherboard.
7. Aquabus Connection (Optional): If integrating with an Aquacomputer aquaero device, connect the aquabus cable between the two devices.

Billede: En detaljeret view of the Aquacomputer OCTO's top surface, highlighting the eight fan headers, RGBpx ports, flow sensor input, temperature sensor inputs, aquabus, and USB connection.

Software Installation (Aquasuite)

1. Download: Visit the official Aquacomputer website to download the latest version of the aquasuite software.
2. Installation: Kør installationsprogrammet, og følg vejledningen på skærmen for at fuldføre installationen.
3. Lancering: After installation, launch the aquasuite software. The OCTO should be automatically detected.

Operation with Aquasuite Software

The aquasuite software provides a comprehensive interface for configuring, monitoring, and controlling all aspects of your OCTO fan controller.

Overview og Overvågning

The main dashboard of aquasuite provides real-time data from all connected sensors and fan outputs, allowing for quick monitoring of your system's thermal performance.

Image: A screenshot of the aquasuite software's main overview screen, displaying graphs for fan speeds, power consumption, and real-time temperature readings from various sensors.

Ventilator kontrol

Each of the eight fan channels can be individually configured. You can set fixed PWM percentages, or create dynamic control curves based on temperature sensor inputs.

Image: A screenshot of the aquasuite software's fan control section, illustrating options for setting fan power, monitoring RPM, and configuring fan curves based on sensor data.

Image: A screenshot of the aquasuite software's fan curve editor, allowing users to precisely define fan speed responses to temperature changes by dragging points on a graph.

RGBpx Control

The OCTO features two RGBpx outputs for controlling addressable LEDs. The aquasuite software provides extensive customization options for lighting effects, colors, and patterns.

Image: A computer desk setup showcasing vibrant RGB lighting effects on the PC components and surrounding area, demonstrating the capabilities of the RGBpx controller.

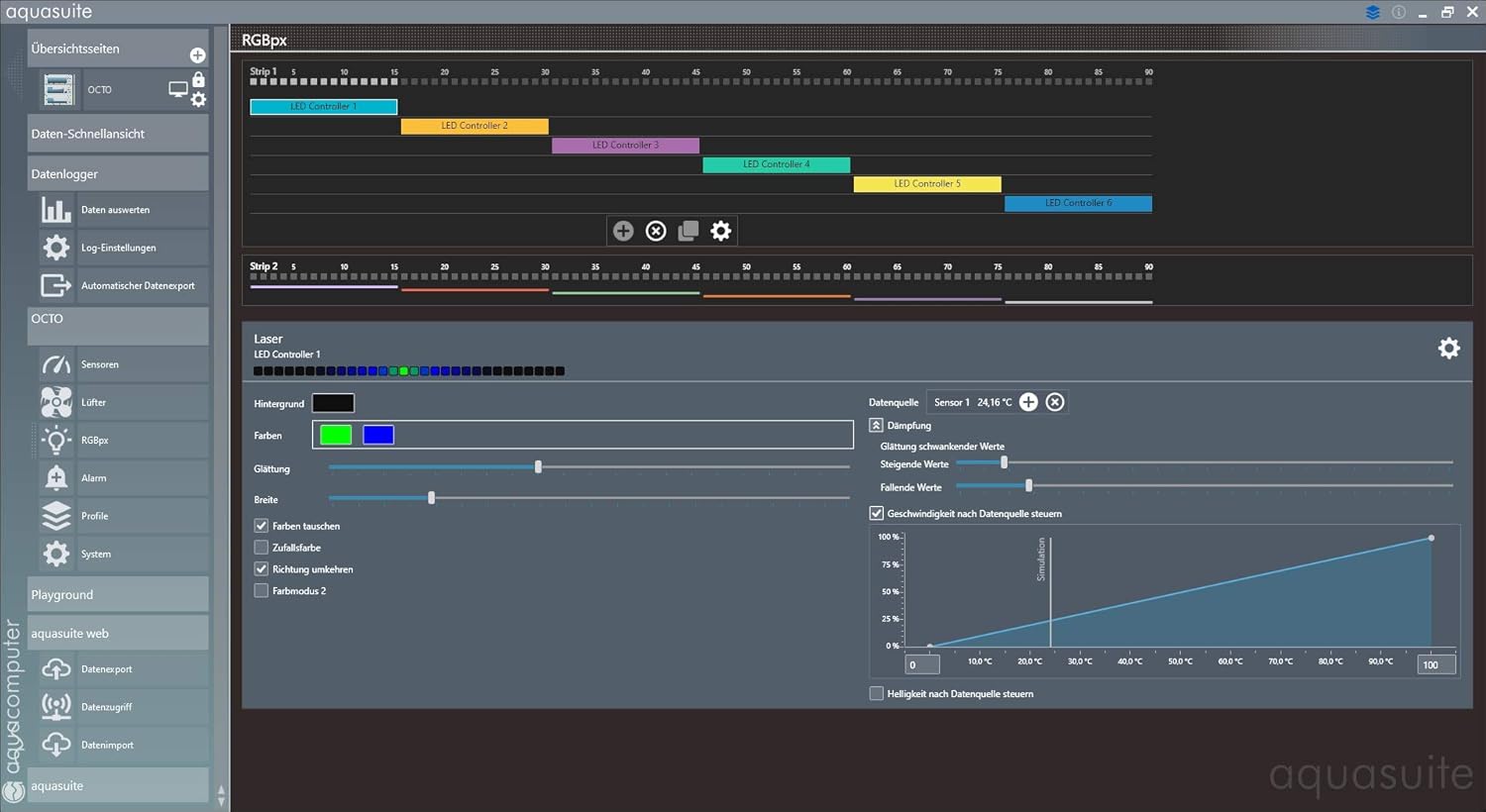

Image: A screenshot of the aquasuite software's RGBpx control interface, displaying options for selecting LED controllers, adjusting colors, brightness, and applying various lighting effects.

Image: A screenshot of the aquasuite software's RGBpx LED mode selection menu, illustrating a wide array of pre-defined lighting effects such as 'Breathing', 'Wave', and 'Flame'.

Sensorstyring

The OCTO supports multiple temperature sensors and a flow sensor. Aquasuite allows you to define data sources, create virtual sensors, and use these inputs for advanced control logic.

Image: A screenshot of the aquasuite software's sensor management section, showing a list of available data sources including hardware sensors and system components like CPU package temperature.

Image: A screenshot of the aquasuite software's virtual software sensors interface, displaying a flowchart-like representation of how different sensor inputs can be combined and processed to create custom data points.

Profile Ledelse

Create and save different profiles for various scenarios (e.g., 'Gaming', 'Office', 'Silent'). Profiles can be switched manually or automatically based on system conditions.

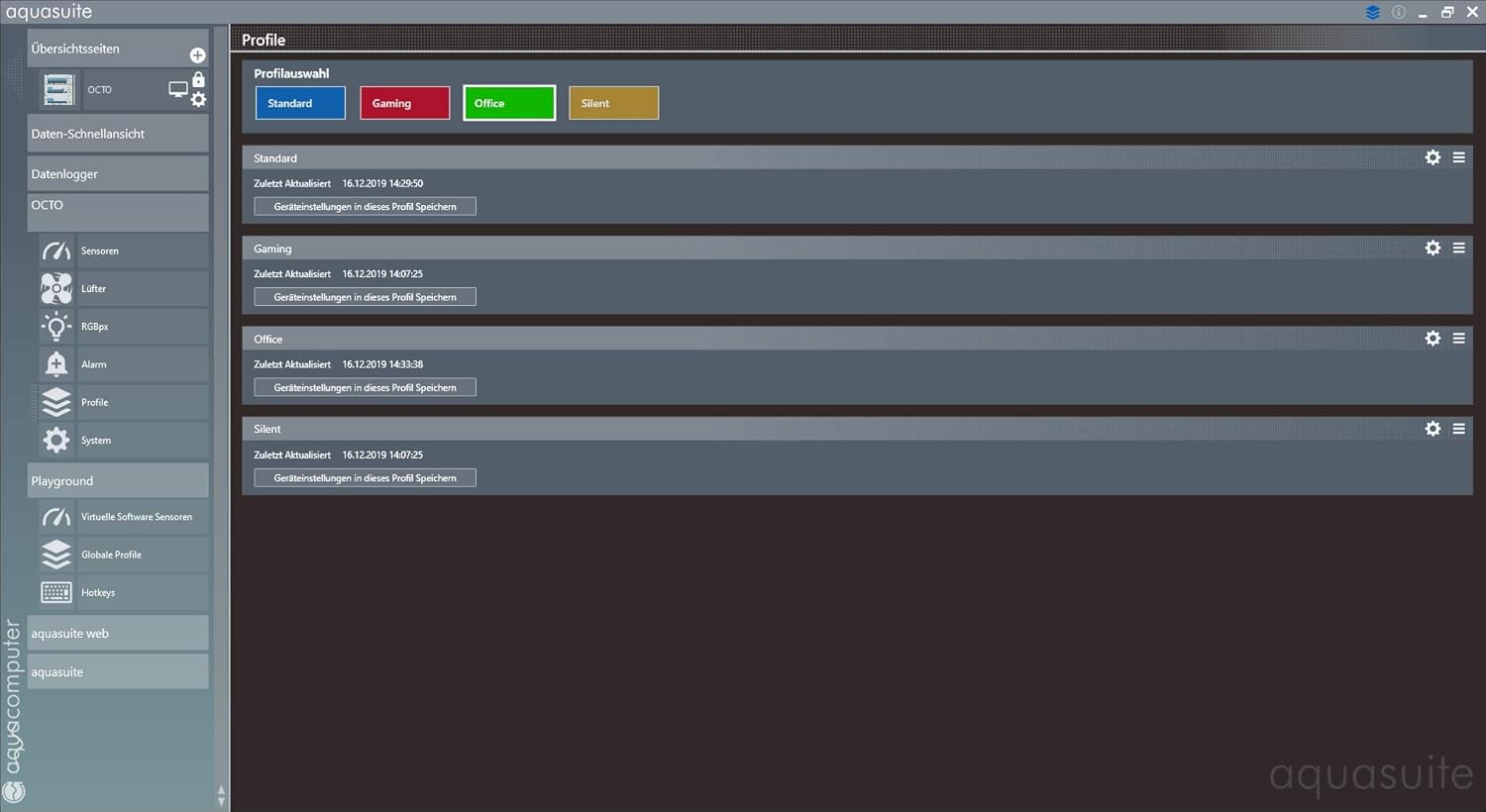

Image: A screenshot of the aquasuite software's profile management section, showing different user-defined profiles like 'Standard', 'Gaming', 'Office', and 'Silent', with options to load or save settings.

Image: A screenshot of the aquasuite software's profile automation settings, demonstrating how profiles can be automatically loaded based on conditions such as sensor readings, running applications, or scheduled times.

Alarmindstillinger

Configure alarms to be triggered when specific sensor values exceed or fall below defined thresholds. This can help prevent damage to components by alerting you to critical conditions.

Image: A screenshot of the aquasuite software's alarm settings, showing how to set thresholds for temperature sensors and fan speeds, with visual indicators for active alarms.

Opretholdelse

• Rensning: Periodically inspect the OCTO controller for dust accumulation. Use compressed air or a soft brush to gently clean the device and its connectors. Ensure the PC is powered off before cleaning.
• Softwareopdateringer: Regularly check the Aquacomputer website for updates to the aquasuite software. Keeping the software updated ensures optimal performance, new features, and bug fixes.

Fejlfinding

• Enhed ikke fundet: Ensure the internal USB cable is securely connected to both the OCTO and a functioning USB 2.0 header on your motherboard. Try a different USB header if available.
• Fans Not Spinning/Controlling: Verify that fans are correctly connected to the OCTO's 4-pin headers. Check fan power settings and curves within the aquasuite software to ensure they are configured to spin. Confirm that the total power draw of connected fans does not exceed 25W per channel or 100W combined.
• Sensor Readings Incorrect: Ensure temperature and flow sensors are properly plugged into their respective ports. Check sensor calibration and data source settings in aquasuite.
• RGBpx Lights Not Working: Confirm RGBpx devices are correctly connected to the RGBpx outputs. Check the RGBpx settings and effects within aquasuite. Ensure the total number of LEDs does not exceed 180.
• Softwareproblemer: If aquasuite is unresponsive or behaving unexpectedly, try restarting the software or your computer. Reinstalling aquasuite may resolve persistent issues.

Tekniske specifikationer

Garanti og support

For warranty information and technical support, please refer to the official Aquacomputer website or contact their customer service directly. Aquacomputer is known for providing detailed technical assistance and support for their products.
