MZHOU 7-ports USB 3.0 PCIe-udvidelseskort med frontpanelstik (model Mzhou-7 usb)

1. Introduktion

This manual provides comprehensive instructions for the installation, operation, and troubleshooting of the MZHOU 7-Port USB 3.0 PCIe Expansion Card. It details the card's features, specifications, and compatibility, ensuring users can effectively integrate and utilize the additional USB 3.0 ports for enhanced connectivity and data transfer speeds.

The MZHOU USB 3.0 PCIe Expansion Card adds multiple SuperSpeed USB 3.0 ports to your desktop computer, including both rear panel and front panel connectivity. This allows for faster data transfer rates and expanded peripheral support.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• 1 x MZHOU 7-Port USB 3.0 PCIe Expansion Card
• 1 x USB 3.0 Front Panel Connector (with 2 USB 3.0 ports)
• 1 x SATA 15-pin to 4-pin power cable
• 1 x Driver CD (for older Windows versions)
• Monteringsskruer

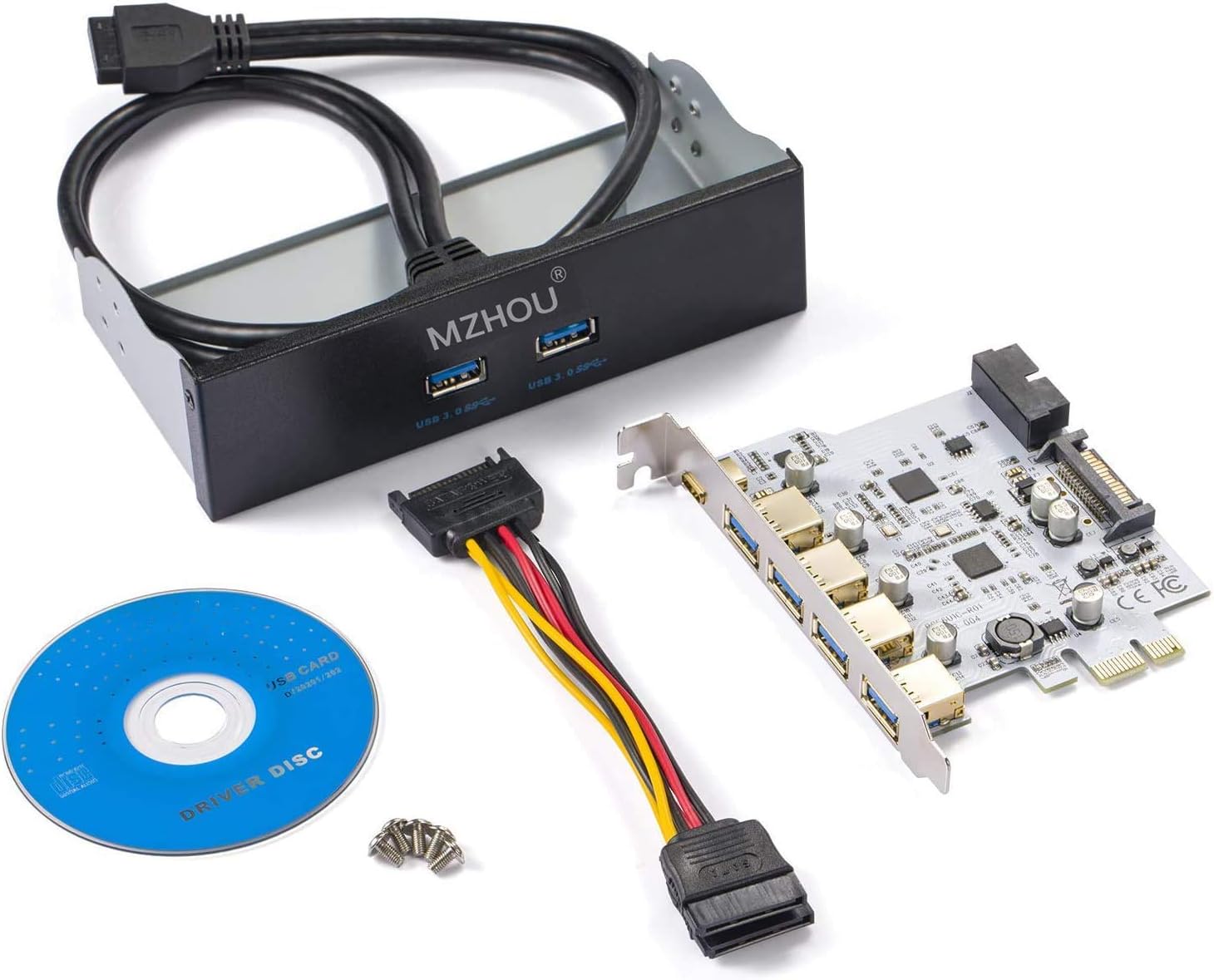

Figure 1: MZHOU 7-Port USB 3.0 PCIe Expansion Card with included front panel connector and cables.

3. Opsætning og installation

Before proceeding, ensure your computer is powered off and unplugged from the wall outlet. It is recommended to wear an anti-static wrist strap to prevent electrostatic discharge (ESD) damage to components.

3.1 Systemkrav

• Available PCI Express (PCI-E) x1, x2, x4, x8, or x16 slot.
• Available SATA power connector from your power supply.
• Standard tower case (not compatible with mini-PCs).
• Operating System: Windows XP/Vista/7 (driver required), Windows 8/8.1/10 (no driver required), Linux Kernel 2.4 & 2.6.

Figur 2: Overview of compatible operating systems, including Windows and Linux.

3.2 Hardwareinstallation

1. Åben computerkasse: Fjern sidepanelet på computerens kabinet for at få adgang til bundkortet.
2. Find PCIe-slot: Identify an available PCI Express slot (x1, x2, x4, x8, or x16).
3. Insert PCIe Card: Carefully align the MZHOU USB 3.0 PCIe card with the chosen slot and press firmly until it is securely seated.
4. Sikkert kort: Use a screw to secure the metal bracket of the PCIe card to the computer case.
5. Tilslut strøm: Connect the provided SATA 15-pin power cable from your power supply to the SATA power connector on the PCIe card. This is crucial for stable operation, especially with multiple connected devices or high-power USB devices.
6. Install Front Panel (Optional): If using the front panel connector, install it into an available 3.5-inch or 5.25-inch drive bay (adapter may be required for 5.25-inch). Connect the internal USB 3.0 header cable from the front panel to the corresponding header on the PCIe card.

Figure 3: The MZHOU USB 3.0 PCIe card correctly installed in a PCI Express slot on a motherboard.

Figure 4: The MZHOU USB 3.0 front panel connector integrated into a desktop computer case.

3.3 Driverinstallation

• Windows 8 / 8.1 / 10: No additional drivers are required. The operating system will automatically detect and install the necessary drivers.
• Windows XP/Vista/7: Insert the provided driver CD into your optical drive. Follow the on-screen instructions to install the drivers. If you do not have an optical drive, drivers can typically be downloaded from the MZHOU support webwebsted.
• Linux: Drivers are generally integrated into the Linux kernel (2.4 & 2.6 and newer). No manual installation is usually needed.

4. Betjening

Once the card is installed and drivers (if necessary) are in place, you can begin using the new USB 3.0 ports.

• Tilslutning af enheder: Simply plug your USB 3.0, USB 2.0, or USB 1.1 devices into any of the available ports on the rear of the card or the front panel.
• Hot-Swap Functionality: The card supports hot-swapping, allowing you to connect and disconnect USB devices without needing to restart your computer.
• Superhurtig dataoverførsel: USB 3.0 offers data transfer rates up to 5 Gbps, which is significantly faster than USB 2.0 (480 Mbps). Actual speeds may vary depending on the connected device and system configuration.
• UASP support: The card supports the USB Attached SCSI Protocol (UASP), which can further accelerate read and write speeds for SSDs and other UASP-enabled storage devices, providing up to 70% faster performance compared to traditional USB 3.0.

Figure 5: Visual representation of USB 3.0 (5 Gbps) versus USB 2.0 (0.48 Gbps) transfer speeds.

5. Vedligeholdelse

The MZHOU USB 3.0 PCIe Expansion Card requires minimal maintenance. To ensure optimal performance and longevity:

• Keep your computer's interior clean and free of dust to prevent overheating of components.
• Ensure all cable connections (PCIe slot, power, internal USB header) remain secure.
• Regularly update your operating system to ensure the latest USB drivers and compatibility.

6. Fejlfinding

If you encounter issues with your MZHOU USB 3.0 PCIe Expansion Card, refer to the following common solutions:

7. Specifikationer

8. Garanti og support

MZHOU products are designed for reliability and performance. For specific warranty details, please refer to the documentation included with your purchase or contact MZHOU customer support.

Kundesupport:

If you require technical assistance or have questions regarding your MZHOU 7-Port USB 3.0 PCIe Expansion Card, please visit the official MZHOU webwebstedet eller kontakt deres kundeserviceafdeling gennem den forhandler, hvor produktet blev købt.
