1. Introduktion
This manual provides detailed instructions for the safe and effective operation of your OPPSK 60W 224LEDs RGB DJ Effect Bar. This powerful 40-inch LED batten is designed for various lighting applications, offering versatile color washing and pixel mapping capabilities. Please read this manual thoroughly before use and retain it for future reference.
Figure 1: OPPSK 60W 224LEDs RGB DJ Effect Bar
2. Sikkerhedsoplysninger
- Sørg for korrekt jordforbindelse for alle elektriske forbindelser.
- Udsæt ikke enheden for regn eller fugt for at undgå elektrisk stød eller brand.
- Undgå direkte øjeneksponering for lyskilden.
- Afbryd strømmen før rengøring eller servicering.
- Betjen enheden inden for den specificerede voltage rækkevidde (110V).
- Sørg for tilstrækkelig ventilation for at forhindre overophedning.
3. Hvad er der i æsken
Kontroller, at alle genstande er til stede ved udpakning:
- 1 x OPPSK 60W 224LEDs RGB DJ Effect Bar
- 1 x strømkabel
- 1 x brugermanual
Figur 2: Pakkens indhold
4. Opsætning
4.1. Første tilslutning
- Unpack the light bar and accessories.
- Connect the provided power cable to the 'Power In' port on the rear of the unit.
- Plug the power cable into a suitable power outlet (110V).
4.2. Montering
The light bar includes adjustable brackets for flexible installation. These brackets allow for rack mount, ceiling, wall, or floor placement, enabling various lighting angles and setups.
Figure 3: Rear Panel and Mounting Brackets
5. Driftstilstande
The OPPSK DJ Effect Bar offers multiple operating modes, selectable via the onboard control panel or DMX controller.
- Lydaktiveret tilstand: The light reacts to ambient sound, synchronizing light patterns with music beats.
- Automatiserede programmer: Pre-programmed light sequences offer dynamic visual effects without external control.
- Statiske farver: Display a single, consistent color from the RGB spectrum.
- Fade-tilstand: Smooth transitions between different colors.
- Strobetilstand: Rapid flashing of lights for energetic effects.
- Master/Slave-tilstand: Link multiple units together, where one unit (master) controls the others (slaves) for synchronized lighting.
- Pixel kontrol: The light bar is engineered with 8 square sections that can be controlled individually, allowing for intricate pixel mapping effects.
Figure 4: Operating Mode Icons
Figure 5: Smooth Color Mixing

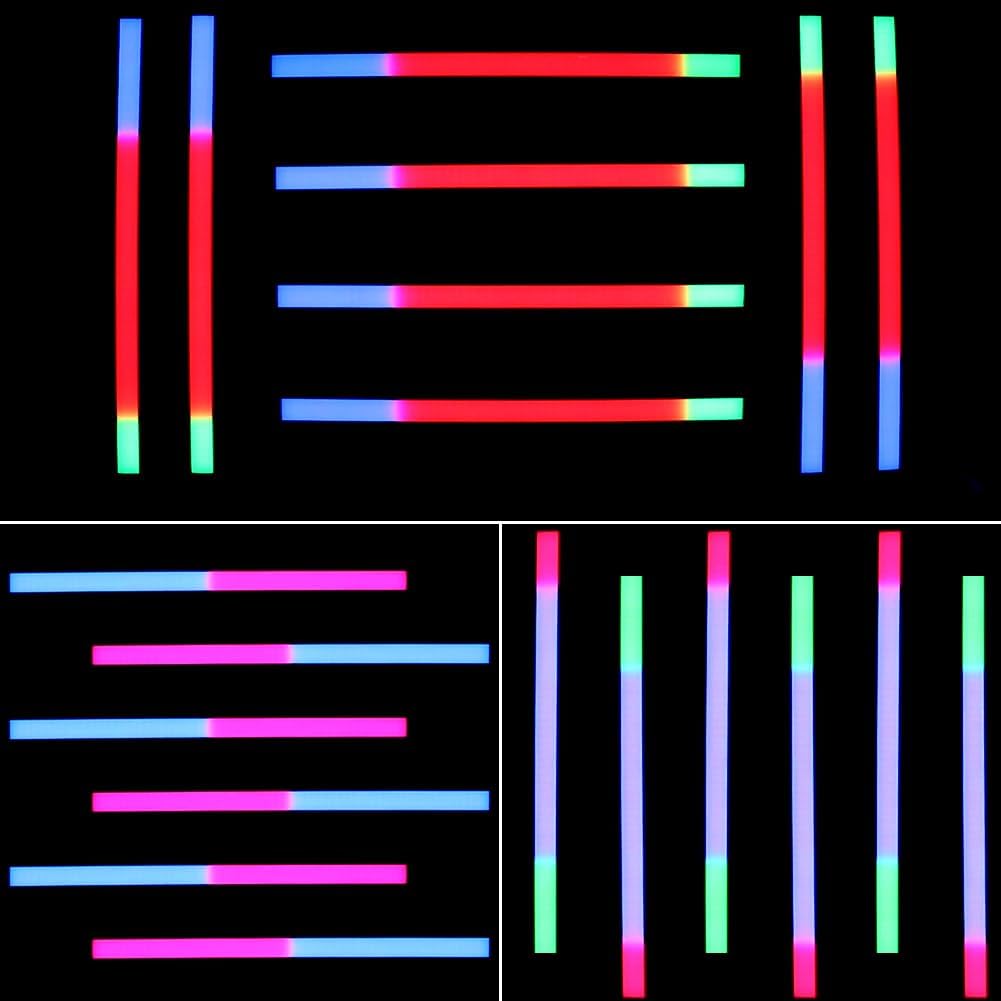

Figure 6: Pixel Control Effects
6. DMX kontrol
The OPPSK DJ Effect Bar supports DMX512 control, allowing integration with professional lighting systems. Use the DMX IN and DMX OUT ports on the rear panel to connect to a DMX controller or daisy-chain multiple DMX-compatible units.
The device offers various DMX channel modes (e.g., 3/5/8/24/48/53CH) for different levels of control over color, intensity, and effects. Refer to the included User Manual for detailed DMX channel assignments.
Figure 7: DMX Control Overview
7. Power Linking
Multiple OPPSK DJ Effect Bars can be power-linked using the 'Power Out' port on the rear of each unit. This allows you to connect several lights to a single power source, simplifying cable management for larger setups. Up to 6 units can be daisy-chained.
Figure 8: Power Daisy Chain Connection
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | OPPSK |
| Modelnummer | OK-062-224WL |
| Farve | Sort |
| Materiale | Metal |
| Lyskildetype | LED |
| Antal lyskilder | 224 |
| Lyskilde Wattage | 60 watt |
| Voltage | 110 volt |
| Ampslette | 0.55 Amps |
| Produktdimensioner | 40 cm L x 3.9 cm B x 3.9 cm H |
| Varens vægt | 4.04 pund |
| Strålevinkel | 120 grader |
| Monteringstype | Rack Mount |
| Pærefunktioner | Lyd aktiveret |
9. Fejlfinding
- Ingen strøm: Check power cable connection and ensure the outlet is functional.
- Ingen lysoutput: Verify power, check selected operating mode, and DMX connections if applicable.
- Incorrect DMX Behavior: Ensure correct DMX channel settings and proper cable connections.
- Overophedning: Sørg for tilstrækkelig ventilation omkring enheden.
10. Vedligeholdelse
- Clean the exterior of the light bar with a soft, dry cloth.
- Brug ikke hårde kemikalier eller slibende rengøringsmidler.
- Regularly check cables and connections for wear or damage.
11. Garanti og support
OPPSK offers 12 months of quality maintenance for this product. Additionally, lifetime after-sales support is provided to ensure your satisfaction and assist with any product-related inquiries or issues.
12. Produktvideoer
224LEDs Wash Light Pixel Bar for DJ Events
This video demonstrates the various lighting effects and capabilities of the 224LEDs Wash Light Pixel Bar, ideal for DJ events and stage lighting. It showcases different color patterns, transitions, and the overall visual impact of the light bar in action.
