Vissani emhætte til underskab, 30" brugsanvisning

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Vissani Under Cabinet Range Hood. Please read thoroughly before use to ensure safe and efficient operation of the appliance.

Vigtige sikkerhedsinstruktioner

For at reducere risikoen for brand, elektrisk stød eller personskade, skal du være opmærksom på følgende:

• Install this range hood in accordance with all specified instructions.
• Afbryd altid strømmen før service eller rengøring af enheden.
• Betjen ikke en ventilator med en beskadiget ledning eller stik. Kassér blæseren eller returner til et autoriseret serviceværksted til undersøgelse og/eller reparation.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• Når du skærer eller borer i væg eller loft, må du ikke beskadige elektriske ledninger og andre skjulte værktøjer.
• Kanalventilatorer skal altid udluftes til det fri.
• Rengør fedtfiltre ofte. Der må ikke samle sig fedt på ventilator eller filter.
• Use proper size wiring and always use a dedicated circuit.
• Denne enhed skal være jordet.

Pakkens indhold

Verify that all components are present and in good condition before beginning installation.

• Vissani Under Cabinet Range Hood Unit
• Charcoal Filter (included for ductless operation)
• Monteringsudstyr (skruer, ankre)
• Duct Connector (for ducted installation)
• Brugermanual

Components included with the Vissani range hood, showing filters, duct connector, and mounting hardware.

Opsætning og installation

The Vissani Under Cabinet Range Hood can be installed as either ducted (vented to the outside) or ductless (recirculating with charcoal filters).

Tjekliste før installation

• Ensure the cabinet measurements are appropriate for a 30-inch range hood.
• Verify electrical supply is available and meets specifications.
• For ducted installation, ensure proper ductwork is in place.
• For ductless installation, ensure charcoal filters are installed.

Montering af emhætten

1. Carefully measure and mark the mounting points under the cabinet.
2. Bor pilothuller til monteringsskruerne.
3. Lift the range hood into position and secure it with the provided screws.
4. Connect the electrical wiring according to local codes and the wiring diagram in the manual.
5. If installing as ducted, connect the ductwork to the top exhaust port. If ductless, ensure the charcoal filter is properly seated.

Front view of the Vissani Under Cabinet Range Hood installed under a kitchen cabinet.

Side view of the Vissani Under Cabinet Range Hood, showcasing dens elegante design i rustfrit stål.

Operating Your Range Hood

The Vissani range hood features intuitive push-button controls for easy operation of its lighting and fan functions.

Kontrolpanel

The control panel is located on the front of the range hood and consists of five push buttons:

• Lys knap: Toggles the LED lights on/off.
• Blæserhastighed 1: Activates the fan at low speed.
• Blæserhastighed 2: Activates the fan at medium speed.
• Blæserhastighed 3: Activates the fan at high speed.
• Off knap: Slukker for blæseren.

Nærbillede view of the range hood's control panel, showing the push buttons for light and fan speed settings.

Let drift

Press the light button (indicated by a light bulb icon) to turn the LED lights on or off. The lights illuminate your cooking surface effectively.

Blæserhastighedskontrol

Select the desired fan speed (1, 2, or 3) based on your cooking needs. Speed 1 is for light ventilation, while Speed 3 provides maximum extraction for heavy cooking fumes. Press the 'Off' button to turn the fan off.

Vedligeholdelse og pleje

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din emhætte.

Rengøring af filtre

The mesh filters should be cleaned regularly to prevent grease buildup. To remove, locate the latch on each filter, push it in, and pull the filter down. Clean with warm, soapy water or in a dishwasher. Ensure filters are completely dry before re-installing.

Nærbillede view of the mesh filter, designed to trap grease and odors.

A hand demonstrating the simple process of removing the mesh filter for cleaning.

Udskiftning af kulfilter

For ductless (recirculating) installations, the charcoal filter traps odors and should be replaced every 3-6 months depending on usage. Refer to the filter's specific instructions for replacement.

The charcoal filter, essential for odor removal in ductless configurations.

Udskiftning af pære

The range hood uses GU10 LED bulbs (max 5W). To replace, ensure power is off, then carefully twist and pull out the old bulb. Insert the new bulb by aligning the pins and twisting to secure.

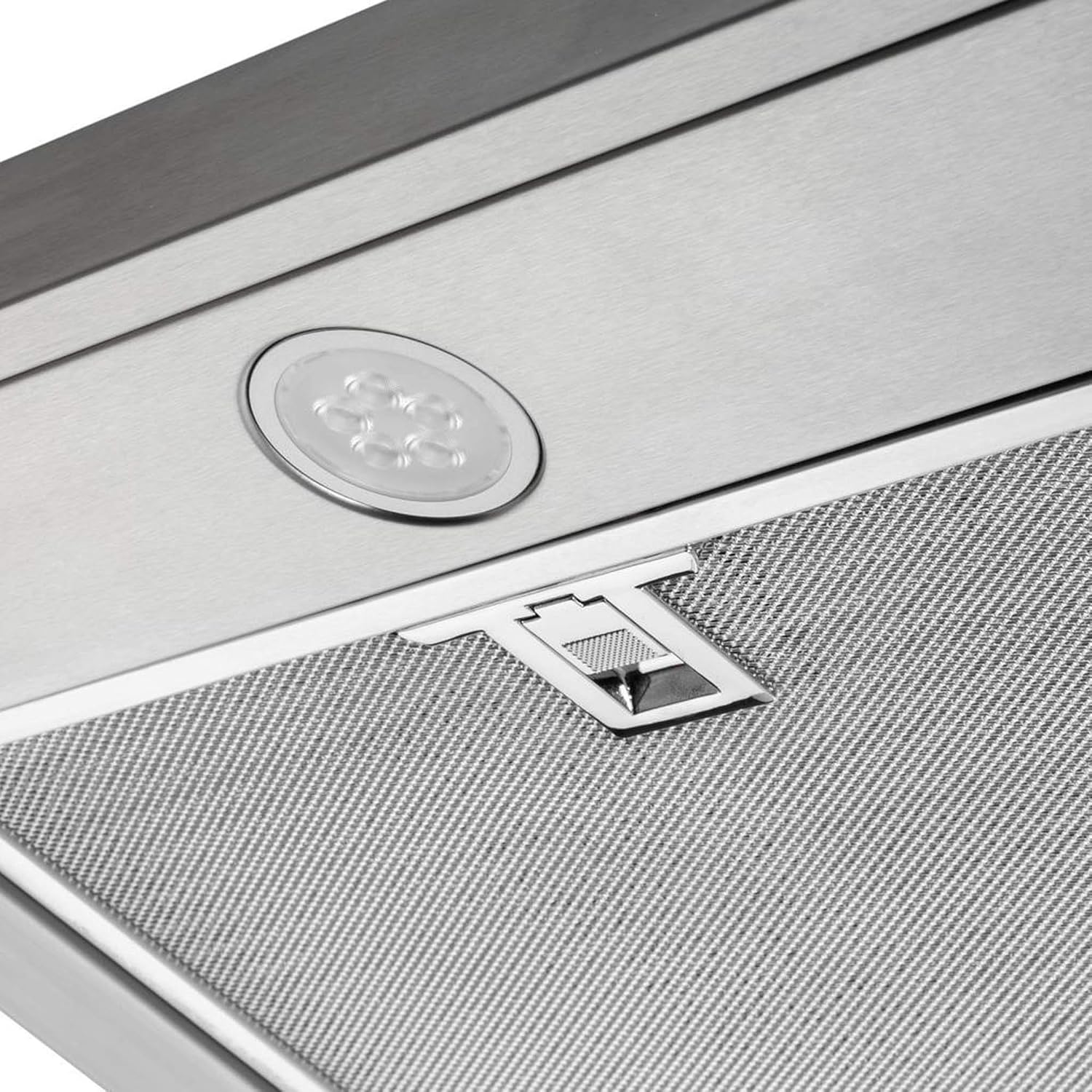

Close-up of the LED light fixture, showing the GU10 bulb type.

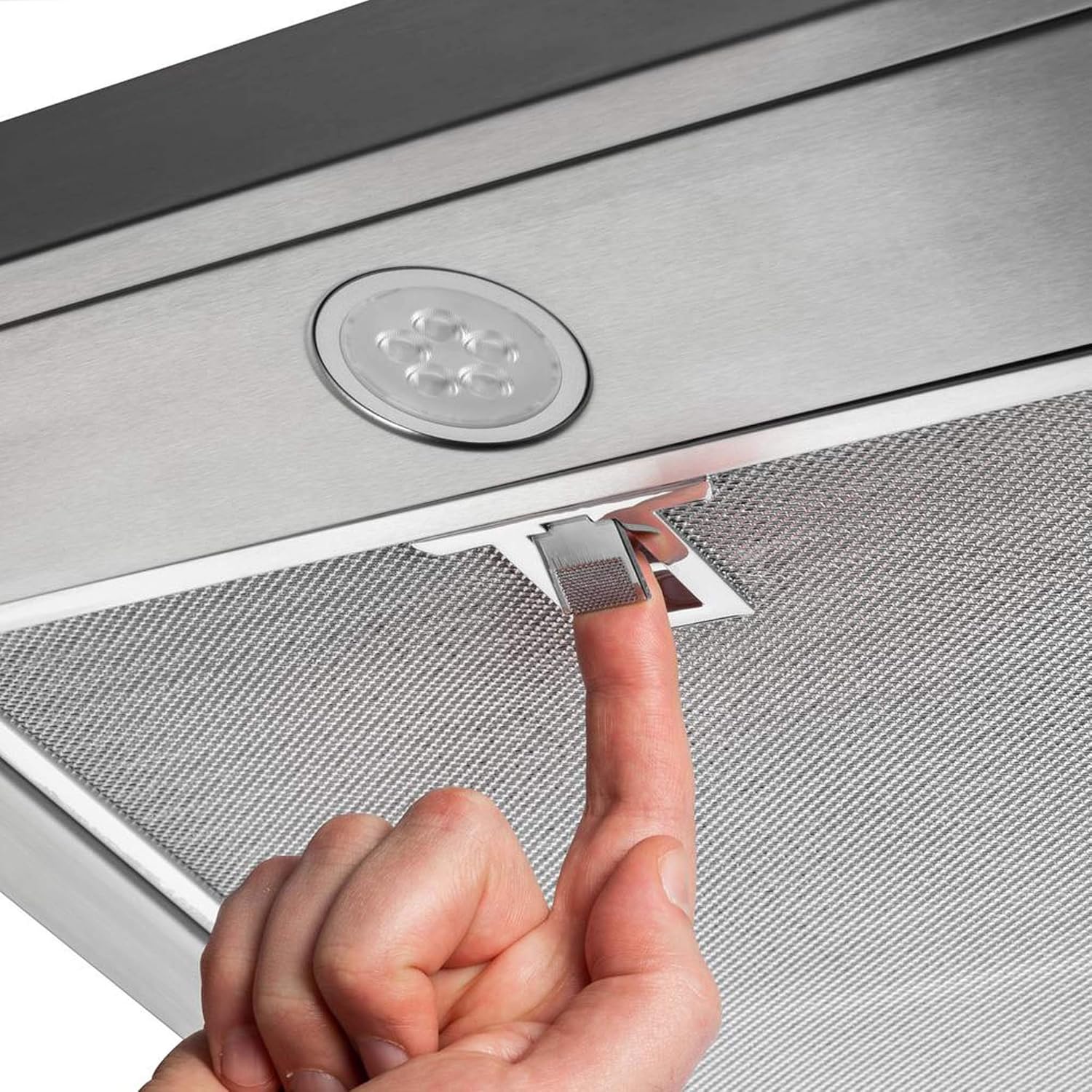

A hand indicating the location of the light fixture and the filter release latch.

Fejlfinding Guide

Se denne vejledning for almindelige problemer og deres løsninger.

Produktspecifikationer

Garanti og kundesupport

For warranty information or technical assistance, please contact Vissani customer support. Keep your purchase receipt for warranty claims.

Kontaktoplysninger kan typisk findes på producentens officielle webwebstedet eller på produktemballagen.
