1. Introduktion
Thank you for choosing the Taylor KitchenCraft Digital Dual Platform Kitchen Scale. This precision instrument is designed to provide accurate measurements for both large and small quantities of ingredients, enhancing your cooking and baking experience. Featuring two brushed stainless steel weighing platforms and a clear LCD display, this scale offers versatility and ease of use with its tare function and multiple unit options.
2. Sikkerhedsoplysninger
- Placer altid vægten på en hård, flad og stabil overflade for at sikre nøjagtige aflæsninger.
- Vægten må ikke nedsænkes i vand eller andre væsker. Rengør medamp kun klud.
- Undgå at tabe vægten eller udsætte den for kraftige stød, da dette kan beskadige de indre komponenter.
- Opbevar batterier utilgængeligt for børn. Søg omgående læge ved indtagelse.
- Fjern batterierne, hvis vægten ikke skal bruges i længere tid, for at forhindre lækage.
- Denne vægt er kun beregnet til husholdningsbrug.
3. Pakkens indhold
- Taylor KitchenCraft Digital Dual Platform Kitchen Scale
- Instruktionsmanual
Note: 2 x AAA batteries are required and are not included in the package.
4. Produktet er slutview
The Taylor KitchenCraft Digital Dual Platform Kitchen Scale features two distinct weighing surfaces for maximum flexibility. The larger platform (1) is designed for bulkier items, while the smaller platform (2) provides precision for minute quantities. The clear LCD display shows measurements, and dedicated buttons allow for unit conversion and tare functions for each platform.
Billede 4.1: Overview of the Taylor KitchenCraft Digital Dual Platform Kitchen Scale. The scale features a large weighing platform on the left and a smaller, more precise platform on the right, with a digital display and control buttons below the smaller platform.
Image 4.2: This image illustrates the key features of the scale, including the ability to weigh multiple ingredients simultaneously, its accurate precision, capability for liquid measurement, and the easy-to-clean stainless steel surface.
5. Opsætning
5.1 Batteriinstallation
- Find batterirummet på undersiden af vægten.
- Åbn batterirummets dæksel.
- Insert 2 x AAA batteries, ensuring the correct polarity (+/-) as indicated inside the compartment.
- Luk batterirummets dæksel forsvarligt.
Image 5.1: A diagram illustrating the physical dimensions of the scale and confirming the requirement for 2xAAA batteries for power.
5.2 Indledende placering
Place the scale on a firm, level, and stable surface. Uneven surfaces can lead to inaccurate measurements.
6. Betjening
6.1 Tænd/sluk
- For at tænde: Tryk på Magt button (usually marked with a circle and a vertical line). The display will show '0' or '0.00'.
- For at slukke: Tryk og hold nede Magt button for a few seconds, or the scale will automatically shut off after approximately 1 minute of inactivity to conserve battery life.
6.2 Enhedskonvertering
Tryk på ENHED button to cycle through the available measurement units: grams (g), pounds (lbs), ounces (oz), fluid ounces (fl oz), and milliliters (ml).
6.3 Tara funktion
The tare function allows you to weigh multiple ingredients consecutively in the same container or to subtract the weight of a container. Each platform has its own tare button.
- Place an empty container on the desired weighing platform.
- Tryk på det tilsvarende TARA button (labeled 'TARE 1' for the large platform, 'TARE 2' for the small platform). The display will reset to '0'.
- Add your first ingredient to the container. The display will show its weight.
- For at tilføje en anden ingrediens, tryk på TARA button again to reset the display to '0', then add the next ingredient. Repeat as needed.
6.4 Using Dual Platforms
The scale allows for simultaneous or separate use of both weighing platforms. This is ideal for recipes requiring precise small measurements alongside larger quantities.
- You can weigh ingredients on the large platform (up to 5 kg / 5 L) and the small platform (up to 500 g / 500 ml) independently.
- Each platform has its own display area and tare button, allowing for distinct measurements without interference.
Image 6.1: The scale in use, demonstrating its dual platform capability by weighing carrots on the larger platform and walnuts on the smaller, more precise platform at the same time.

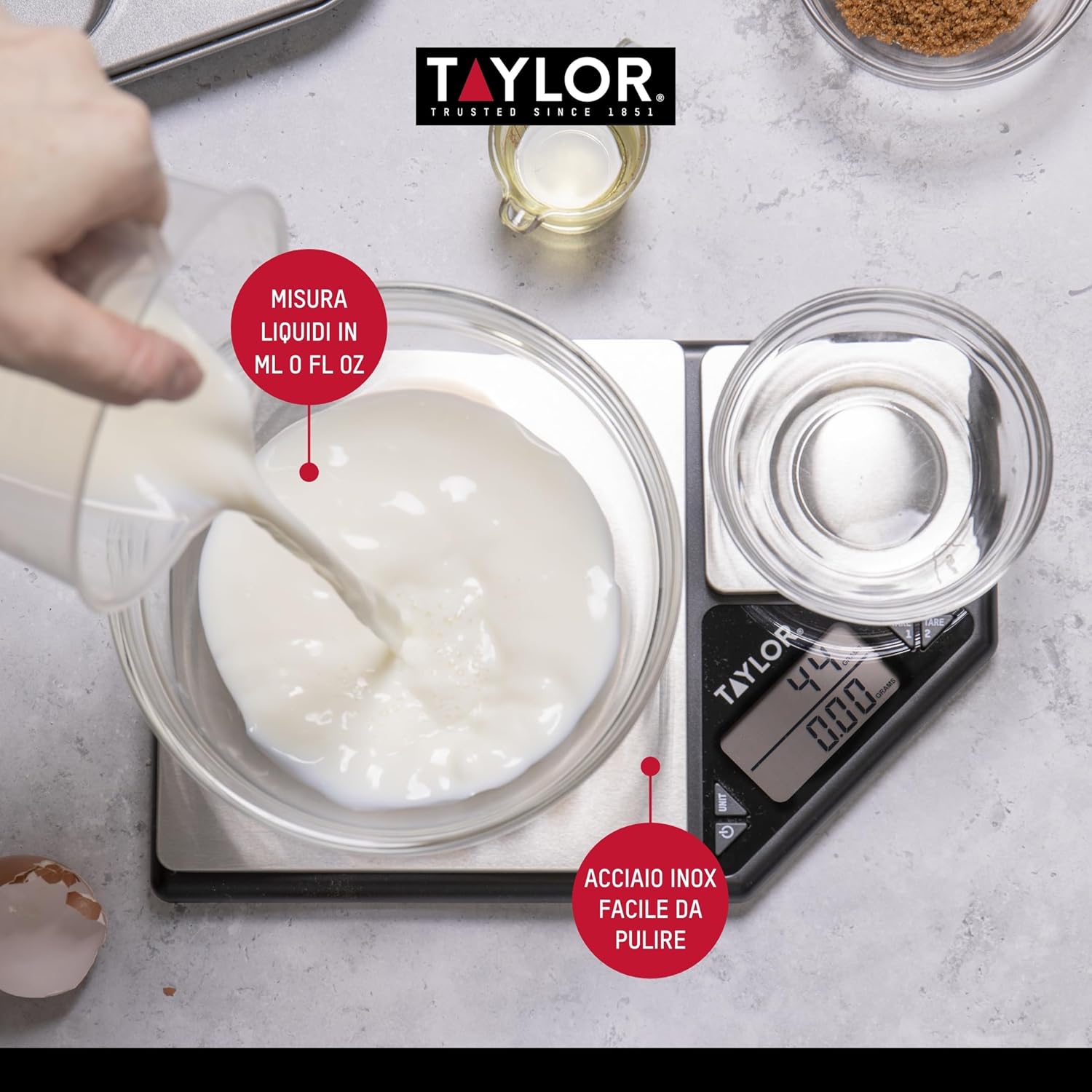

Image 6.2: A visual representation of the scale measuring liquids, with milk being poured into a bowl placed on the large weighing platform.
Image 6.3: This image highlights the dual platform functionality, showing flour being weighed on the large platform and chocolate chips on the small platform, with both measurements displayed simultaneously.
7. Vedligeholdelse og pleje
- Rengør vægten med en blød, damp klud. Brug ikke slibende rengøringsmidler, og nedsænk ikke vægten i vand.
- The stainless steel platforms are stain and odor-resistant, making them easy to wipe clean after use.
- Opbevar vægten et tørt sted væk fra ekstreme temperaturer og fugtighed.
- Remove batteries if the scale is not used for extended periods to prevent potential damage from battery leakage.
8. Fejlfinding
- Ingen visning / Indikator for lavt batteri: Check if the batteries are correctly installed or replace them with new 2 x AAA batteries.
- Upræcise læsninger: Ensure the scale is placed on a flat, stable surface. Avoid placing it near vibrating appliances or in direct drafts. Recalibrate by turning the scale off and on.
- Display Stuck / Buttons Unresponsive: This can sometimes be resolved by removing and reinserting the batteries to perform a hard reset. If the issue persists, contact customer support.
- Overload Indicator (e.g., 'EEEE'): The weight on the platform exceeds its maximum capacity. Remove items immediately to prevent damage.
9. Specifikationer
| Mærke | Taylor |
| Modelnummer | TYPSCALE5DP |
| Produktdimensioner | 27 x 18.5 x 2.5 cm (10.63 x 7.28 x 0.98 tommer) |
| Large Platform Capacity | 5 kg / 5 L (11 lbs / 176 fl oz) |
| Small Platform Capacity | 500 g / 500 ml (1 lb 1.5 oz / 17 fl oz) |
| Materiale | Rustfrit stål, plast |
| Display Type | LCD |
| Strømkilde | 2 x AAA batterier (medfølger ikke) |
| Speciel funktion | Tare Funktion |
10. Garanti og support
The Taylor KitchenCraft Digital Dual Platform Kitchen Scale comes with a 20 års garanti, hvilket sikrer ro i sindet med hensyn til dens kvalitet og holdbarhed.
For technical support, warranty claims, or any inquiries regarding your product, please refer to the contact information provided on the product packaging or the official Taylor webwebsted.
