POPP THC15A Digital Programmable Weekly Timer Switch User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your POPP THC15A Digital Programmable Weekly Timer Switch. This device is designed to automatically control the power supply to electrical appliances based on programmed schedules, offering convenience and energy efficiency. Please read this manual thoroughly before use to ensure proper function and safety.

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af enheden:

• Installationen bør kun udføres af en kvalificeret elektriker.
• Sørg for, at strømforsyningen er afbrudt før installation eller vedligeholdelse.
• Overskrid ikke den maksimale belastningsværdi på 16A / 3500W.
• Udsæt ikke enheden for fugt eller ekstreme temperaturer.
• Denne enhed er kun til indendørs brug.

3. Produktet er slutview

3.1 Funktioner

• Advanced pre-setting one week before.
• Digital electronic timer switch with daily and weekly programs.
• Repeat programs with up to 17 ON/OFF settings.
• Manuel overstyringsfunktion.
• Lithium battery power reserve for memory backup during power outages.
• Ideal for household use on DB panels, rated for 3500W/16A.
• Programmerbar 24 timer / 7 dage om ugen.
• Automatic time error correction of +/- 30 seconds weekly.

3.2 Komponenter

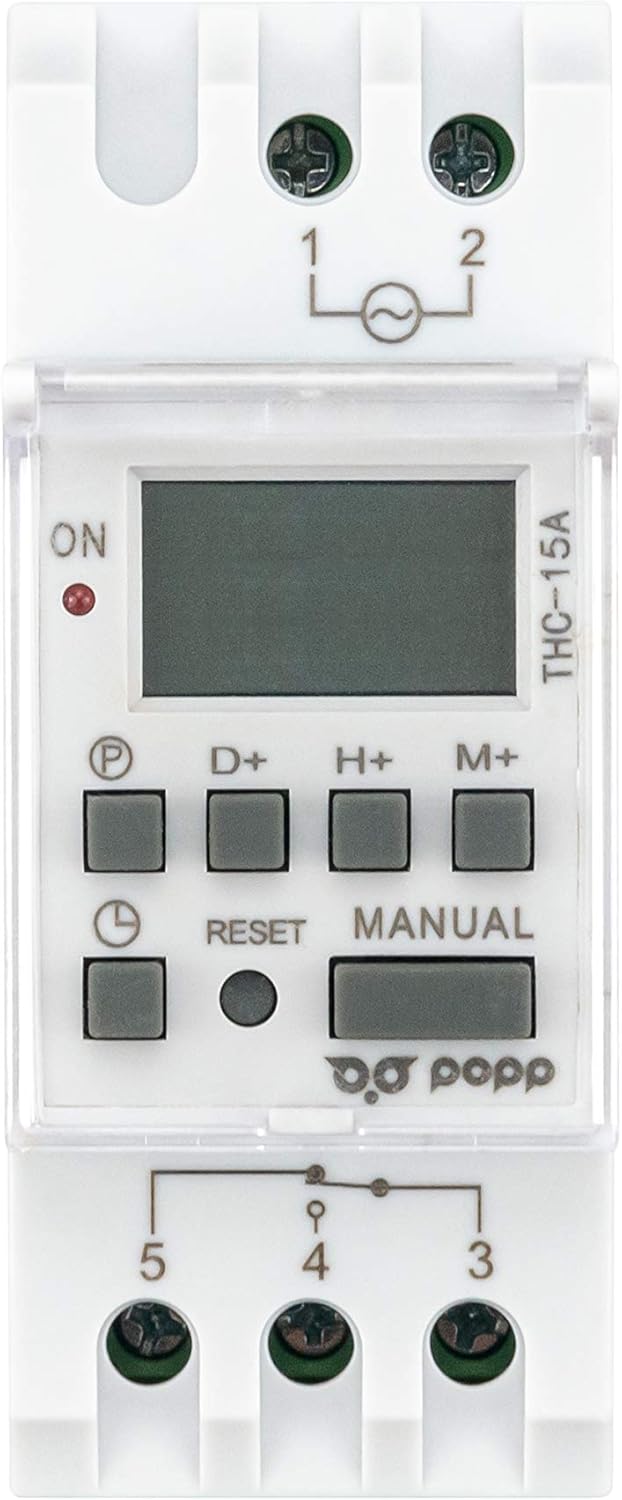

Figur 1: Forside View of POPP THC15A Timer Switch. This image shows the front panel of the timer switch, featuring the LCD display, programming buttons (P, D+, H+, M+), Reset button, Manual button, and the ON indicator light.

Figur 2: Vinklet View of POPP THC15A Timer Switch. This image provides an angled perspective of the timer, highlighting its compact design and the protective clear cover over the display and buttons.

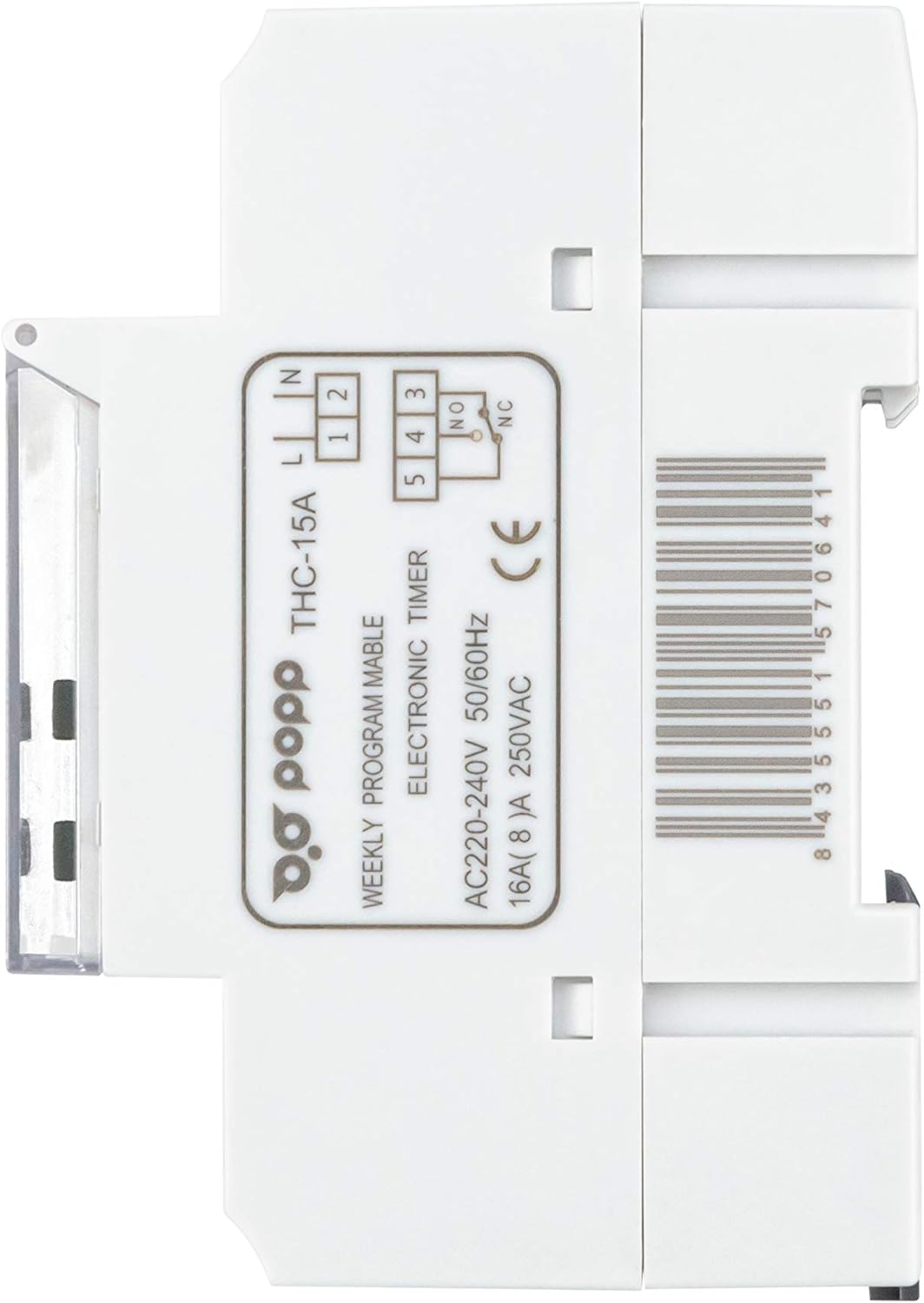

Figur 3: Side View of POPP THC15A Timer Switch. Dette billede viser sideprofile of the timer switch, showing its depth and DIN rail mounting clips.

Figur 4: Tilbage View with Wiring Diagram. This image shows the rear of the timer switch, including the terminal block for electrical connections and the printed wiring diagram for input (L, N) and output (NO, NC, COM).

4. Opsætning

4.1 Installation

The THC15A timer switch is designed for DIN rail mounting. Follow these steps for installation:

1. Afbryd strømmen: Ensure the main power supply to the installation area is completely switched off before proceeding.
2. Montering: Clip the timer switch onto a standard 35mm DIN rail within your electrical panel.
3. Ledningsføring: Refer to the wiring diagram on the back of the device (Figure 4) and the instructions below for correct connections.
   • Strømforbrug (220V AC): Tilslut faseledningen (L) til terminal 1 og neutralledningen (N) til terminal 2.
   • Belastningsudgang: Connect the Live wire from the load to terminal 4 (Common). Connect the Live wire to be switched to terminal 3 (Normally Open, NO) for standard operation (power ON when timer is active). If a Normally Closed (NC) connection is required, use terminal 5.
   • Brodannelse: For typical applications, a bridge wire is required between terminal 1 (Input Live) and terminal 4 (Output Common) if the load is to be powered by the same source as the timer.
4. Sikre forbindelser: Sørg for, at alle ledningsforbindelser er tætte og sikre.
5. Gendan strøm: Once installation is complete and verified, restore the main power supply.

4.2 Første opstart og nulstilling

Ved første opstart eller efter længere tids strømafbrydelsetage, the display may be blank. The internal battery will charge, and the display should activate within a few minutes. If the display remains blank or shows erratic characters, perform a reset:

1. Locate the small NULSTIL button on the front panel (usually recessed).
2. Use a pointed non-metallic object (e.g., a pen tip) to press the NULSTIL knap.
3. The display will clear, and the timer will return to its default settings (00:00, Monday).

5. Betjeningsvejledning

5.1 Indstilling af aktuel tid og dag

Before programming, set the current time and day:

1. Tryk og hold på UR button (often marked with a clock icon).
2. Mens du holder UR, tryk D+ for at indstille den aktuelle dag (MA, TI, ON, TO, FR, LØ, SØ).
3. Mens du holder UR, tryk H+ for at indstille den aktuelle time (0-23).
4. Mens du holder UR, tryk M+ for at indstille det aktuelle minut (0-59).
5. Slip UR knappen. Tiden er nu indstillet.

5.2 Programmering af tænd/sluk-cyklusser

The timer allows up to 17 ON/OFF programs. Follow these steps:

1. Tryk på P button (Program). The display will show '1 ON'.
2. Trykke D+ to select the day(s) for this program. You can choose individual days, blocks of days (e.g., MO-FR, SA-SU), or all days (MO-SU).
3. Trykke H+ for at indstille den ønskede ON-time.
4. Trykke M+ for at indstille det ønskede ON-minut.
5. Trykke P igen. Displayet vil vise '1 OFF'.
6. Gentag trin 2-4 for at indstille OFF-tiden for det første program.
7. Trykke P again to move to the next program ('2 ON'). Repeat the process for all desired programs (up to 17 ON/OFF pairs).
8. Tryk på for at forlade programmeringstilstand UR button. The timer will return to displaying the current time.

5.3 Manuel tilsidesættelse

De MANUEL button allows you to temporarily override the programmed settings:

• Trykke MANUEL gentagne gange for at skifte mellem tilstande:
  • AUTO TIL: The output is currently ON, but will follow the next programmed OFF event.
  • AUTO OFF: The output is currently OFF, but will follow the next programmed ON event.
  • PÅ: The output is forced ON, ignoring all programs.
  • OFF: The output is forced OFF, ignoring all programs.
• To return to automatic operation, cycle through the modes until 'AUTO ON' or 'AUTO OFF' is displayed, depending on the current programmed state.

6. Vedligeholdelse

The POPP THC15A Digital Programmable Weekly Timer Switch requires minimal maintenance. Keep the device clean and free from dust. Do not use abrasive cleaners or solvents. Ensure the ventilation slots (if any) are not obstructed. The internal battery is designed for long-term use and is not user-replaceable.

7. Fejlfinding

If you encounter issues with your timer switch, refer to the table below:

8. Specifikationer

9. Garanti og support

Specific warranty information for the POPP THC15A Digital Programmable Weekly Timer Switch is not provided in this document. For warranty details, technical support, or service inquiries, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
