1. Introduktion
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Copeland RST70C1E-TA5-901 Medium Temperature Welded Compressor. Please read this manual thoroughly before attempting any procedures to ensure proper handling and to prevent equipment damage or personal injury.
The Copeland RST70C1E-TA5-901 is a robust welded compressor designed for medium temperature refrigeration applications, operating on 208-230V, 3-phase power, and utilizing R404A refrigerant.
2. Sikkerhedsoplysninger
ADVARSEL: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read and understand all instructions completely before proceeding.
- Always disconnect power before servicing the compressor.
- Sørg for korrekt jording for at forhindre elektrisk stød.
- Refrigerant systems operate under high pressure. Exercise extreme caution when handling refrigerants.
- Brug passende personlige værnemidler (PPE), herunder sikkerhedsbriller og handsker.
- Only qualified and trained personnel should install, operate, or service this equipment.
- Do not operate the compressor in an explosive atmosphere.
3. Produktet er slutview
The Copeland RST70C1E-TA5-901 is a hermetic welded compressor engineered for reliable performance in medium temperature refrigeration systems. Its design ensures durability and efficiency for various commercial and industrial applications.

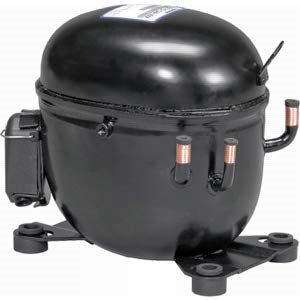

An image showing the Copeland RST70C1E-TA5-901 Medium Temperature Welded Compressor. The compressor is black, cylindrical with a rounded top, and features copper tubing connections on the side. It is mounted on four rubber feet.
Nøglefunktioner:
- Designed for R404A refrigerant.
- Operates on 208-230V, 3-phase power supply.
- Welded hermetic construction for enhanced durability.
- Suitable for medium temperature refrigeration applications.
4. Opsætning og installation
Proper installation is crucial for the compressor's performance and longevity. Follow these guidelines carefully:
4.1 Udpakning og inspektion
- Tag forsigtigt kompressoren ud af emballagen.
- Inspect for any visible damage incurred during shipping. Report any damage to the carrier immediately.
- Verify that the model number on the compressor matches your order.
4.2 Montering
- Mount the compressor on a level, stable surface capable of supporting its weight (approximately 48 lbs).
- Utilize the provided mounting feet to minimize vibration transmission.
- Ensure adequate clearance around the compressor for proper airflow and future servicing.
4.3 Elektriske forbindelser
- Sørg for, at strømforsyningen er afbrudt, før du foretager nogen elektriske tilslutninger.
- Connect the compressor to a 208-230V, 3-phase power supply as per local electrical codes and the wiring diagram provided with your refrigeration system.
- Kontroller korrekt jordforbindelse.
- All wiring should be performed by a licensed electrician.
4.4 Refrigerant System Connection
- Connect the suction and discharge lines to the appropriate ports on the compressor.
- Use proper brazing techniques to ensure leak-free connections.
- Evacuate the refrigeration system to a deep vacuum (typically 500 microns or less) to remove non-condensable gases and moisture.
- Charge the system with R404A refrigerant according to the system manufacturer's specifications.
5. Betjeningsvejledning
Once installed and charged, the compressor is ready for operation.
5.1 Første opstart
- Ensure all electrical and refrigerant connections are secure and leak-free.
- Restore power to the refrigeration system.
- Monitor the system pressures (suction and discharge) and temperatures during the initial startup.
- Verify that the compressor is running smoothly and quietly.
5.2 Normal drift
The compressor is designed for continuous operation within its specified operating envelope. Refer to the system manufacturer's guidelines for optimal setpoints and control parameters.
5.3 Nedlukning
For temporary shutdown, simply turn off the refrigeration system's main power switch. For extended periods of inactivity or maintenance, disconnect the main power supply to the entire system.
6. Vedligeholdelse
Regular maintenance ensures the longevity and efficient operation of your compressor.
6.1 Rutinemæssige kontroller (månedlige)
- Inspect for any unusual noises or vibrations.
- Check for refrigerant leaks around connections using a leak detector.
- Monitor system pressures and temperatures to ensure they are within normal operating ranges.
- Visually inspect electrical connections for signs of wear or overheating.
6.2 Årlig service
- Have a qualified technician perform a comprehensive system check.
- Verify refrigerant charge and oil levels (if applicable to the system design).
- Clean condenser and evaporator coils to maintain system efficiency.
7. Fejlfinding
This section provides solutions to common operational issues. For complex problems, contact a qualified refrigeration technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kompressor starter ikke | No power; tripped breaker; faulty wiring; control issue. | Check power supply and breaker; inspect wiring; consult system wiring diagram. |
| Kompressoren kører kontinuerligt | Low refrigerant charge; dirty coils; oversized load; faulty thermostat. | Check for leaks and recharge; clean coils; verify load requirements; test thermostat. |
| Højt udledningstryk | Dirty condenser; overcharge of refrigerant; non-condensables in system. | Clean condenser; recover and recharge refrigerant; evacuate and recharge system. |
| Lavt sugetryk | Low refrigerant charge; restricted expansion valve; clogged filter drier. | Check for leaks and recharge; inspect/replace expansion valve; replace filter drier. |
8. Specifikationer
Detailed technical specifications for the Copeland RST70C1E-TA5-901 Compressor:
- Modelnummer: RST70C1E-TA5-901
- Mærke: Copeland
- Voltage: 208-230 volt
- Fase: 3 fase
- Kølemiddel: R404A
- Maksimal effekt: 3 hestekræfter
- Varens vægt: 48 pund
- Pakkedimensioner: 8 x 8 x 8 tommer
- Stil: Portable (Note: This refers to the compressor unit itself, not necessarily the entire refrigeration system)
- Fabrikant: COPELAND
- ASIN: B082MQQYLC
- Dato først tilgængelig: 11. december 2019
9. Garanti og support
For specific warranty information, please refer to the documentation provided at the time of purchase or contact your authorized Copeland distributor. General warranty terms typically cover manufacturing defects under normal use and service conditions.
For technical support, service, or replacement parts, please contact your local Copeland representative or an authorized service center. When contacting support, please have your compressor model number (RST70C1E-TA5-901) and serial number readily available.
