Genius Invictus One håndstøvsuger brugermanual

Indledning

Thank you for choosing the Genius Invictus One Handheld Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new device. Please read this manual thoroughly before first use and keep it for future reference.

Sikkerhedsinstruktioner

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.

• Brug ikke støvsugeren udendørs eller på våde overflader.
• Lad det ikke bruges som legetøj. Omhyggelig opmærksomhed er nødvendig, når den bruges af eller i nærheden af ​​børn.
• Brug kun som beskrevet i denne manual. Brug kun producentens anbefalede tilbehør.
• Må ikke bruges med beskadiget ledning eller stik. Hvis apparatet ikke fungerer, som det skal, er blevet tabt, beskadiget, efterladt udendørs eller tabt i vand, skal det returneres til et servicecenter.
• Undlad at trække eller bære i snoren, bruge snoren som håndtag, lukke en dør på snoren eller trække snoren rundt om skarpe kanter eller hjørner. Kør ikke apparatet over ledningen. Hold ledningen væk fra opvarmede overflader.
• Tag ikke stikket ud ved at trække i ledningen. For at tage stikket ud skal du tage fat i stikket, ikke i ledningen.
• Håndter ikke stikket eller apparatet med våde hænder.
• Stik ikke genstande ind i åbninger. Må ikke bruges med blokerede åbninger; holdes fri for støv, fnug, hår og alt, hvad der kan reducere luftstrømmen.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Tag ikke noget op, der brænder eller ryger, såsom cigaretter, tændstikker eller varm aske.
• Vær ekstra forsigtig ved rengøring på trapper.
• Må ikke bruges til at opsamle brændbare eller brændbare væsker, såsom benzin, eller brug i områder, hvor de kan være til stede.
• Saml ikke giftigt materiale op (klorblegemiddel, ammoniak, afløbsrens osv.).
• Må ikke bruges uden støvpose og/eller filtre på plads.
• Undgå utilsigtet start. Sørg for, at kontakten er i slukket position, før du løfter eller bærer apparatet.

Pakkens indhold

Your Genius Invictus One package includes the following components:

• 1 x Main Unit (Handheld Vacuum Cleaner)
• 1 x støvbeholder
• 1 x Børstedyse
• 1 x HEPA-filter
• 1 x 18/10 Stainless Steel Filter
• 1 x ladestation
• 1 x Sprængværktøj
• 1 x ladekabel

Image: The Genius Invictus One handheld vacuum cleaner shown with its complete set of accessories, including the main unit, dust bin, various nozzles, filters, charging station, and charging cable.

Produkt overview

The Invictus One is a compact and powerful handheld vacuum designed for quick and efficient cleaning tasks. Its lightweight design and cordless operation provide maximum flexibility.

Nøglekomponenter:

• Hovedenhed: Contains the BLDC motor, battery, and control buttons.
• Støvbeholder: Gennemsigtig beholder til opsamling af støv og snavs.
• Filtersystem: Composed of a stainless steel pre-filter and a HEPA filter for efficient filtration.
• Dyser: Includes a brush nozzle for upholstery and a crevice tool for tight spaces.
• Ladestation: Docking station for convenient charging and storage.

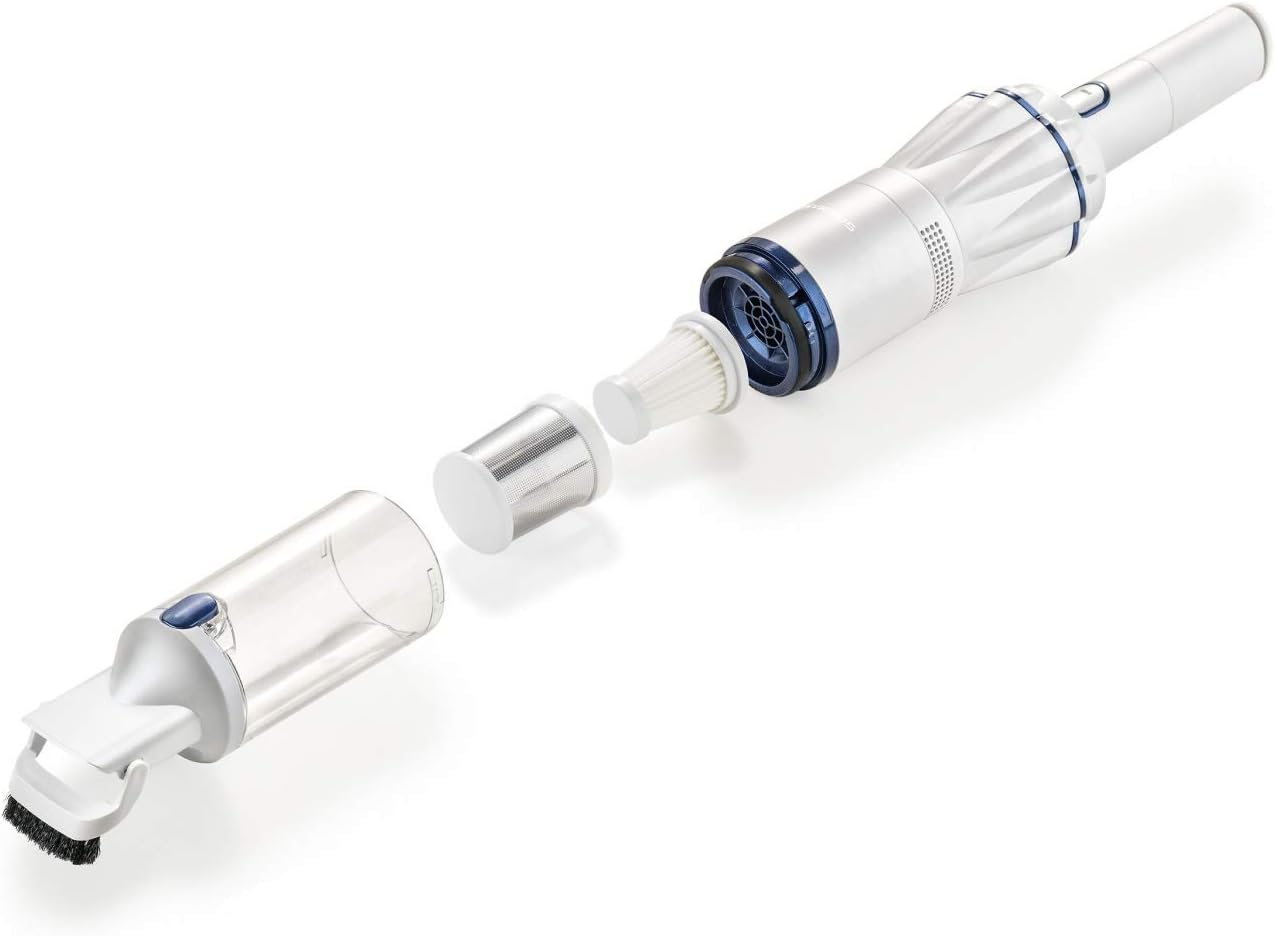

Billede: En eksploderet view illustrating the main components of the Invictus One: the vacuum body, the removable dust bin, and the two-stage filtration system consisting of a stainless steel filter and a HEPA filter.

Opsætning

1. Indledende opladning:

Before first use, fully charge the vacuum cleaner. Connect the charging cable to the charging station and plug it into a power outlet. Place the vacuum cleaner onto the charging station. The charging indicator light will illuminate to show it is charging. A full charge takes approximately [insert charging time if available, otherwise omit] and provides up to 15 minutes of operation.

Image: The Invictus One vacuum cleaner securely placed on its charging station, ready for or undergoing charging.

2. Assembling Filters:

Ensure both the stainless steel filter and the HEPA filter are correctly inserted into the dust bin before attaching the dust bin to the main unit. Refer to the 'Maintenance' section for detailed filter assembly.

Betjeningsvejledning

1. Tænd/sluk:

Tryk på tænd/sluk-knappen på håndtaget for at tænde støvsugeren. Tryk igen for at slukke den.

2. Attaching Nozzles:

Select the appropriate nozzle for your cleaning task. The brush nozzle is ideal for surfaces like upholstery or keyboards, while the crevice tool is perfect for narrow gaps and corners.

• To attach: Align the nozzle with the vacuum's intake opening and push firmly until it clicks into place.
• To detach: Pull the nozzle away from the intake opening.

3. Generel rengøring:

Hold the vacuum cleaner firmly and move the nozzle over the surface to be cleaned. The powerful suction will pick up dust, crumbs, and other small debris.

Image: The Invictus One in use, demonstrating its ability to quickly clean up food crumbs from a countertop.

4. Specific Applications:

• Bilinteriør: Use the crevice tool to reach tight spots between seats and the brush nozzle for floor mats and upholstery.

Image: The Invictus One effectively cleaning the interior of a car, reaching into tight spaces around the gear shift.
• Dyrehår: The strong suction is effective for picking up pet hair from carpets, rugs, and furniture.


Image: The Invictus One demonstrating its capability to remove pet hair from carpeted surfaces.

Opretholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

1. Tømning af støvbeholderen:

The Invictus One features a hygienic, bagless design. To empty the dust bin:

1. Sørg for, at støvsugeren er slukket.
2. Press the release button on the dust bin to detach it from the main unit.
3. Hold the dust bin over a trash can and press the dust bin release button to open the bottom flap and empty the contents.
4. Close the flap securely and reattach the dust bin to the main unit.

Image: A user detaching the dust bin from the vacuum, revealing the collected debris inside.

Image: The dust bin being emptied, demonstrating the hygienic one-button release mechanism.

2. Rengøring af filtrene:

The dual filter system (stainless steel pre-filter and HEPA filter) should be cleaned regularly to maintain suction power.

1. Fjern støvbeholderen som beskrevet ovenfor.
2. Carefully remove both the HEPA filter and the stainless steel filter from the dust bin.
3. Tap the filters gently over a trash can to remove loose dust. For a more thorough cleaning, you may rinse the filters under running water. Ensure they are completely dry before reinserting them.
4. Reassemble the filters: first the stainless steel filter, then the HEPA filter, into the dust bin.
5. Sæt støvbeholderen på hovedenheden igen.

Image: A close-up of the stainless steel pre-filter, which is part of the vacuum's efficient filtration system.

Fejlfinding

If you encounter issues with your Invictus One, refer to the following common problems and solutions:

Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte kundesupport.

Specifikationer

• Mærke: Genialt
• Modelnavn: Invictus One
• Modelnummer: A28111
• Farve: Pearly White/White
• Magt: 90 watt
• Støjniveau: 76 dB
• Filtertype: HEPA filter
• Batterilevetid: Cirka 15 minutter
• Vægt: 500 gram
• Dimensioner (pakke): 44.4 x 16.3 x 9.4 cm
• Anbefalet brug: Cushion cleaning, general handheld vacuuming

Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Genius website. Information regarding spare parts availability is not provided at this time.
