Cressi Donatello dykkercomputer brugermanual

1. Introduktion

This manual provides detailed instructions for the proper use, setup, operation, and maintenance of your Cressi Donatello Dive Computer. The Donatello is a versatile dive computer designed for recreational diving, offering four distinct operating modes: Air, Nitrox, Gauge, and Apnea. Please read this manual thoroughly before using the device to ensure safe and effective operation.

2. Sikkerhedsoplysninger

Diving involves inherent risks. The Cressi Donatello Dive Computer is a tool to assist in dive planning and execution, but it does not replace proper dive training, experience, or judgment. Always dive within the limits of your training and certification. Failure to follow these safety guidelines can result in serious injury or death.

• Never exceed your certified depth limits.
• Always perform a safety stop.
• Do not dive alone.
• Regularly check your equipment before each dive.
• Understand and follow all decompression limits indicated by the computer.
• Do not attempt to open the computer case underwater.
• Ensure the battery is properly installed and has sufficient charge before diving.

3. Produktet er slutview

The Cressi Donatello is a robust and user-friendly dive computer featuring a large, high-contrast display and a single multi-function button for intuitive navigation. Its ergonomic design ensures comfort on the wrist.

3.1 Nøglefunktioner

• Large, high-contrast display for clear readability underwater.
• Single multi-function button for simplified menu navigation.
• Four operating modes: Air, Nitrox, Gauge, and Apnea.
• Cressi RGBM algorithm for comprehensive dive data processing.
• User-replaceable battery (CR2430).
• Logbook function storing up to 50 dives per category.
• Durable case and two-tone TPU rubber wristband with stainless steel buckle.

3.2 Komponenter

Figur 1: Forside view of the Cressi Donatello Dive Computer, displaying current depth, no-decompression limit, and dive time.

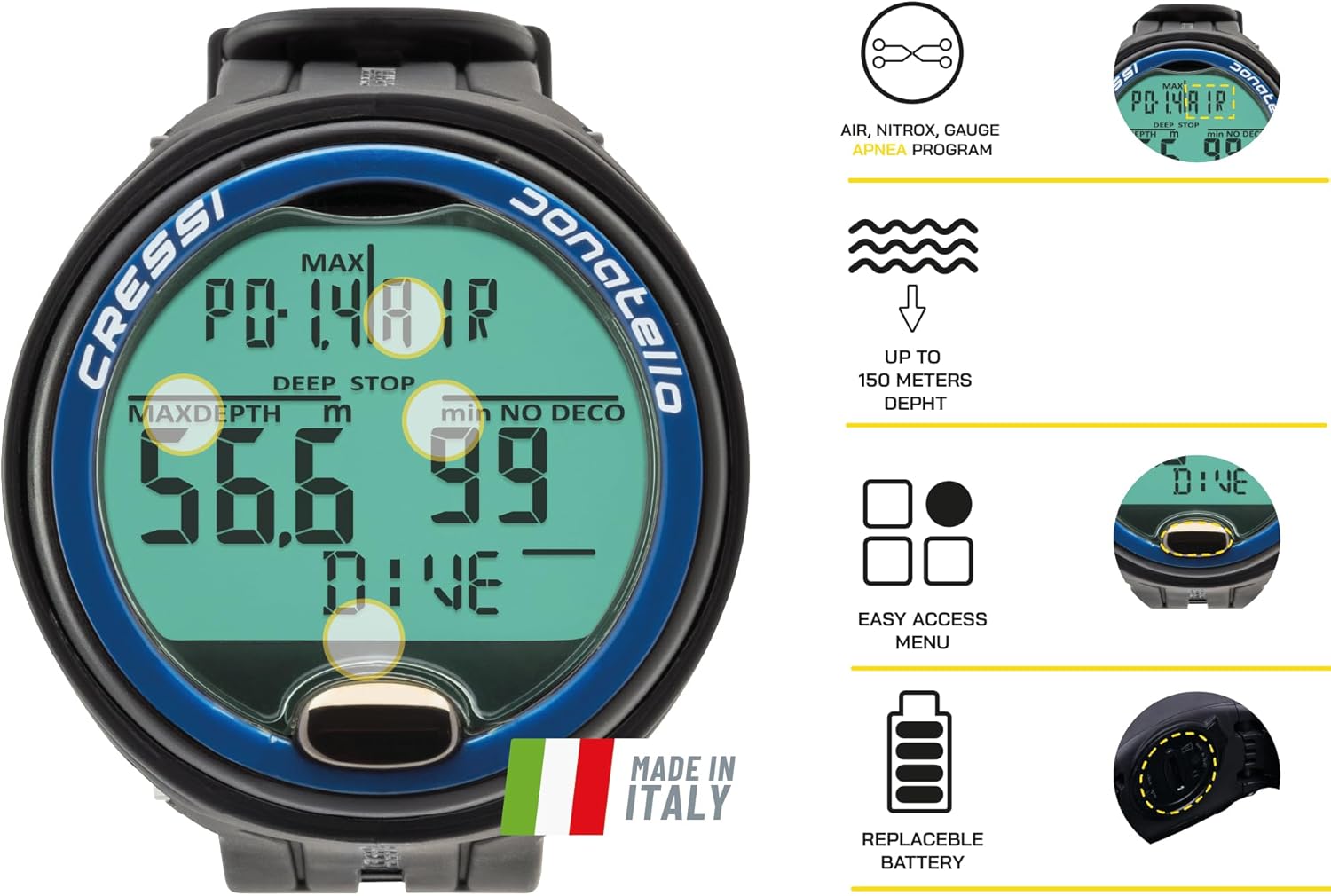

Figur 2: Overview of key features including Air, Nitrox, Gauge, Apnea programs, depth rating up to 150 meters, easy access menu, and replaceable battery.

Figur 3: Detaljeret view highlighting the heavy-duty case, single steel button, high-contrast display with extra-large numbers, and graphic indicator for CNS oxygen toxicity.

4. Opsætning

4.1 Første aktivering

The Donatello Dive Computer typically comes pre-installed with a battery. Upon first use, the device should activate automatically. If not, press and hold the single button for a few seconds to power it on.

4.2 Konfiguration af grundlæggende indstillinger

Upon initial activation or after a battery change, you may need to configure basic settings such as units of measurement (metric/imperial), time, and date. Use the single button to navigate through the menu options and confirm selections. Refer to the 'Operating Modes' section for general button navigation.

4.3 Batteriinstallation/udskiftning

The Cressi Donatello features a user-replaceable CR2430 battery. To replace the battery:

1. Ensure the computer is dry and clean.
2. Find batteridækslet på bagsiden af ​​enheden.
3. Using a coin or appropriate tool, carefully unscrew the battery cover counter-clockwise until it can be removed.
4. Fjern det gamle CR2430-batteri.
5. Indsæt et nyt CR2430-batteri med den positive (+) side opad.
6. Inspect the O-ring seal for any dirt, damage, or signs of wear. Replace if necessary.
7. Carefully place the battery cover back on, ensuring the O-ring is correctly seated.
8. Screw the cover clockwise until it is finger-tight. Do not overtighten.
9. After replacement, check for proper sealing and functionality.

Figure 4: Illustration of the user-replaceable battery compartment on the back of the dive computer, alongside descriptions of the Air/Nitrox, Free (Apnea), and Gauge programs.

5. Driftstilstande

The Cressi Donatello offers four distinct operating modes, each tailored for specific diving activities. The single button is used for navigation and selection.

5.1 General Button Navigation

• Kort tryk: Scrolls through information or menu options.
• Langt tryk: Enters a menu, confirms a selection, or switches modes (depending on context).

5.2 Air Mode

This mode is for diving with standard compressed air. It calculates no-decompression limits, ascent rates, and safety stops based on the Cressi RGBM algorithm. Key information displayed includes current depth, maximum depth, no-decompression time, dive time, and temperature.

5.3 Nitrox Mode

For diving with enriched air nitrox mixtures. Before diving in Nitrox mode, you must set the oxygen percentage (FO2) and partial pressure of oxygen (PO2) limit according to your dive plan. The computer will then calculate decompression limits accordingly, also displaying CNS oxygen toxicity levels.

5.4 Gauge Mode

This mode functions as a bottom timer, providing current depth, maximum depth, average depth, and dive time in minutes and seconds. It does not provide decompression information, making it suitable for technical diving where divers manage their own decompression. Always use a separate, reliable timing device in this mode.

5.5 Apnea Mode (Free Diving)

Designed for freediving, this mode displays real-time depth, maximum depth, dive time, and surface interval. It tracks consecutive dives and surface recovery times, which are crucial for freediving safety.

6. Vedligeholdelse

6.1 Rengøring og opbevaring

• After each dive, rinse the computer thoroughly with fresh water to remove salt, sand, and chlorine.
• Allow the computer to air dry completely before storage.
• Store the computer in a cool, dry place, away from direct sunlight and extreme temperatures.
• Avoid contact with solvents, chemicals, or sharp objects that could damage the display or casing.

6.2 Pleje af batterier

Regularly check the battery indicator. Replace the battery as soon as the low battery warning appears. Always use a new, high-quality CR2430 battery. Ensure the O-ring is clean and properly seated during battery replacement to maintain water integrity.

7. Fejlfinding

If you encounter issues with your Cressi Donatello Dive Computer, refer to the following common problems and solutions:

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Cressi customer support.

8. Specifikationer

9. Garanti og support

The Cressi Donatello Dive Computer is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Cressi website. For technical support, service, or warranty claims, please contact Cressi customer service through their official channels.

Availability of spare parts in the EU is guaranteed for 2 years from the date of first availability.
