Steba Glaskeramisk Kogeplade HK 30 Brugermanual

1. Introduktion

Welcome to the user manual for your new Steba Glass Ceramic Hob HK 30. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.

The Steba HK 30 is a robust and versatile glass ceramic hob designed for mobile use, featuring touch control and a timer function, suitable for all types of cooking pots.

2. Sikkerhedsinstruktioner

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller skade på apparatet.

• Elektrisk sikkerhed: Sørg for, at apparatet er tilsluttet en korrekt jordet stikkontakt med det korrekte volumen.tage (230 volt). Brug ikke forlængerledninger eller adaptere.
• Heat and Burn Hazard: The hob surface becomes very hot during operation and remains hot for a period after use. Always allow the hob to cool down completely before touching or cleaning. Use the residual heat indicator as a guide.
• Korrekt ventilation: Ensure adequate ventilation around the hob during operation. Do not block air vents.
• Børnesikkerhed: Keep children away from the appliance, especially during operation and cool-down. The hob is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.
• Gryder: Use only pots and pans suitable for glass ceramic hobs. Ensure the base of the cookware is flat and covers the heating zone adequately.
• Rensning: Always unplug the appliance and allow it to cool before cleaning. Do not immerse the appliance in water or any other liquid.
• Skade: Do not operate the hob if it is damaged. Contact qualified service personnel for repairs.

3. Produktet er slutview

The Steba HK 30 Glass Ceramic Hob features a sleek design with a robust continuous glass-ceramic surface and intuitive touch controls.

Figur 3.1: Forside view of the Steba Glass Ceramic Hob HK 30, showing the main heating zone and touch control panel.

Komponenter:

• Glaskeramisk overflade: The main cooking surface, durable and easy to clean.
• Varmezoner: Two selectable heating circuits, one with a 15 cm diameter and another with a 22 cm diameter, indicated by concentric circles on the surface.
• Tryk på Kontrolpanel: Located at the front, used for power, timer, and temperature adjustments.
• Restvarmeindikator: A warning light (often "H" or a similar symbol) that illuminates when the cooking zone is still hot after use.

Figur 3.2: Øverst view of the hob, illustrating the two heating circuits (15 cm and 22 cm) for different pot sizes.

Kontrolpanelets layout:

The touch control panel allows for precise control over the hob's functions.

Figur 3.3: Detaljeret view of the touch control panel, showing power, timer, and temperature adjustment buttons.

• Power Button (◯): Tænder eller slukker for kogepladen.
• Låseknap (🔒): Låser kontrolpanelet for at forhindre utilsigtede ændringer.
• Timer-knap (⏱): Activates and adjusts the cooking timer.
• Minus-knap (-): Decreases power level or timer setting.
• Vise: Shows current power level or timer remaining.
• Plus-knap (+): Increases power level or timer setting.
• Heating Zone Selection (|||): Selects between the 15 cm and 22 cm heating circuits.
• Afspil/pause-knap (⏸): Starts or pauses cooking.
• Indikatorlys: Show active functions or residual heat.

4. Opsætning

Follow these steps to set up your Steba HK 30 hob for first use.

1. Udpakning: Carefully remove the hob from its packaging. Retain the packaging for future transport or storage. Check for any visible damage.
2. Placering: Place the hob on a stable, flat, and heat-resistant surface. Ensure there is sufficient space around the appliance for proper air circulation (at least 10 cm clearance on all sides). Do not place it near flammable materials or heat-sensitive surfaces.
3. Strømtilslutning: Sæt netledningen i en jordet 230 volt AC stikkontakt. Sørg for, at stikkontakten er let tilgængelig.
4. Indledende rengøring: Before first use, wipe the glass ceramic surface with a damp cloth to remove any dust or residue from manufacturing. Dry thoroughly.

5. Betjeningsvejledning

This section details how to use your Steba HK 30 hob for cooking.

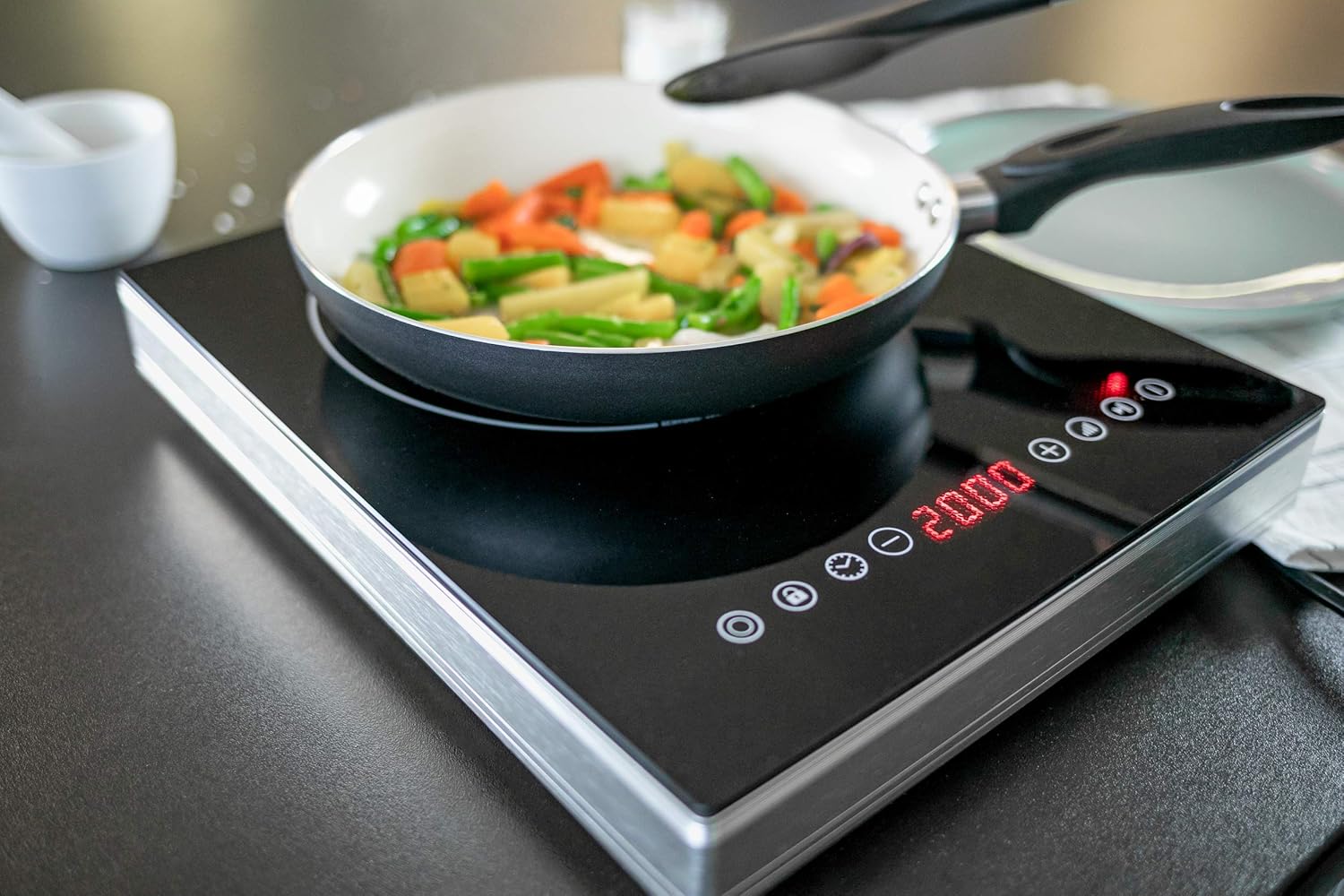

Figure 5.1: The Steba HK 30 hob in operation with a pan, demonstrating its practical use.

1. Tænder: Press the Power button (◯) on the touch control panel. The display will illuminate.
2. Placing Cookware: Place a suitable pot or pan centrally on the desired heating zone. The hob is suitable for all cooking pots.
3. Selecting Heating Zone and Power Level:
   • Press the Heating Zone Selection button (|||) to toggle between the 15 cm (small) and 22 cm (large) heating circuits.
   • Use the Plus (+) and Minus (-) buttons to adjust the power level. The hob offers 7 power levels:
     • Small Heating Circuit: 100 W to 1000 W
     • Large Heating Circuit: 200 W to 2000 W
4. Brug af timerfunktionen:
   • Press the Timer button (⏱). The timer display will flash.
   • Use the Plus (+) and Minus (-) buttons to set the desired cooking time, up to 180 minutes.
   • The hob will automatically switch off when the set time expires.
5. Locking the Control Panel: Press the Lock button (🔒) to prevent accidental changes to settings during cooking. Press again to unlock.
6. Pausing/Resuming: Use the Play/Pause button (⏸) to temporarily stop or resume cooking.
7. Slukker: Press the Power button (◯) to turn off the hob. The residual heat indicator will remain lit until the surface has cooled down sufficiently.

6. Vedligeholdelse og rengøring

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Steba HK 30 hob. The hob is designed to be easy to clean.

• Før rengøring: Always unplug the hob from the power outlet and allow it to cool down completely. The residual heat indicator must be off.
• Glaskeramisk overflade:
  • For light soiling, wipe with a damp cloth and a small amount of mild dish soap. Rinse with a clean damp cloth and dry thoroughly with a soft, clean cloth.
  • For stubborn stains or burnt-on food, use a specialized glass ceramic hob cleaner and a non-abrasive sponge or scraper. Follow the cleaner's instructions.
  • Undgå slibende rengøringsmidler, skuresvampe eller stærke kemikalier, da disse kan ridse eller beskadige overfladen.
• Control Panel and Body: Wipe the control panel and the stainless steel body with a soft, damp cloth. Do not use excessive water. Ensure no liquid enters the appliance.
• Opbevaring: If storing the hob for an extended period, ensure it is clean and dry. Store in a cool, dry place.

7. Fejlfinding

This section addresses common issues you might encounter with your hob. If the problem persists, contact customer support.

8. Specifikationer

Detailed technical specifications for the Steba Glass Ceramic Hob HK 30.

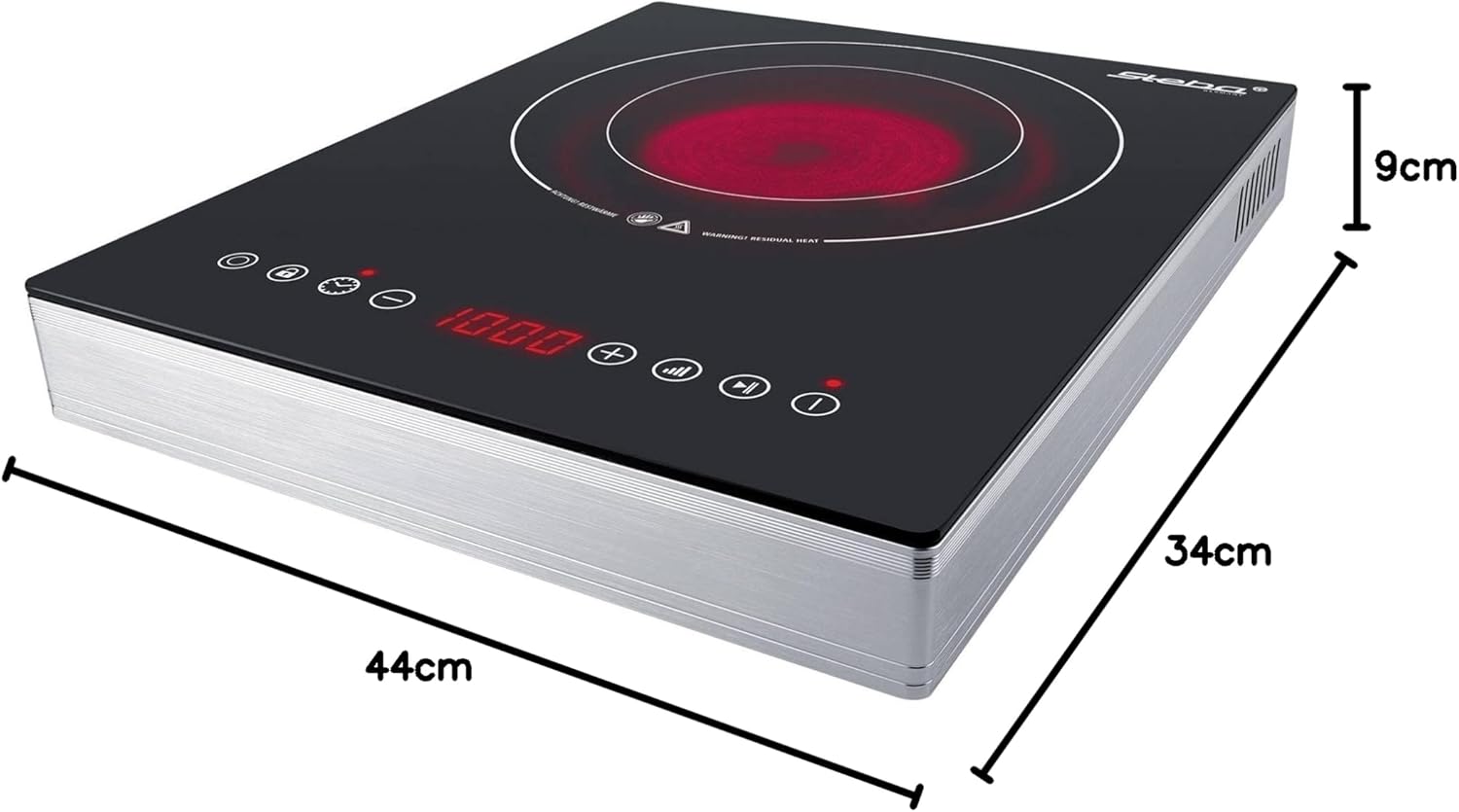

Figure 8.1: Illustrative dimensions of the Steba Glass Ceramic Hob HK 30. Refer to text specifications for precise measurements.

• Mærke: Steba
• Modelnummer: 06-33-00 (HK 30)
• Farve: Sølv, sort
• Produktmål (L x B x H): Cirka 36 x 29.5 x 6.5 cm
• Varens vægt: 2.6 kg
• Strøm/Wattage: 2000 watt
• Voltage: 230 volt
• Materiale: Stainless Steel (body), Glass Ceramic (surface)
• Heating Circuits: 2 (15 cm and 22 cm diameter)
• Effektniveauer: 7 levels (100-1000W for small, 200-2000W for large circuit)
• Timer funktion: Op til 180 minutter
• Særlige funktioner: Easy to clean, Touch Control, Mobile Use, Efficient High-Light Technology
• Energieffektivitetsklasse: A til G
• Dato først tilgængelig: 14. september 2022

9. Garanti og support

For warranty information, please refer to the warranty card included with your product or consult the retailer from whom you purchased the Steba Glass Ceramic Hob HK 30. Warranty terms and conditions may vary by region and retailer.

If you require technical support, have questions about operation, or need to arrange a repair, please contact Steba customer service or your authorized dealer. Keep your purchase receipt and model number (06-33-00) handy when contacting support.
