1. Introduktion
Thank you for choosing the Rabalux 2106 Willie LED Ceiling Lamp. This modern ceiling lamp features integrated LED lighting with dimmable functionality, adjustable color temperature (CCT), RGB color options, and a timer function, all controllable via a remote control. This manual provides essential information for safe installation, operation, and maintenance of your new lighting fixture.
Image 1.1: The Rabalux 2106 Willie LED Ceiling Lamp installed in a modern living room, showcasing its subtle integration into the decor.
2. Sikkerhedsinstruktioner
Please read and follow these safety instructions carefully to prevent accidents and ensure proper operation:
- Elektrisk sikkerhed: Installation must be performed by a qualified electrician or a person with appropriate electrical knowledge, in accordance with local wiring regulations.
- Strømafbrydelse: Always disconnect the main power supply before installation, maintenance, or cleaning. Ensure the power is off at the circuit breaker.
- Voltage: Sørg for, at forsyningen voltage opfylder de krav, der er angivet på produktetiketten.
- Montering: Monter lamp securely to a stable ceiling surface capable of supporting its weight.
- Miljø: Denne lamp is designed for indoor use only (IP20 rating). Do not expose it to moisture or extreme temperatures.
- LED-kilde: The LED light source is integrated and cannot be replaced by the user. Do not attempt to open or modify the LED module.
- Rensning: Rengør lamp kun med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Børn: Hold emballagematerialer og små dele væk fra børn.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Rabalux 2106 Willie LED Ceiling Lamp (1 enhed)
- Fjernbetjening (1 enhed)
- Monteringsudstyr (skruer, vægdyvler)
- Instruktionsmanual (dette dokument)
Note: Batteries for the remote control may not be included. Please check the remote control compartment.
4. Installation
Follow these steps for proper installation. Refer to the diagram for visual guidance.
- Forbered til installation:
- Sørg for, at hovedstrømforsyningen til installationsområdet er afbrudt ved afbryderen.
- Pak alle komponenter ud, og kontroller dem for eventuelle skader.
- Montering af basen:
- Mark the desired mounting position on the ceiling.
- Drill holes for the mounting screws, ensuring they are appropriate for the provided wall plugs.
- Fastgør lamp's mounting bracket or base to the ceiling using the provided screws and wall plugs.
- Elektrisk tilslutning:
- Connect the household electrical wires to the terminal block on the lamp's base. Ensure correct polarity (Live, Neutral, Earth).
- Dobbelttjek alle forbindelser for sikkerhed og korrekt isolering.
- Fastgøring af Lamp Legeme:
- Carefully attach the main body of the lamp to the mounted base, following the specific locking or screwing mechanism.
- Sørg for at lamp is firmly secured and flush with the ceiling.
- Endelig kontrol:
- Når installationen er færdig, skal strømmen genoprettes ved afbryderen.
- Test lamp's functionality with the remote control.

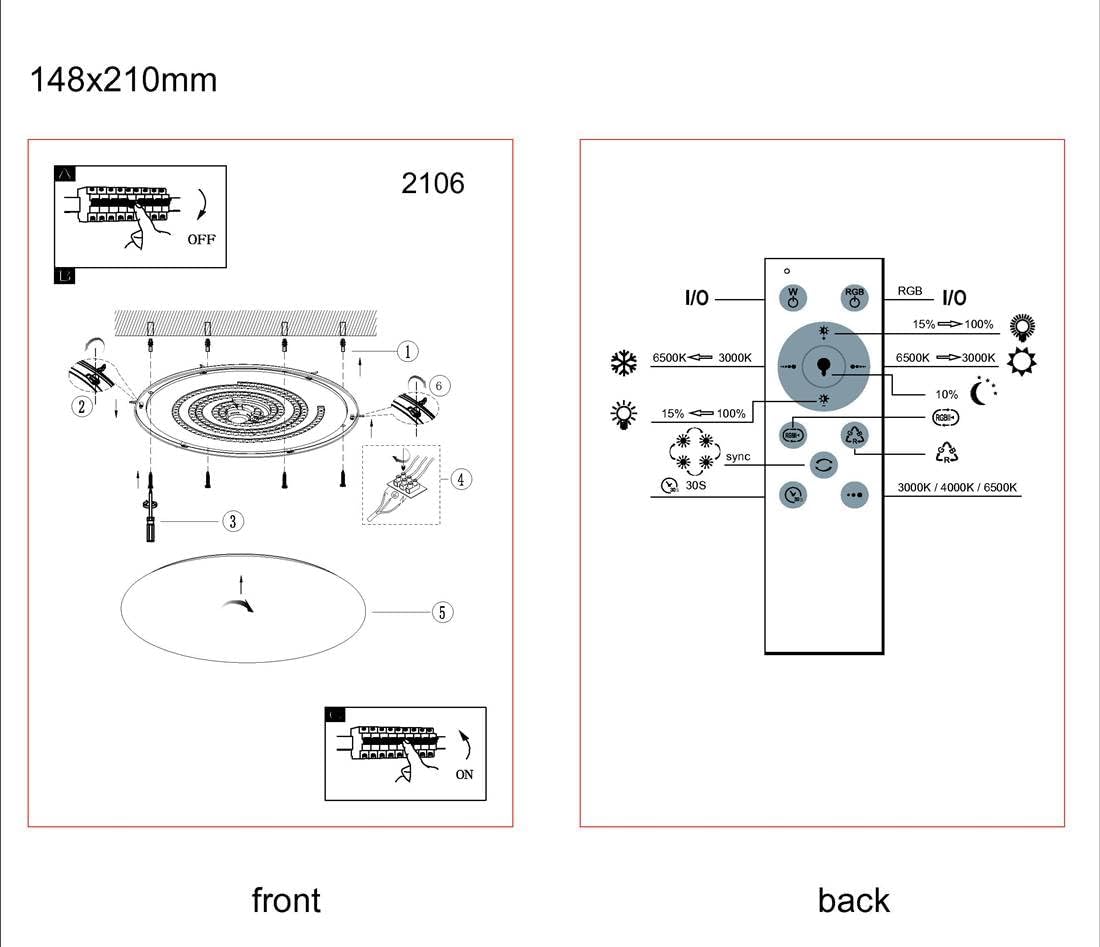

Image 4.1: Detailed installation diagram showing components and wiring connections for the ceiling lamp.
5. Betjeningsvejledning
The Rabalux 2106 Willie LED Ceiling Lamp is controlled via the included remote control. Ensure batteries are correctly inserted into the remote control.
5.1 Fjernbetjeningsfunktioner
Image 5.1: The remote control for the Rabalux 2106 Willie LED Ceiling Lamp, showing various buttons for light control.
- Power On/Off (W / RGB buttons): Press the 'W' button to turn on white light, or 'RGB' to turn on RGB color mode. Press either button again to turn off.
- Brightness Adjustment (Sun +/- buttons): Øg eller reducer lysintensiteten.
- Color Temperature (CCT) Adjustment (6500K <-> 3000K buttons): Adjust the white light from warm white (3000K) to natural white (4000K) to cool white (6500K).
- RGB-farvevalg: In RGB mode, use the dedicated RGB buttons to cycle through various colors or select specific color presets.
- Timer Function (Clock button): Activate the timer function to automatically turn off the lamp after a set period (e.g., 30 minutes). Refer to the remote control diagram for specific timer options.
- Night Light Mode (Moon button): Activates a low-brightness setting suitable for a night light.
- Hukommelsesfunktion: Lamp typically remembers the last setting used when turned off and on again.
For detailed button functions, refer to the remote control diagram provided in the installation instructions (Image 4.1, right side).
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din bils levetid og optimale ydeevne.amp.
- Rensning:
- Før rengøring skal du sikre lamp is switched off and cooled down.
- Tør lamp's overflade med en blød, tør eller let damp klæde.
- Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or plastic components.
- LED-kilde: The integrated LED light source is designed for a long lifespan and does not require replacement. Do not attempt to disassemble the lamp for at få adgang til LED'erne.
7. Fejlfinding
If you encounter issues with your Rabalux 2106 Willie LED Ceiling Lamp, se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lamp tændes ikke. | Ingen strømforsyning; løse ledninger; fjernbetjeningens batteri er afladet. | Check circuit breaker. Verify wiring connections (ensure power is off first). Replace remote control batteries. |
| Fjernbetjening virker ikke. | Batteries depleted or incorrectly inserted; remote not paired (if applicable); obstruction. | Replace batteries, ensuring correct polarity. Ensure clear line of sight to the lamp. Refer to pairing instructions if necessary (usually automatic). |
| Lyset flimrer eller dæmpes uventet. | Unstable power supply; loose connection; incompatible dimmer switch (if not using remote). | Check power supply stability. Verify wiring connections. Ensure only the provided remote control is used for dimming. |
| Color temperature or RGB not changing. | Incorrect remote mode; remote control issue. | Ensure you are in the correct mode (e.g., RGB mode for color changes). Check remote control batteries. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Model | 2106 Willie |
| Mærke | Rabalux |
| Type | LED loft Lamp |
| Materiale | Metal (housing), Plastic (shade) |
| Farve | Hvid |
| Dimensioner | Diameter: 750 mm |
| Lyskilde | Integreret LED |
| Strømforbrug | 60 W |
| Lysstrøm | 4800 lumen |
| Farvetemperatur | 3000K - 6500K (Justerbar) |
| Dæmpbar | Ja |
| RGB Function | Ja |
| Timer funktion | Ja |
| Kontrolmetode | Fjernbetjening |
| Beskyttelsesvurdering | IP20 |
| Energy Class (EU) | G (as per 2019/2015 regulation) |
Image 8.1: EU Energy Label indicating the energy efficiency class and integrated LED nature of the luminaire.
9. Garanti og support
Rabalux products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or contact your local Rabalux distributor.
For technical support or inquiries, please visit the official Rabalux website or contact their customer service department. Please have your model number (2106 Willie) and purchase details ready when contacting support.
This manual is subject to change without prior notice. Please refer to the latest version available on the manufacturer's webwebsted.
