Ruckus ZoneFlex R300 Dual Band Indoor Access Point

Indledning

This manual provides comprehensive instructions for the Ruckus ZoneFlex R300 Dual Band Indoor Access Point (Model 901-R300-US02). Designed for indoor environments, this access point offers robust wireless connectivity using both 2.4GHz and 5GHz frequency bands, enhanced by BeamFlex technology for optimized signal performance.

Nøglefunktioner omfatter:

• Two-stream MIMO 2x2:2, dual-band 2.4GHz and 5GHz operation.
• Concurrent dual-band support with 128 antenna patterns.
• BeamFlex and Transmit beamforming capabilities.
• Support for up to 250 client devices.
• Support for isochronous, multicast IP video streaming.
• Four queues per client station for efficient data handling.

Figure 1: Ruckus ZoneFlex R300 Dual Band Indoor Access Point. This image shows the top-down view of the white, rectangular access point with LED indicators visible on the front edge.

Opsætning

1. Udpakning og indhold

Before proceeding with installation, ensure all components are present. The standard package typically includes the Ruckus ZoneFlex R300 Access Point unit. Please note that the power supply is sold separately.

2. Fysisk installation

The ZoneFlex R300 is designed for flexible indoor deployment. It can be mounted on a wall or ceiling using the integrated mounting features.

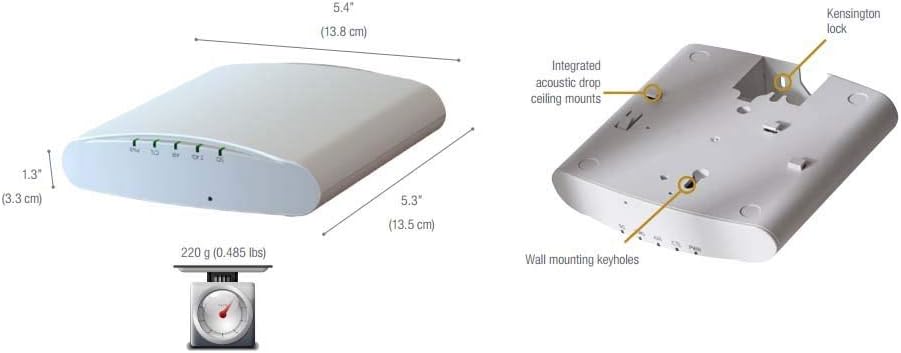

Figure 2: Physical dimensions and mounting options. This diagram illustrates the access point's dimensions (5.4" x 5.3" x 1.3") and highlights the integrated acoustic drop ceiling mounts and wall mounting keyholes on the underside.

The underside of the unit features wall mounting keyholes and integrated acoustic drop ceiling mounts for secure installation.

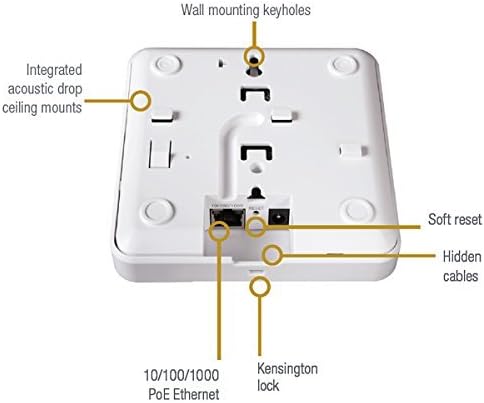

Figur 3: Underside view of the Ruckus R300. This image details the ports and features on the bottom of the access point, including the 10/100/1000 PoE Ethernet port, soft reset button, hidden cable channels, Kensington lock slot, integrated acoustic drop ceiling mounts, and wall mounting keyholes.

3. Strøm- og netværksforbindelse

The Ruckus ZoneFlex R300 can be powered via a separate power supply (12V, 1.0A) or through Power over Ethernet (PoE) via the 10/100/1000 Ethernet port. Connect an Ethernet cable from your network switch or router to the Ethernet port on the access point.

4. Indledende konfiguration

For standalone operation, the access point can be configured directly. However, for deployments involving multiple access points, a controller (sold separately) is highly recommended. Controller-specific features, such as Smart Mesh networking, are not available when the AP is running a standalone base image.

The default IP address for the access point is 192.168.0.1. The default username is 'super' and the default password is 'sp-ap-admin'. Refer to the Ruckus documentation for detailed configuration steps based on your deployment method (standalone or controller-managed).

Betjeningsvejledning

1. LED-indikatorer

The front panel of the ZoneFlex R300 features several LED indicators that provide status information:

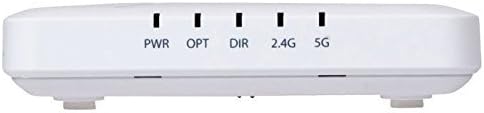

Figur 4: Forside view with LED indicators. This image highlights the five LED indicators on the front edge of the access point: PWR (Power), OPT (Optional), DIR (Directional), 2.4G (2.4GHz band activity), and 5G (5GHz band activity).

• PWR (strøm): Indikerer strømstatus.
• OPT (Optional): Reserved for future use or specific configurations.
• DIR (Directional): Indicates BeamFlex activity.
• 2.4G: Indicates activity on the 2.4GHz wireless band.
• 5G: Indicates activity on the 5GHz wireless band.

Refer to the official Ruckus documentation for detailed LED behavior and troubleshooting guides.

2. Trådløs forbindelse

The R300 operates on both 2.4GHz and 5GHz frequency bands, supporting 802.11n wireless communication standards. Clients can connect to either band depending on their capabilities and network configuration. The BeamFlex technology dynamically optimizes antenna patterns to extend range and improve throughput for connected devices.

3. Client Support and Performance

The access point is capable of supporting up to 250 concurrent client connections, making it suitable for various indoor environments. It also supports isochronous and multicast IP video streaming, with four queues per client station to ensure quality of service (QoS) for different traffic types.

Opretholdelse

1. Almen pleje

Keep the access point in a clean, dry environment. Avoid exposing it to extreme temperatures, humidity, or direct sunlight. Clean the exterior with a soft, dry cloth. Do not use liquid or aerosol cleaners.

2. Firmwareopdateringer

Tjek Ruckus-supporten med jævne mellemrum website for firmware updates. Keeping the firmware up-to-date ensures optimal performance, security, and access to new features. Follow the instructions provided by Ruckus for firmware upgrade procedures.

3. Blød nulstilling

A soft reset button is located on the underside of the unit (refer to Figure 3). This button can be used to restart the device without losing configuration settings. Consult the Ruckus documentation for specific reset procedures, including factory reset options if needed.

Fejlfinding

This section provides solutions to common issues you might encounter with your Ruckus ZoneFlex R300 Access Point.

• Ingen strøm / Enheden tænder ikke:

  Ensure the power supply (if used) is correctly connected and functional, or that the Ethernet cable is connected to a PoE-enabled port on your switch. Check the PWR LED indicator (Figure 4) for status.

• Ingen netværksforbindelse:

  Verify the Ethernet cable connection to the access point and your network. Check the network status on your router or switch. Ensure the access point has obtained a valid IP address or is configured correctly for your network.
• Dårlig trådløs ydeevne:

  Check for potential sources of interference (e.g., other wireless devices, microwaves). Ensure the access point is optimally placed, away from obstructions. Verify that client devices are connecting to the appropriate 2.4GHz or 5GHz band. Consider adjusting channel settings if interference is suspected.

• Kan ikke få adgang til konfigurationsgrænsefladen:

  Ensure your computer is on the same network segment as the access point. Try accessing the default IP address (192.168.0.1). If using a controller, ensure the access point is properly registered and managed by the controller.

• Multiple Access Points Deployment:

  For larger deployments, a Ruckus controller is highly recommended for centralized management and advanced features like Smart Mesh. Issues in multi-AP setups often stem from incorrect controller configuration or AP registration.

If issues persist, consult the detailed Ruckus ZoneFlex R300 documentation or contact Ruckus support for further assistance.

Specifikationer

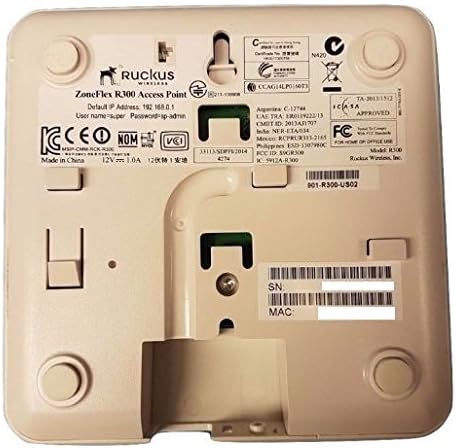

Figure 5: Product label on the underside. This image displays the regulatory and identification labels, including the model number (R300), part number (901-R300-US02), serial number, and MAC address.

Garanti og support

1. Amazons fornyede garanti

This product is part of the Amazon Renewed program. Products sold under Amazon Renewed are professionally inspected and tested to work and look like new. If you are not satisfied with your purchase, renewed products are eligible for replacement or refund under the Amazon Renewed Guarantee. Please refer to the Amazon Renewed terms and conditions for full details regarding the warranty period and claims process.

2. Teknisk support

For technical assistance, configuration guidance, or advanced troubleshooting, please refer to the official Ruckus Networks support website. You may also contact the seller, Three Kings Telecom, for support related to your Amazon Renewed purchase.

It is recommended to have your product's model number (R300) and serial number (found on the product label, Figure 5) ready when contacting support.
