TAMCO T3 Kids Electric Motorcycle User Manual

1. Sikkerhedsoplysninger

Please read all instructions carefully before assembly and use. Adult supervision is required at all times.

ADVARSEL: KVÆLNINGSFARE - SMÅ DELE. Ikke egnet til børn under 3 år.

• Always ensure the child wears appropriate safety gear, including a helmet.
• Do not operate the motorcycle near stairs, hills, roads, or swimming pools.
• Ensure the riding area is clear of obstacles and hazards.
• Kun én rytter ad gangen.
• Maximum load weight: 66 LB.

2. Produktet er slutview

The TAMCO T3 Kids Electric Motorcycle is designed for children aged 3-5 years, offering an engaging riding experience with safety features like training wheels and hand control. It includes light-up wheels and a music function for added enjoyment.

Image: The TAMCO T3 Kids Electric Motorcycle in pink, featuring glowing wheels and a sporty design.

Nøglefunktioner:

• Hand Control Motorcycle with Lighting Wheels: Provides a realistic riding experience with a hand throttle and foot brake pedal. Lighting wheels enhance visibility and appeal at night.
• Let at køre: Equipped with two large wheels and two small training wheels for stability, ensuring the motorcycle remains upright.
• Musik funktion: Includes an MP3 player with USB slot and auxiliary input for playing music.
• Magt: Features a 12V battery and a 12V 550 35W motor.
• Hastighed: Operates at speeds between 1.8-3.2 MPH (3-5 KM/H).

Image: An infographic highlighting the motorcycle's core components: 12V7AH UL battery, 12V 550 35W motor, luminous wheels, and twist-grip throttle.

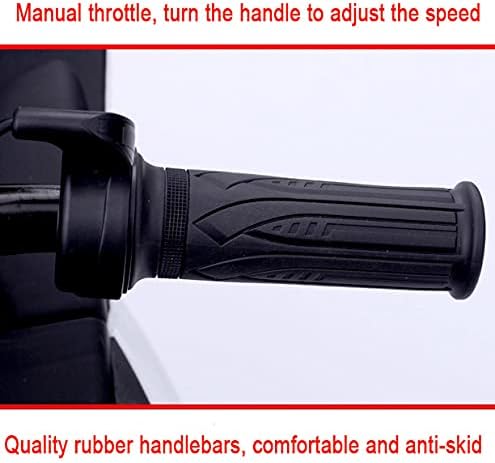

Billede: Et nærbillede view of the quality rubber handlebars and twist-grip throttle, designed for comfortable and anti-skid operation.

3. Opsætning og montering

Assembly of the TAMCO T3 Electric Motorcycle is required and should be performed by an adult. Follow the included instructions step-by-step.

Indledende trin:

1. Unpack all components from the box. The package includes the car body and charger.
2. Connect the battery: Locate the battery compartment, typically under the seat. Unscrew the seat and connect the battery terminals as instructed.
3. Attach the training wheels, handlebars, and any other accessories according to the assembly guide.
4. Perform an initial charge of the battery before first use.

4. Opladningsinstruktioner

Proper charging ensures optimal performance and battery longevity.

• Opladningstid: 8-12 hours for a full charge. The intelligent charging system automatically controls the charging process.
• Brugstid: Approximately one hour per charge, depending on riding speed and child's weight.
• Use only the provided 12V charger.
• Monitor the battery level indicator on the dashboard. Recharge when the numerical value is less than 5, or ideally when less than 10 for best practice.

Image: A visual representation of various features, including the 12V7AH battery and the included 12V charger.

5. Betjeningsvejledning

Familiarize yourself with the controls before operating the motorcycle.

Image: A detailed diagram illustrating the control panel and handlebar functions, including the power button, forward/reverse switch, throttle, and MP3 player controls.

1. Tænd/sluk: Press the power button (1) to turn the vehicle on or off.
2. Frem/tilbage: Use the forward/reverse switch (2) to change the direction of movement.
3. Speed Control (Throttle): The throttle grip (3) controls speed. Turn the grip counter-clockwise to accelerate and clockwise to slow down or stop.
4. Fodbremse: Apply pressure to the foot brake pedal to stop the motorcycle.
5. MP3 Player Functions (4):
   • Auxiliary Input (A): Allows audio from a portable music player to be played through the motorcycle speakers.
   • USB Slot (B): Supports MP3 format for music playback.
   • Light and Music (C): Press to turn on lights and music.
   • Music Mode/Increase Volume (D): Cycles through music modes or increases volume.
   • Storytelling Mode/Decrease Volume (E): Activates storytelling mode or decreases volume.
   • Next Track/Wireless Connection (F): Plays the next song or initiates wireless connection.
   • Display Screen (G): Shows the power level of the battery.

6. Vedligeholdelse

Regular maintenance helps prolong the life of your electric motorcycle.

• Keep the motorcycle clean by wiping it with a damp klæde. Undgå at bruge skrappe kemikalier.
• Store the motorcycle in a dry, covered area away from direct sunlight and moisture.
• Kontrollér alle skruer og fastgørelseselementer med jævne mellemrum for at sikre, at de er spændte.
• Inspect the wheels and training wheels for wear and tear.
• Ensure the battery is fully charged before storing for extended periods to prevent damage.

7. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige fejlfindingstrin:

• Motorcycle does not start:
  • Kontroller, om batteriet er fuldt opladet.
  • Ensure the battery connectors are securely attached.
  • Verify the power button is pressed.
• Motorcycle runs slowly:
  • Batteriet kan være lavt; genoplad det.
  • Ensure the riding surface is smooth and flat.
  • Check if the load exceeds the maximum weight capacity (66 LB).
• Lights or music not working:
  • Kontroller batteriniveauet.
  • Ensure connections to the MP3 player are secure.

For yderligere assistance henvises til afsnittet Garanti og support.

8. Specifikationer

Image: A visual representation of the motorcycle's dimensions: 43 inches in length, 13.2 inches in width, and 23 inches in height.

9. Garanti og support

TAMCO is committed to customer satisfaction. If you experience any issues with your product, please contact us directly.

• Damaged or Missing Accessories: If any accessories are damaged or missing upon receipt of your item, please contact TAMCO customer support immediately.
• Installationshjælp: If you require clarification or assistance with the installation process, our support team can provide service videos or phone support.
• Sikkerhedscertificering: This product holds FM963 kids safety Certificate.

For support, please visit the official TAMCO store or contact the seller directly through your purchase platform.
