Moen 87245SRS Køkkenarmatur med nedtræk Brugermanual

Indledning

Thank you for choosing a Moen product. This manual provides detailed instructions for the installation, operation, and maintenance of your Moen 87245SRS Pull-down Kitchen Faucet. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.

Vigtige sikkerhedsoplysninger: Always turn off the main water supply before installing or servicing the faucet. If you are unsure about any part of the installation process, it is recommended to consult a qualified plumber.

Produkt overview

The Moen 87245SRS is a single-handle pull-down kitchen faucet designed for convenience and durability. It features a high-arc spout, a flexible pull-down spray head, and a Spot Resist Stainless finish that helps resist fingerprints and water spots.

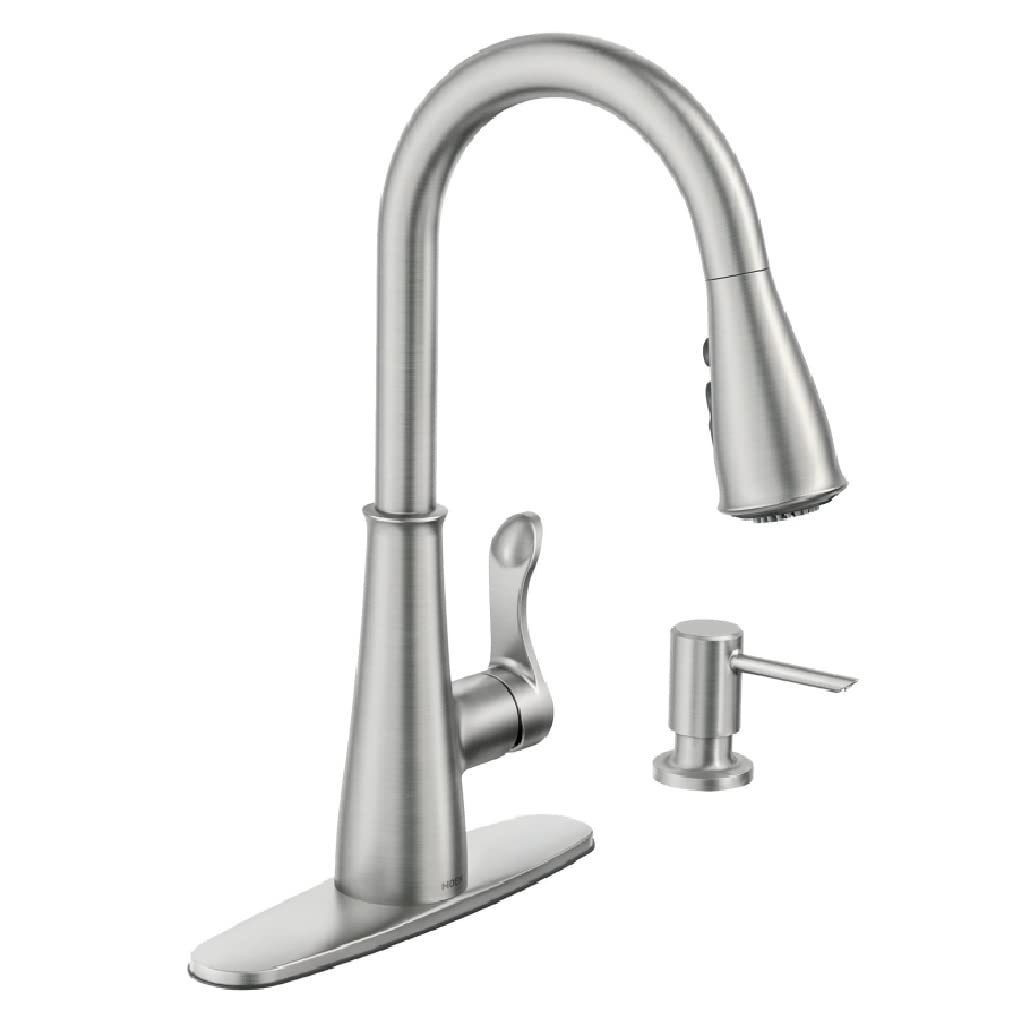

This image displays the Moen 87245SRS pull-down kitchen faucet, featuring a high-arc spout, a single lever handle for water control, and a pull-down spray head. A separate matching soap dispenser is also shown. The faucet has a Spot Resist Stainless finish.

Nøglefunktioner:

• Pull-down Sprayer: Offers flexible water delivery for various kitchen tasks.
• Single Handle Operation: Provides precise control over water temperature and flow.
• Pletbestandig rustfri finish: Resists fingerprints and water spots for a cleaner-looking kitchen.
• Deck Mount Installation: Designed for easy installation on your kitchen sink or countertop.
• Included Deck Plate: Accommodates both 1-hole and 3-hole sink configurations.

Opsætning og installation

Before installation, ensure you have all necessary tools and components. Refer to the included parts list to verify all items are present. It is recommended to have a qualified professional install this faucet.

Nødvendige værktøjer (ikke inkluderet):

• Justerbar skruenøgle
• Stjerneskruetrækker
• VVS-kit eller silikoneforsegling
• Lommelygte
• Sikkerhedsbriller

Installationstrin:

1. Sluk for vandforsyningen: Locate the main water shut-off valves (hot and cold) under the sink and turn them off completely.
2. Fjern den gamle vandhane (hvis relevant): Disconnect the water supply lines from the old faucet and remove any mounting hardware. Lift the old faucet from the sink.
3. Forbered monteringsoverfladen: Clean the sink or countertop surface where the new faucet will be installed. If using the deck plate, apply plumber's putty or silicone sealant to the underside of the deck plate.
4. Installer vandhane: Insert the faucet body through the hole(s) in the sink or deck plate. From underneath the sink, secure the faucet using the provided washer and mounting nut. Tighten securely with an adjustable wrench.
5. Tilslut vandforsyningsledninger: Attach the hot and cold water supply lines from the faucet to the corresponding shut-off valves. Ensure connections are hand-tight, then use a wrench for a quarter-turn more. Do not overtighten.
6. Install Weight on Hose: Attach the hose weight to the pull-down hose at the marked location (typically 6-8 inches from the spray head connection) to ensure proper retraction.
7. Skyllehane: With the faucet handle in the off position, slowly turn on the hot and cold water supply valves. Check for leaks. Remove the spray head and turn on the faucet to flush out any debris from the lines for approximately one minute. Turn off the faucet, reattach the spray head, and check for leaks again.

Betjeningsvejledning

Your Moen 87245SRS faucet is designed for simple and intuitive operation.

• Vandgennemstrømning og temperatur: Enkeltgrebet styrer både vandgennemstrømning og temperatur.
  • Lift the handle to turn on the water and increase flow.
  • Lower the handle to decrease flow and turn off the water.
  • Move the handle to the left for hot water.
  • Move the handle to the right for cold water.
• Pull-down Sprayer:
  • Tag fat i sprøjtehovedet og træk det ned fra tuden. Den fleksible slange giver længere rækkevidde.
  • Press the button(s) on the spray head to switch between spray and stream functions.
  • When finished, guide the spray head back into the spout. The hose weight will assist in retraction.

Opretholdelse

Regelmæssig rengøring og vedligeholdelse vil bidrage til at bevare finishen og funktionaliteten af ​​din Moen-vandhane.

• Rengøring af finishen:
  • Rengør den pletfri rustfri overflade med en blød, tør klud.amp klud og mild sæbe.
  • Undgå slibende rengøringsmidler, stærke kemikalier eller skuresvampe, da disse kan beskadige overfladen.
  • Tør efter med en blød klud for at undgå vandpletter.
• Rengøring af sprøjtehovedet:
  • Mineral deposits can accumulate on the spray nozzles over time. Gently rub the rubber nozzles with your finger or a soft brush to dislodge any buildup.
• Vedligeholdelse af belufter:
  • If water flow decreases, the aerator may be clogged. Unscrew the aerator from the tip of the spray head (if removable).
  • Rinse the aerator screen under running water to remove debris.
  • Sæt perlatoren på igen, og sørg for, at den er forsvarligt fastspændt.

Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på med din vandhane. Ved problemer, der ikke er nævnt her, bedes du kontakte Moens kundesupport.

Specifikationer

Garanti og support

Moen-produkter er fremstillet under de højeste standarder for kvalitet og håndværk. Denne Moen-vandhane leveres med en livstids begrænset garanti mod lækager, dryp og finishfejl til den oprindelige køber.

For detailed warranty information, technical assistance, or to order replacement parts, please contact Moen customer support directly. You can typically find contact information on the Moen website or by searching for "Moen customer service".

When contacting support, please have your model number (87245SRS) and proof of purchase available.
