iROCKER 12V elektrisk SUP-pumpe brugsanvisning

Produkt overview

The iROCKER 12V Electric SUP Pump is designed for fast and efficient inflation and deflation of iROCKER, BLACKFIN, and HOBIE inflatable paddle boards, iROCKER Inflatable Kayaks, and iLAND float products. It features a dual-stage auto-off function and a digital display for precise pressure setting.

Nøglefunktioner

• Fast & Easy Inflation/Deflation: Inflates SUPs in 12 minutes or less and includes a deflate function.
• Dobbelt Stage Auto-Off & Digital Display: Set desired PSI (15 PSI recommended); pump automatically stops when target pressure is reached.
• Bred kompatibilitet: Works with iROCKER, BLACKFIN, HOBIE SUPs, iROCKER Inflatable Kayaks, and iLAND floats.
• Holdbart og bærbart design: Compact size (7" x 8.5" x 4") with a convenient carry handle and cord storage.
• Alsidige strømmuligheder: Connects to 12V cigarette lighter or 12V battery (not included).

Sikkerhedsoplysninger

• Do not operate the pump in wet conditions or near water.
• Opbevares utilgængeligt for børn.
• Sørg for korrekt ventilation under drift for at forhindre overophedning.
• Do not block the air intake or exhaust ports.
• Afbryd strømmen, når den ikke er i brug, eller før rengøring.
• Do not exceed the maximum recommended PSI for your inflatable product.

Pakkens indhold

Kontroller venligst, at alle varer er inkluderet i din pakke:

• iROCKER 12V Electric SUP Pump
• Inflation/Deflation Hose
• 12V cigarettænderadapter
• Alligator Clips for 12V Battery Connection

Image: The iROCKER Electric SUP Pump shown with its blue hose, illustrating the main components included in the package.

Opsætning

Strømtilslutning

1. For Vehicle 12V Outlet: Insert the 12V cigarette lighter adapter into your vehicle's 12V power socket.
2. For External 12V Battery: Connect the alligator clips to a 12V battery, ensuring correct polarity (red to positive, black to negative).

Slangetilslutning

Connect the blue inflation hose to the appropriate port on the pump. For inflation, connect to the "INFLATE" port. For deflation, connect to the "DEFLATE" port. Ensure the hose is securely twisted onto the valve.

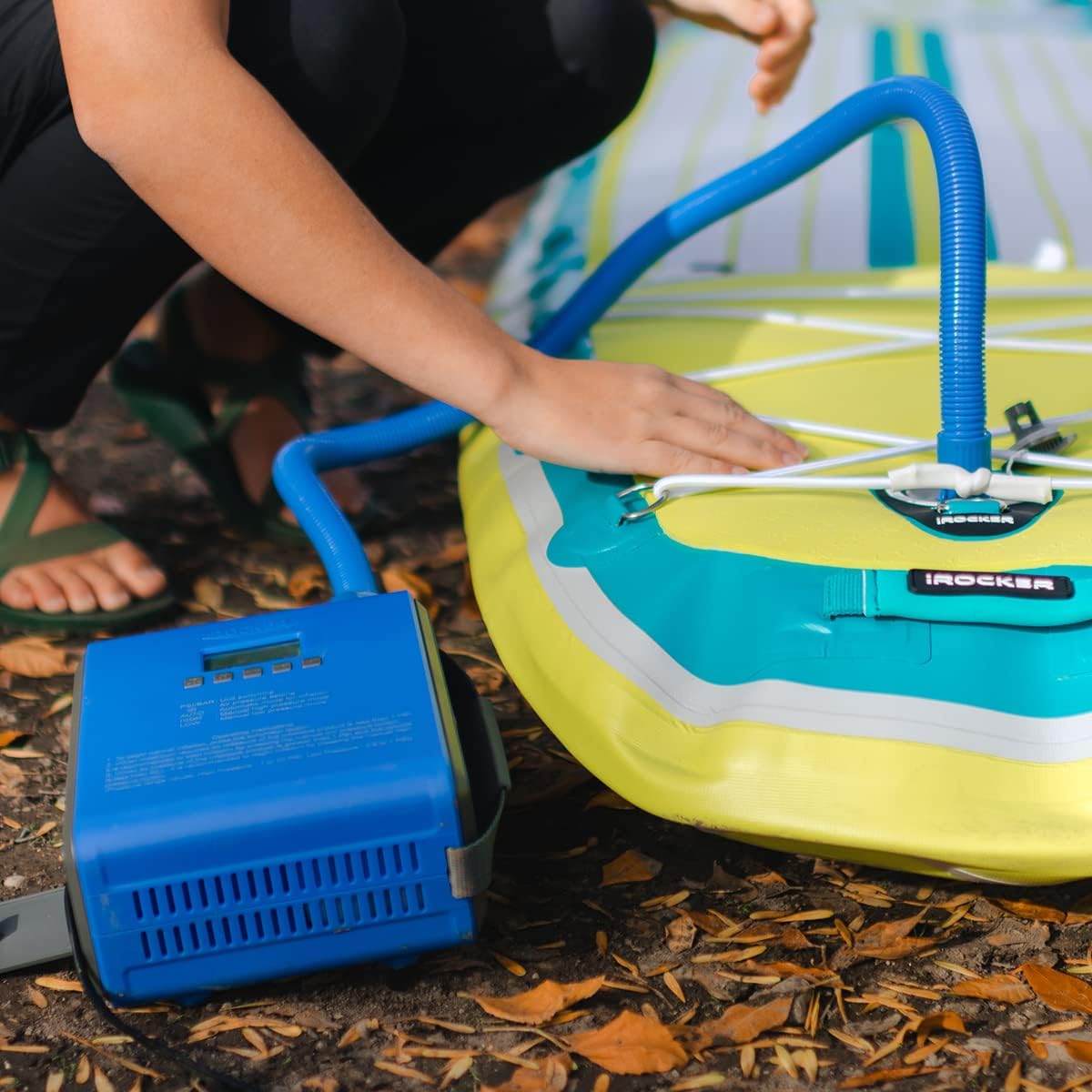

Image: A hand connecting the blue hose from the pump to the inflation valve of an inflatable paddle board.

Betjeningsvejledning

Setting Desired Pressure (PSI/BAR)

1. Power on the pump. The digital display will illuminate.
2. Press the "PSI/BAR" button to switch between PSI and BAR units.
3. Use the "+" and "-" buttons to set your desired target pressure. For most iROCKER SUPs, 15 PSI is recommended.

Billede: Nærbillede view of the iROCKER pump's digital display and control buttons, showing the PSI/BAR unit switching and pressure setting options.

Inflationsproces

1. Connect the hose to the "INFLATE" port on the pump and securely attach the other end to your inflatable product's valve.
2. Automatisk tilstand: If the air pressure of the inflatable product is less than 1 PSI, press the "AUTO" button to begin normal inflation. The pump will automatically switch from high volume to high pressure mode and stop when the set PSI is reached.
3. Manual Low Pressure Mode: If the maximum required air pressure of the inflatable product is less than 1 PSI, it is recommended to start inflation by pressing the "LOW" pressure button.
4. Manual High Pressure Mode: When air pressure of the inflatable product is greater than 1 PSI and the volume is less than 50 L, it is recommended to begin inflation by pressing the "HIGH" pressure button.

Image: A person's hand pressing a button on the iROCKER pump, which is connected to an inflatable paddle board, initiating the inflation process.

Deflationsproces

1. Connect the hose to the "DEFLATE" port on the pump and securely attach the other end to your inflatable product's valve.
2. Press the "DEFLATE" button to begin deflating the product. The pump will actively remove air, making packing easier.

Image: The iROCKER pump actively deflating an inflatable paddle board, showing the hose connected to the deflation port.

Opretholdelse

• Rensning: Wipe the pump exterior with a damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Opbevaring: Store the pump in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the hose is detached and stored neatly in the cord storage compartment.
• Luftfilter: Periodically check the air intake filter for debris and clean if necessary to maintain optimal performance.

Fejlfinding

Specifikationer

Garanti og support

The iROCKER 12V Electric SUP Pump comes with a 1-Year Manufacturer's Warranty. For warranty claims, technical support, or any product-related inquiries, please contact iROCKER customer service.

Visit the official iROCKER webwebstedet for de mest opdaterede supportoplysninger og kontaktoplysninger.
